Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Description:

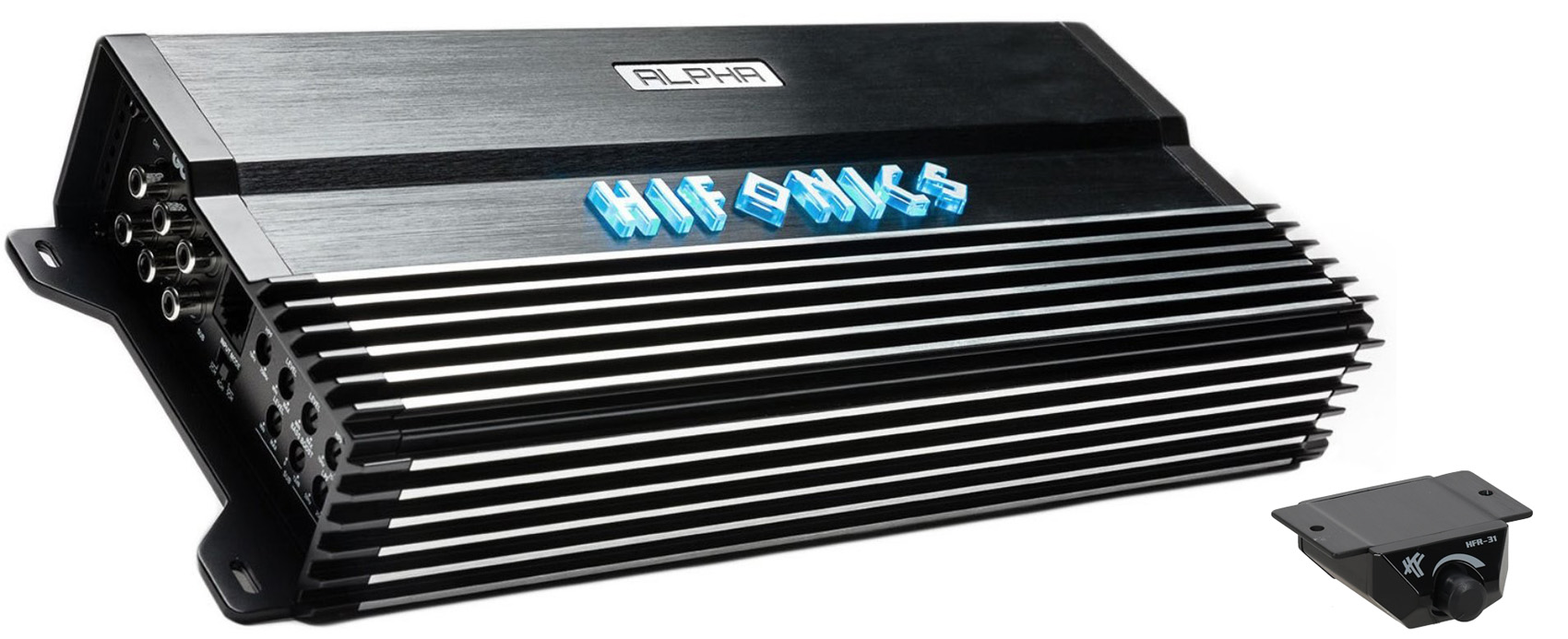

2500 watt Hifonics A2500.5D ALPHA series five channel hybrid Full Range Super D-Class® and Super D-Class® Technologies car audio amplifier with electronic crossovers utilizing Ultra-Fi MOSFETS for high power and efficiency cooling with minimal distortion. Bass remote included.

Features & Benefits:

• Low Noise Preamplifier Circuit

  • Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
• RCA Inputs

  • Nickel plated RCA connectors for audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection.
• Operation Mode

  • Flexible installation allows this amplifier to run in four channel or mono mode simultaneously.
• Crossover Type

  • Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies.
• Electronic Equalizer

  • Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Class / Topology

  • Developed over 4 decades of engineering to deliver the highest level of sound quality and power efficiency. Hifonics ALPHA Super D-Class® and Full Ranger Super D-Class hybrid Five Channel topology results in lower distortion, higher current efficiencies and less heat than conventional amplifier designs.
• Output Device Technology

  • The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.
• Heat Sink

  • Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled.
• Power Supply

  • The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

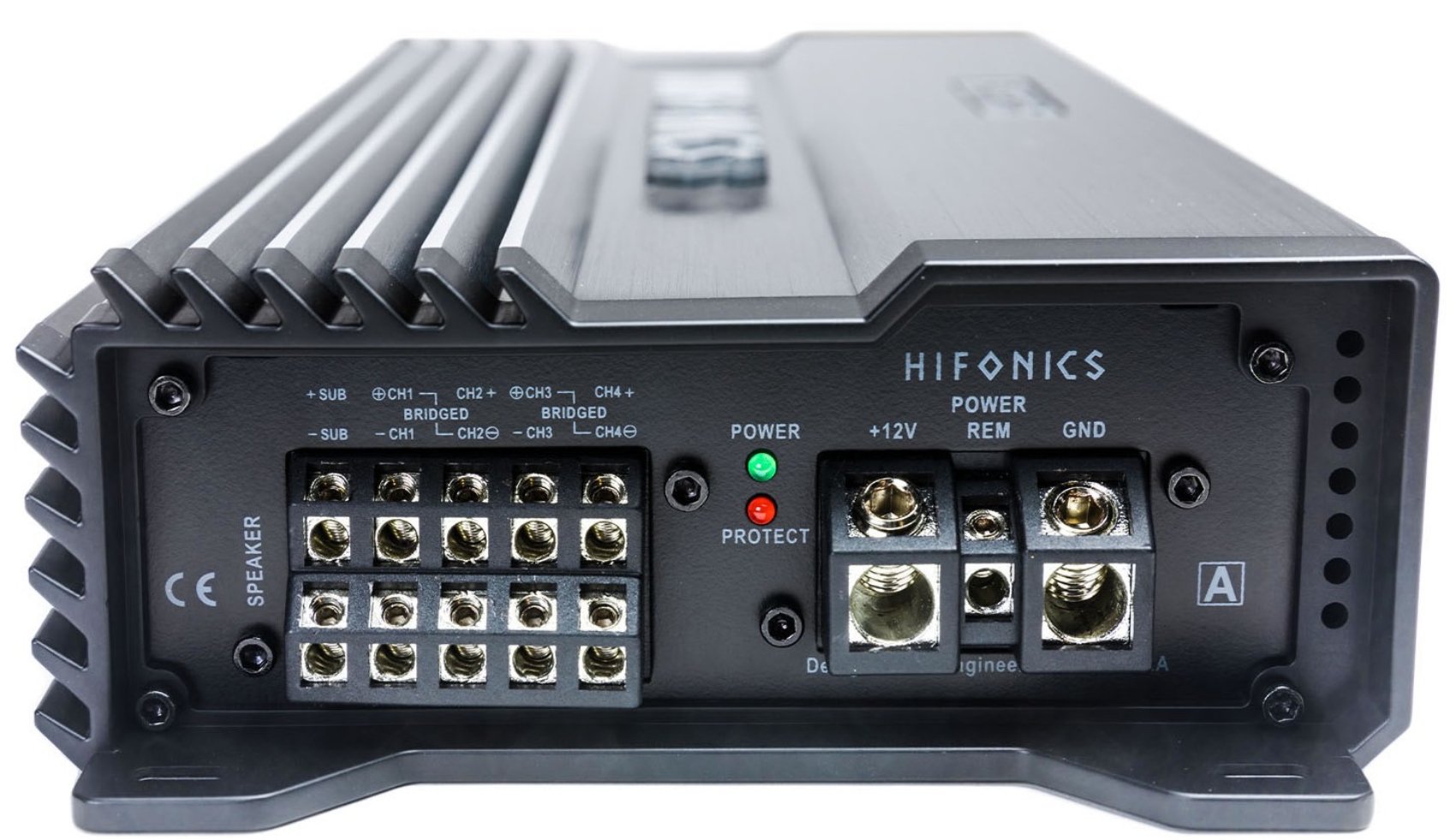

• Output Connections

  • Nickel-plated, high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• Connection Type

  • Secure connection for all power, ground and speaker connections. Angled for ease of access during installation.
• LED System Protection Circuitry Diagnostics

  • Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.

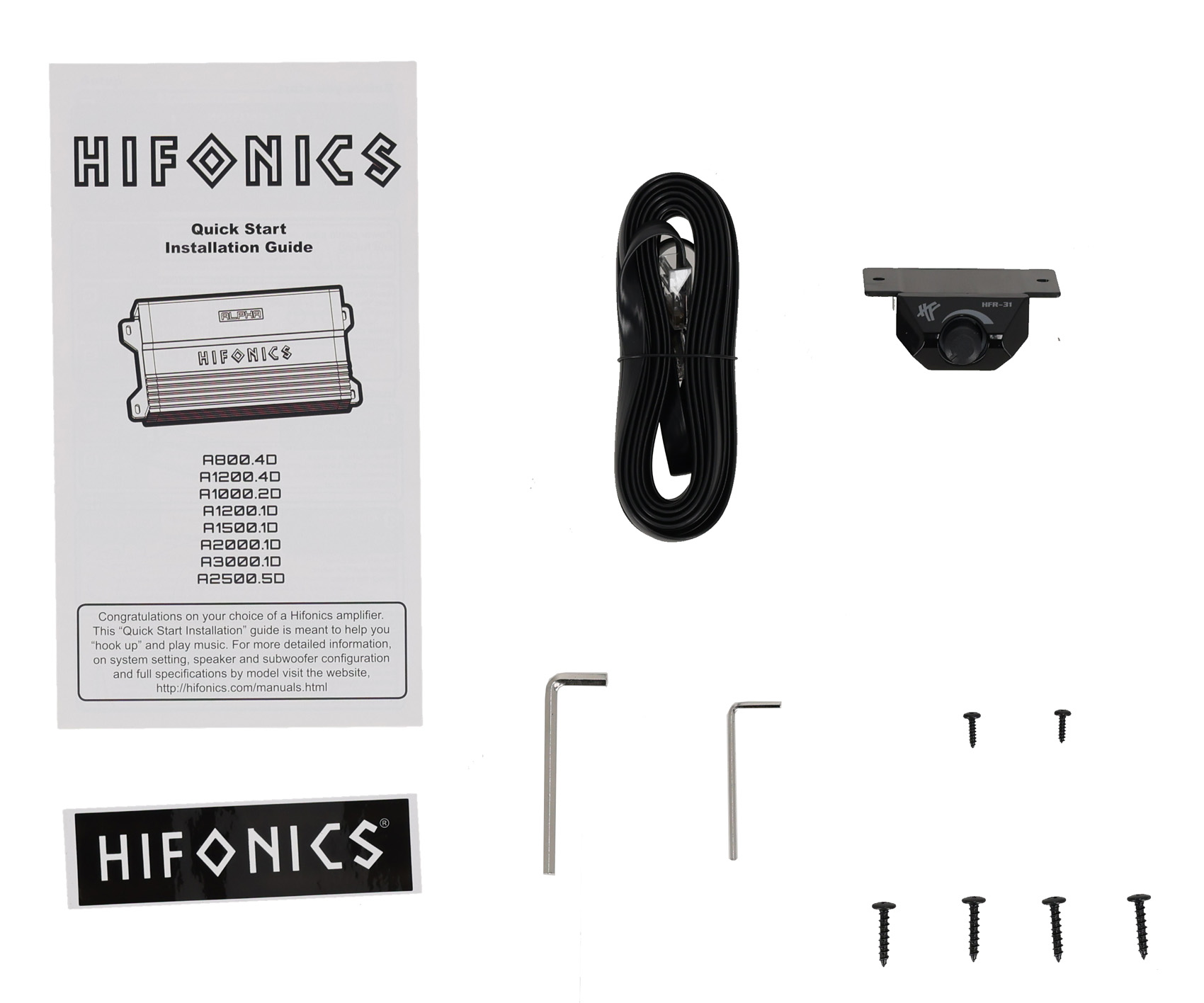

• Bass Remote Included

  • HFR-31 (CH 5 only): Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look.
• Full Range Digital

  • Full Range Super D Class, high efficiency/high power technology to deliver maximum wattage. With this focus on engineering, big sound while remaining very musical in a compact chassis is the result.
• SMT Inside

  • With Surface Mount Technology the typical "through-hole" placement and the larger tolerances from human placement is dramatically improved. In addition, circuit engineers can design better circuits for power and sound quality as the tolerances of SMT components are superior to larger "through-hole" components. Because of their lower mass SMT components withstand shock and vibration making them perfect for audio designed for all vehicles.
• Additional Features

  • 300KHZ HIGH SPEED PULSING: The switching speed of the Class D chip puts the amplifier sampling frequencies at over 100 times higher than human ears can hear. This means that the amplifier and the very fast digital switching remains un-hearable in the audio bandwidth for music.

Details & Specs:

• Color: Black
• Warranty: 1 Year
• Compatible Vehicles: Universal
• Amp Class: Full Range Super D-Class®, Super D-Class®
• Amp Total Channels: 5
• Amp Max Power (watts): 2500
• Amp Power @ 1 Ohm (ch x watts): 1 x 750 (CH5 only)
• Amp Power @ 2 Ohms (ch x watts): 4 x 100 + 1 x 450
• Amp Power @ 4 Ohms (ch x watts): 4 x 60 + 1 x 250
• Amp Crossover: Electronic
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: 10Hz-250Hz, CH3 & CH4: 10Hz-250Hz
• Amp Variable Low Pass Crossover 12dB per Octave: CH5: 50Hz-250Hz
• Amp Tone Control / Parametric EQ: Bass EQ
• Amp Bass Boost: 0-12dB @ 45Hz
• Amp Variable Voltage: 0.2-10V
• Amp Signal to Noise: > 85dB
• Amp Frequency Response: CH1-4: 10Hz-250Hz, CH5: 50Hz-250kHz
• Amp Total Harmonic Distortion (THD): < 0.05%
• Amp Speaker Level Audio Inputs: Yes
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: CH1-4: 18 AWG, CH5: 16 AWG
• Amp Fusing: Use Extermal Fuse
• Additional Details: TURN ON CIRCUIT (CH1-4 only): Switched - Remote Turn-On / Signal Sense On, HEATSINK SIZE: Length 13.0in x Depth 9.25in x Height 2.37in
