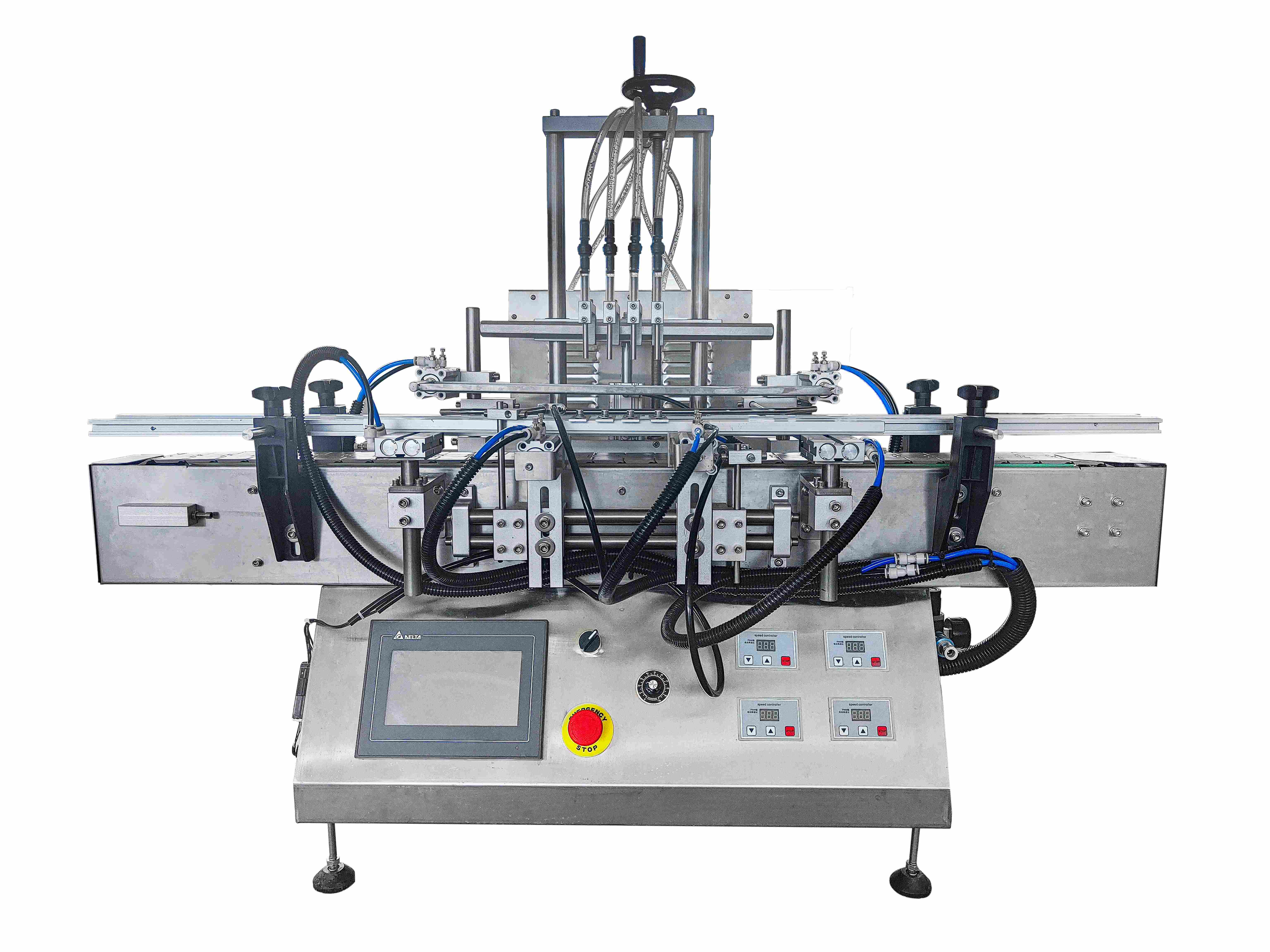

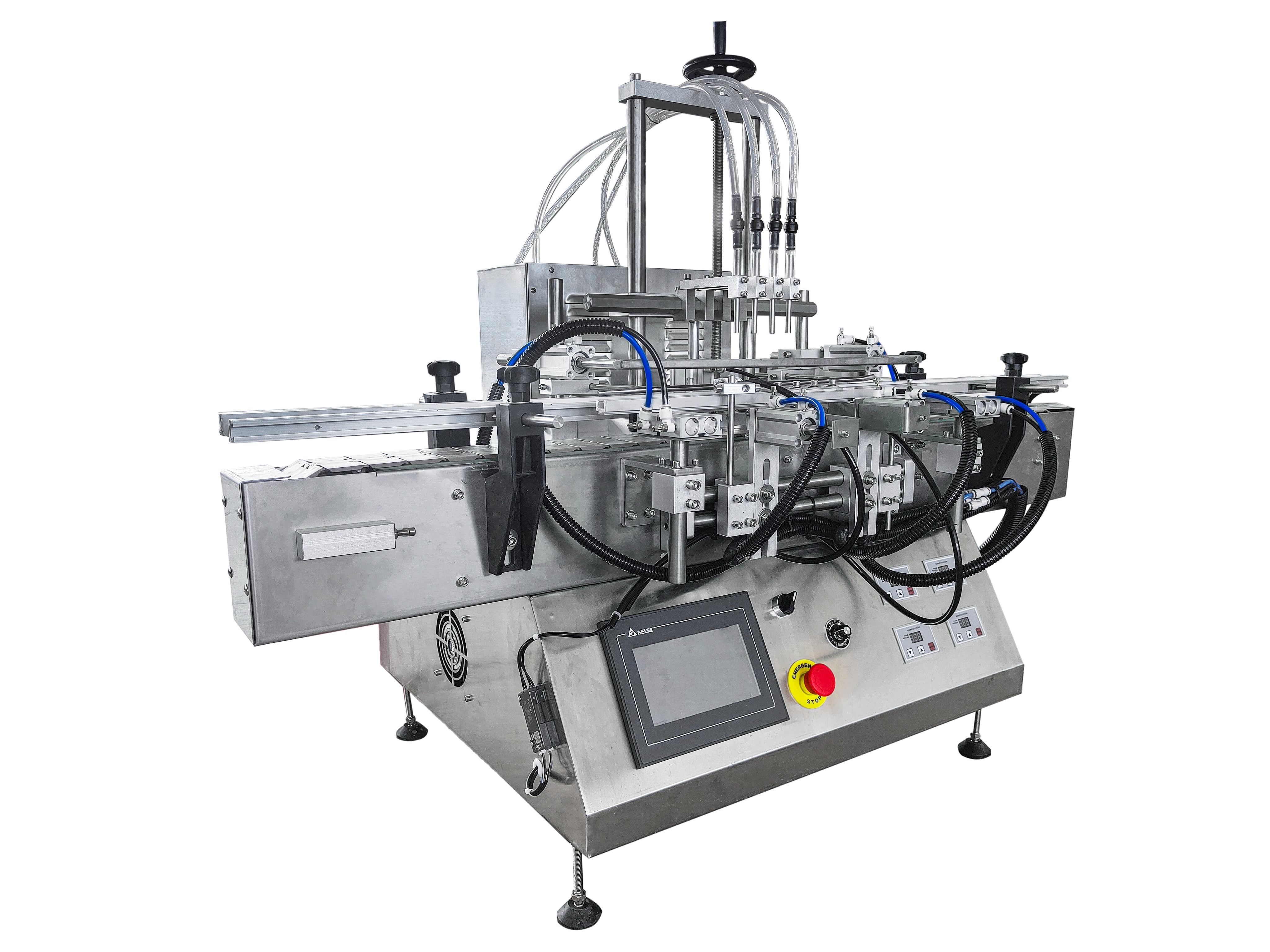

Fully Auto Desktop 4-Head 4L Gear Pump Liquid Filling Machine Oil Inks Perfume

Product Description

Description:

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt, this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil, solution,eye drops,inks,perfume etc.



Power Supply

220V/110V 50-60Hz 400W

Machine Pump

316L Stainless Steel Magnetic Pump

Recommended Filling Range

5-5000mL

Filling Speed

20-30bottles/min(depend on material and bottle size)

Suitable Bottle Size

H: 100-200mm

Conveyor Size

1200mm*100mm(L*W)

Diameter of Filling Nozzle

OD 6/8mm

Filling Time Range

0.01-999.9s

Filling Accuracy

±0.5%

Size of Air Compressor Connector

OD 8mm

Machine Size

About 1200*700*850mm

Package Size

About 1400*900*950mm

Net Weight

About 65kg

Gross Weight

About 100.5kg



Feature:

Control Panel

Through PLC control panel,you can set parameters like filling time and delay time.It has automatic counting function and the number of filled bottles will display on the panel. Visual and accurate The language of the panel can be customized as needed.

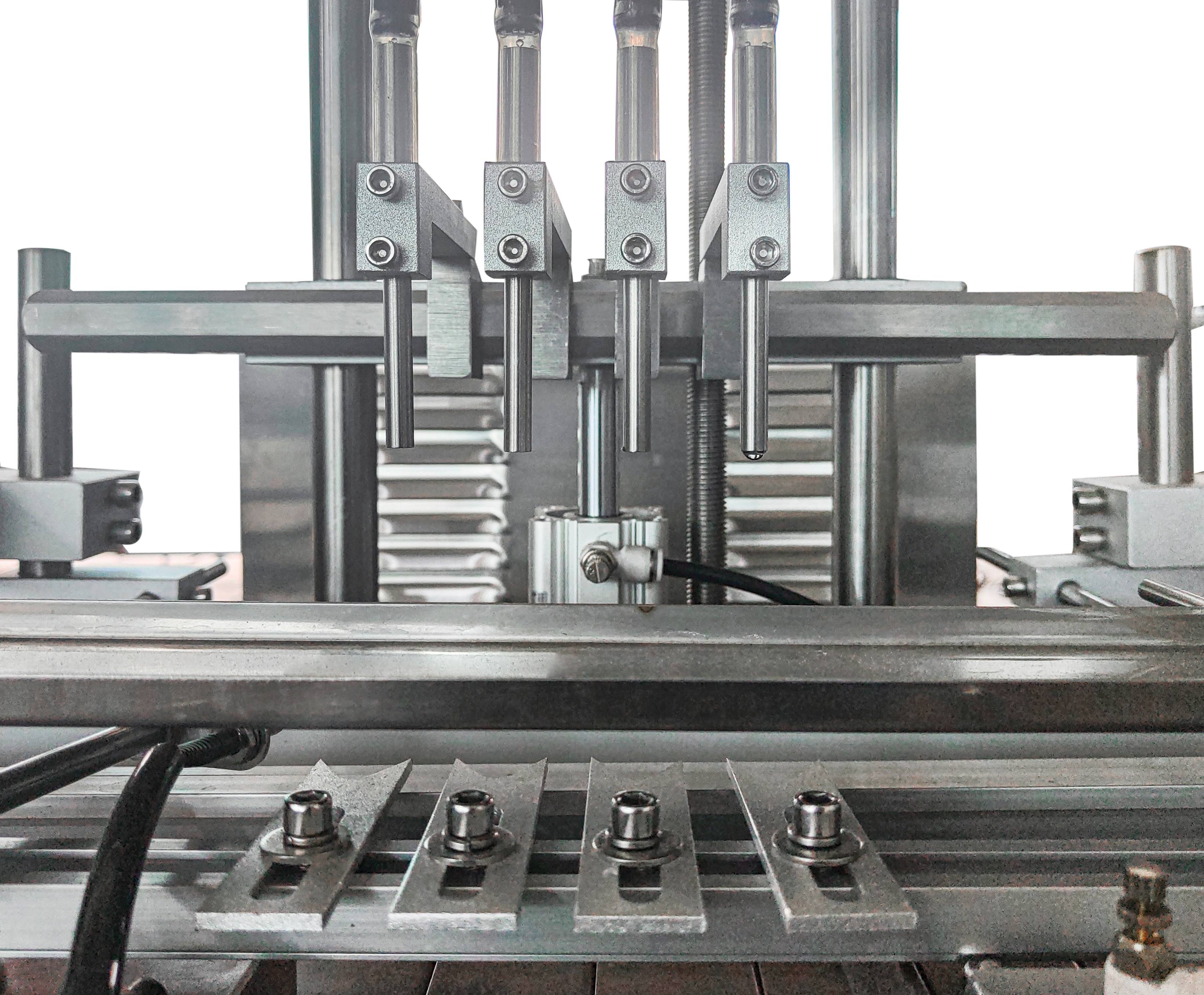

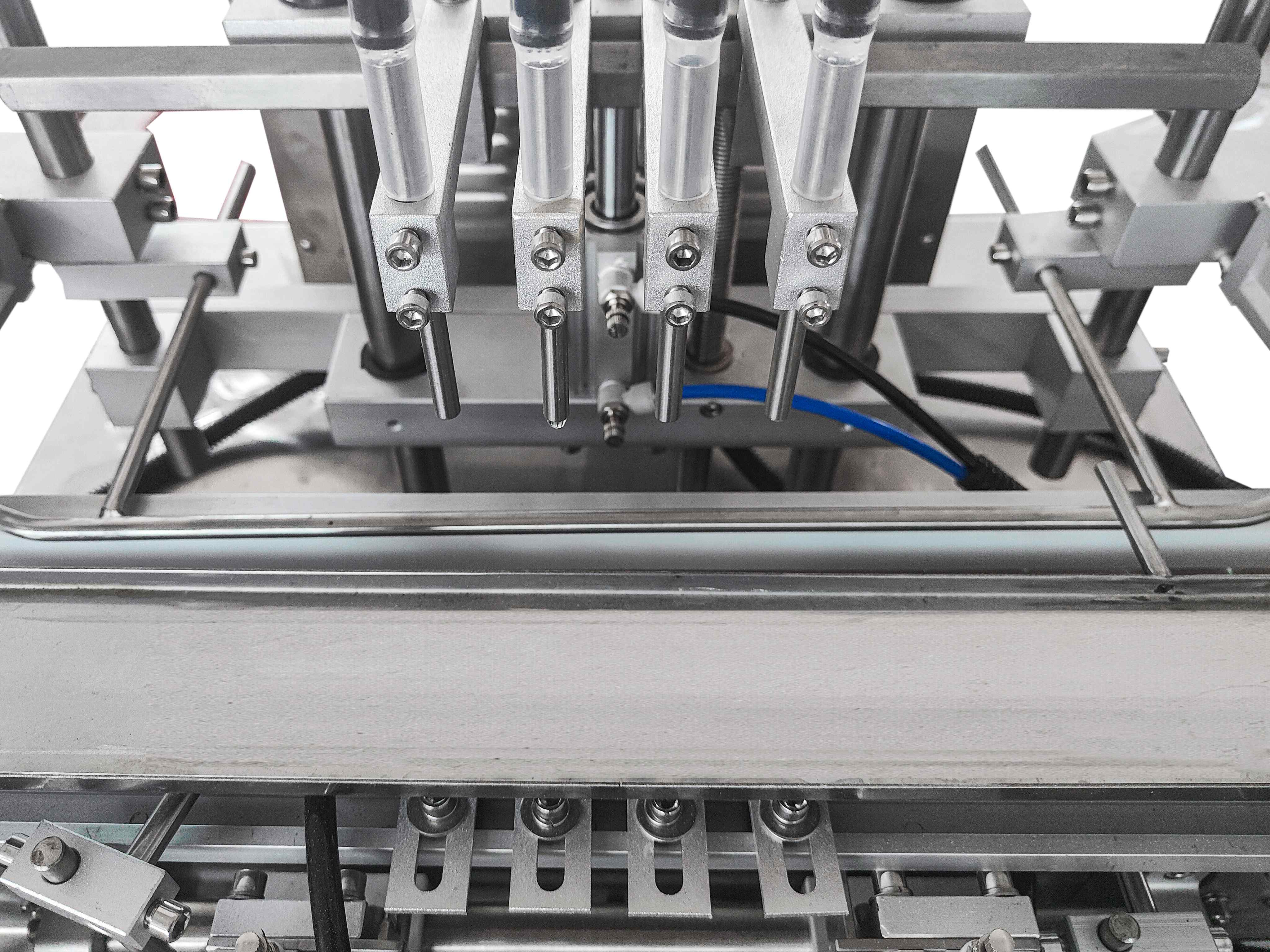

Filling Heads

The filling speed and time of four heads can be controlled separately.Easy to operate.With anti-dripping function,they can fill liquid accurately.The height of the heads can be adjusted as needed, making it suitable for bottles of different heights.



Electric Eyes

They are designed for detecting the bottles and controlling the machine to fill liquid automatically,saving labor cost.The sensitivity of electric eyes can be adjusted by the sensitivity regulator. Easy and convenient.

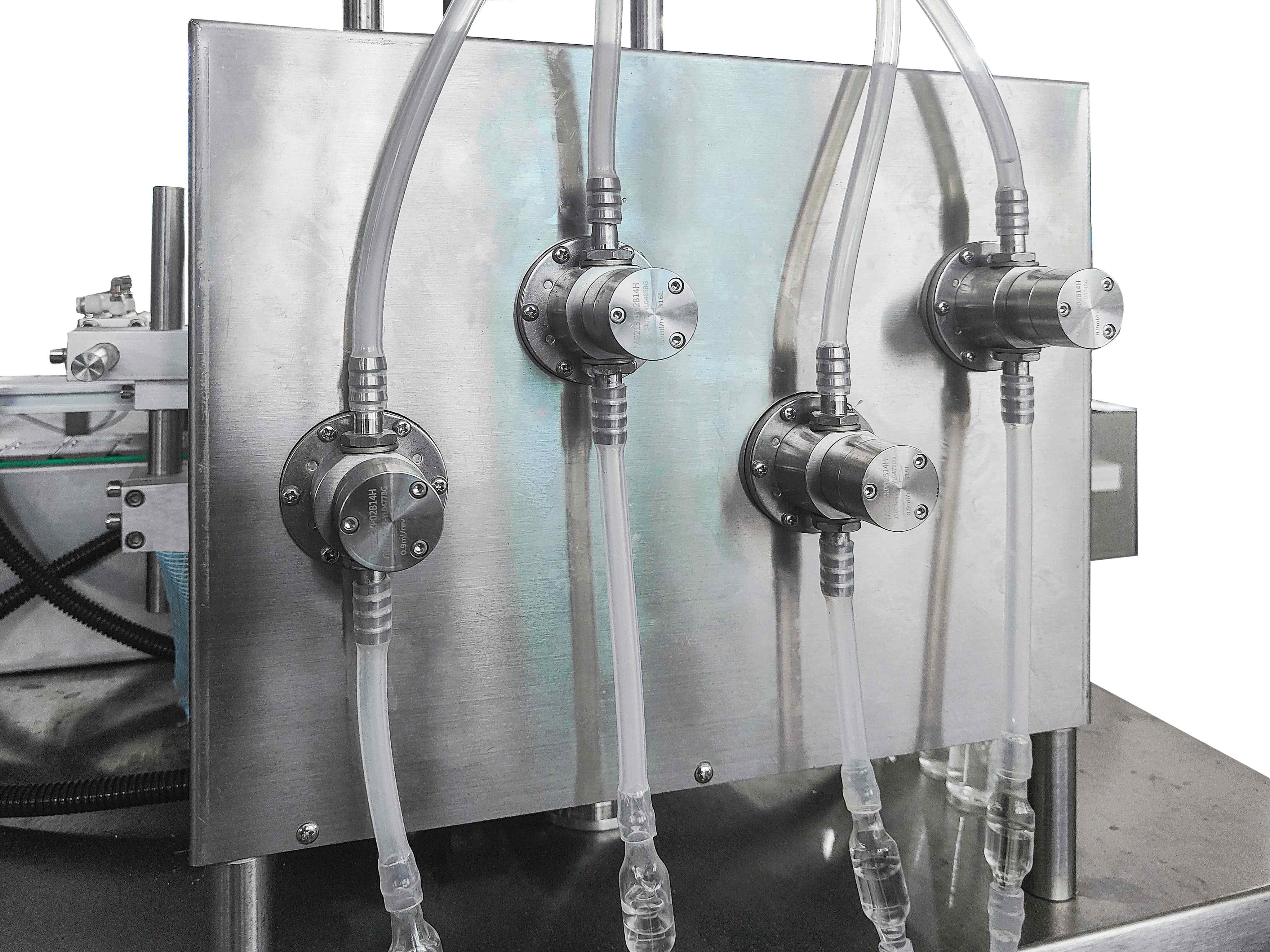

Magnetic Pump

Equipped with stainless steel magnetic pumps,it can fill liquid accurately, ensuring production quality.The pumps have the advantage of high temperature resistance and corrosion resistance. Durable and reliable.



Conveyor Belt

With chain conveyor belt, it has a large bearing capacity, which can transport heavy containers smoothly and stably. Improve work efficiency. The conveying speed can be adjusted by the black knob.
