🔴【Features】
🔸Built to strict quality control standards – 100% factory tested
🔸100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards
🔸Powerful Cooling Performance – Provides intense pressure for strong cooling effect, excellent heat dissipation and ventilation
🔸Longer Service Life – Premium brushes and critical components resist failure or poor performance
🔸Low Noise & Vibration – Works efficiently under low noise and tiny vibration for comfortable driving experience
🔸Fuel Efficiency – Driving at stable speed helps reduce fuel consumption
🔸High-Strength Aluminum Alloy – Durable, stable construction ensures real long service life
🟠【Specifications】
🔸Material: Aluminum
🔸Color: Silver
🔸Placement: Front
🔸Voltage: 12V
🔸Compressor Style: CVC

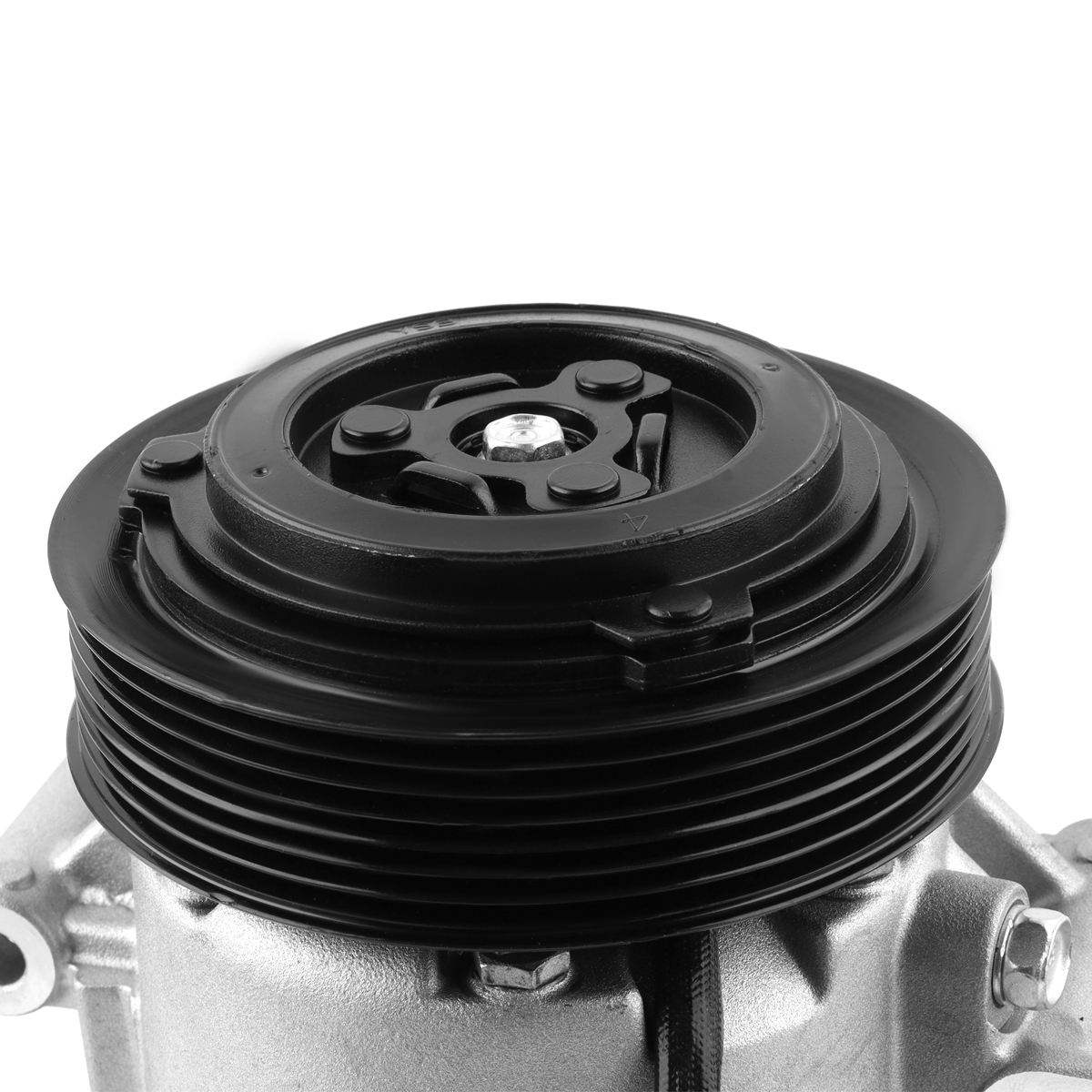

🔸Pulley Grooves: 7
🔸Pulley Diameter: 110mm

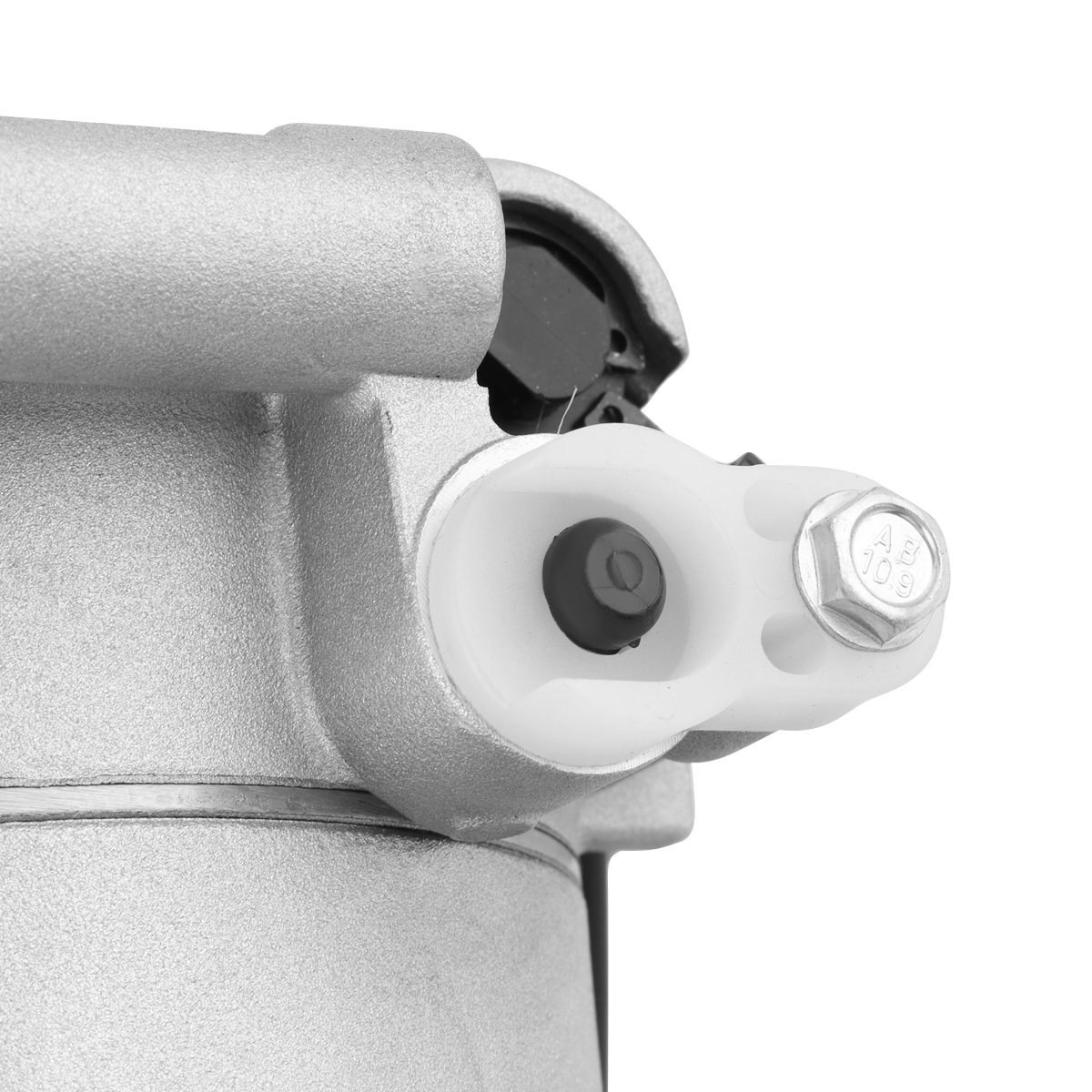

🔸Suction Port Diameter: 18mm
🟡【Part Numbers】
CO 29272C, 197276, 198276, 06576559, 388105BAA0, 388105BAA01, 388105BAA02, 388105BAA03, 388105BAA04, 389245AAA01, 389245AAA02
🟢【Fitment】

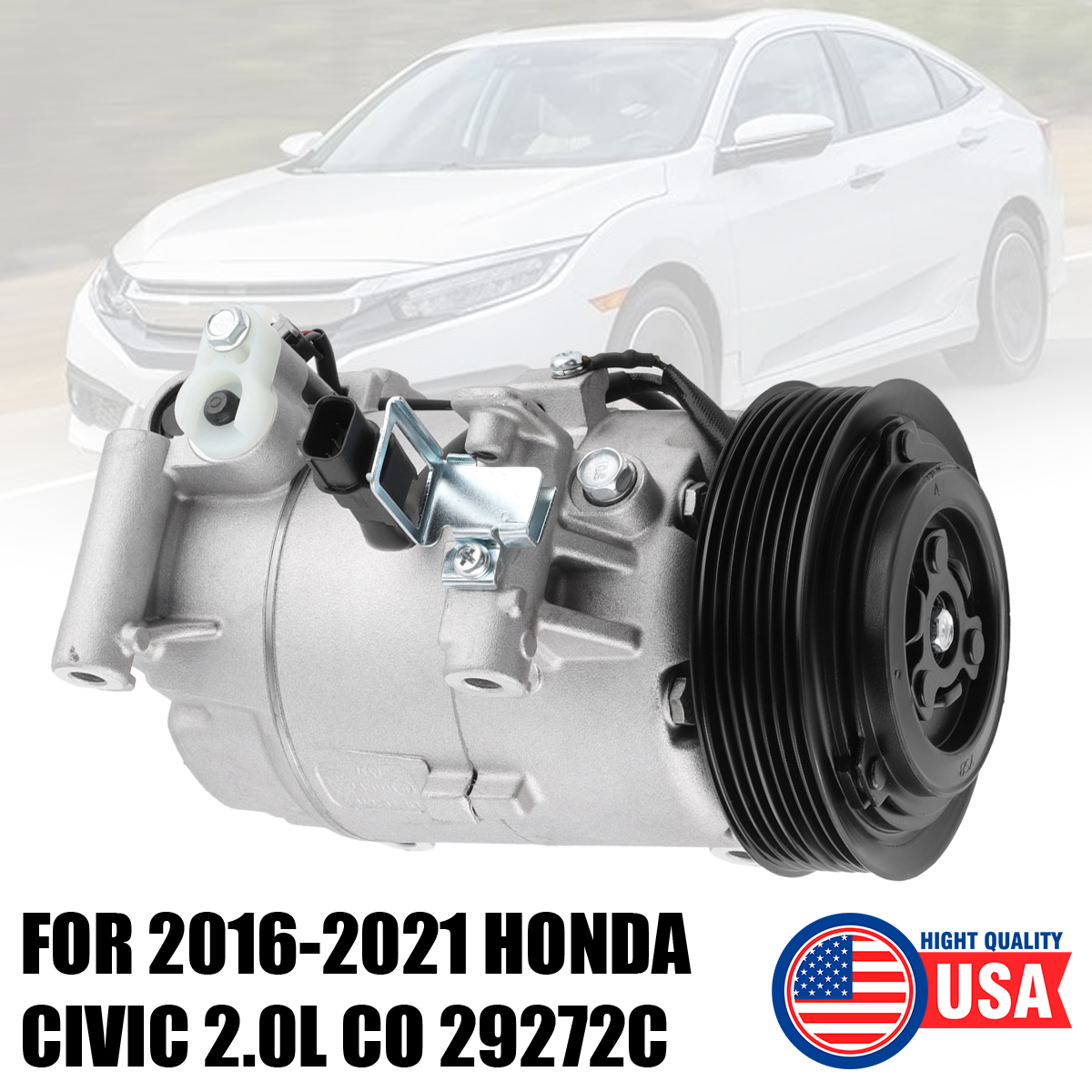

🔸For 2016-2021 Honda Civic 2.0L
🔵【Package】

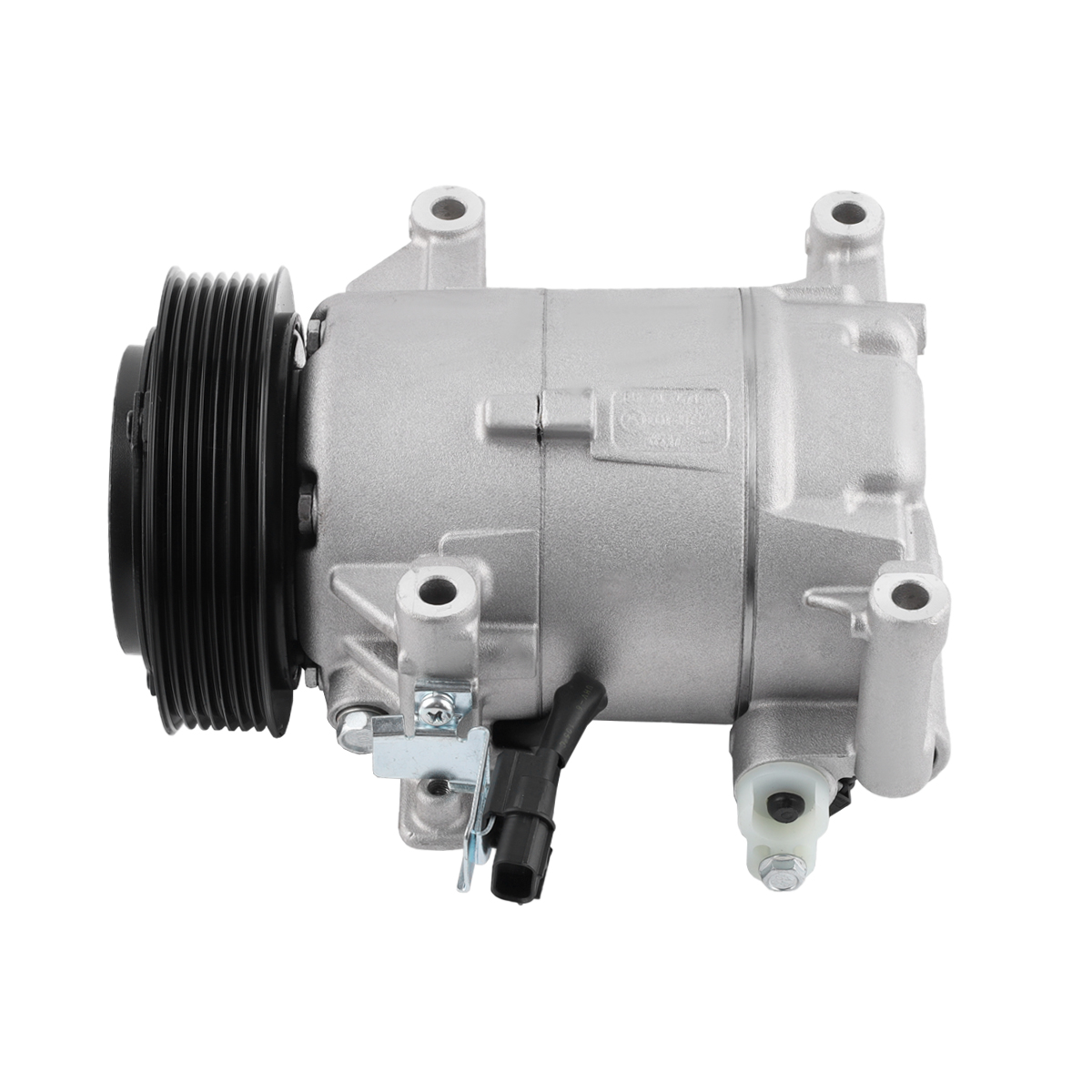

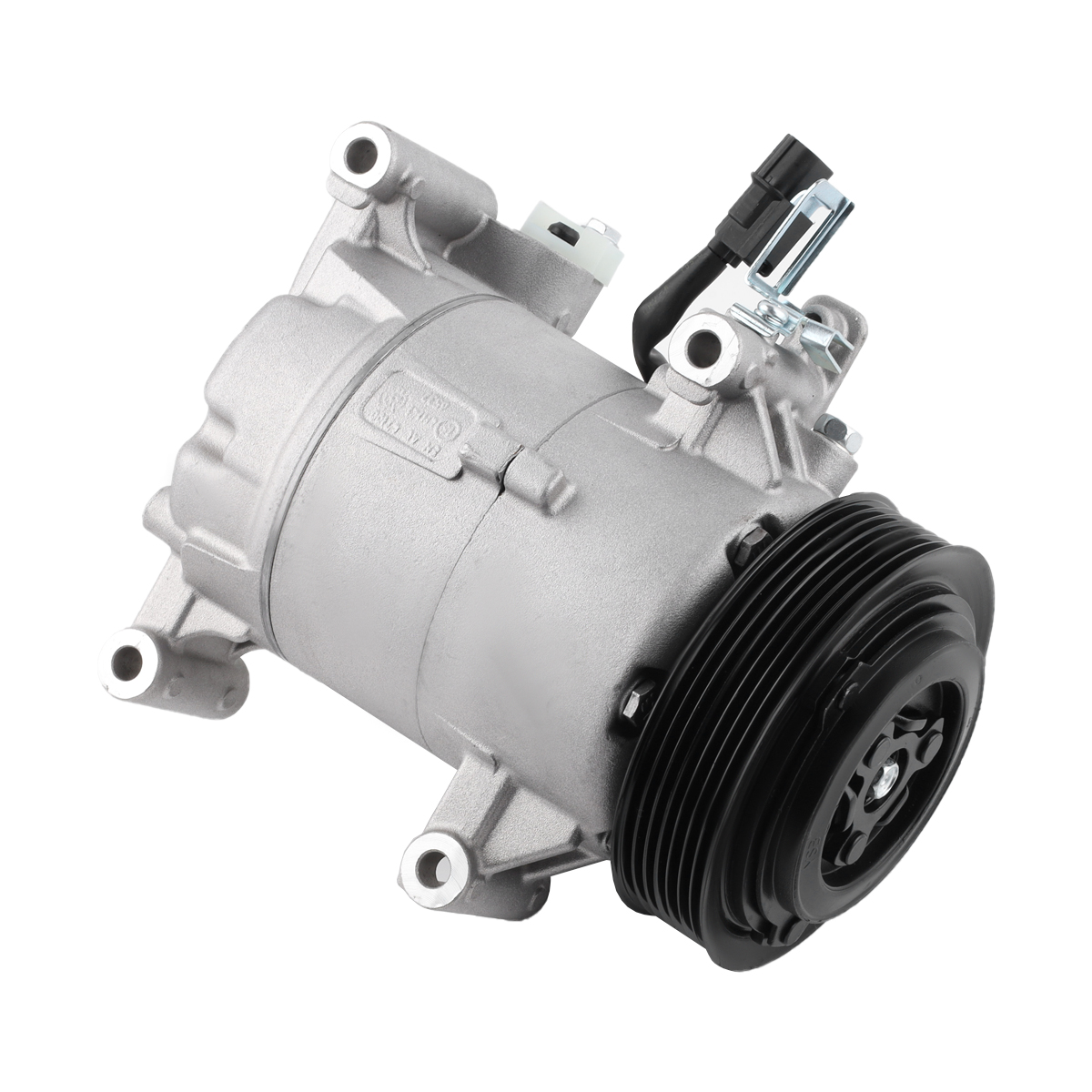

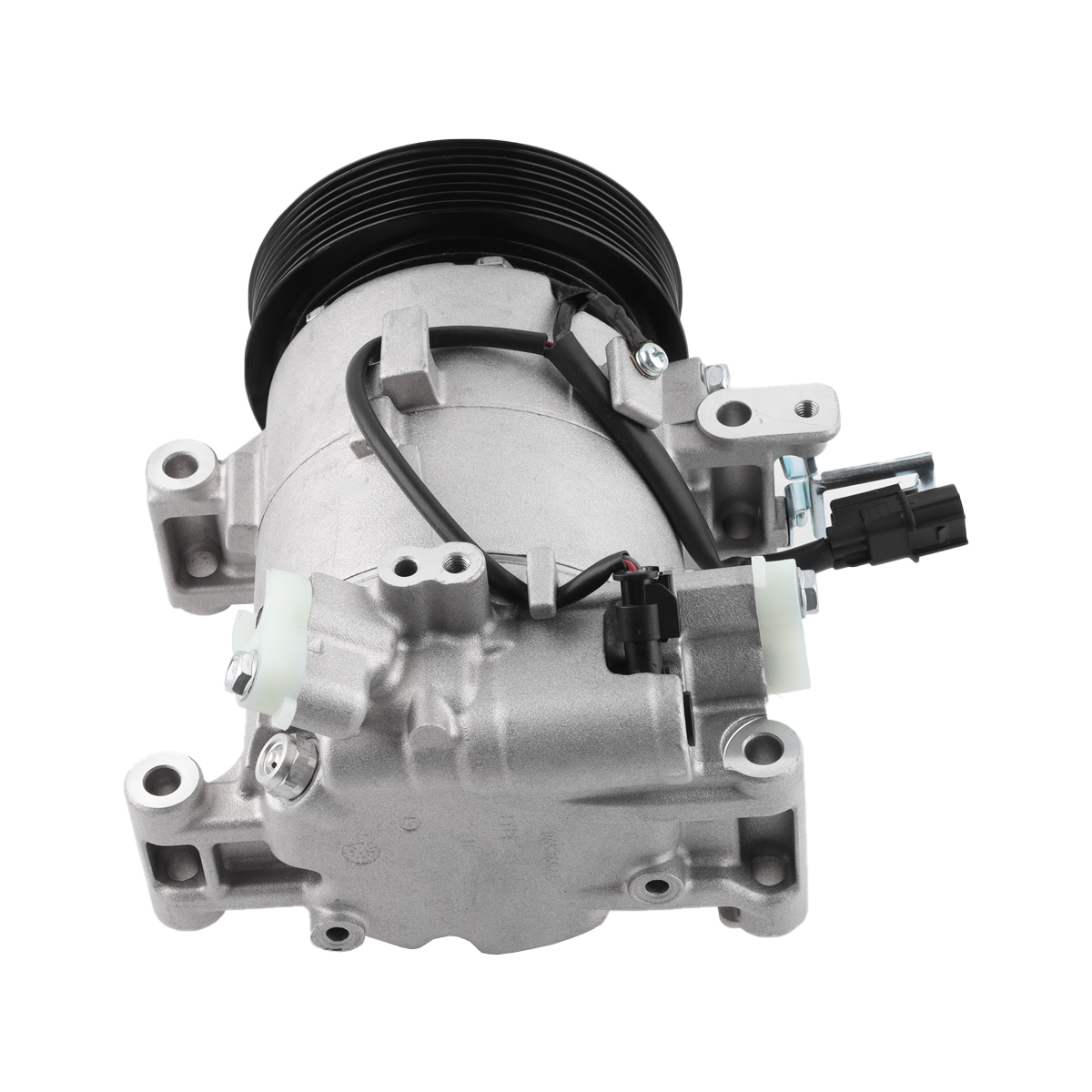

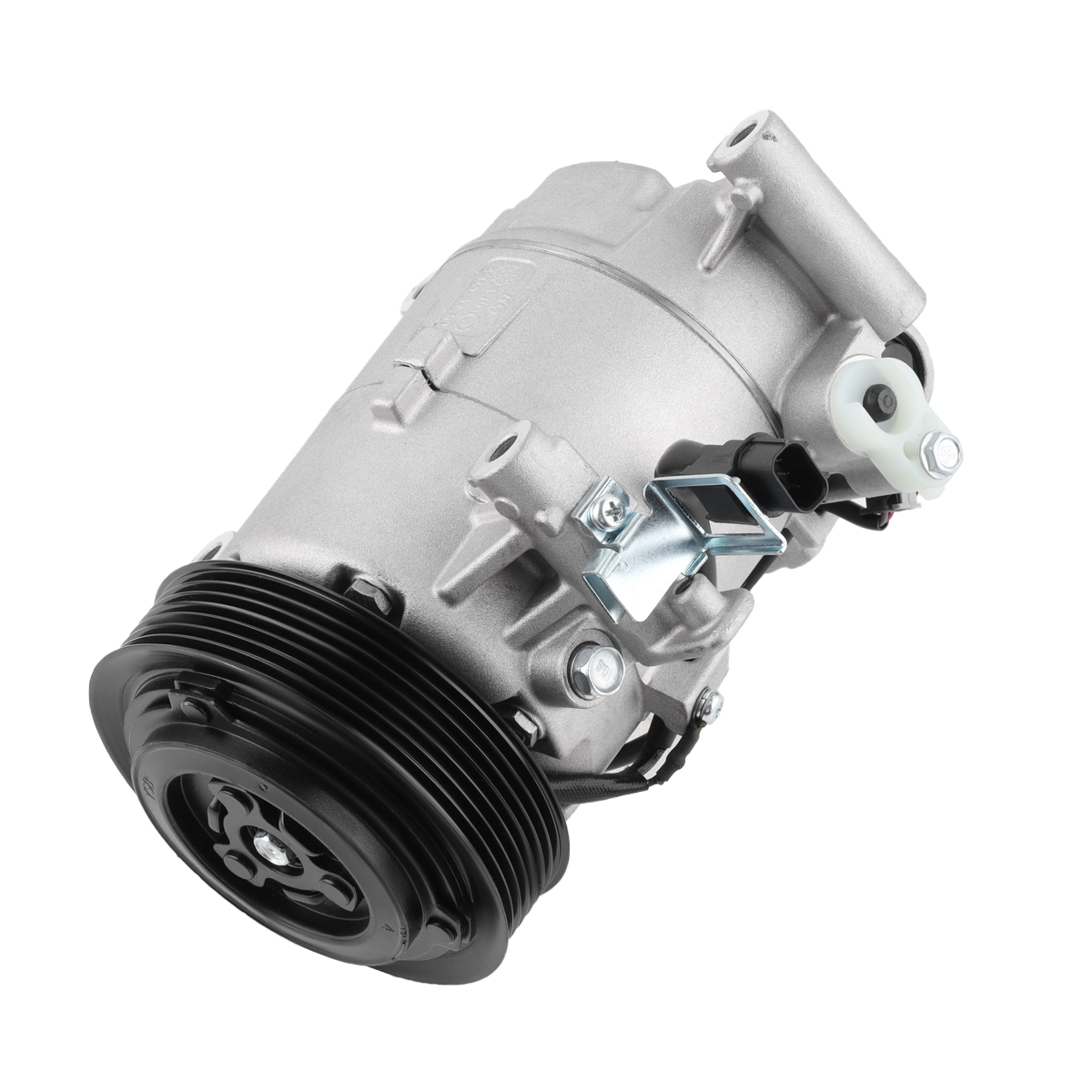

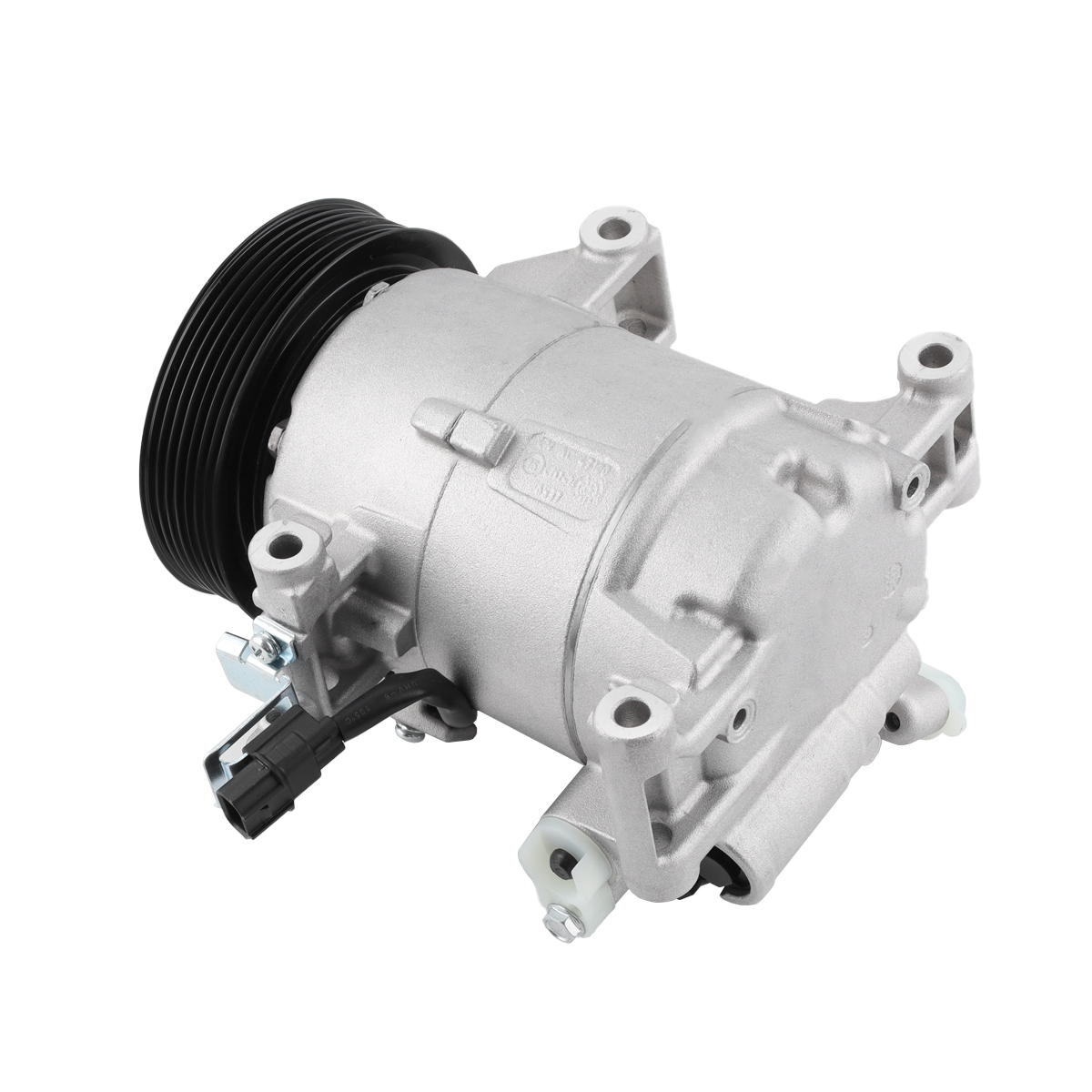

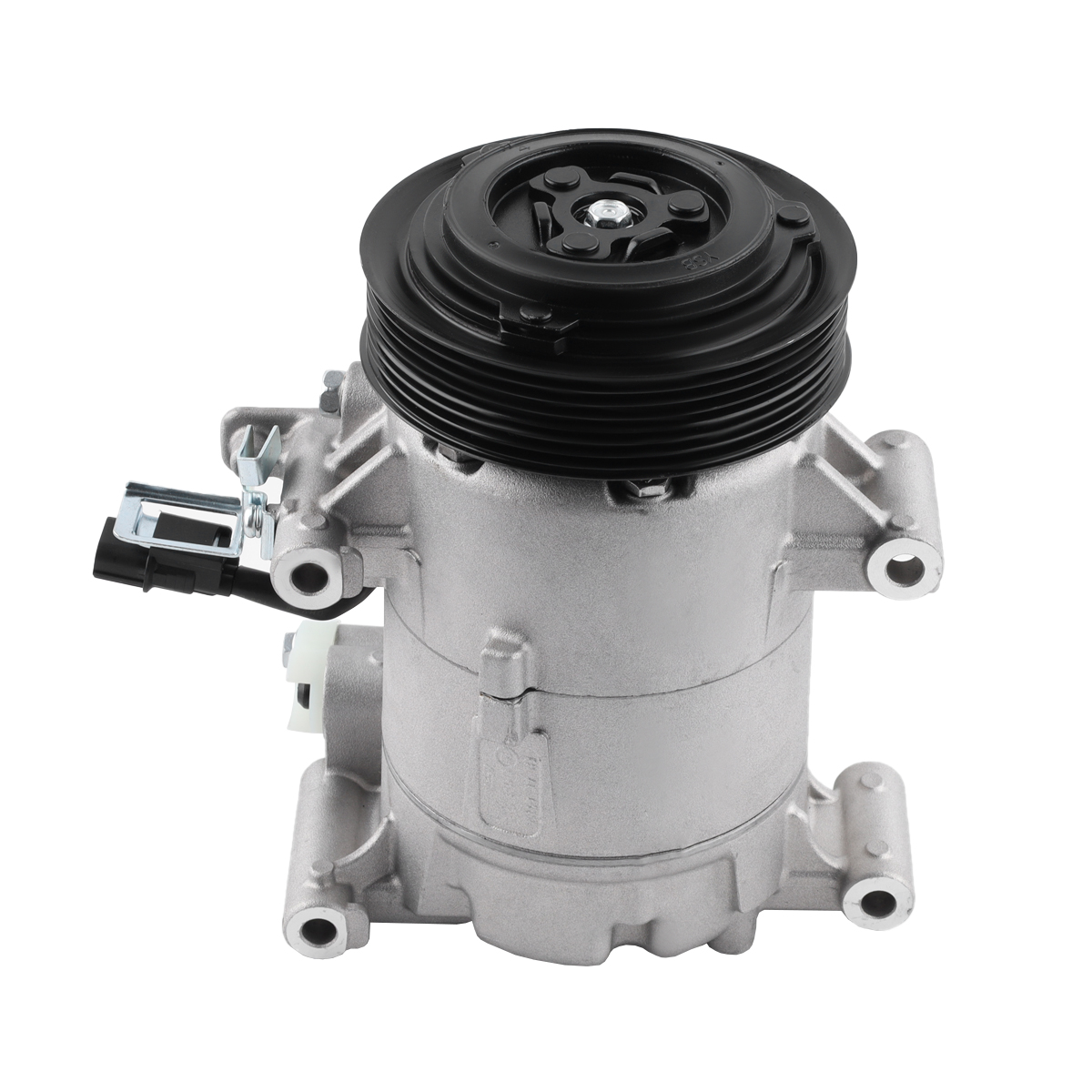

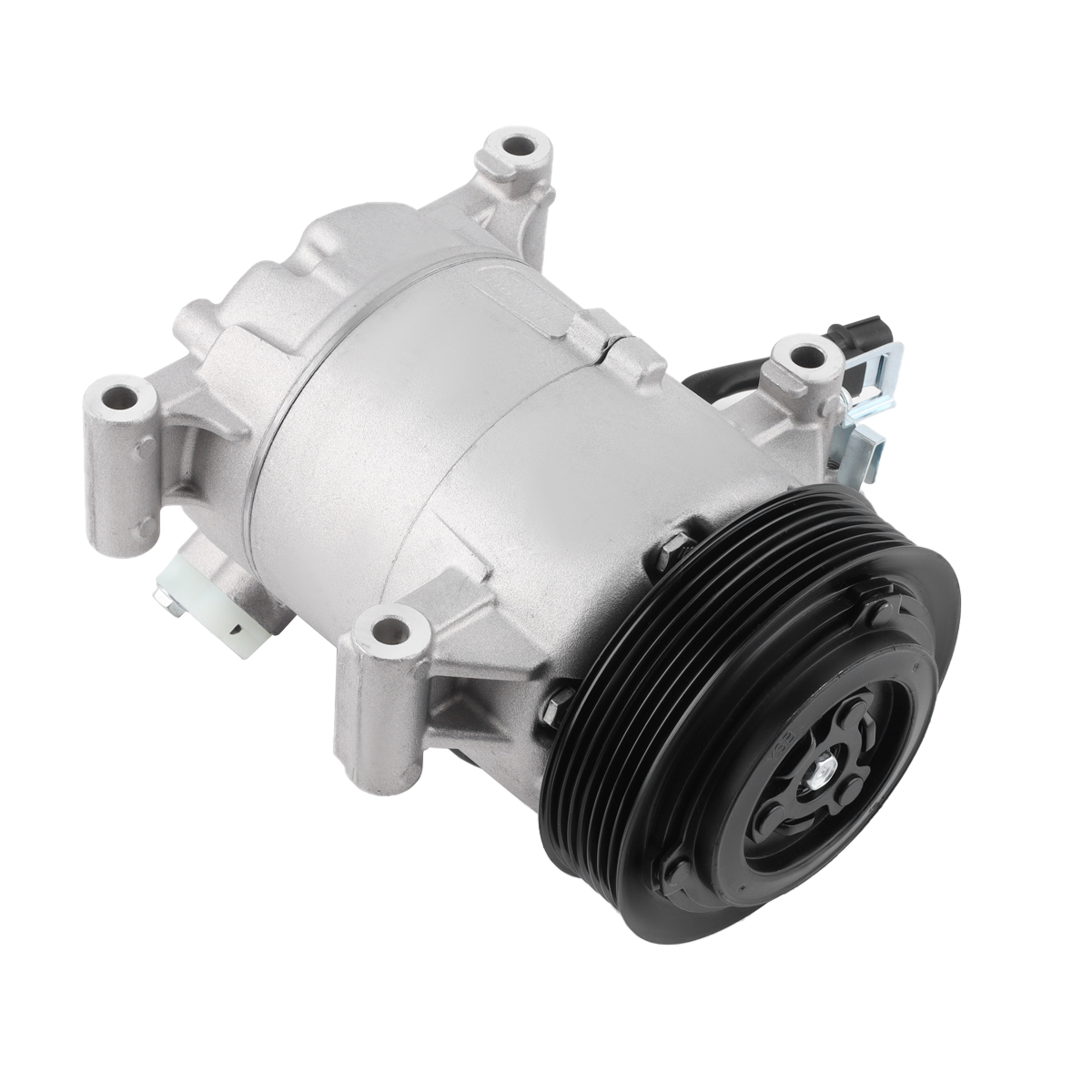

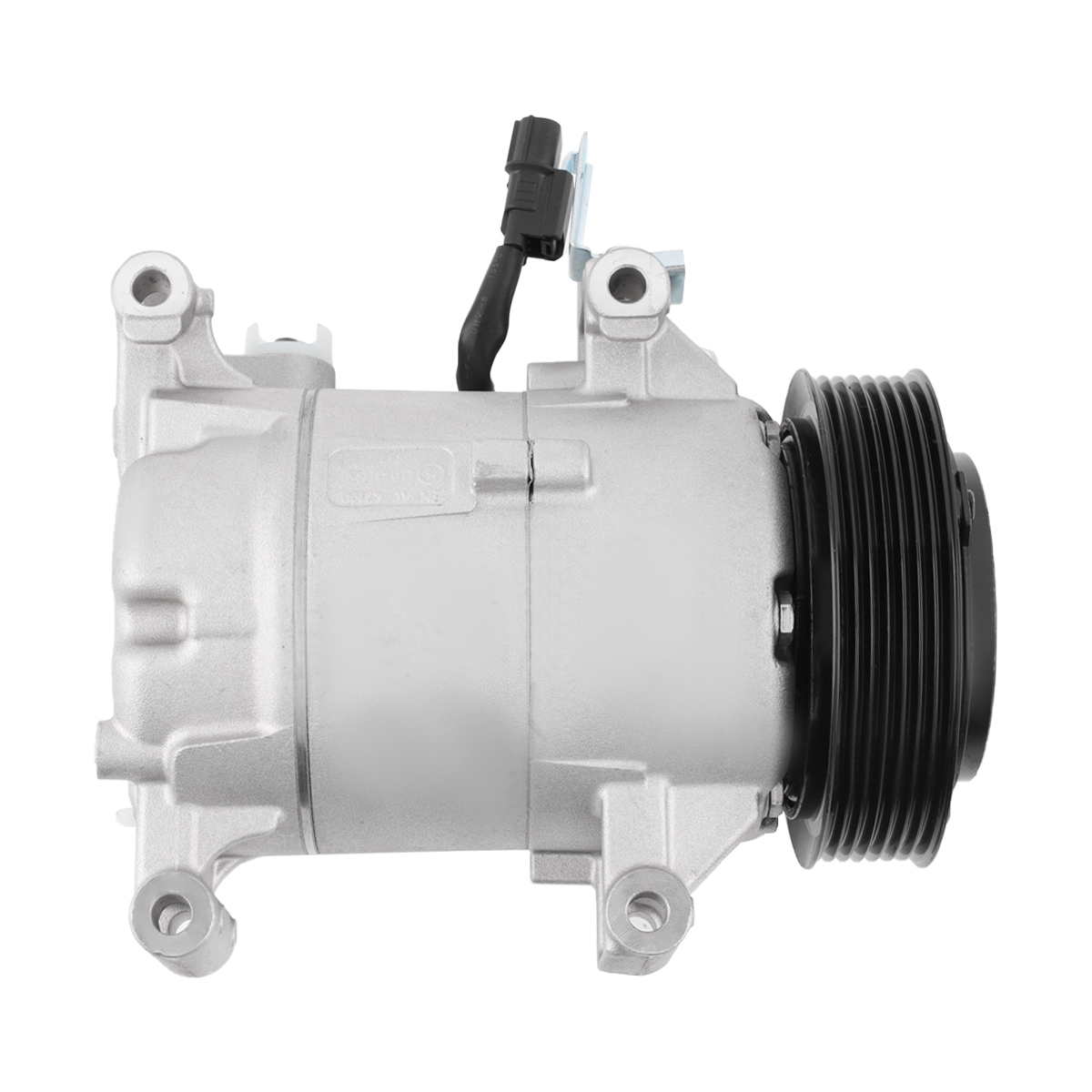

1 × A/C Compressor W/ Clutch
🟣【Attention – Installation Guide】
1️⃣ Remove compressor, receiver drier or accumulator, orifice tube or expansion valve
2️⃣ Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems, the valve must be removed before the evaporator can be flushed. Flush condensers from outlet to inlet and evaporators from inlet to outlet
3️⃣ Drain all the oil from the new compressor and dispose of according to local, state and federal laws. (NOTE: if your compressor has a drain plug, you will need to open it up and drain what oil is in there too)
4️⃣ Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to ensure front seal and other internal parts are lubricated
5️⃣ Install new receiver drier or accumulator and new orifice tube or expansion valve
6️⃣ Evacuate the A/C system for a minimum of one hour
7️⃣ After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system
8️⃣ Start engine with A/C controls on MAX AIR with door and windows open
9️⃣ Add the remaining charge of refrigerant as called for by the manufacturer
🟤【Note】
It is necessary to add appropriate amount of oil and refrigerant to the AC compressor before use.
