For Three Roll Grinding Mill grinder Roller machine 3-18 um/3 times 5kg/h

Diameter of Roller:65 mm

Length of Roller: 125 mm

Roller speed RPM

Slow Roller : 32 r/min

Mid Roller: 89 r/min

Fast Roller : 250r/min

Motor Power : 0.75 kw

Rotating speed: 1390

Dimensions: 440X420X400 (mm)

Machine weight: 65kg

particle size : 3-18 um/3 times

Reference Efficiency: 5kg/h

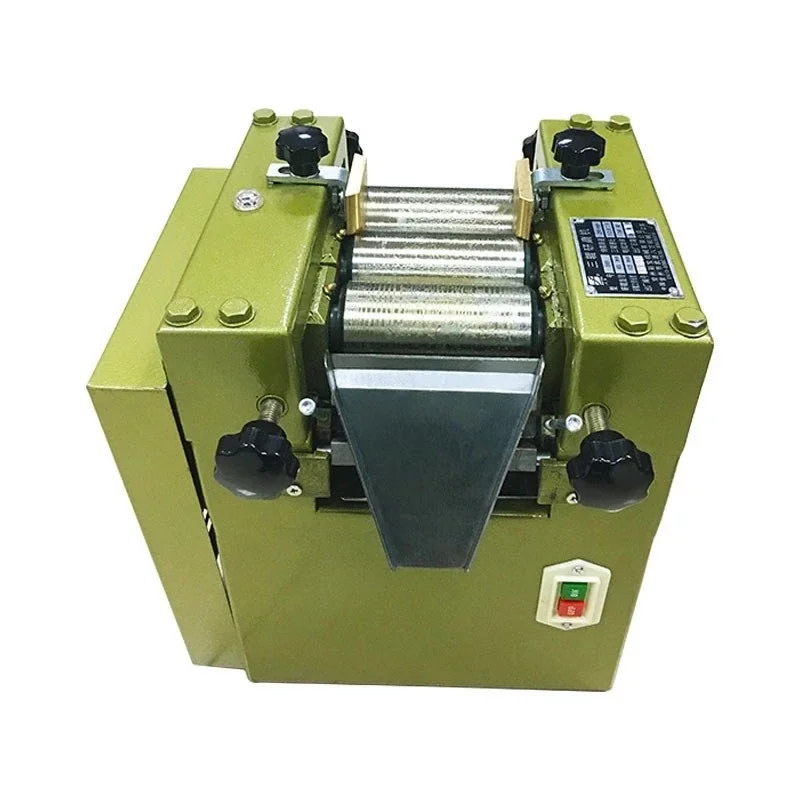

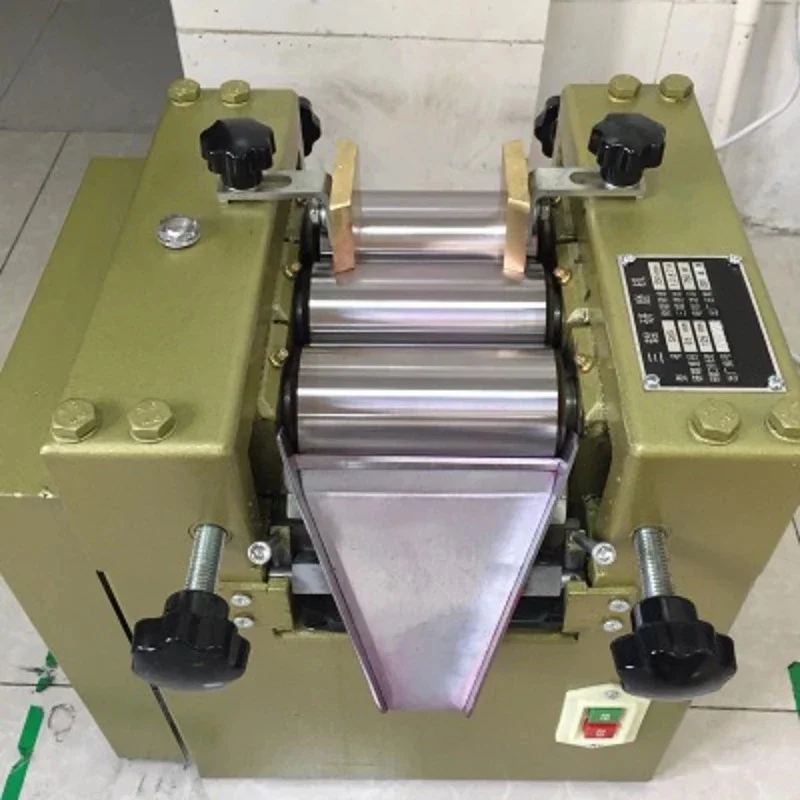

S65 laboratory three-roll mill is mainly used to grind a variety of paints, inks, pigments, plastics

and other slurry in the disperse laboratory, especially for products with high viscosity and fine

grain requirements. The grinding effect is achieved by the horizontal three-roller surfaces rubbing

against each other at different speeds.The roller of this machine is made of alloy steel material, so

the crystal phase is tight, the strength is high, the surface has high hardness and wear resistance,

and there is cooling device to ensure continuous work.

Suitable for small batch production or laboratory use
