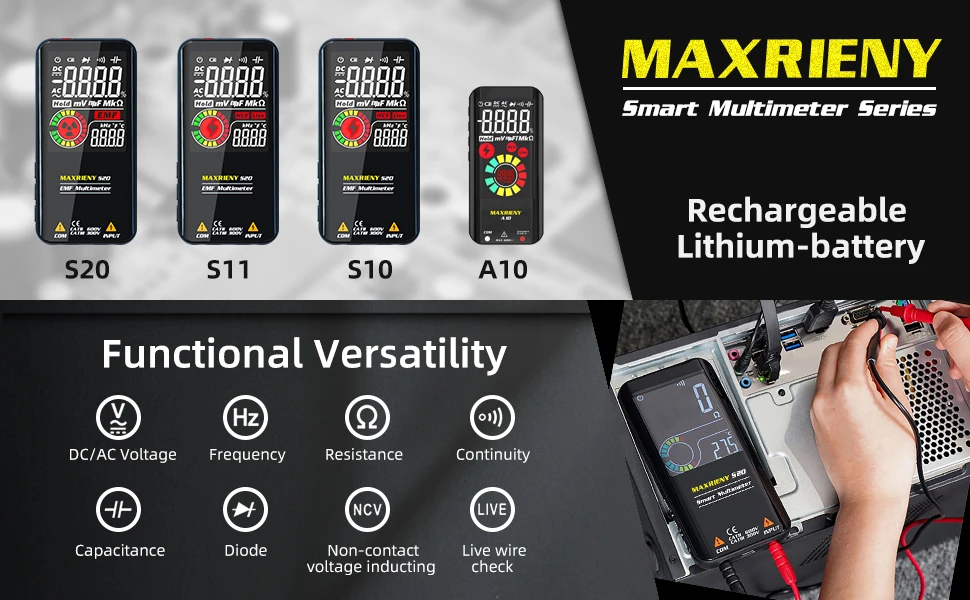

The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.

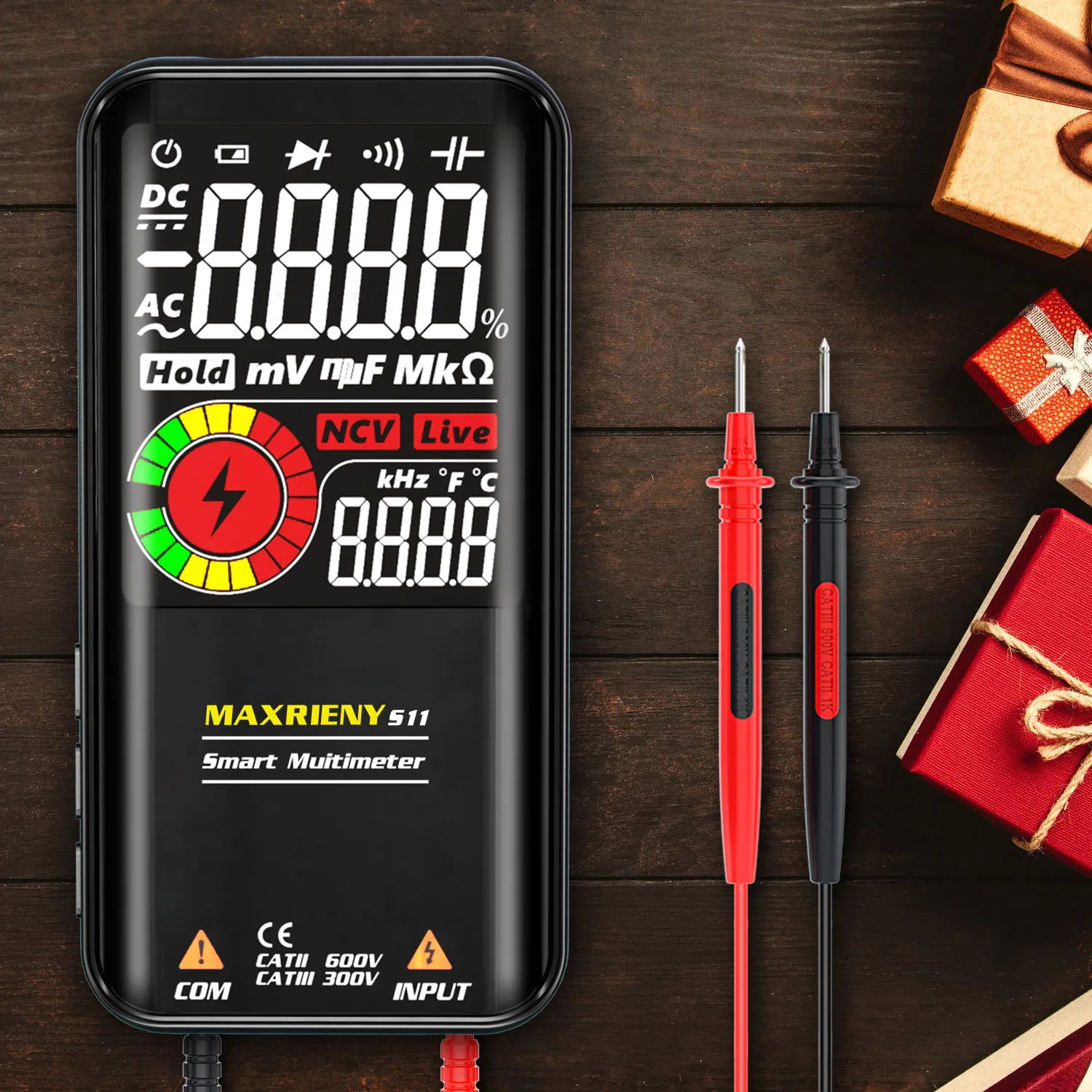

The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply; S11 built-in 800mA rechargeable lithium battery.

The S20 product is the highest version of the series, adding EMF detection function.

Specifications:

Display: 9999 counts.

Screen: 3.5 inch.

DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.

AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF`99.99mF ±(3.0%+3); Resolution: 0.001nF.

Frequency:1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz. 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.

Diode: Auto identify diode if less than 3.0V.

V-Alert(non-contact voltage detection): beep alarm sounds.

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

S10 Power: 1.5V (AAA) x 2.

S11 Power: Built-in rechargeable lithium battery.

Package Size: 147*85*42mm.

Package Weight: 180g

Package Includes:

A10

1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
1 * EVA portable cloth bag.

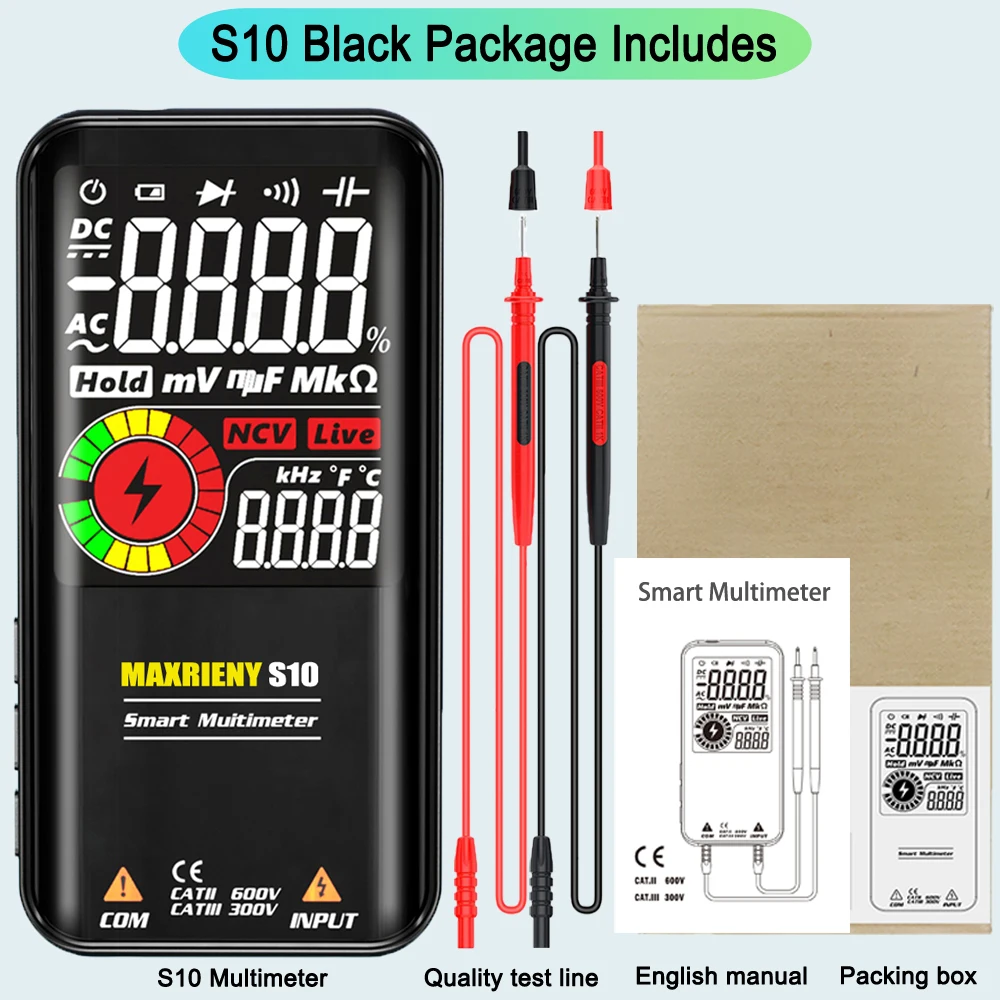

S10

1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.

S11

1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
1 * EVA portable cloth bag.
1 * Protective shell.

S20EMF

S20

1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
1 * EVA portable cloth bag.
1 * Protective shell.
