Electric Vacuum Solder Sucker Plastic Stainless Steel Electric Tin Soldering Repair Tool with EU Plug for Circuit Board Assembly
Feature:

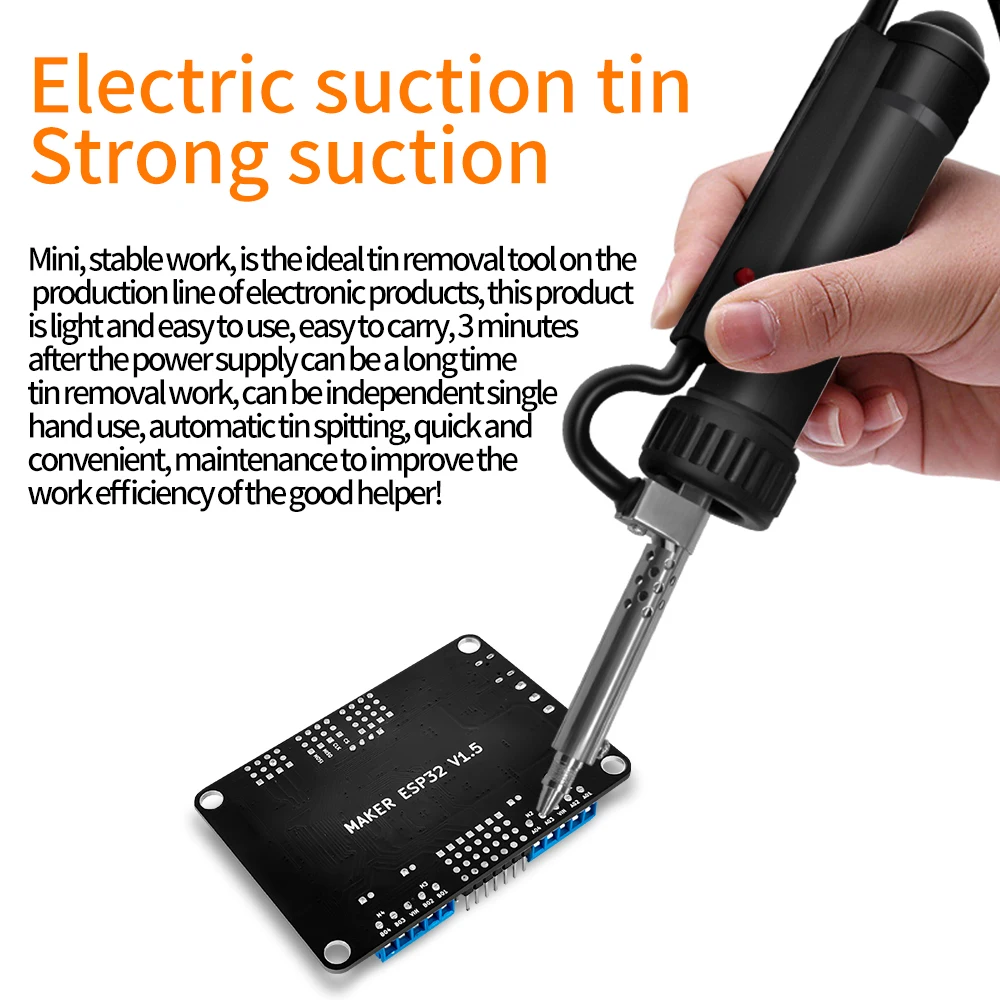

1. Strong Suction: Electric Vacuum Solder Sucker has strong suction and can be applied to thick film integrated circuits and large components.
2. Automatic Tin Spraying: The welding repair tool can automatically spray tin, which can save a lot of energy and improve work efficiency.
3. Stable Operation: Portable Soldering Desoldering Sution can be deburred for a long time after 5 minutes of power on, which is very convenient.

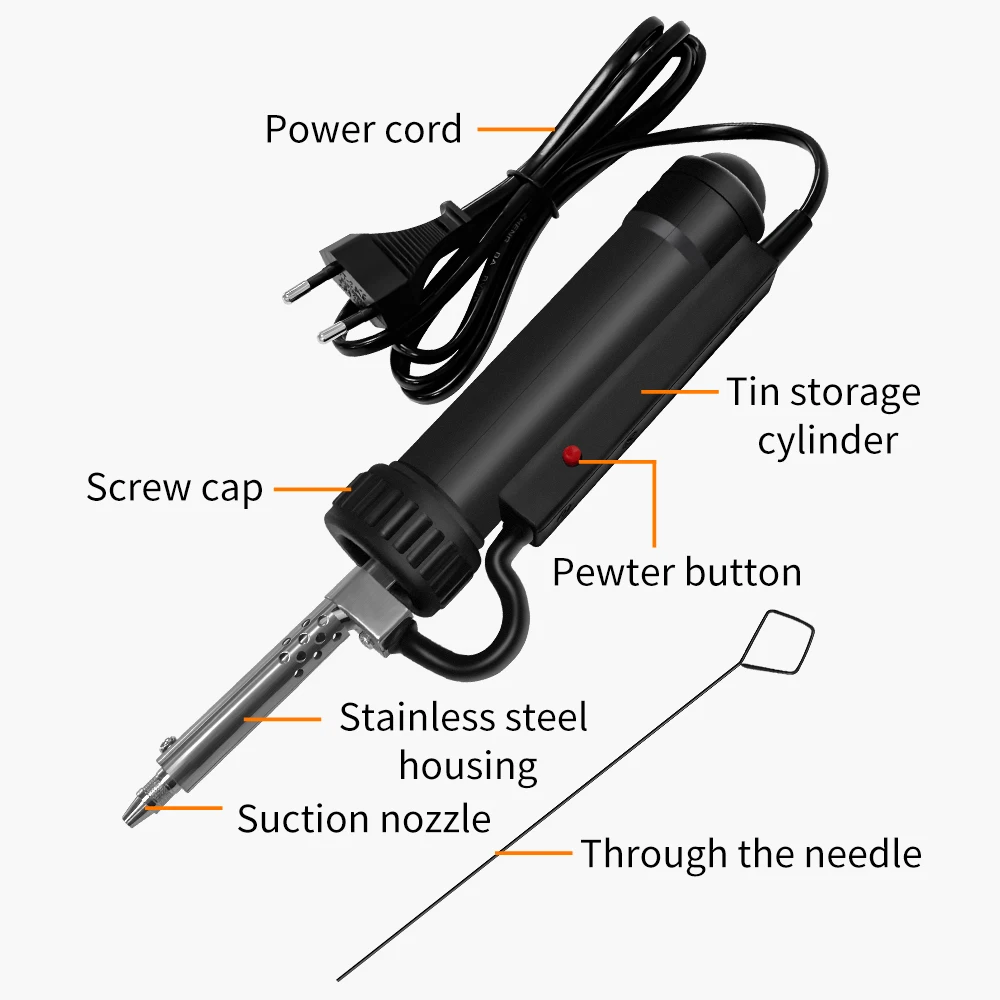

4. Easy to Use: The Tin Sution Sucker Pen is equipped with a long rope and three nozzles. The desoldering suction head can realize simple one-hand operation.
5. Easy to Carry: Tin Sution Device is light in weight and small in size, which adds more convenience to your daily maintenance.





Specification:
Origin: Mainland China
Power Type: Electric
Model Number: Tin Suction Device
Material: plastic+stainless steel
Working voltage: AC220V 50HZ
Plug specification: EU plug
Heater power: 30W
Electromagnetic power: 350W (instantaneous)
Three-piece nozzle specification: about 1mm/0.04in, 1.5mm/0.06in, 2.5mm/0.1in
Insulation class: Class E.
Working method: continuous
Product category: chip-level maintenance tools, mainboard maintenance tools, circuit board component disassembly tools
Shell material: ABS
Size: about 245 * 45mm/9.6*1.7in

Note:
When the solder chuck is inserted into the power supply, you cannot press the switch button every time, because when you press and hold it when you insert the power supply, the electromagnetic reader will burn out. After inserting the power supply, press the switch button.
How to use: it can work for a long time after turning on the power for 5 minutes. It can be used independently with one hand and can automatically spit out tin.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

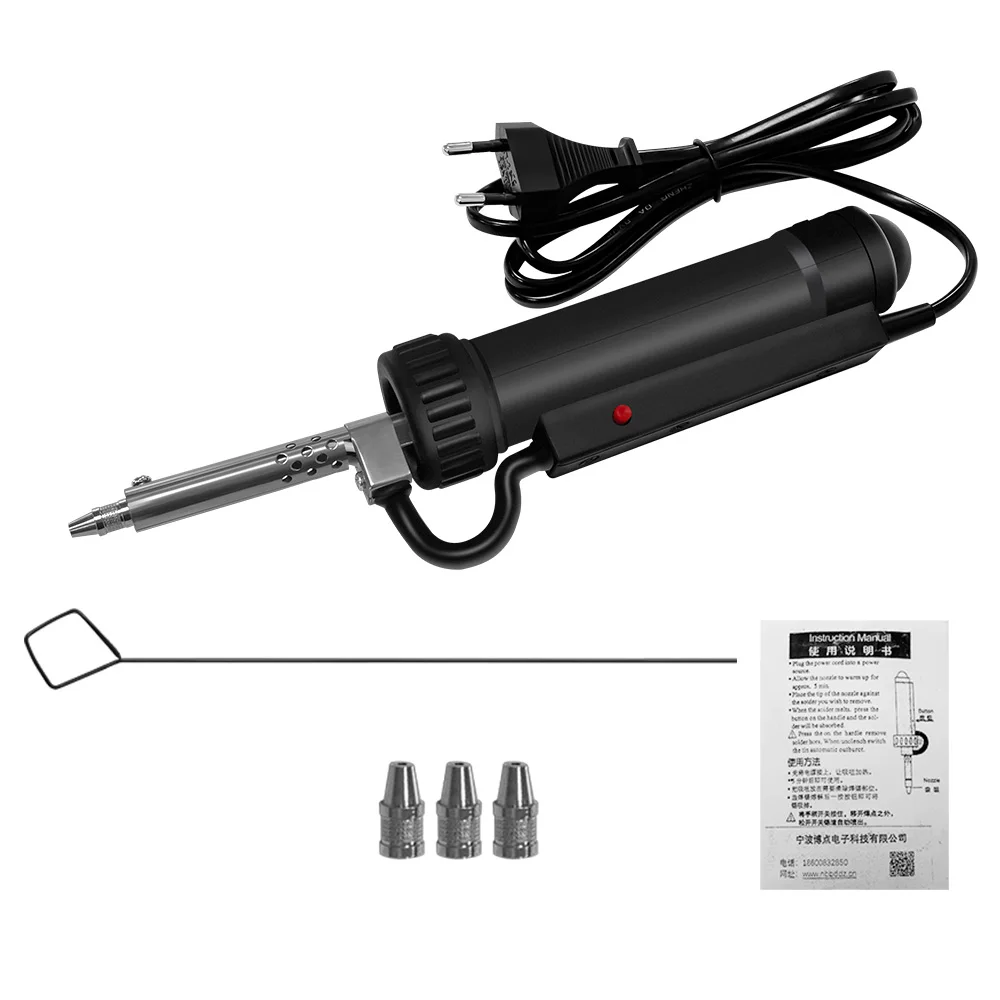

1set x Tin Suction Device
