T25 T28 Turbo Gt25 Gt28 Gt2871 Gt2860 Turbocharger + Intercooler Piping Pipe Kit
Images
Perfect for all 1.5L-2.0L engine, for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Wastegate: with Wastegate
Oil Restrictor: Yes
Oil Restrictor size: inside diameter 2mm

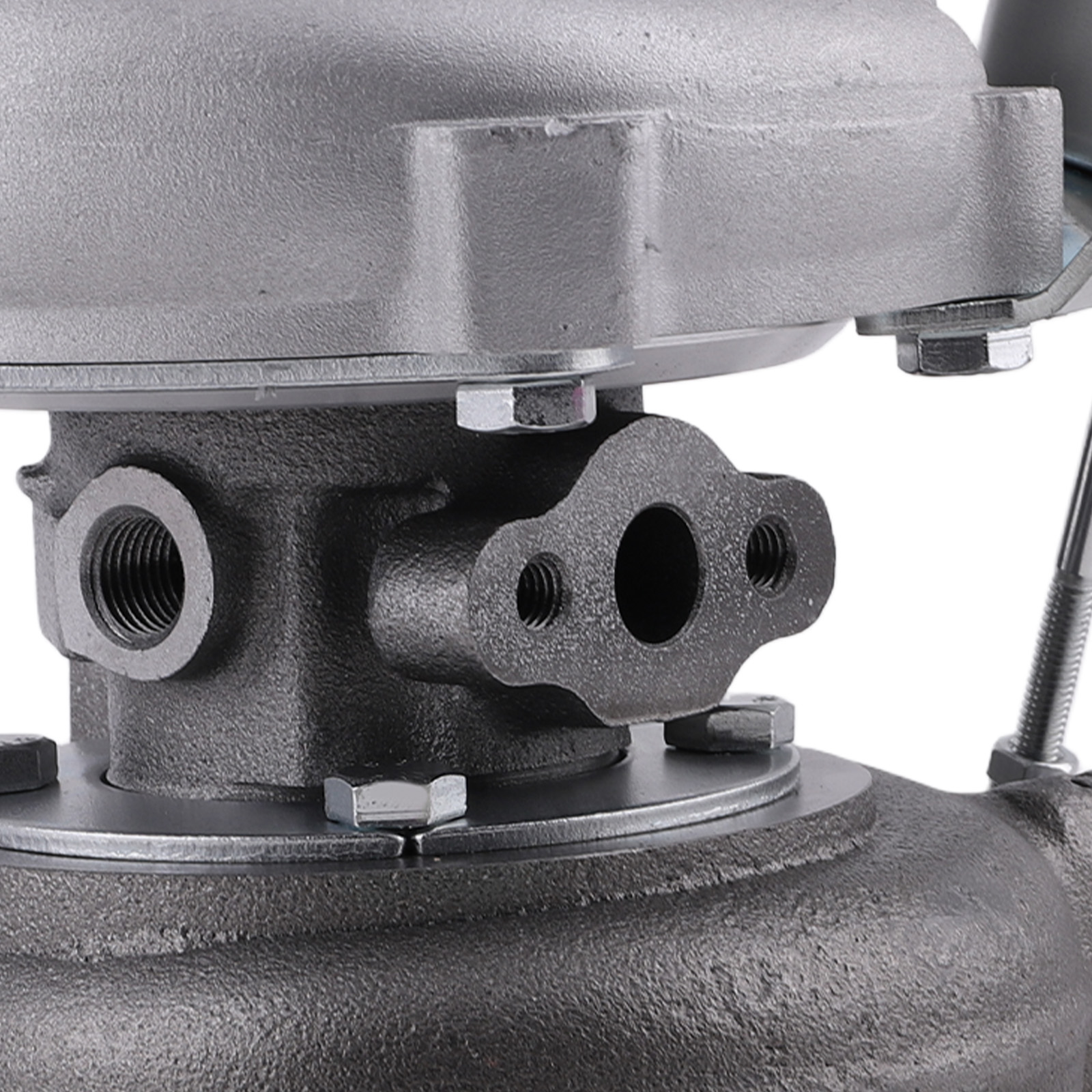

Oil Feed Size: 12mm
Oil Inlet: M12*1.25
Oil Drain Size: 14mm
Oil Outlet: M14 & 2*M8*1.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Warranty: 2 Years for any manufacture defects
Accessories: You will get exactly as shown as picture above
Turbo Intercooler Pipe Application:
Perfect for All Turbo DIY Project
INTERCOOLER PIPING PIPE KIT 2.5"
Destinated for ALL motors, ALL years, ALL architecture vehicle.
Those pipes in aluminium allow you to easily connect your intercooler from the bumper to the engine.
Turbo Intercooler Pipe Specification:
* 2x 90 Degree Aluminum Pipe 2.5"

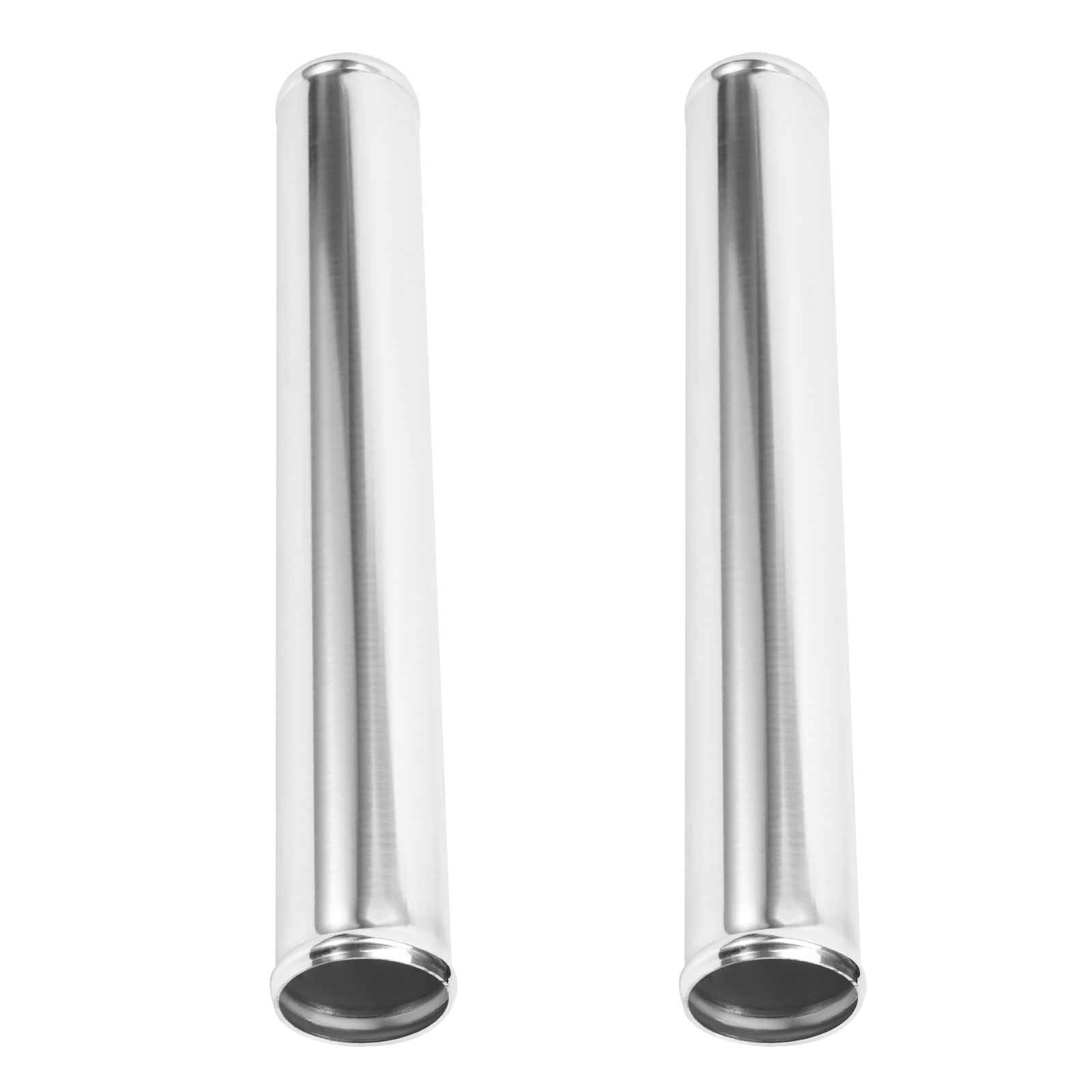

* 2x Straight aluminum pipe 2.5"
* 2x 135 Degree Aluminum Pipe×2 2.5"

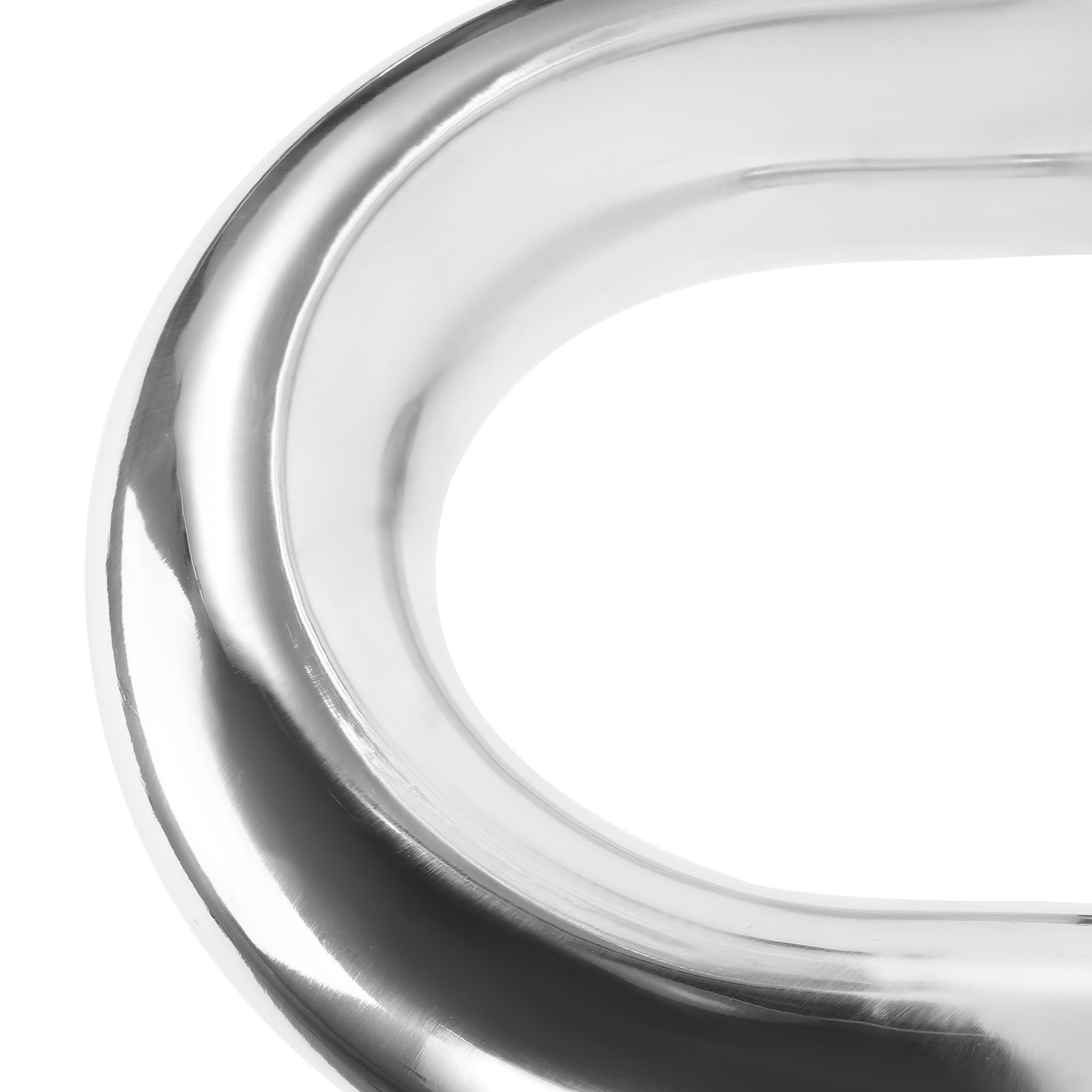

* 2x U Aluminum Pipe×2 2.5"
* 6x Straight Silicon Hose 2.5" (Blue )

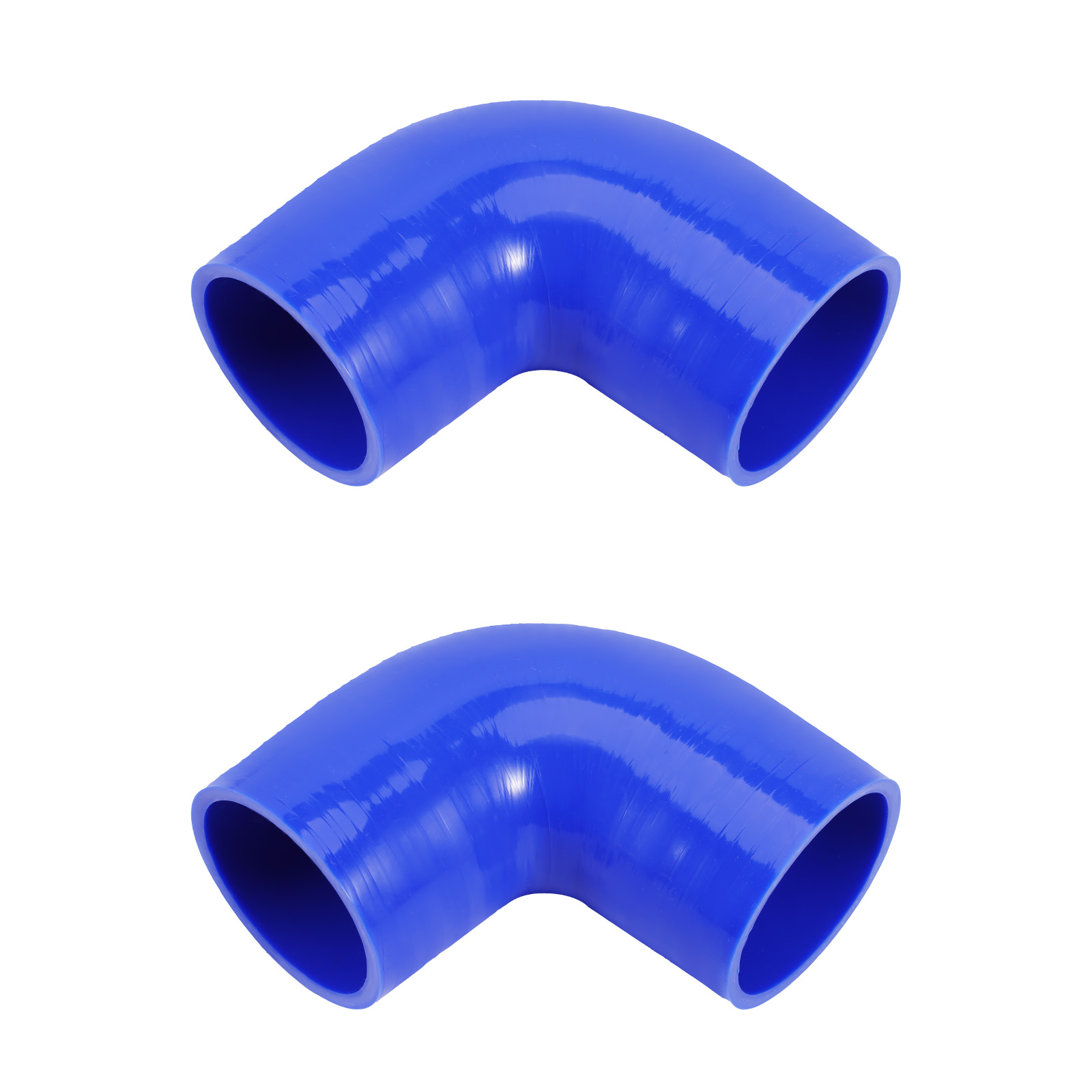

* 2x 90 Degree Silicone Hose×2 2.5"(Blue )

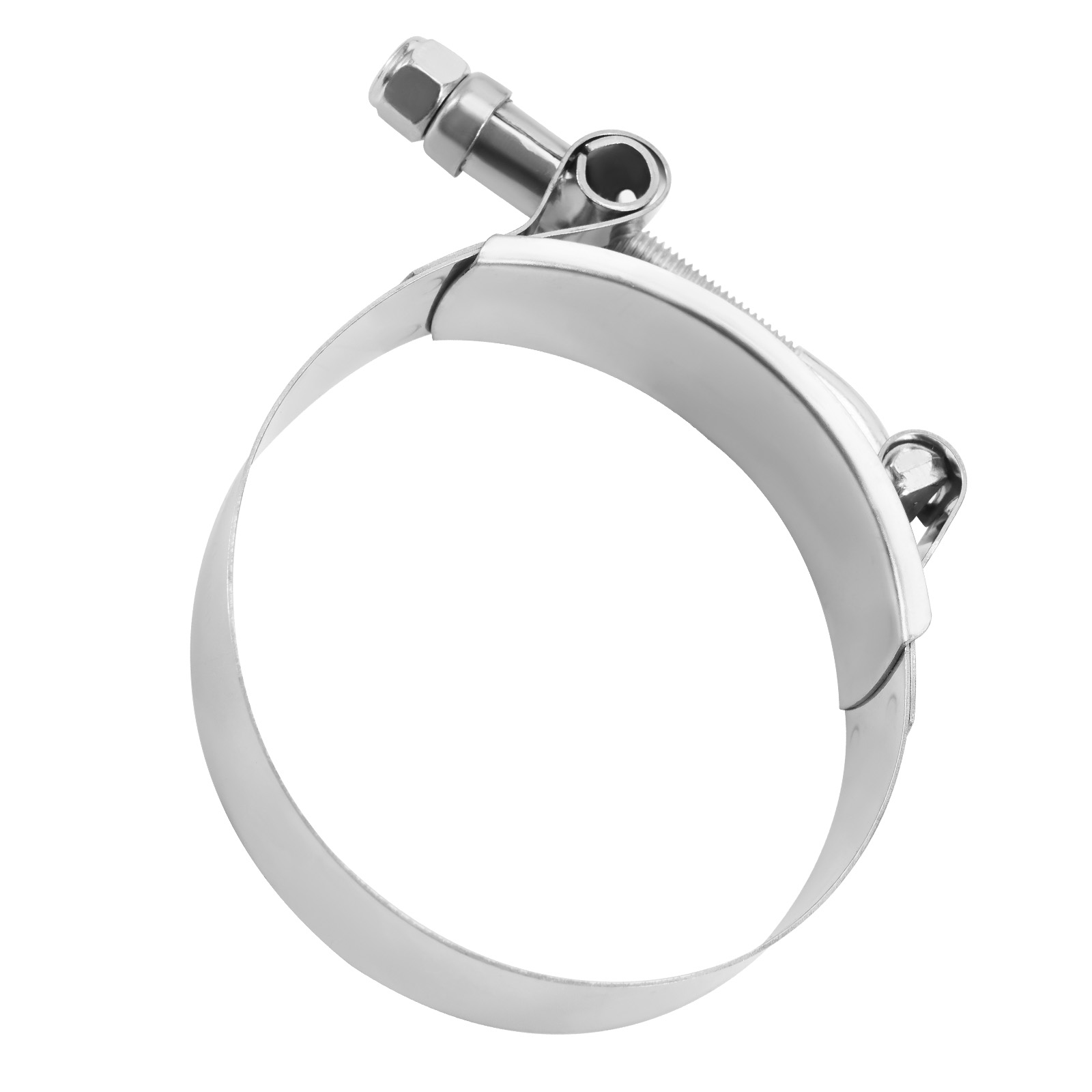

* 16x Clamps 2.5"
* Pipe Thickness: 1.8mm
* Pipe length: 18''
* U Pipe distance:150mm
* Package size 44cm*50cm*17cm
* weight:6kg
Turbo Intercooler Pipe Feature:
1. 100% brand new Never been tried or installed.
2. High quality of 6061 Lightweight Aluminum Piping
Polished surface well protected cosmetic surface appearance.
Rolled up end to prevent silicon hoses slip off
Beaded ends: beaded ends available, very convenient for assembly or welding process.
3. Hoses are made of Premium Quality Silicone, with enhanced strength and durability
8*Braided reinforced silicon blue hoses. High grip potential. Good flexibility, extremely resistant to the highest boost pressures.
4.Destinated for ALL motors, ALL years, ALL architecture vehicle.
Those pipes in aluminium allow you to easily connect your intercooler from the bumper to the engine. Perfect for All Turbo DIY Project
5. Increase 65% Air Flow Comparing with other Standard Piping
Product Material
1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance
4. Capable of Boosting Horse Power up to 350 BHP.
===============================
*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
About Turbo failure
The 6 most common failures are:
1. Oil starvation
2. Oil contamination
3. Impact damage
4. Blocked Engine breather
5. Over speeding of shaft and wheel
Common causes of turbocharger failure:
1. Improper Lubrication / Lack of maintenance
2. Foreign object damageOverspeeding
3. Excessive oil pressure
4. High mileage engine
5. Engine Lacks Power
The following situation indicate the turbo failure:
1. Black Exhaust Smoke
2. Excessive Engine Oil Consumption
3. Blue Exhaust Smoke
4. Turbo Noisy
5. Cyclic sound from turbo
6. Oil Leak from compressor seal
7. Oil Leak from turbine seal
highly suggest you find professional mechanic to help you install it, here are somecheck list before installation.
1. Replace oil supply lines and fittings. These lines often become plugged with decomposed oil which restricts oil flow and drainage.
2. Do not used silicone or thread tape
3. Make sure all openings to turbo are open and not plug or capped off.
4. Shut off fuel or disable ignition and crank the engine for at least 15 seconds or until oil pressure is raised
5. Allow engine to fast idle (1,000 RPM) for 3 - 5 minutes to for Seat turbo seals
6. Always let engine idle for 3 -5 minutes before shut down, otherwise the turbo will continue to spin without oil lubrication and pressure
7.When changing oil, be sure to prime oil filter

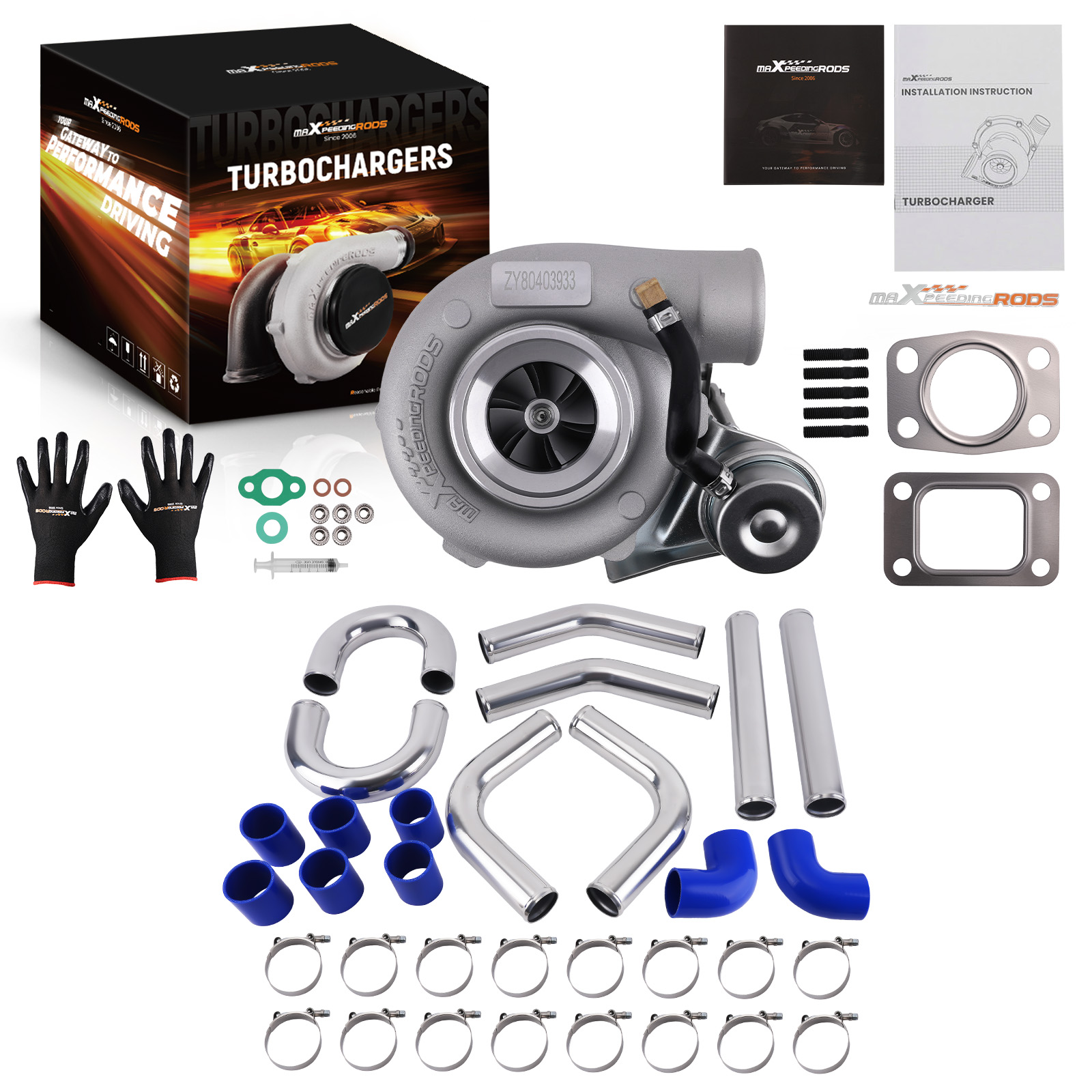

Package included
1x Turbocharger
2x Flange gaskets
2x Oil port gaskets
2x Water port gasket
1x Manual
1x Brochure
1x Sticker
2x Gloves
1x Injector
1x Turbo Intercooler Pipe Kit
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* professional tools are nessesary
