Specifications:

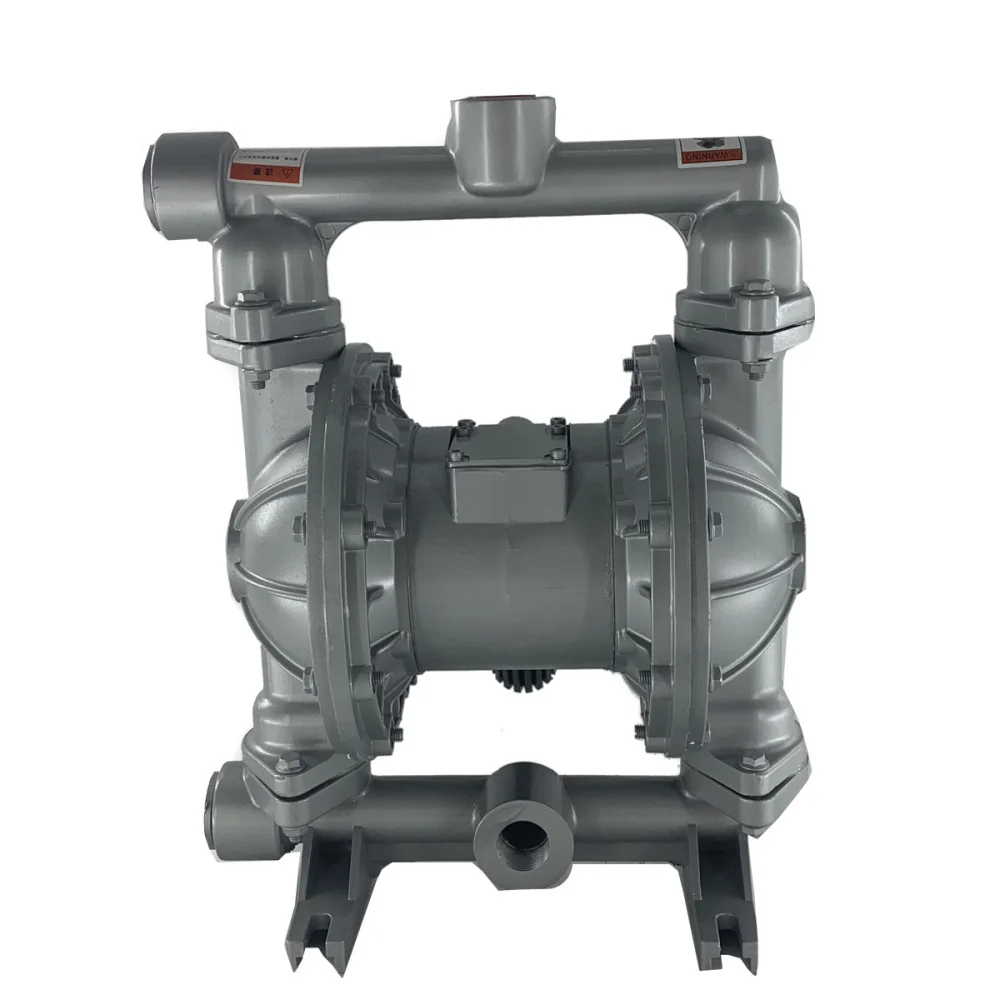

Product: Diaphragm pump
Type: Air-operated double diaphragm
Model: QBK-25L
Body Material: Aluminum alloy
Inlet Port: 1 inch (25 mm)
Outlet Port: 1 inch (25 mm)
Air Inlet Size: NPT 1/2 inch (12.7 mm)
Average Air Consumption: 9 CFM
Max Flow rate: 6 m3/h (24 GPM)
Suction: 0-5 m (0-16.4 ft)
Max Suspended Solids: 3 mm (1/8 inch)
Max Head: 69 m (226.38 ft)
Max. PSI: 115
Operating PSI: 29-115
Max Fluid Temp.: 80 ℉
Product Dimension: 35 x 23 x 46 cm (14 x 9 x 18 inch)
Package Size: 38 x 27 x 48 cm (14. 96 x 10. 63 x 18.9 inch)
Gross Weight: 14kg
