Features:
l Provide power failure protection, the power supply voltage is lower than 4.5V, ESC will give restart protection
l Overheating protection can only take effect when both circuits are used, otherwise only single-circuit ESC is used for uneven cooling and heating, and the protection is difficult to take effect
l Motor + - in addition to the C104 anti-interference capacitor, no other capacitors can be connected
l This ESC is for high current 540, 550, 775 and other motors, high current and wide voltage
Specification:
l Applicable Model: for Metal Tank Speedboat
l Adapter Voltage: 6v-25v (2-6S Lithium Battery Available)

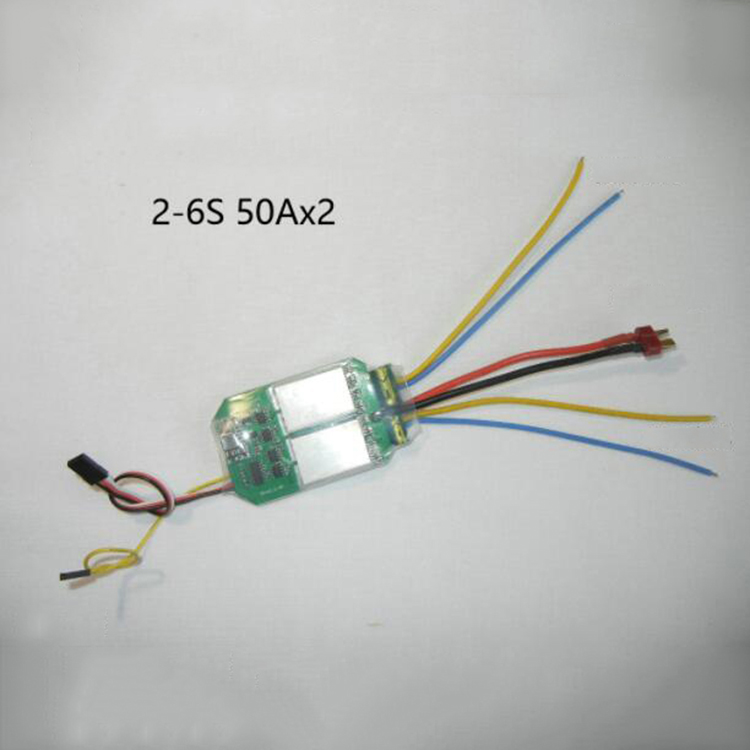

l Current: Single Way 50A, Dual Way 50Ax2
Package Includes:
l 1x Brushed ESC
Advanced parameter setting method (center point brake, mixing control, initial strength, linear):
l 1.The single yellow wire is plugged into 1 channel, the white wire (3P wire) is plugged into 2 channels, and the motor is plugged in, but do not plug in the battery first
l 2.Take left hand throttle controller as example, first operate the right stick as follows, and keep it:
l Upper left Set whether to neutralize the brake <default: without>
l Upper right Set whether to mix control <default: mix control>
l Bottom Left Sets the initial strength (small, medium, high) <default: medium>
l Bottom Right Set Linear (Small, Medium, Large) <Default: Medium> Linear is large, the motor response is slower, but more realisti
l 3.Power on the ESC again (insert the battery), after hearing the short falling tone, return the right stick to the middle, and then hear the long sound of the ESC unlocking, indicating that the setting is successful.
l Notice:
l 1.You can only change the settings once at one power-on. for 3 options, progressive loop
l 2.If right hand throttle, the right stick up and down is THR channel, so the white line (3P line) should be inserted into THR channel
l 3.If you want to use Flysky gun control to change the neutral position brake, just put: throttle to the maximum, steering to the far left -> power on the ESC -> the throttle and steering are all back to the middle, then the setting is complete
l Note that the remote control channel should not be reversed, the channel upper limit should exceed 1850us, and the lower limit should be lower than 1150us
