RadioMaster AX12 Android Radio 16CH Remote Control Run QGroundControl HDMI Output/Input 5.5in Touch Screen X5 Hall Gimbal Support ExpressLRS
Features:

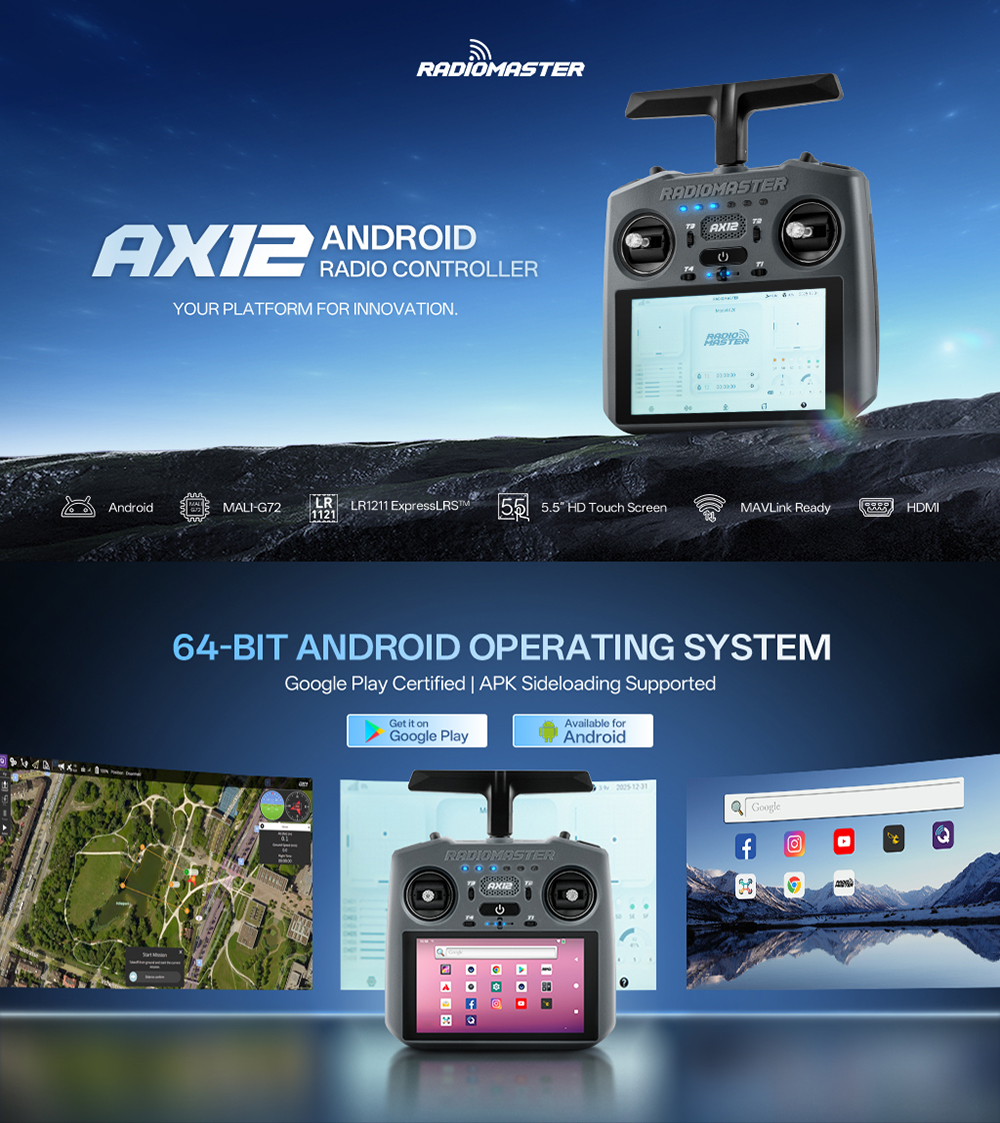

1. 9.0 Android System: Open source 64 bit Android operating system (9.0), which can install Betaflight, Freerider, FPV SkyDive, or any APK at will.
2. 5.5-inch IPS Touch Screen: 1280 × 720 resolution, parameter tuning is all under control.

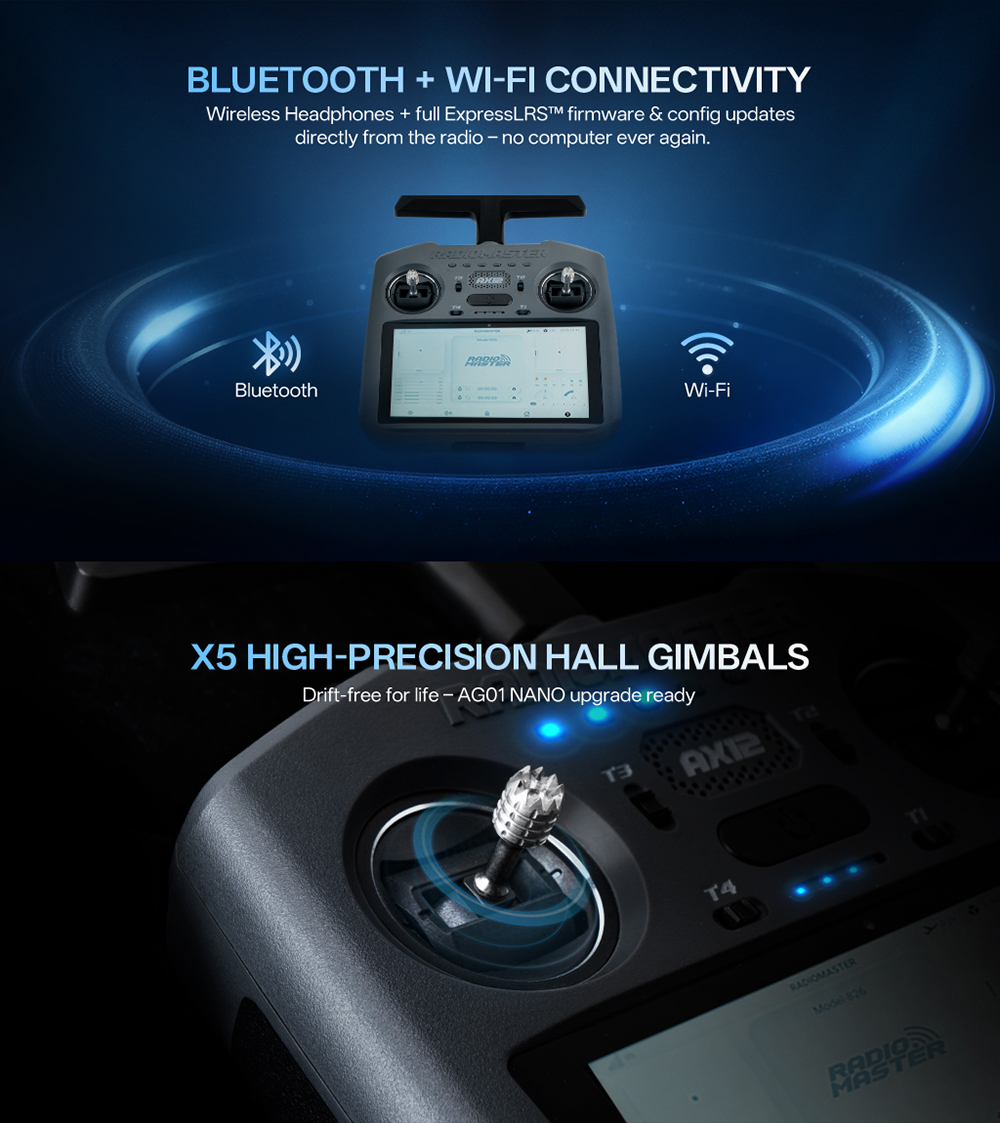

3. X5 Hall joystick: Standard X5 Hall joystick, high-precision Hall sensor (supports upgrading to AG01 NANO)
4. Eight core processor: high-performance CPU+4GB RAM+64GB storage - multitasking, emulators, and custom applications all have a mobile level smooth experience.

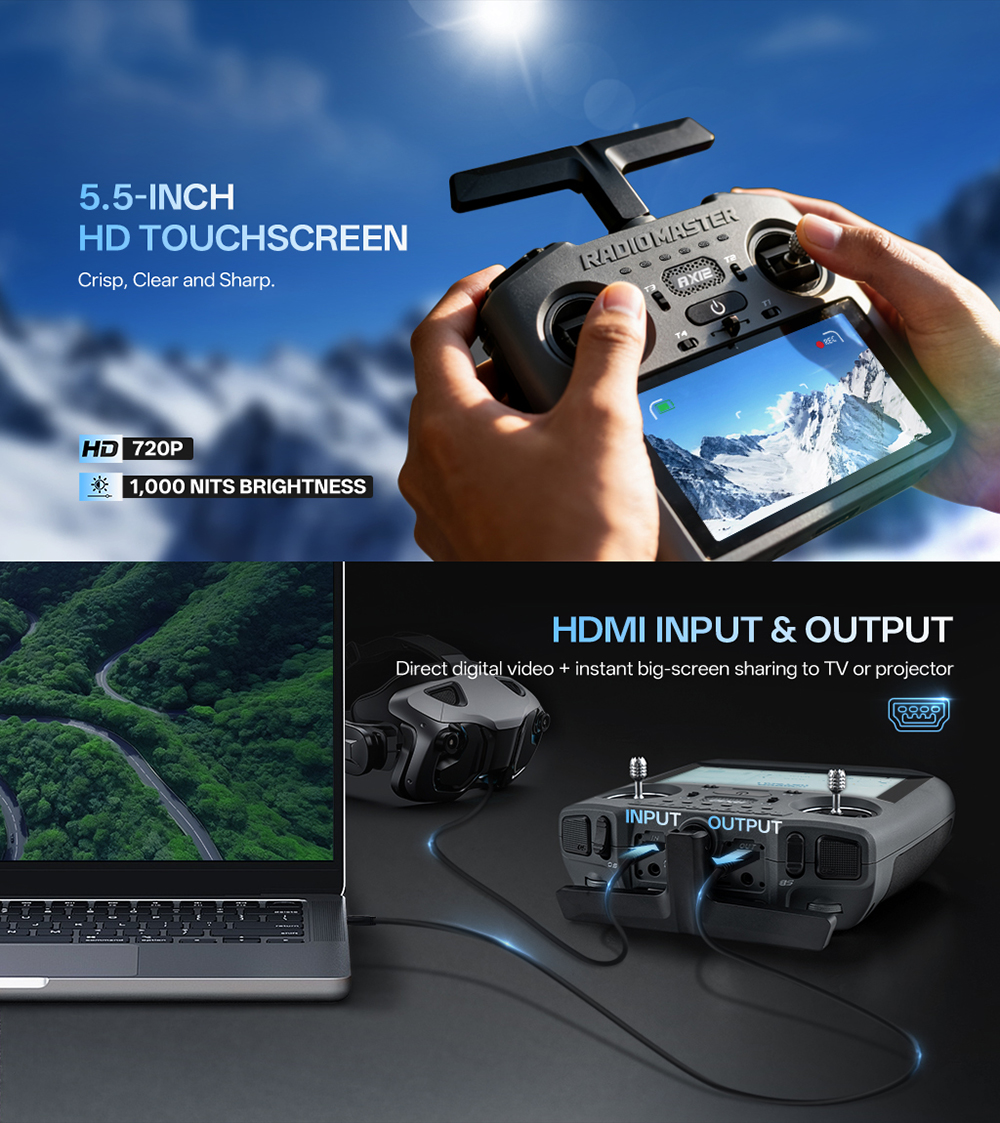

5. HDMI input: Supports HDMI video input - zero latency picture input, and can also browse complete telemetry information (such as altitude, speed, voltage, GPS) on the screen.

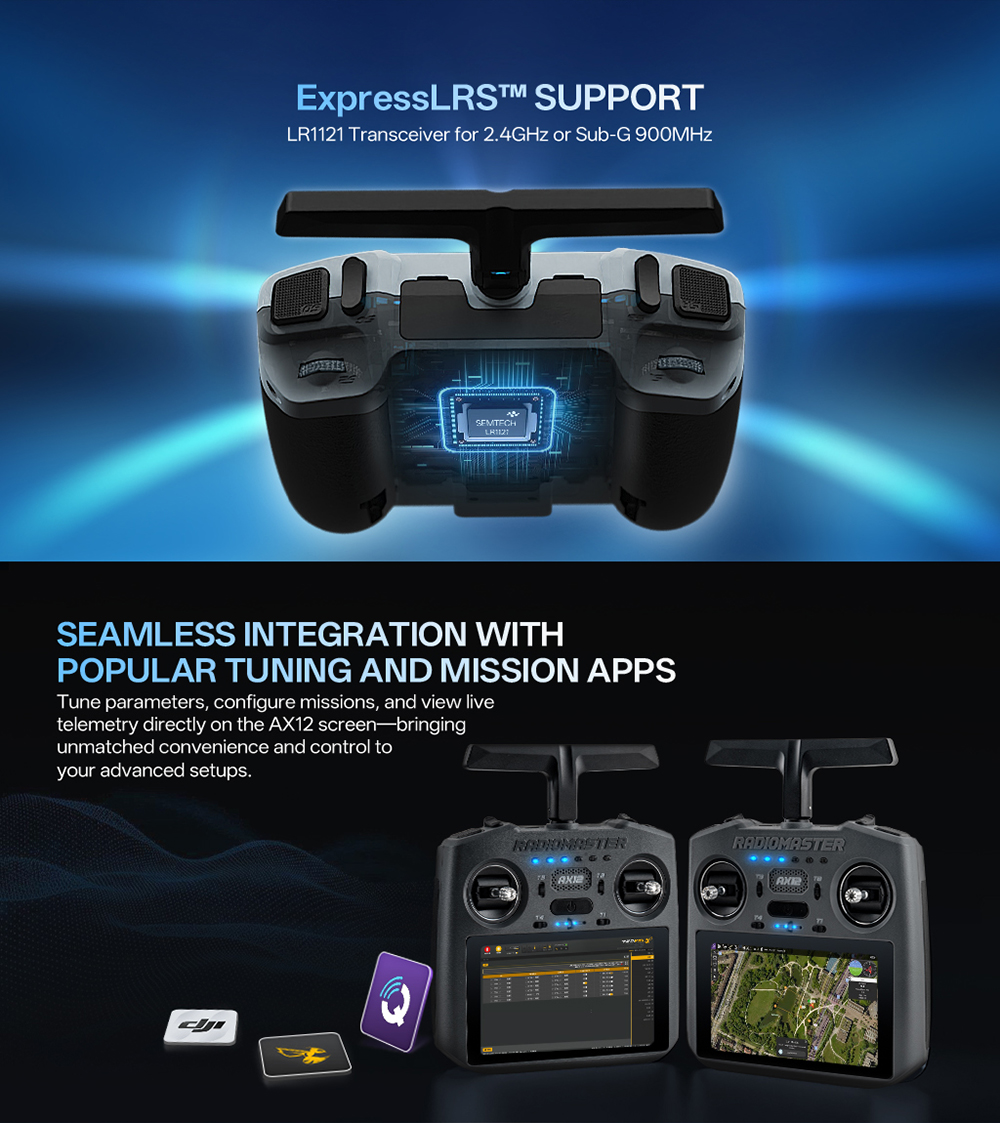

6. Built in ExpressLRS (LR1121): 2.4GHz, maximum 1000Hz packet rate, stable long-distance, supports Wi Fi OTA firmware upgrade.
7. MAVLink Direct (Wi Fi): Run QGroundControl - Global Command Center directly on AX12.
8. 16CH Mixed Control: Complete 16 channel mixed control, with any channel mapping and mixed control settings.
9. Custom Curves: complete custom curves, Expo curves, function curves, custom curves.
10. Dual Rates&Channel Lock: Dual Rates and channel locks can be freely set.
11. Custom Voice: Supports text to speech (TTS) input, self-made MP3 voice, and custom condition triggered voice broadcasting.
12. Nano external module compartment: Nano standard interface, ready for future protocol expansion.
13. Built in dual 21700 batteries: approximately 10000mAh total capacity, with a battery life of over 6 hours.
14. Complete interfaces: Wi Fi 5, Bluetooth 5.0+BLE, USB-C charging.
15. Tools Lua Script Support: Supports Tools Lua scripts to achieve advanced telemetry processing and workflow customization.

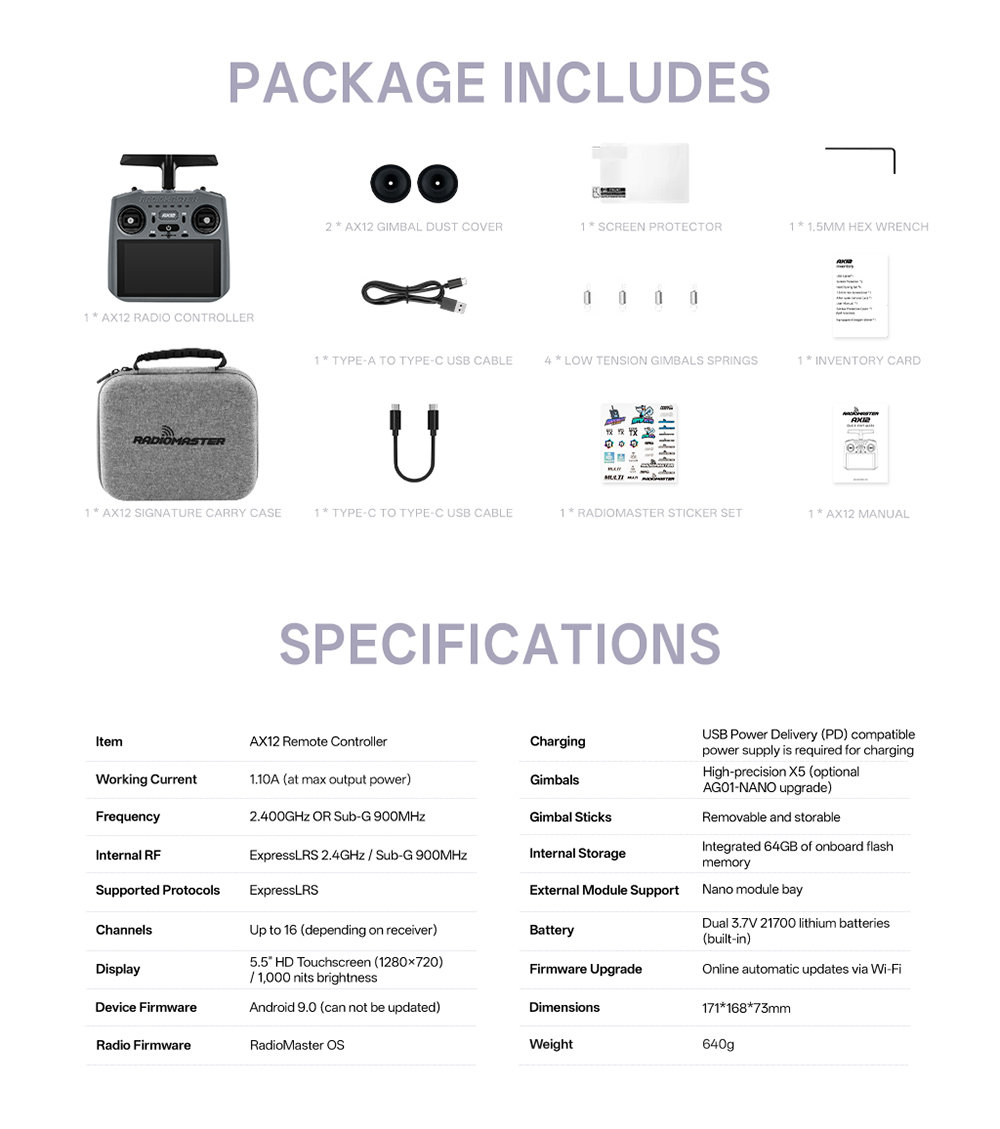

Specifications:
Product Name: AX12 Remote Control
Working current: max1.10A at max output power
Frequency: 2.400GHz -2.480GHz
Built in RF module: ExpressLRS LR1121
Supporting Protocol: Express LRS
Channels: 16CH (depending on the receiver)
Display screen: 5.5-inch HD touch screen
Resolution: 1280 × 720
Control distance: up to 2KM
Device system: Android 9 (currently does not support upgrades)
System firmware: RadioMaster OS
Charging method: USB-PD fast charging, requires the use of a power adapter that supports
USB-PD for charging
Joystick type: High precision X5 Hall joystick (optional AG01-NANO upgrade)
Internal storage: Built in 64GB
External module: Supports Nano expansion module
Battery type: Dual 3.7V 21700 lithium batteries (built-in)
Upgrade method: Automatically update online via Wi Fi

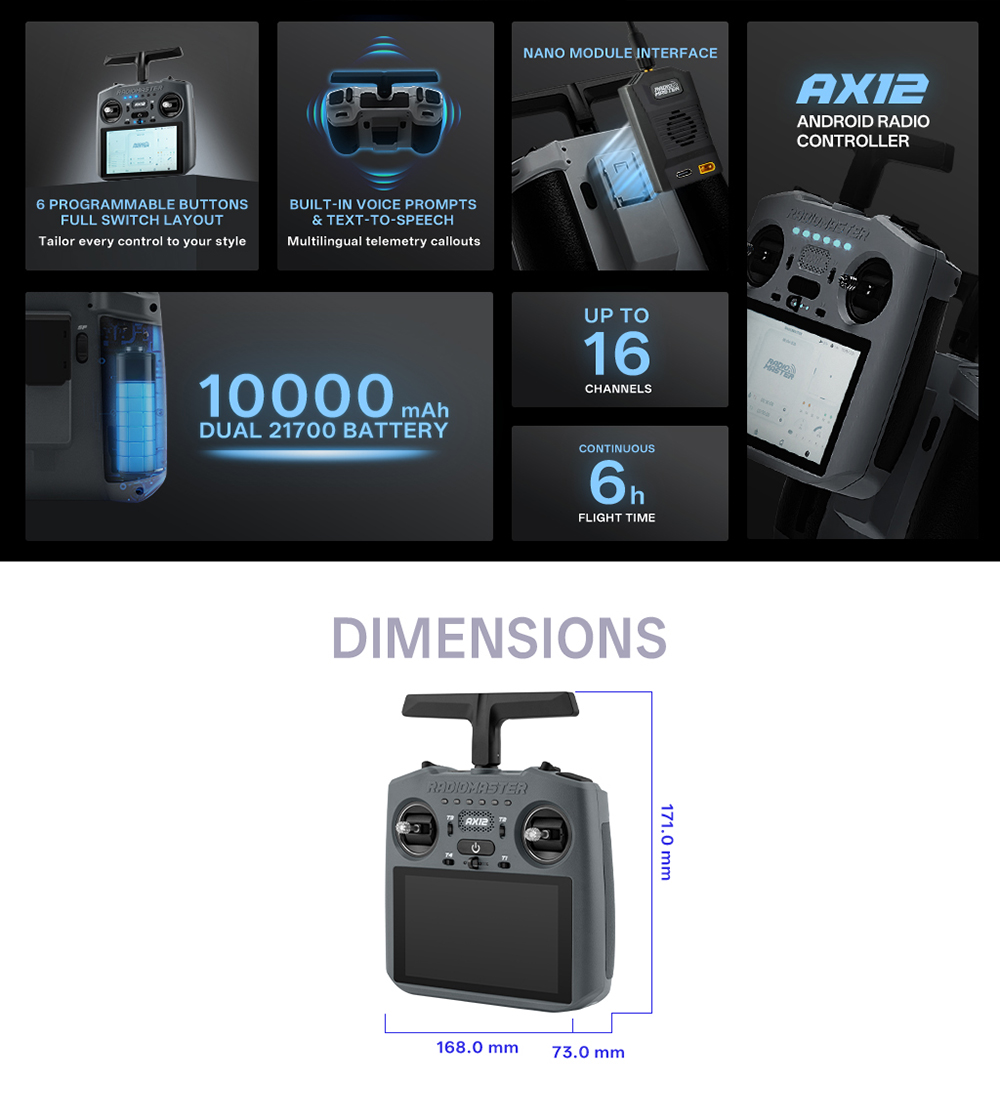

Size: 171 × 168 × 73mm
Weight: 640g

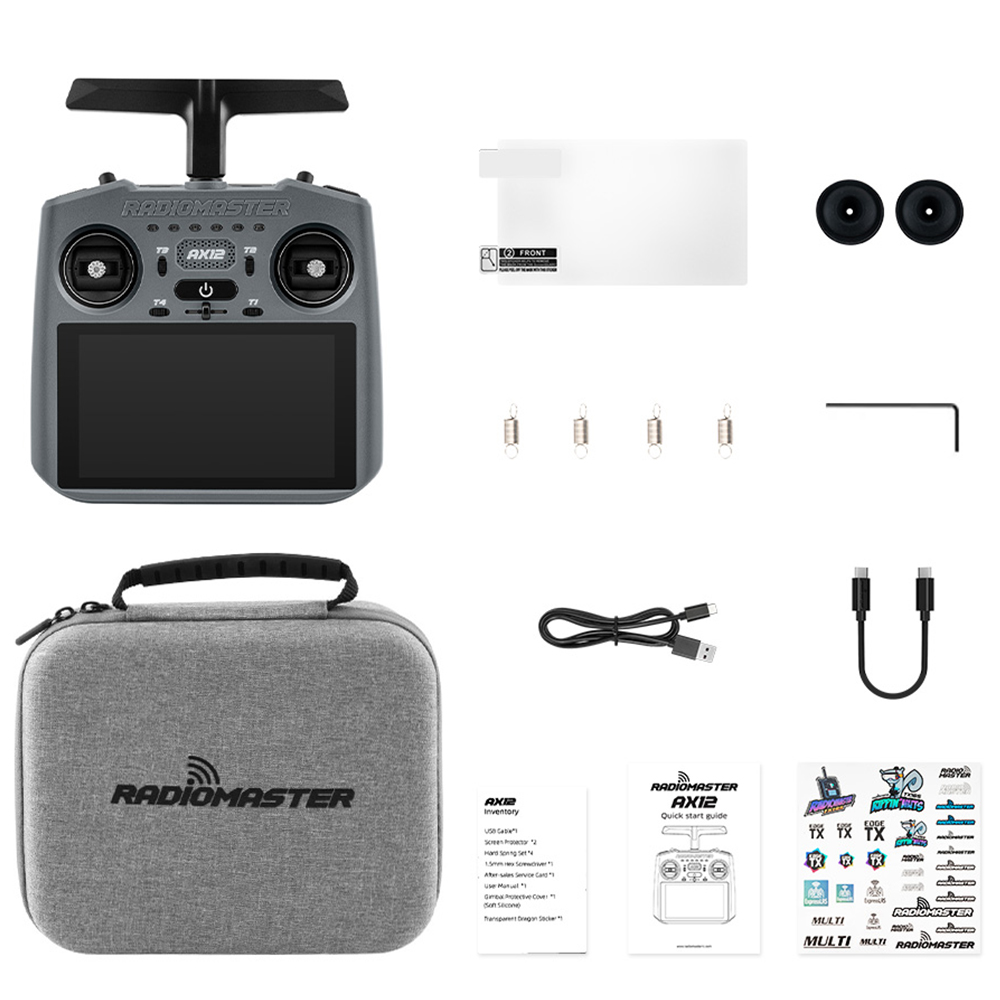

Package contents:
1 * AX12 remote control
1 * AX12 portable bag
1 * Type-A to Type-C data cable
1 * Type-C to Type-C data cable
1 * Screen protector film
1 * 1.5mm hex wrench
4 * Soft spring
2 * joystick dust cover
1 * RadioMaster brand sticker
1 * User Manual
1 * List card
