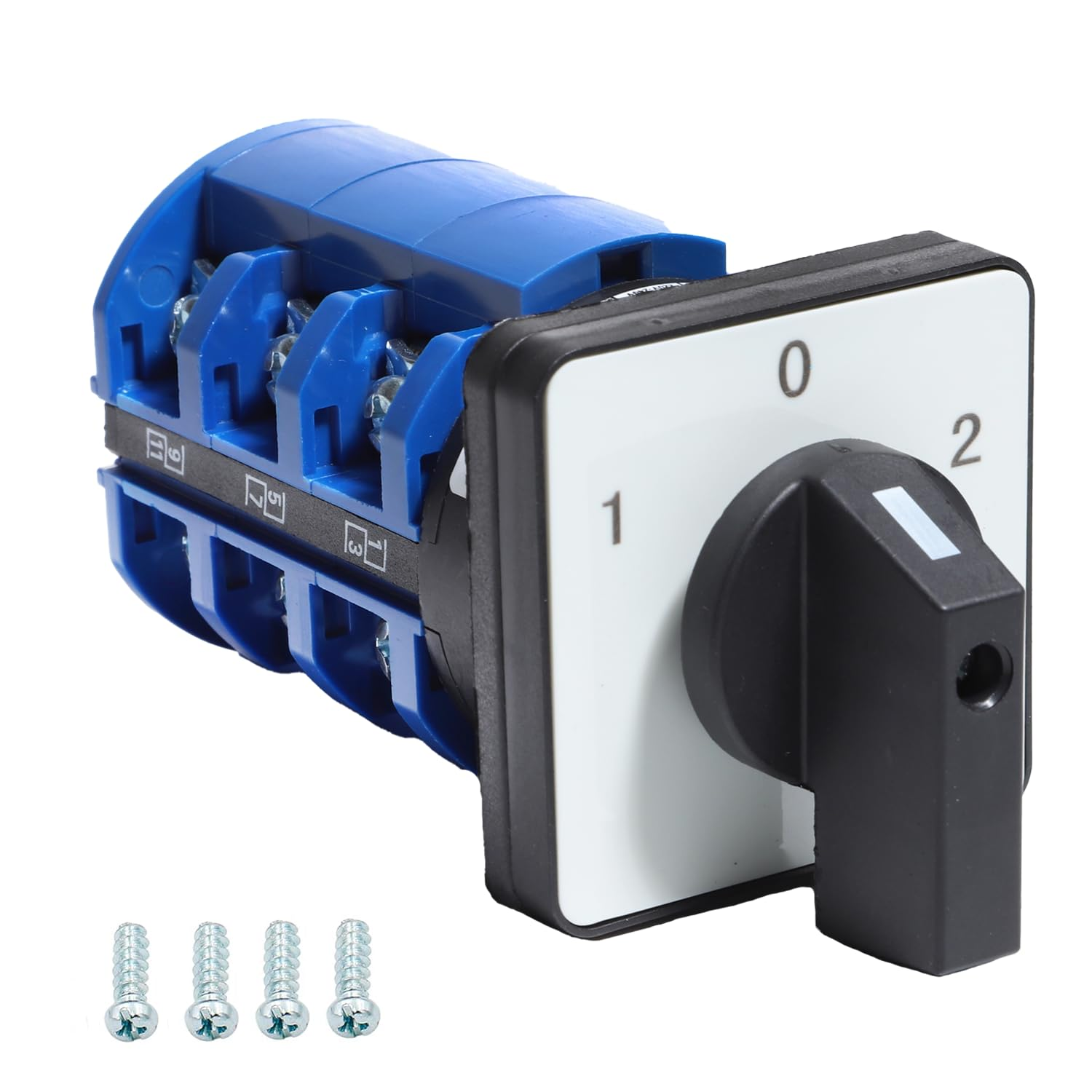

Universal Rotary Changeover Switch 690V 63A 3 Position 3 Phase Changeover Cam Selector Switch
Description
| Current Rating | 63 Amps |
| Number of Items | 1 |
| Item Dimensions | 5.5 x 2.87 x 2.75 inches |
| Upper Temperature Rating | 100 Degrees Celsius |
| Material Type | Copper, Plastic |
| Terminal | Spade |
| Operating Voltage | 690 Volts |
| Contact Material | Copper |
| Specification Met | CE |
| Number of Positions | 3 |
| Unit Count | 1.0 Count |
| Lower Temperature Rating | 70 Degrees Celsius |
| Material | Copper, Plastic |
| Circuit Type | 3-way |
| Item dimensions L x W x H | 5.5 x 2.87 x 2.75 inches |
| Control Method | Touch |
| Connector Type | Screw |
| Model | Bare 690V 63A |
| Mounting Type | Surface Mount |
| Color | 690V 63A |
| Operation Mode | ON-OFF-ON |
| Actuator Type | Rotary |
| Contact Type | Normally Closed |
| Included Components | 1 x conversion switch (No outer plastic case) |
| Switch Type | Rotary |
- 【Model】: JYW29-63/3 No outer plastic case
- 【Number of poles】: 3;Ui : 690V;Ith : 63A
- 【Location】: 3 locations (1-0-2)
- 【Material】 Flame retardant PC material, resistant to high temperature; copper contact which have good conductivity and oxidation resistance.
- 【Product packaging】: 1 x conversion switch (No outer plastic case)
Product description
Universal Rotary Changeover Switch 690V 63A/125A(No shell)
- Ui : 690V; Ith : 63A /125A(Two specifications to choose from)
- Pole Numbers : 3 Pole
- Positions : 3 Positions (1-0-2)=ON-OFF-ON
- Terminals: 12 screws terminals
- Contact material:Copper
PRODUCT ADVANTAGES
Flame retardant shell
Using flame-retardant PC material, it has good insulation performance, high temperature resistance, and is not prone to aging.
Copper parts
Using copper parts, with excellent conductivity and not easy to slip wires.
Copper contact
Using Copper material for contacts, it has low electrical resistivity, good conductivity, no arcing, high temperature resistance, no wear, and oxidation resistance.
