Features:

  - Supports CGA/EGA/VGA/YUV Component Signal Input

- Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)

- CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)

- YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)

- On Screen Display (English and Chinese)

- Supports image position control & image zoom control

- True digital 24-bit A/D converter for true 16.7-million color conversion.

- Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)





Specifications:



Power:

DC5V 2A  +/- 0.5v



Input  signal:

CGA/EGA - Auto Scan:

14.5kHz - 16.5kHz

23.5kHz - 25.5kHz

30.5kHz - 32.5kHz



RGBHV - Auto Scan:

30.5kHz - 32.5kHz



VGA - Auto Scan

30.5kHz - 32.5kHz



Ypbpr - Auto Scan:

480p, 576p, 720p, 1080p



Ycbcr - Auto Scan:

480i, 576i, 720i, 1080i



Output Signal:

VGA:

640*480, 800*600, 1024*768, 1360*768



User control:

Input Switch, Image Zoom, Image Position, Output Resolution, R\G\B gain adjust



Dimensions:

115*105*20mm



Contents:

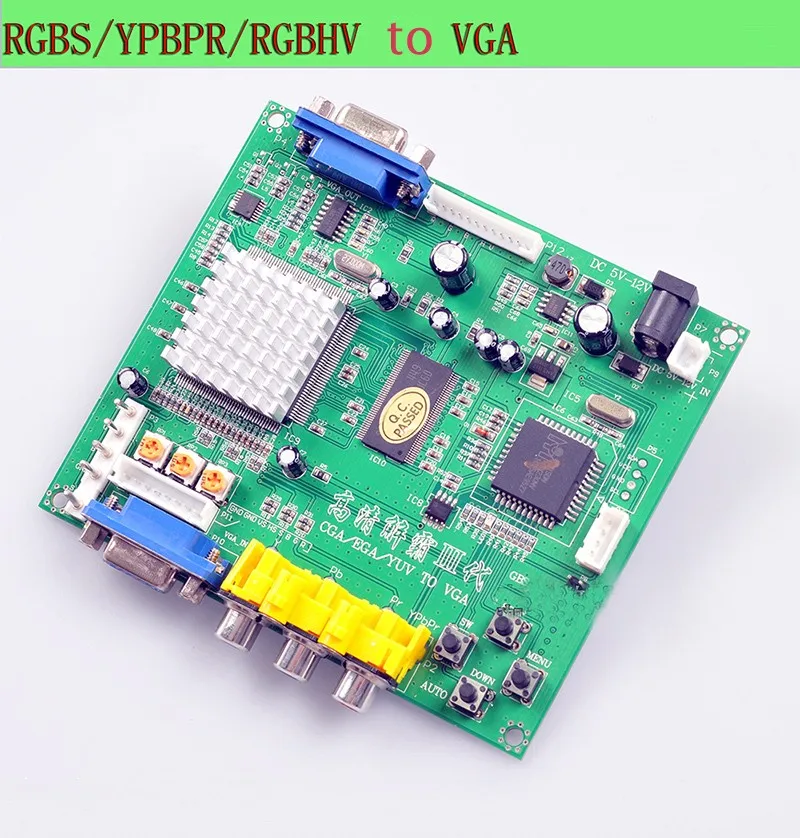

GBS-8200 Model Arcade HD-Converter PCB

Power Cable

RGB Cable

User Manual
