RadioMaster TX15 Radio Controller 16CH 3.5inch IPS ELRS 2.4G 6.6–8.4V V5.0 Hall 480×320 Resolution Built-in Fan Support ExpressLRS
Features:
1. Main control chip: equipped with STM32 H7 high-performance chip, providing powerful processing capabilities.
2. Touch color screen: 3.5-inch 480 × 320 resolution IPS screen, with bright colors and clear details.

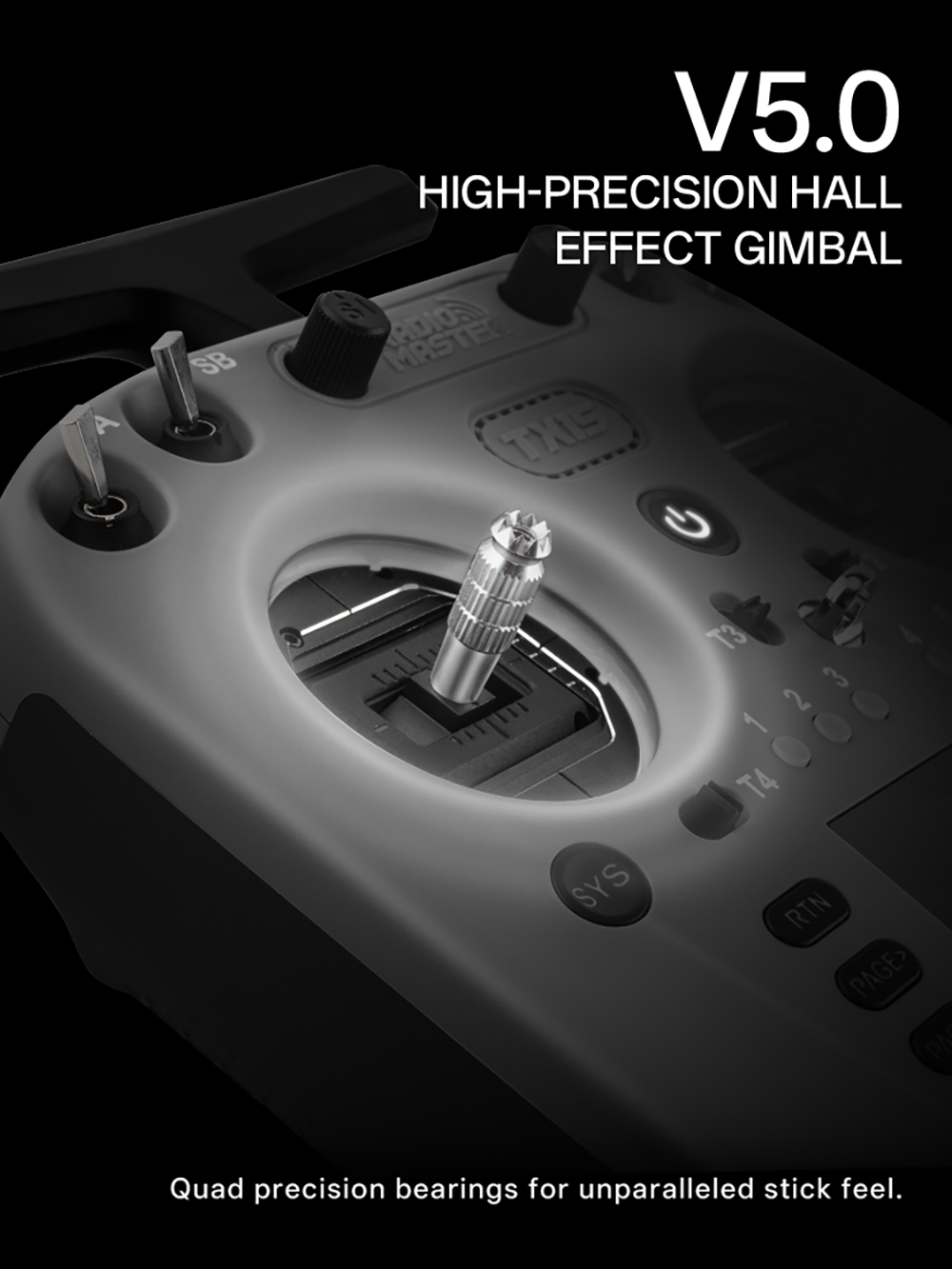

3. High precision joystick: standard V5.0 Hall sensor joystick.

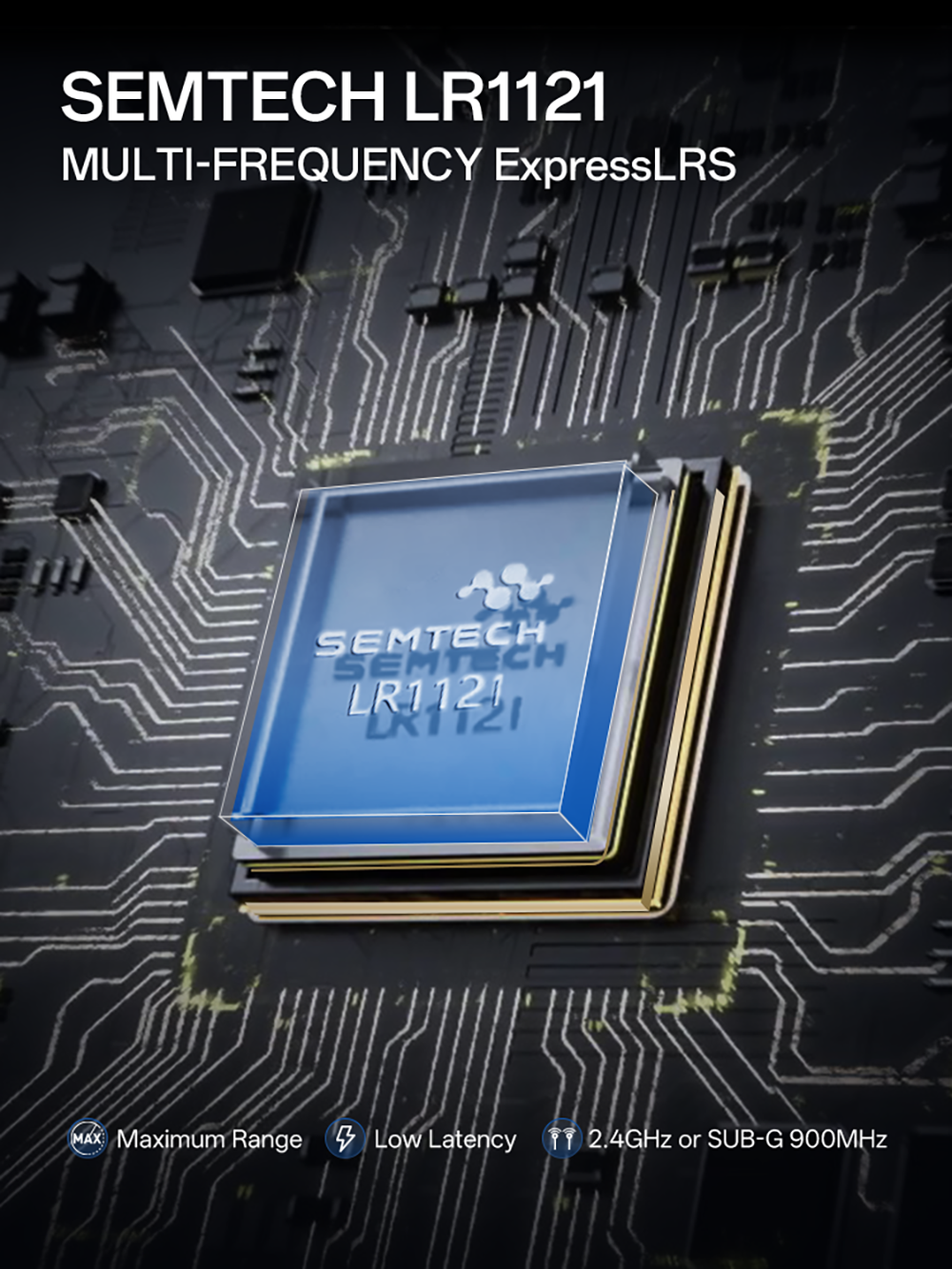

4. Built in ELRS module: supports 2.4GHz, ensuring stable control over long distances and low latency.
5. Intelligent battery management circuit: Maximizes battery efficiency and lifespan, extending flight time.

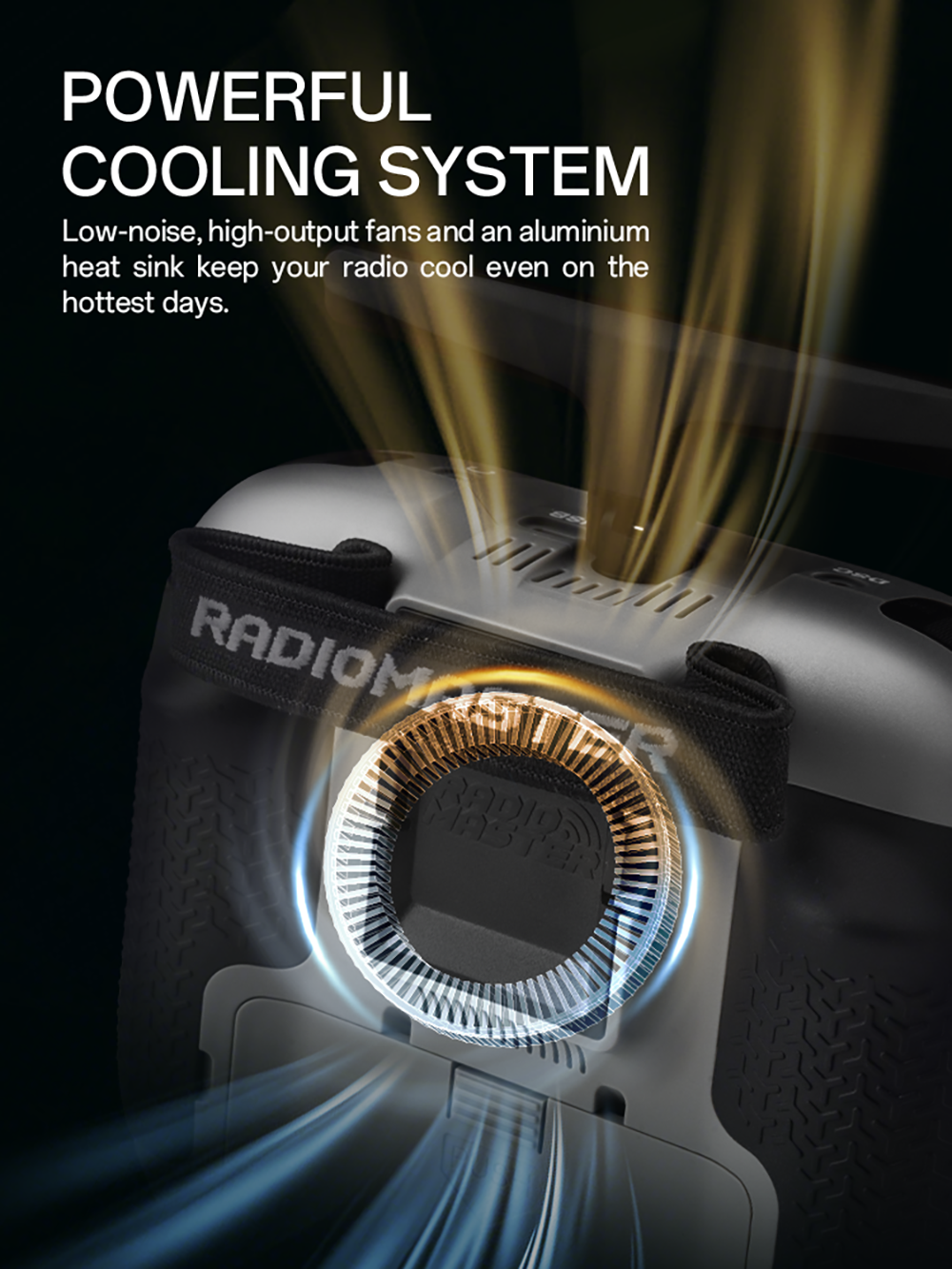

6. Efficient cooling system: Low noise, high output fan and aluminum alloy heat sink make the remote control capable of working for a long time in the hottest environment.

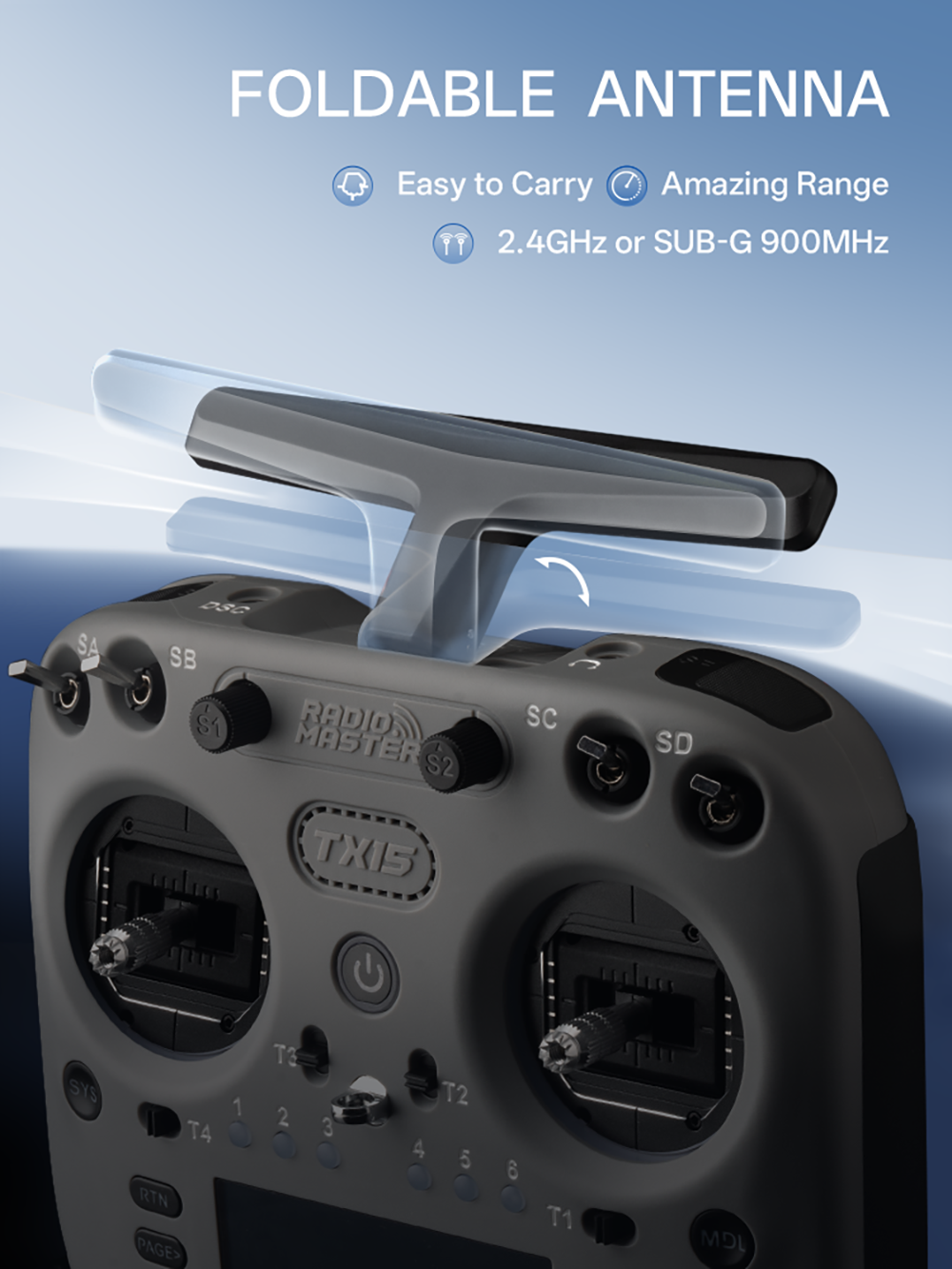

7. Foldable antenna: easy to store and does not affect signal strength and transmission stability.

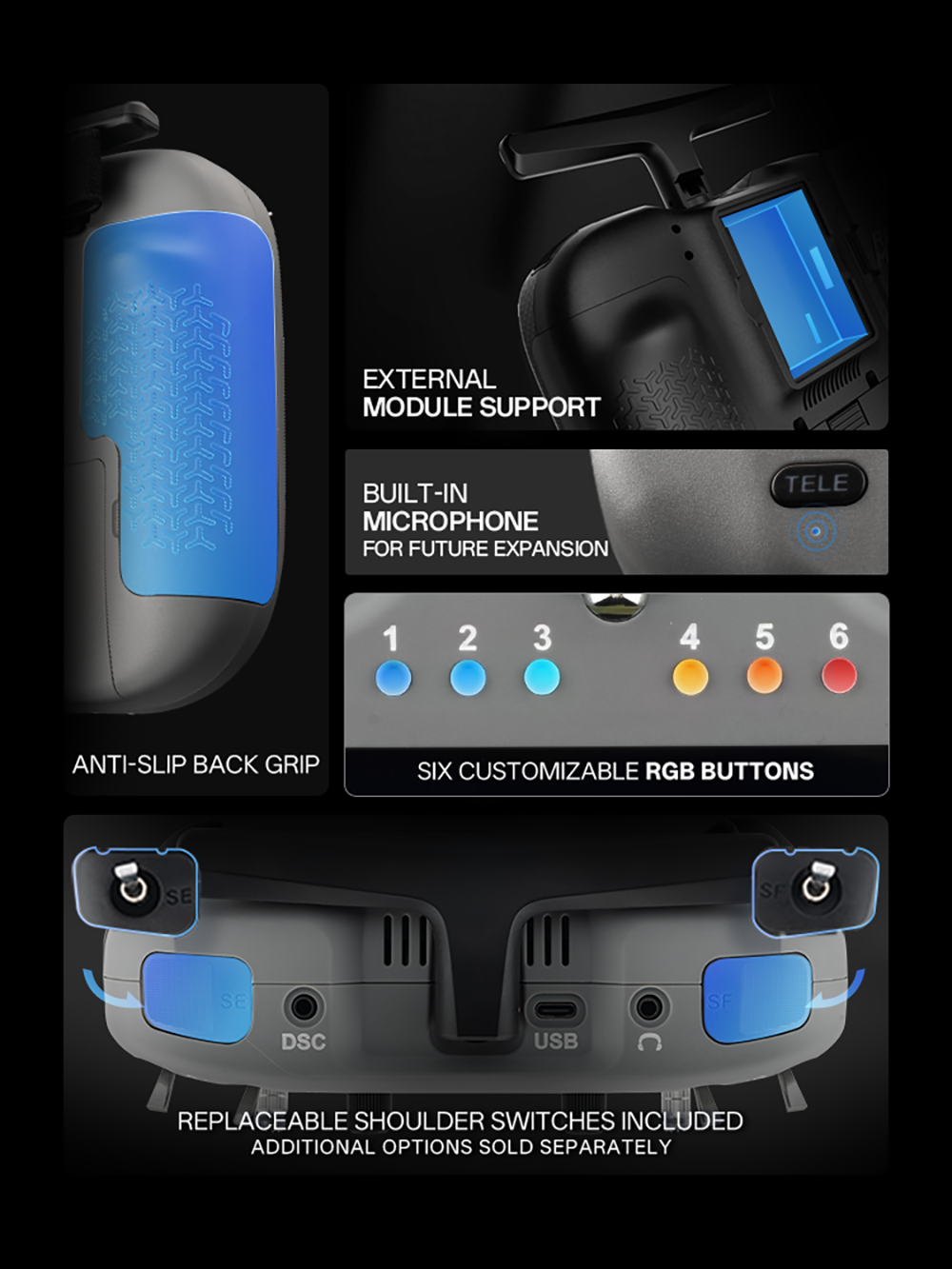

8. Built in microphone: reserved interface for future functional expansion.
9. Firmware and model storage: onboard 4GB Nand Flash+external TF card dual fuse.

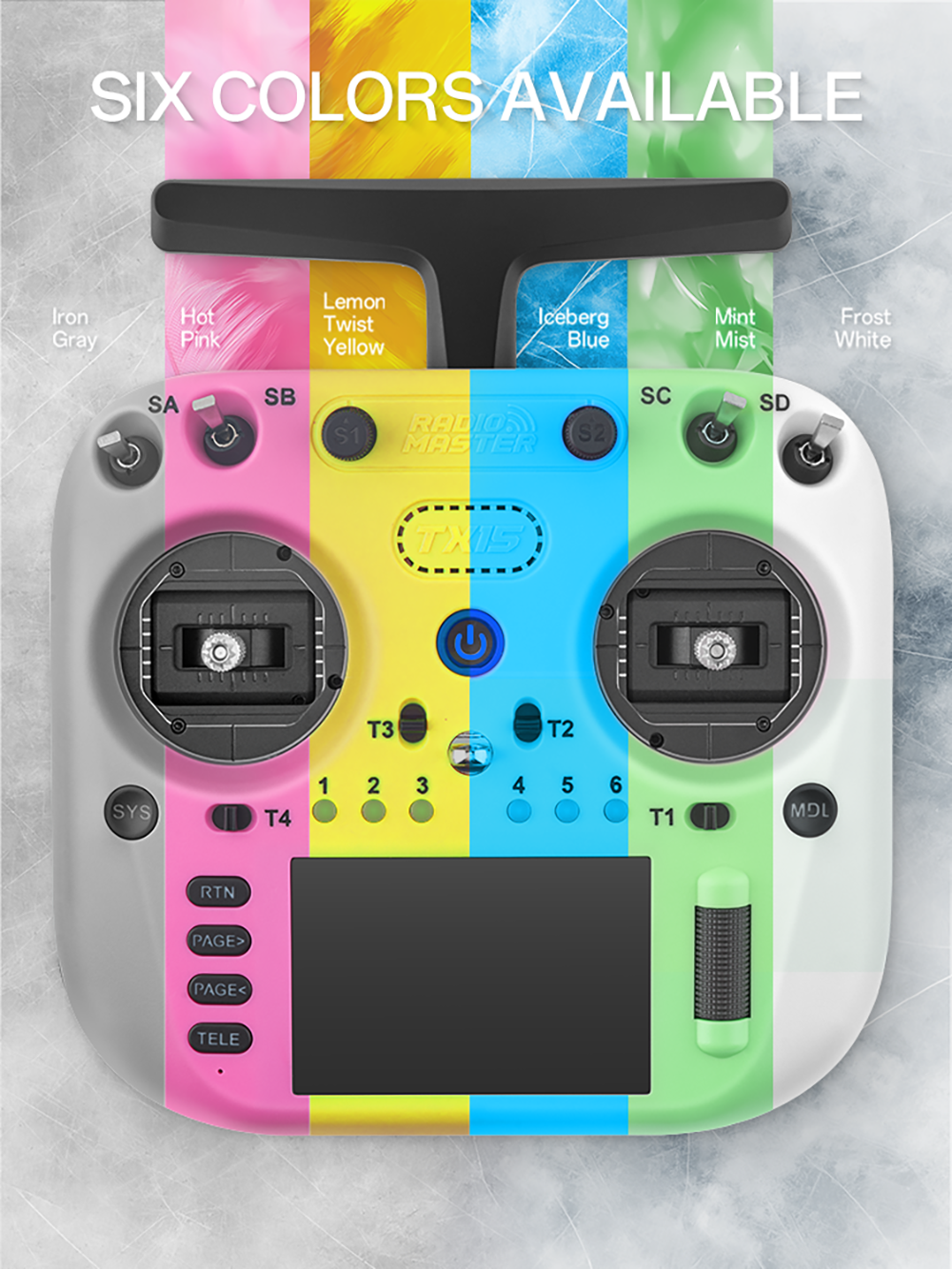

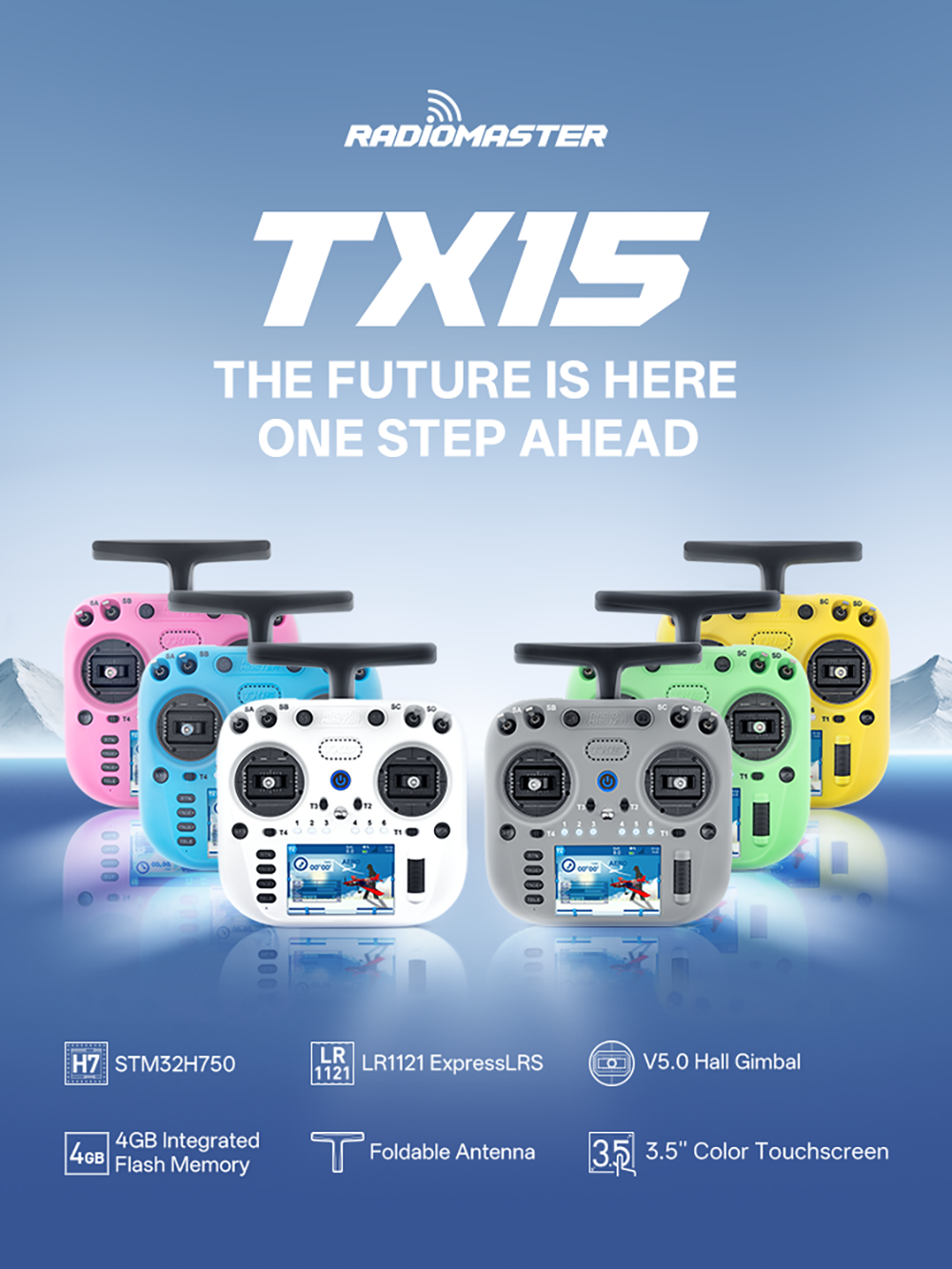

10. Colorful Six Colors Available: Twilight Grey/Frost White/Iceberg Blue/Mint Green/Lemon Yellow/Vitality Pink.
11. Adjustable shoulder toggle switch: preferred by model airplane players, it can also be freely replaced with a button switch.
Description:
The new TX15 Radio Controller in 7unique, vibrant, and eye-catching colors,16channels,Standaard JR Module Compartment,Internal Module Cooling Fan Built In(only for ExpressLRS Version),the TX15 an ideal choice for pilots on the go.

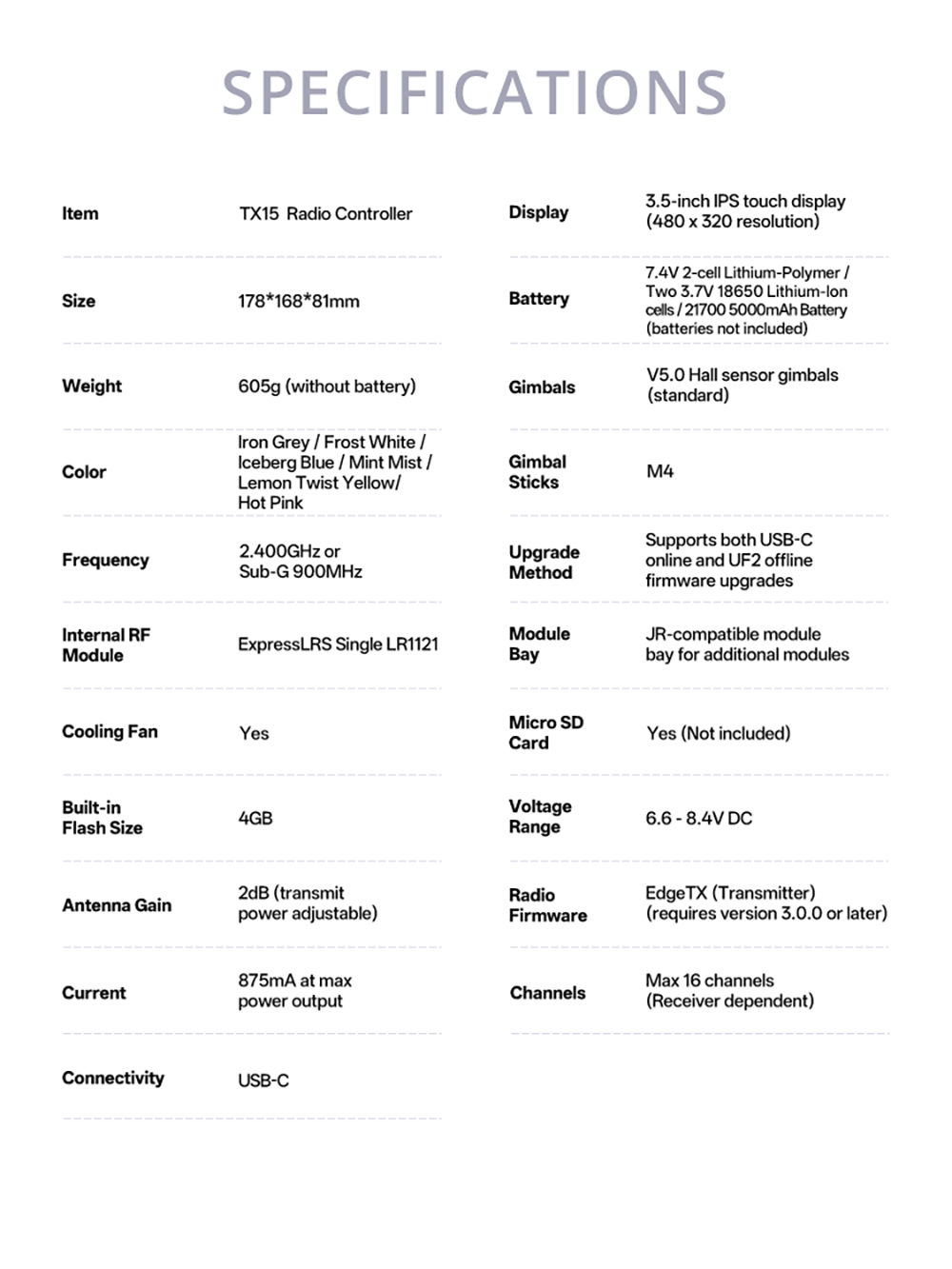

Specifications:
Name: TX15 Remote Control
Frequency range: 2.400GHz
Built in RF module: ELRS 2.4GHz
Support protocol: ExpressLRS
Cooling fan: built-in
Transmitting module: Built in ELRS module
Flash memory capacity: 4GB
External TF card slot : FAT32 format up to 32GB(needs to be purchased)
Antenna gain: 2dB (adjustable transmission power)
Current: max 875mA
Voltage: 6.6-8.4V DC
Firmware: EdgeTX (requires version 3.0.0 or higher)
Launch module firmware: ExpressLRS 3.5.5
Channels: 16CH
Display screen: 3.5-inch IPS touch screen
Resolution: 480 × 320

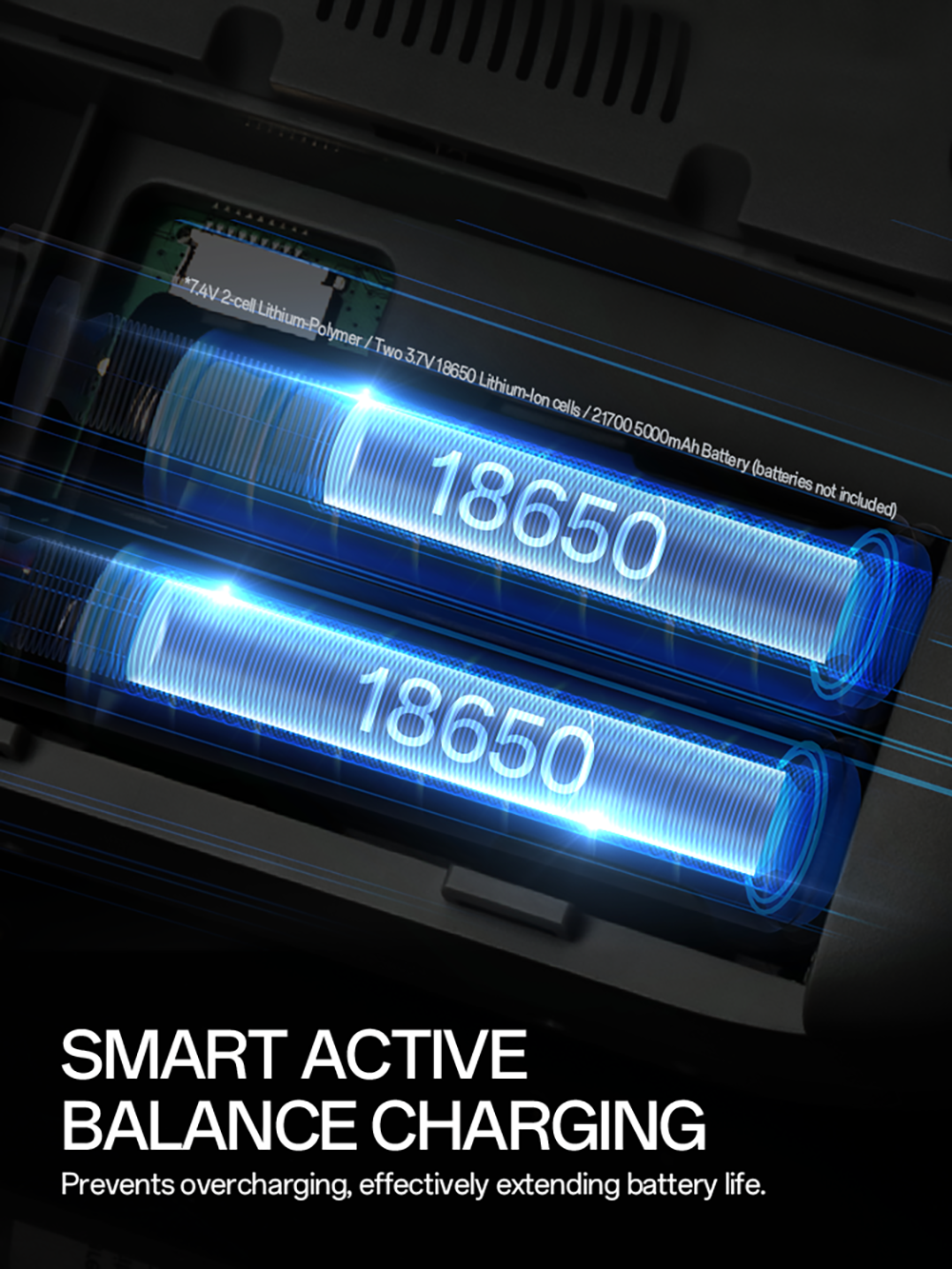

Battery support: 7.4V 6200mAh lithium polymer battery pack/Two 3.7V 18650 lithium battery boxes/7.4V 21700 5000mAh battery (batteries need to be purchased separately)

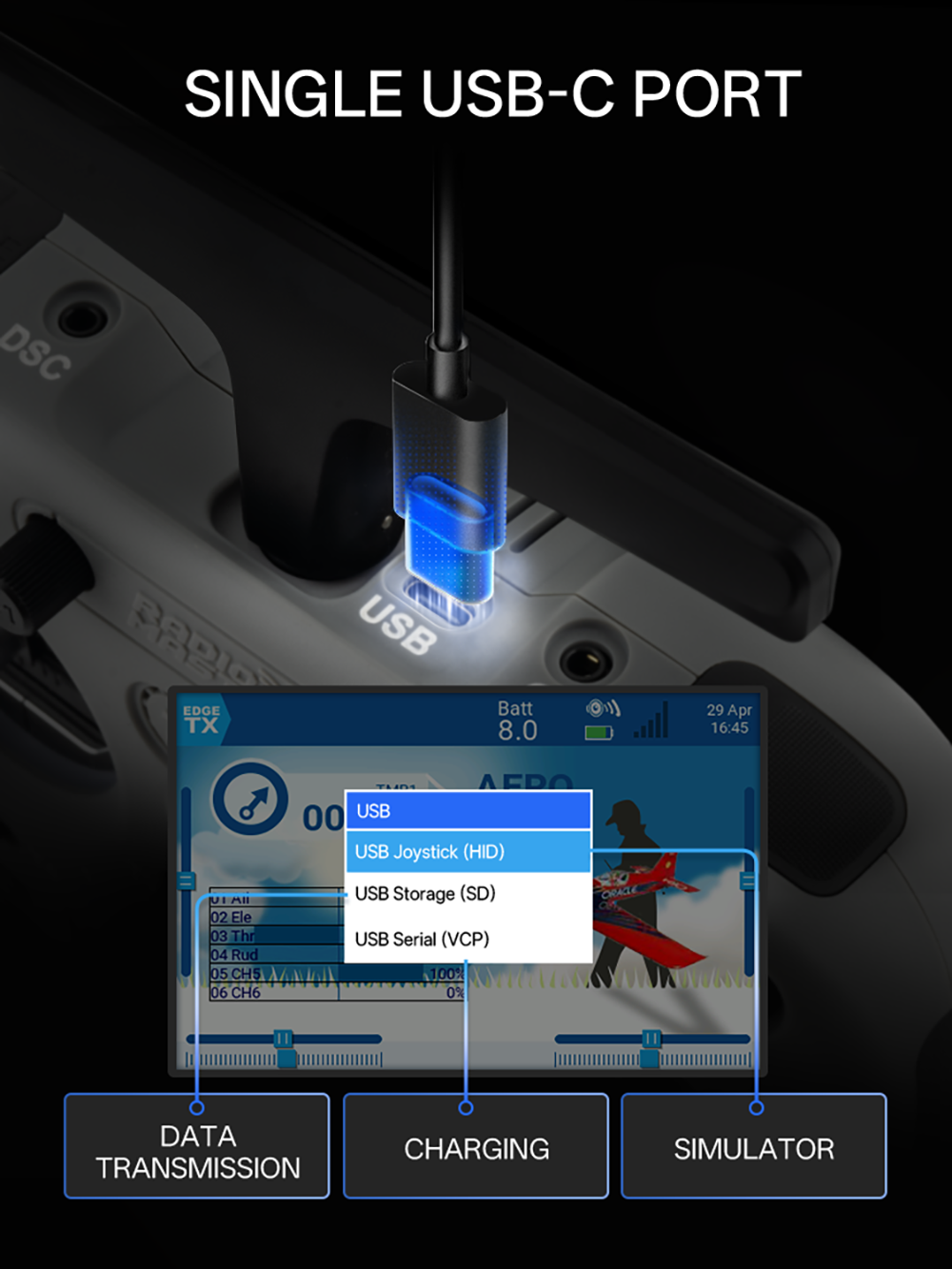

Connection: USB-C
Joystick type: V5.0 Hall sensor joystick
Swappable joystick head thread: M4
Module cabin: compatible with JR module cabin, expandable to other transmission modules
Upgrade: Supports USB-C online upgrade and UF2 offline upgrade

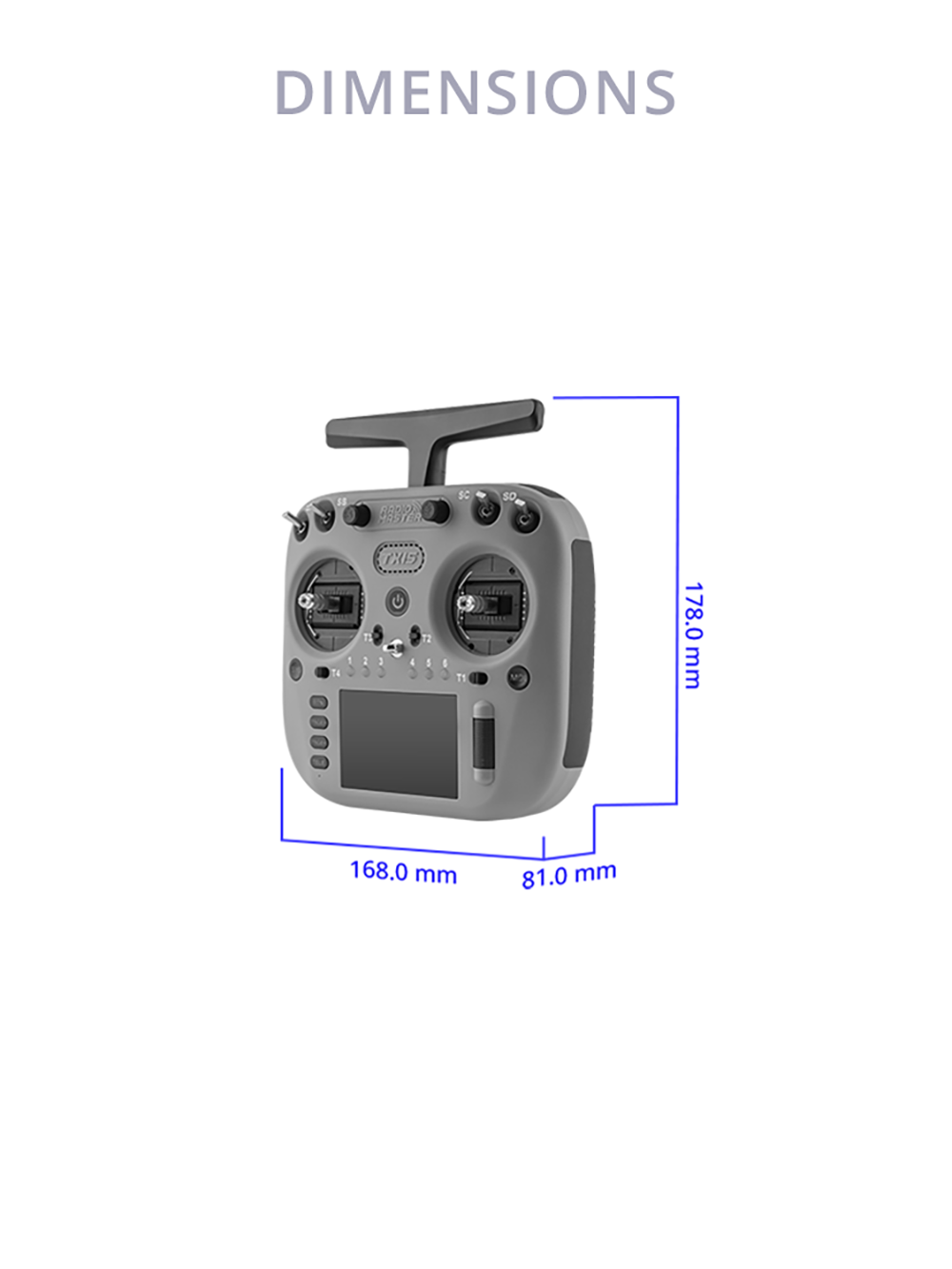

Size: 178 × 168 × 81 mm
Weight: 605 grams (excluding battery)

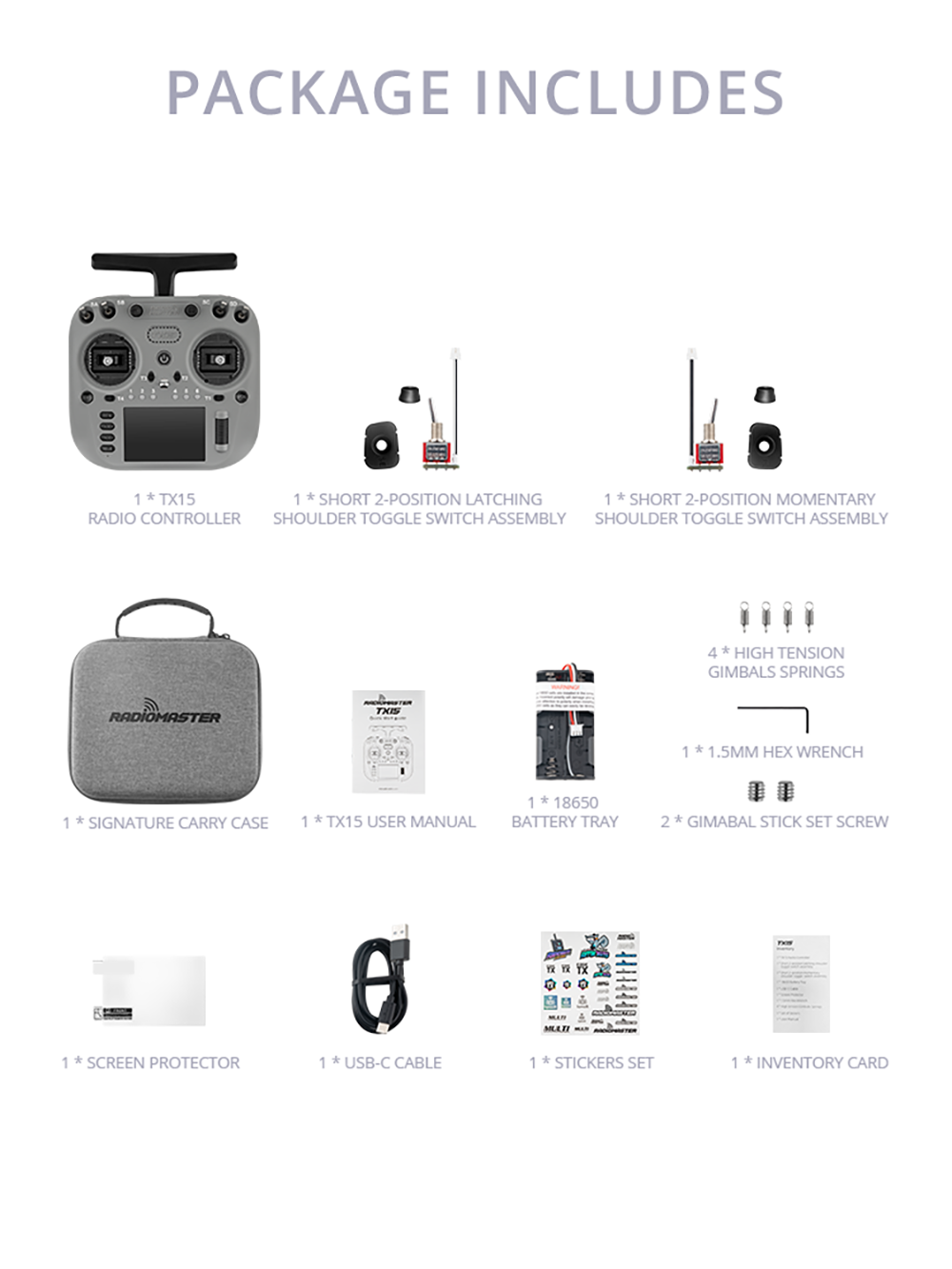

Package contents:
1 * TX15 remote control
1 * TX15 portable bag
1 * Short handle 2-stage switch assembly (left shoulder)
1 * Short handle rebound switch assembly (right shoulder)
1 * 18650 battery holder
1 * USB-C data cable
1 * Screen protector film
1 * 1.5 hex screwdriver
1 * Hard spring group
2 * Machine meter screws
1 * One set of stickers
1 * User Manual
1 * List card
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
