EXFO MaxTester MAX-730D-SM1 SM 1310 / 1550nm Fiber OTDR
The MaxTester 700D OTDR Series comes with a Swap-Out connector which can easily be changed, as and when needed, without having to send the test unit to a service center.

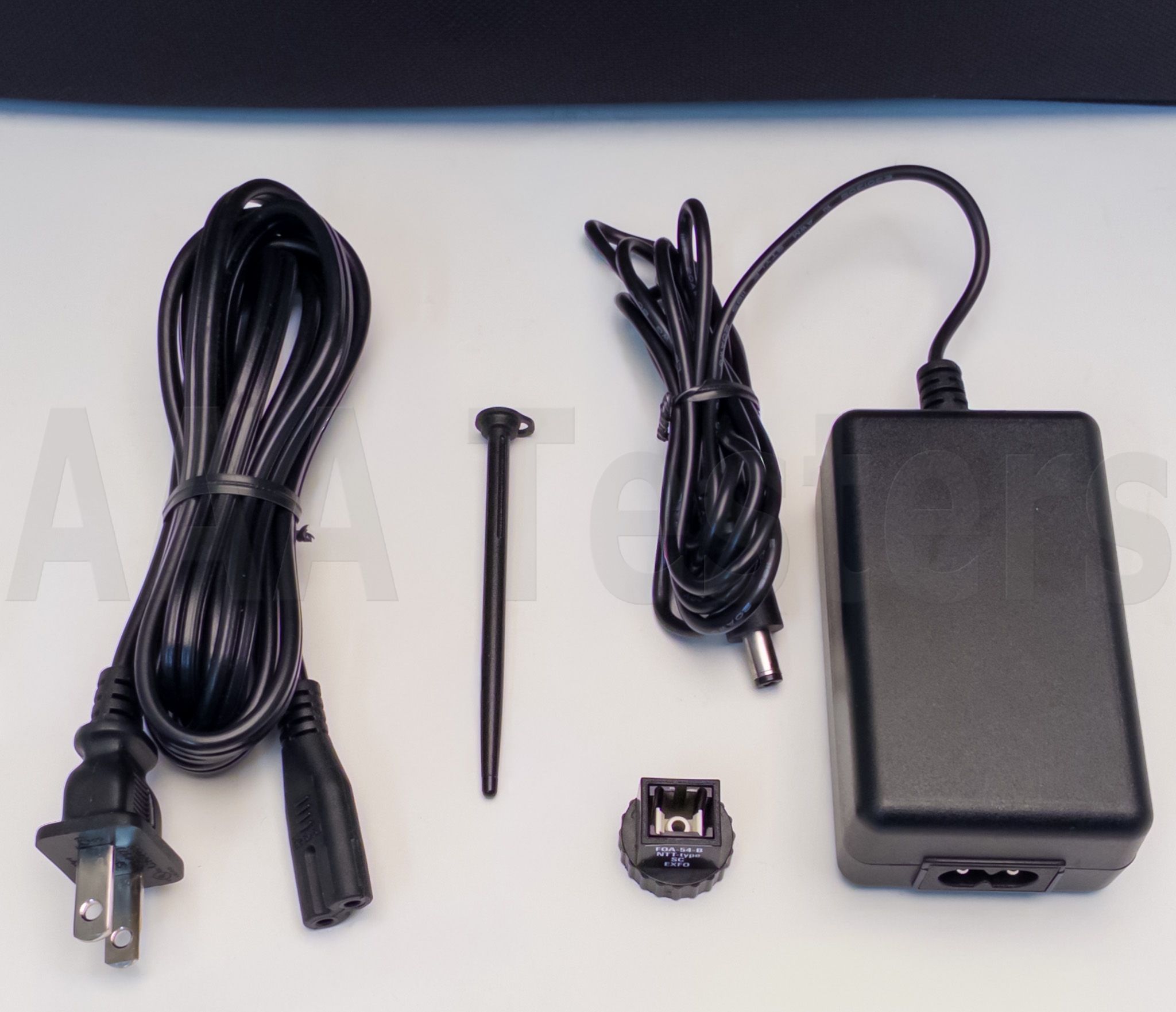

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

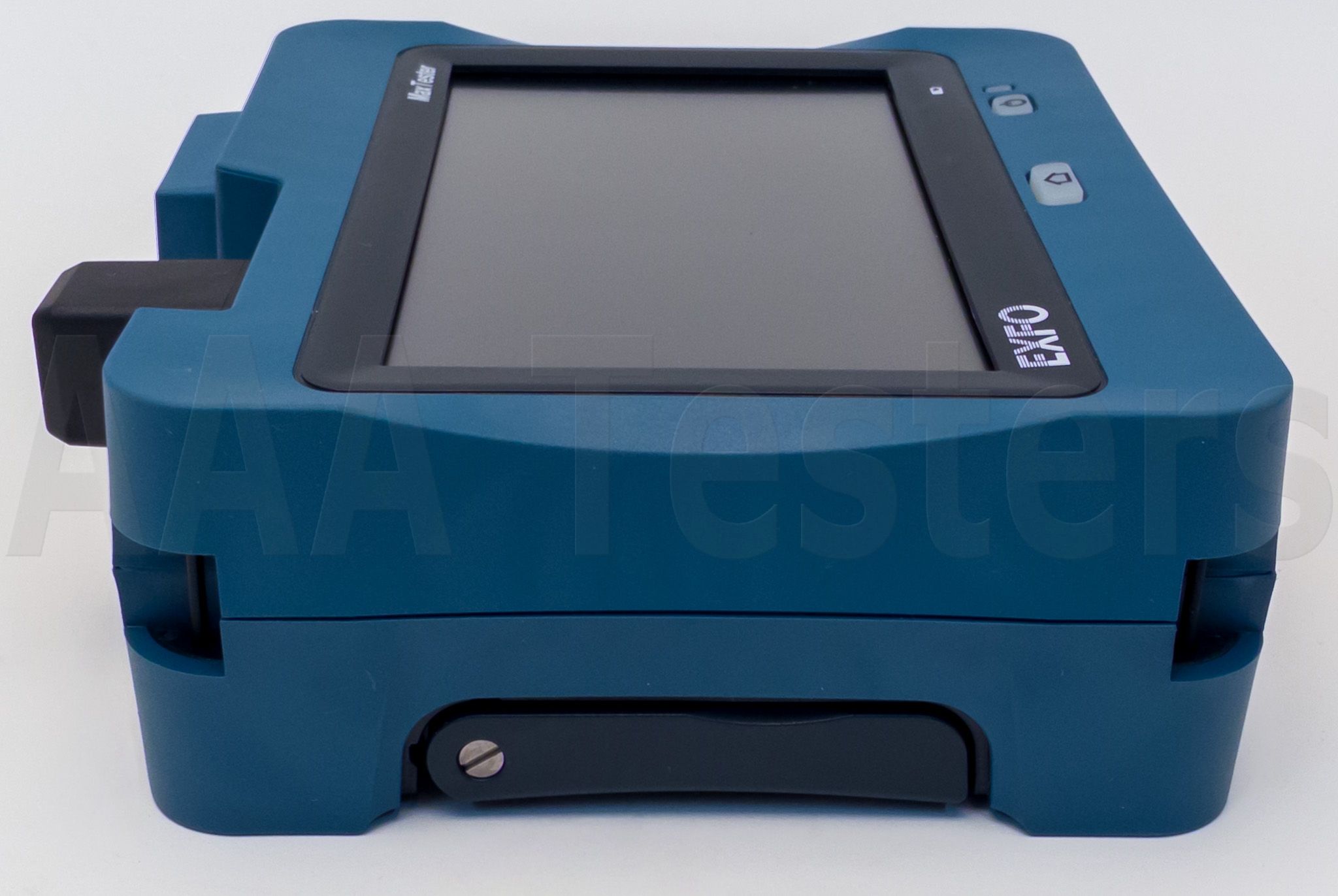

EXFO MaxTester 730D OTDR
The handheld OTDR... with proven performance
The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes.
The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.
Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.
Ultimately, the MaxTester 700D Series is small enough to fit in your hand and big enough to fit all your needs!
Entry-level solution designed for all your testing needs
The MaxTester 730D (MAX-730D) is a PON/metro OTDR that is optimized to test through optical splitters up to 1×128, hence ensuring complete end‑to‑end FTTH characterization. Furthermore, its high dynamic range makes it suitable for metro P2P testing.
The 1650-nm, out-of-band, live testing capabilities enable efficient troubleshooting of active networks without impacting the signal of other clients.
Swap-Out connector
The MaxTester 700D OTDR Series comes with a Swap-Out connector which can easily be changed, as and when needed, without having to send the test unit to a service center. This ensures optimal performance over time without undue maintenance costs and downtime. The OTDR's optical connector health can be checked with an onboard diagnostic tool to replace the connector only when necessary.
Technical Specifications
|
Display
|
7-in Outdoor-enhanced touchscreen, 800x480TFT
|
Interfaces
|
Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s
|
Storage
|
2 GB internal memory (20000 OTDR traces, typical)
|
Batteries
|
Rechargeable lithium-polymer battery
12 hours of operation as per telcordia (bellcore) TR-NWT-001138
|
Power Supply
|
Power Supply AC/DC adapter, input 100-340 VAC, 50-60 Hz
|
Wavelength (nm)
|
1310 ± 20/1550 ± 20/1625 ± 10/1650 ± 15 |
Dynamic range (dB)
|
39/39/39/39 |
Event dead zone (m)
|
0.5
|
Attenuation dead zone (m)
|
2.2 |
PON dead zone (m)
|
30
|
Distance range (km)
|
0.1 to 400
|
Pulse Width (ns)
|
3 to 20000
|
Linearity (dB/dB)
|
±0.03
|
Loss threshold (dB)
|
0.01
|
Loss resolution (dB)
|
0.001
|
Sampling resolution (m)
|
0.04 to 10
|
Sampling points
|
Up to 256000
|
Distance uncertainty (m)
|
±(0.75 + 0.0025% x distance + sampling resolution)
|
Measurement time
|
User-defined
|
Reflectance accuracy (dB)
|
±2
|
Typical real-time refresh (Hz)
|
4
|
|
