Caratteristiche principali:
- Sistema operativo Android 14.0, Octa Core, CPU 2*A75 + 6*A55 a 64 bit da 1,8 GHz.
- 4 GB di RAM e 64 GB di ROM, 2 schede / 3 USB fino a 5*256 GB di memoria estesa.
- Elaborazione ad alta velocità: il punteggio benchmark supera i 170.000.
- Decodifica CANbus integrata, mantiene il funzionamento delle funzioni originali.
- Sistema amplificatore DSP: per un ascolto musicale Hi-Fi.
- Amplificatore STMicroelectronics TDA7851: supporta subwoofer e audio stereo 4*48W.
- Apple CarPlay wireless e Android Auto wireless e cablato.
- Bluetooth 5.0 di ultima generazione: chiamate in vivavoce, musica BT, sincronizzazione della rubrica telefonica.
- Navigazione satellitare GPS: supporta la navigazione GPS offline, la funzione GPS è pronta all'uso.
- Modulo WiFi dual band: supporta entrambe le bande 2,4 GHz e 5 GHz.
- Internet 4G: supporta il 99% degli operatori mondiali, supporta schede micro SIM.
- DVD, USB, TF, radio, RDS, orologi mondiali, calcolatrice, Adobe Reader integrati.
- Supporta funzioni estese DAB+, DVB-T/T2, TPMS, OBD2, DVR, telecamera AHD, ecc.
- Comandi al volante: controllo più facile e sicuro.
- Schermo diviso: esegui due app affiancate.
- Luci del pannello con colori RGB.
Modelli e anni compatibili:
- Mercedes Benz Classe CLS W219 2004-2008 (CLS350 CLS500 CLS55...)
- Mercedes Benz Classe E W211 2002-2009 (E200 E220 E240 E270 E280 E320 E350 E500 E55...)
Nota importante:

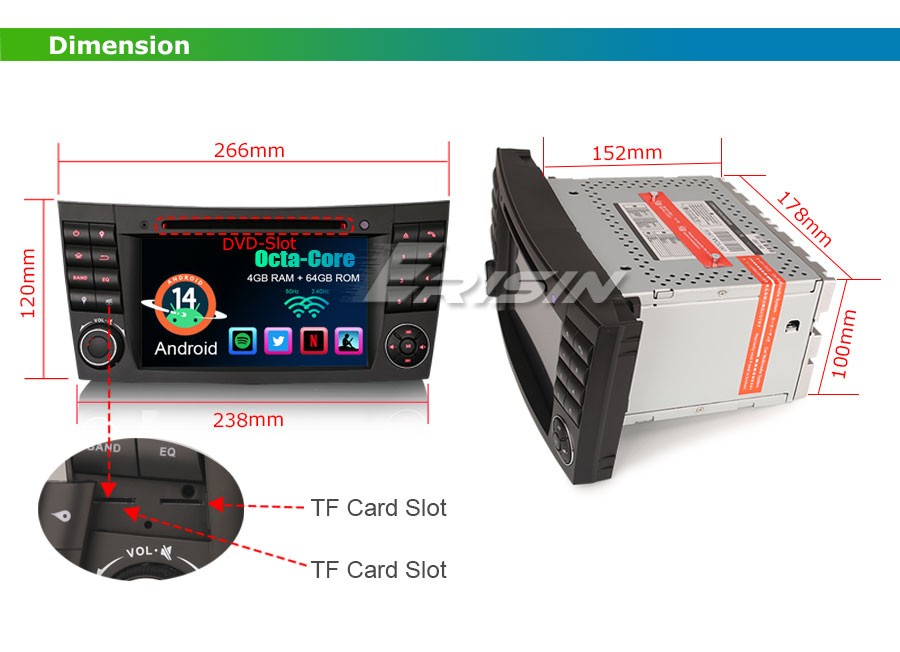

1. Questa unità ha dimensioni di installazione del monitor 266 mm (larghezza superiore) * 120 mm (altezza) * 238 mm (larghezza inferiore). Per assicurarsi che l'articolo sia adatto alla propria auto, verificare la forma e le dimensioni della console centrale o dell'autoradio originale del proprio veicolo, verificando che siano uguali a quelle descritte nel nostro elenco prima dell'acquisto.
2. Circa 1/3 dei modelli di auto della classe BENZ E/CLS appartengono alla versione alta con amplificatore/sistema audio a fibre ottiche. Se la tua auto è dotata di un sistema amplificatore a fibra ottica come Harman-Kardon o Bose, è necessario acquistare un cavo di alimentazione e radio BZ6M da noi per l'installazione. Una volta installato, questo dispositivo funzionerà direttamente con gli altoparlanti della vostra auto, mentre la fibra ottica di fabbrica NON funzionerà più.

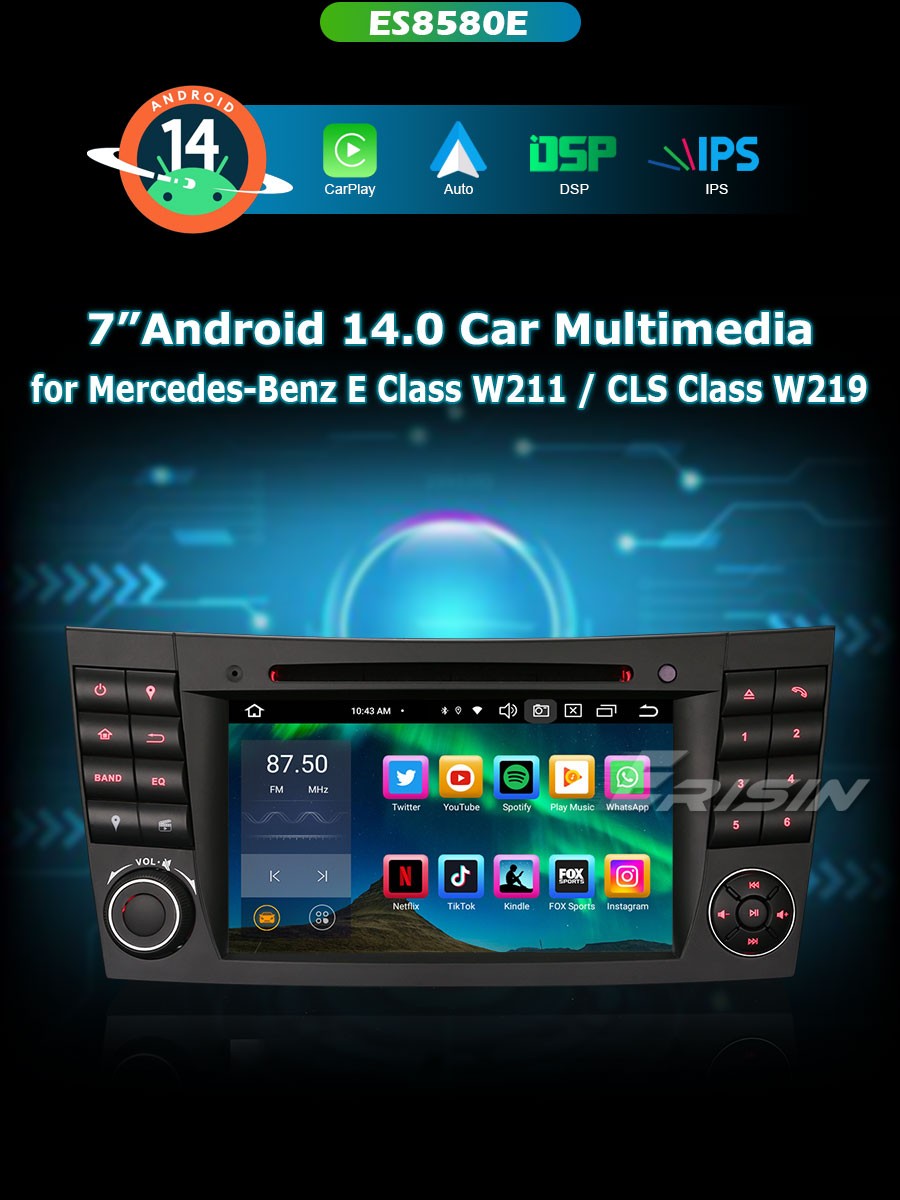

ES8580E 7" Octa-Core Android 14.0 Car Multimedia CarPlay & Auto GPS TPMS/DVR/DTV/DAB-IN...
General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Front panel Size: 266mm(Top width)*120mm(High)*238mm(Bottom width)
- Package Size: 350mm*280mm*210mm
- Shipping Weight: 4.5kg
System
- Operation System: Google Android 14.0
- CPU: A007 1.8GHz 64-bit 14nm Cortex 2* A75 + 6* A55
- RAM: 4GB
- Internal Memory: 64GB
- Extended Card/USB: Support TF Card or USB Stick up to 256GB
Display
- Screen Type: Multi-touch IPS Screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 1 live wallpapers, 14 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes
Internet
- WiFi Internet: Dual Band WiFi, support 2.4GHz and 5.0GHz Dual Band WiFi networking, support WiFi Hotspot.
- 3G/4G Internet: Built-in 4G Module, Supported 4G Bands: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20, B38, B39, B40, B41.
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from play store
- Online Music: Yes, use apps like Spotify, Amazon Music, Google Music, Apple Music, Deezer downloaded from PlayStore.
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: TDA7851, Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB
Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: need to use the USB-RCA-Converter
GPS
- Operation System: Android 14.0
- Support Maps: IGO, Sygic, Waze maps for Android 14.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as Google Maps
DVD
- Decode IC: 8202TQ
- Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
- OSD/Audio/Subtitle Language: English, Italian, French, Spanish, Portuguese, German, Russian...
- Auto-Save Function: Yes, expediently watch all kinds of disc continuously
Bluetooth 5.0
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search for contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back
Radio
- Main Chips: TDA7708
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)
USB
- Position: 3 USB Port On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB-Receiver, Smartphone etc.
- Capacity: 256GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 256GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
Android Auto
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB or Bluetooth to use this function
- Connection: Wired or Wireless
- Support Device: Android Smartphone with Android 5.0 and above
- Control the connected Android Phone on head unit: Yes
CarPlay
- Built-in CarPlay: Yes, just connect your smartphone to this unit with Bluetooth to use this function
- Connection: Wireless
- Support Device: iPhone iOS 7.1 and above
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control
Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Dash Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR Dash Camera on unit: Yes
- DVR Dash Camera incl.: No, you can contact us to buy it together
TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together
DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB-Receiver to use this function
- Connection Port: USB
- Power Supply to DAB-Receiver directly: Yes
- Touch Control DAB-Receiver on unit: Yes
- DAB-Receiver incl.: No, you can contact us to buy it together
DTV-IN
- Built-in DTV Player App: Yes
- Connection Port: Special 10 pin port
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function
- DVB-T Box incl.: No, you can contact us to buy it together
CAM-IN
- Support CVBS Camera: Yes
- Support AHD Camera: Yes
- Support AHD Camera Video Formats: 720P-25FPS/720P-30FPS/1080P-25FPS/1080P-30FPS
- Connection Port: RCA
- Reverse Control: Yes
- Reversing Camera incl.: No, you can contact us to buy it together
Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening to music
- Photo Slideshow: Support JPEG, BMP, PNG, GIF format and 4096*4096 Pixels, played by Revolve or Powerpoint.
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Built-in DSP Amplifier System, 16-Band EQ Selections, which brings the perfect sound effect to your car.
- Smart UI Design, support DIY wallpaper and warm or cool colors, panel light colors.
Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS-Module In: One
- DTV-Box In: One
- DAB-Receiver In: One
- Car DVR In: One
Output
- Video Out: Yes, need to buy the USB-RCA-Converter from us to share screen display with your passenger
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*48w
- Subwoofer Out: One
Accessories
- 1*User's Manual in English
- 1*RCA AV Cable
- 1*Control Cables and Camera-IN
- 1*Special Power Cable Adapter
- 1*Rear USB Adapter Cables
- 1*External Microphone
- 2*4G Antenna
- 1*WiFi Antenna
- 1*GPS Antenna
