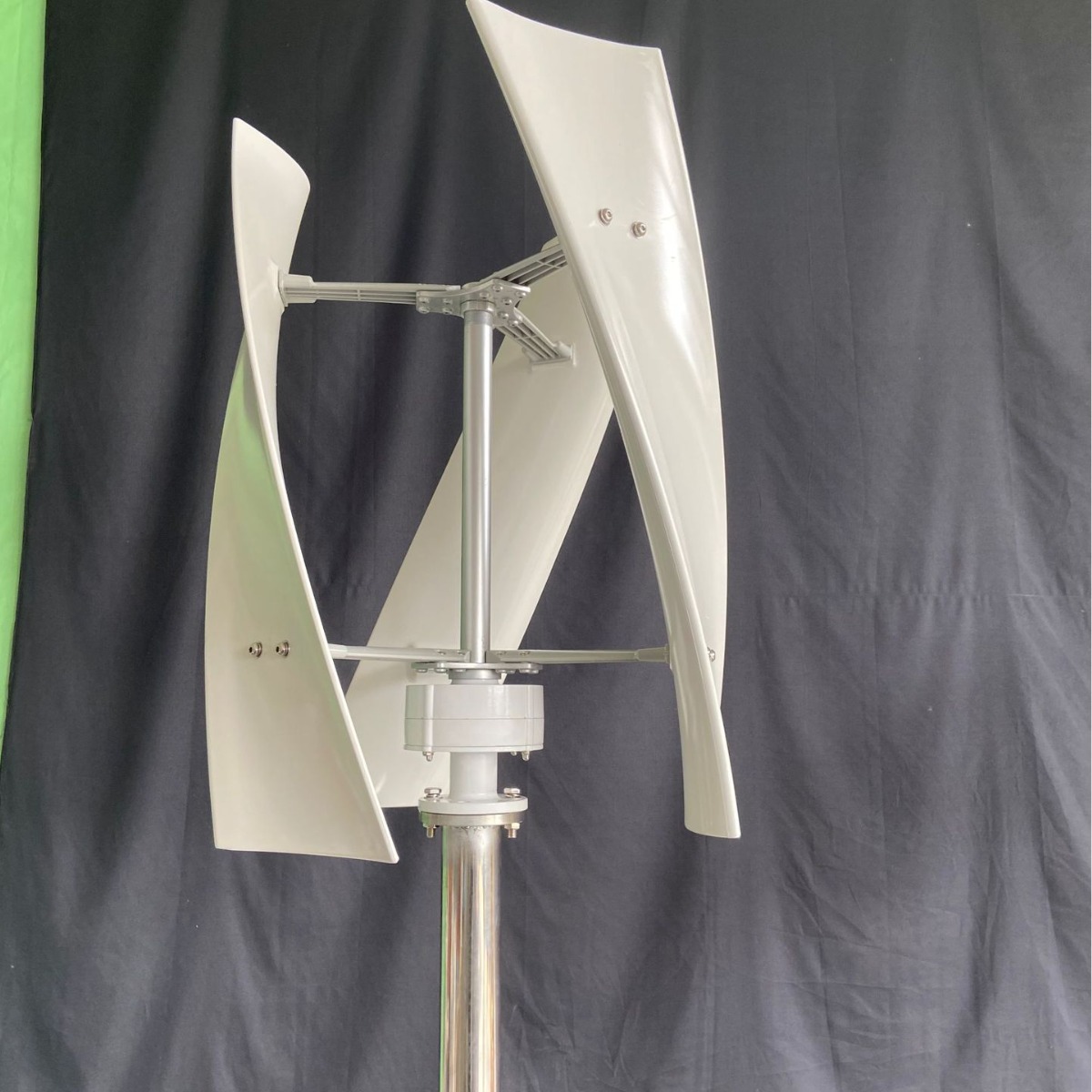

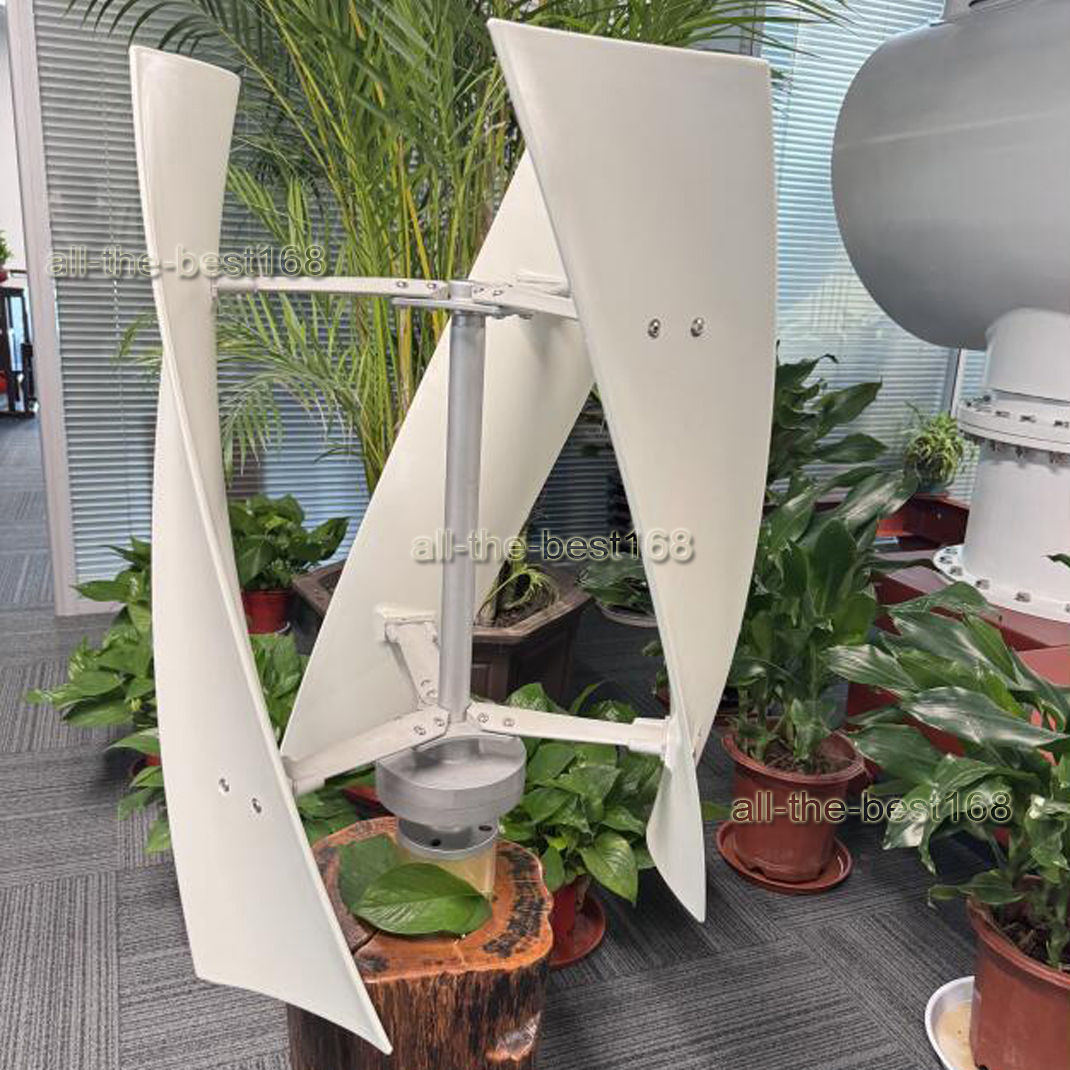

[Wind Turbine]

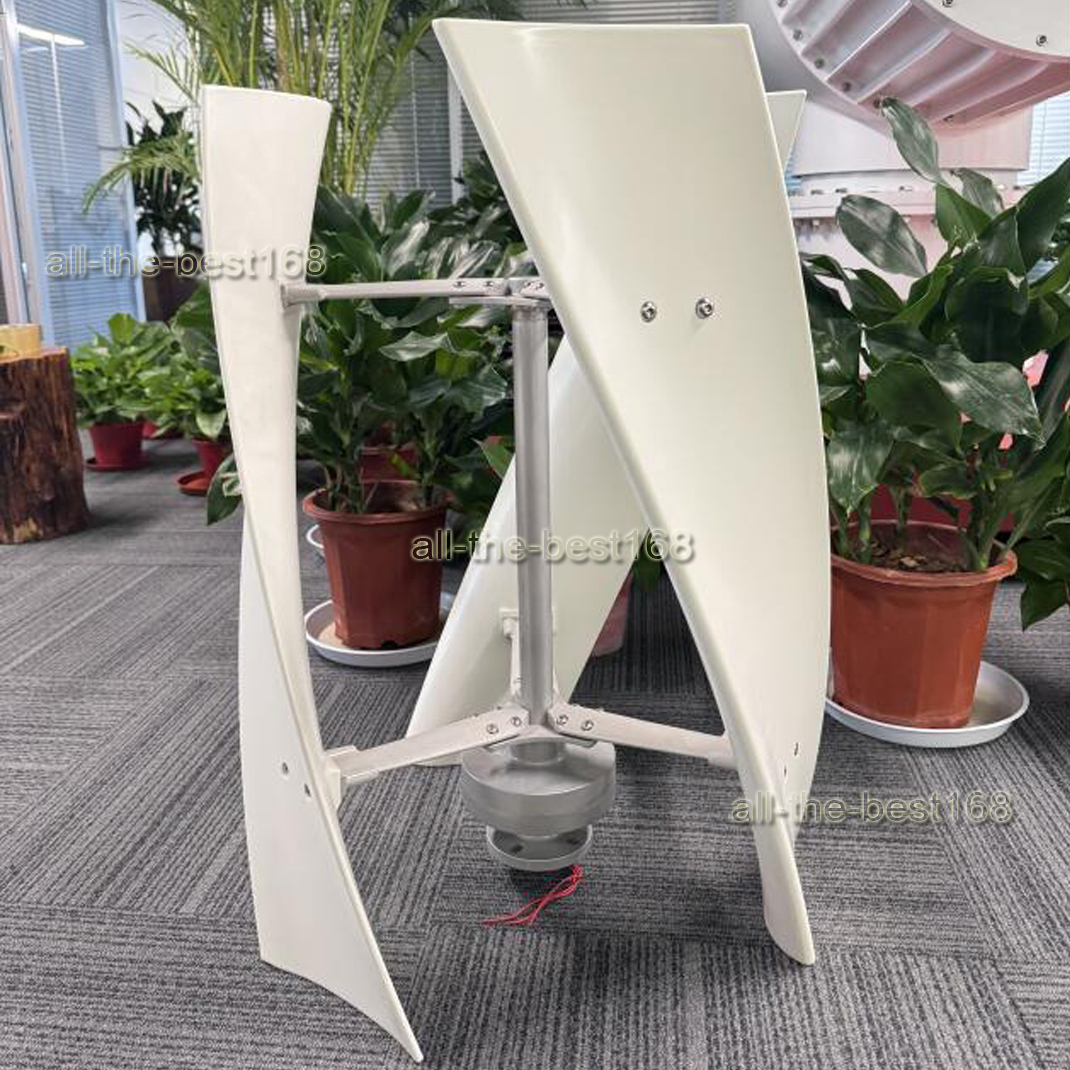

Description:
The
Wind Turbine with the Coreless Permanent Magnet Generator and Three
High-strength Fiberglass Blades Is More Durable and Has a Long Service
Life. the Spiral Blades Are Aerodynamically Designed to Make the Rotor
Run Smoothly and Reliably, Which Leads to Stable Electricity Generation.
Besides, It Has Maximum Speed Protection. It Is Well Suited for Boats,
Gazebos, Cabins or Mobile Houses, and Other Energy Supplies for Homes,
Businesses and Industry.
Features:
1. Great Durability:
the Wind Turbine with the Coreless Permanent Magnet Generator and Three
High-strength Fiberglass Blades Is More Durable and Has a Long Service
Life.
2. Smooth Running:
the Spiral Blades Are Aerodynamically Designed to Make the Rotor Run
Smoothly and Reliably, Which Leads to Stable Electricity Generation. the
Double Bearing and Low Vibration Also Ensure More Stable Operation.
3. Low Noise:
Drawing on the Design Principle of Aircraft Wings and the Horizontal
Plane Rotation, Noise Can Be Reduced to a Level That Cannot Be Measured
in the Natural Environment.
4. Generating Electricity at Lower Wind Speeds:
Due to Its Compact Shape, Low Starting Wind Speed, and Large Windward
Area, the Wind Turbine Can Generate Electricity at Lower Wind Speeds.
5. Strong Wind Resistance: the Horizontal Rotation Brings Small Wind Pressure so That It Can Resist a Super Typhoon.
6. Maximum Speed Protection: When the Wind Turbine Reaches the Maximum Speed of 300rpm, It Will Automatically Brake.
7. Easy to Install:
Everything You Need for Installation Is Included. the Wind Turbine with
a User-friendly and Convenient Flange Design Is Easy to Install.
8. Low Starting Wind Speed:
Its Starting Wind Speed Is Lower than Other Wind Turbines, and the
Rising Arc of Power Generation Is Gentle, so It Can Generate More Power
than others within a certain range.
9. Vertical Blades:
the Main Force Point of the Wind Turbine Is Concentrated on the Blade
Edge, so That It Can Effectively Avoid Blade Shedding, Fracture, or
Flying out.

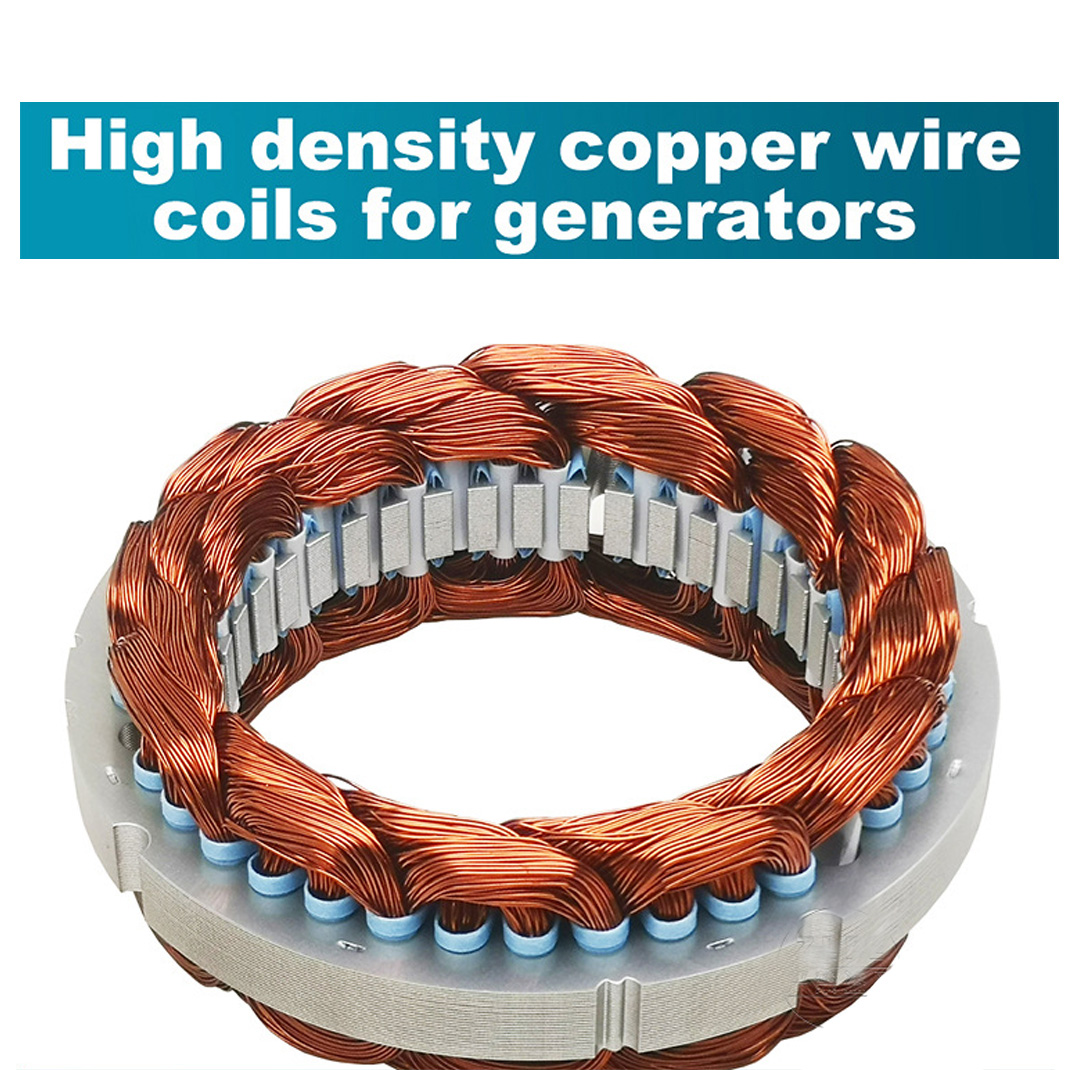

10. Three-phase Ac Permanent Magnet Generator: the Wind Turbine with a Low-torque and High-power Intelligent Tracking Microprocessor Can Regulate Current and Voltage.
11. Efficiently: It Significantly Increases Wind Energy Utilization and Annual Power Production.

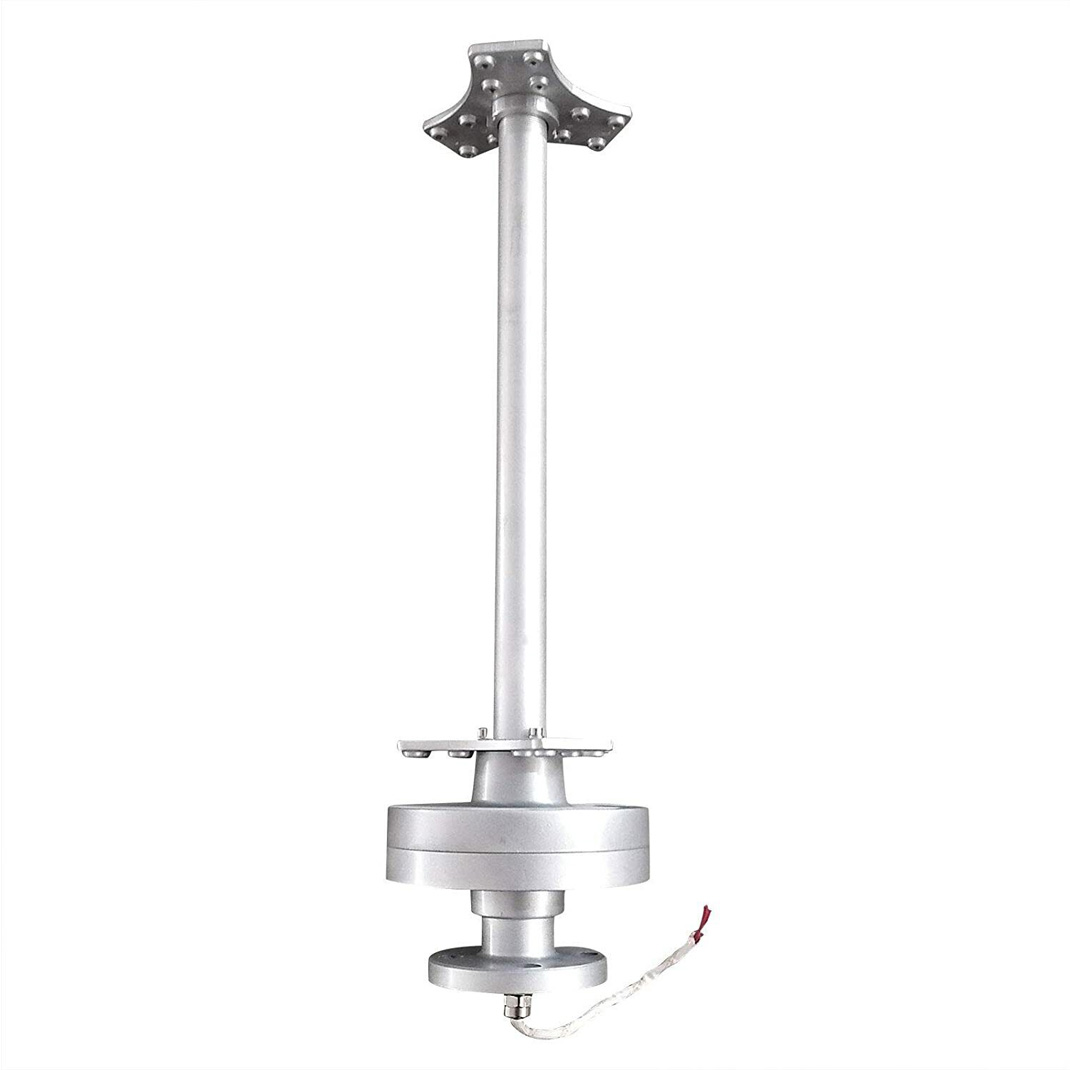

12. Aluminum Main Rod: the Main Rod Is Made of Aluminum with High Hardness and Can Be Fully Recycled, so It Is Uneasy to Break and Eco-friendly.
Application:
It Is Well Suited for Boats, Gazebos, Cabins or Mobile Houses, and Other Energy Supplies for Homes, Businesses and Industry.
Specification:
Condition: New
Controller System: Electromagnetism
Starting Wind Speed: 2.5m/s
Cut-in Wind Speed: 2.5m(98inch)/S
Rated Wind Speed: 18m/s
Max Instantaneous Wind Speed: ≤40m(1575inch)/S
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/S
Blades Quantity: 3
Diameter of Blades: 0.6m/24inch
Blades Height: 0.8m/31inch
Speed Regulation: Automatic
Rated Voltage: 12V/24V
Max Power: 3000W
Generator Protection Grade: IP67
Work Environment Temperature: -40—+60℃
Product Assembly Weight: <10kg/22lbs
Over-speed Protection: Electromagnetic Brake
Blade Material: Glass Fiber

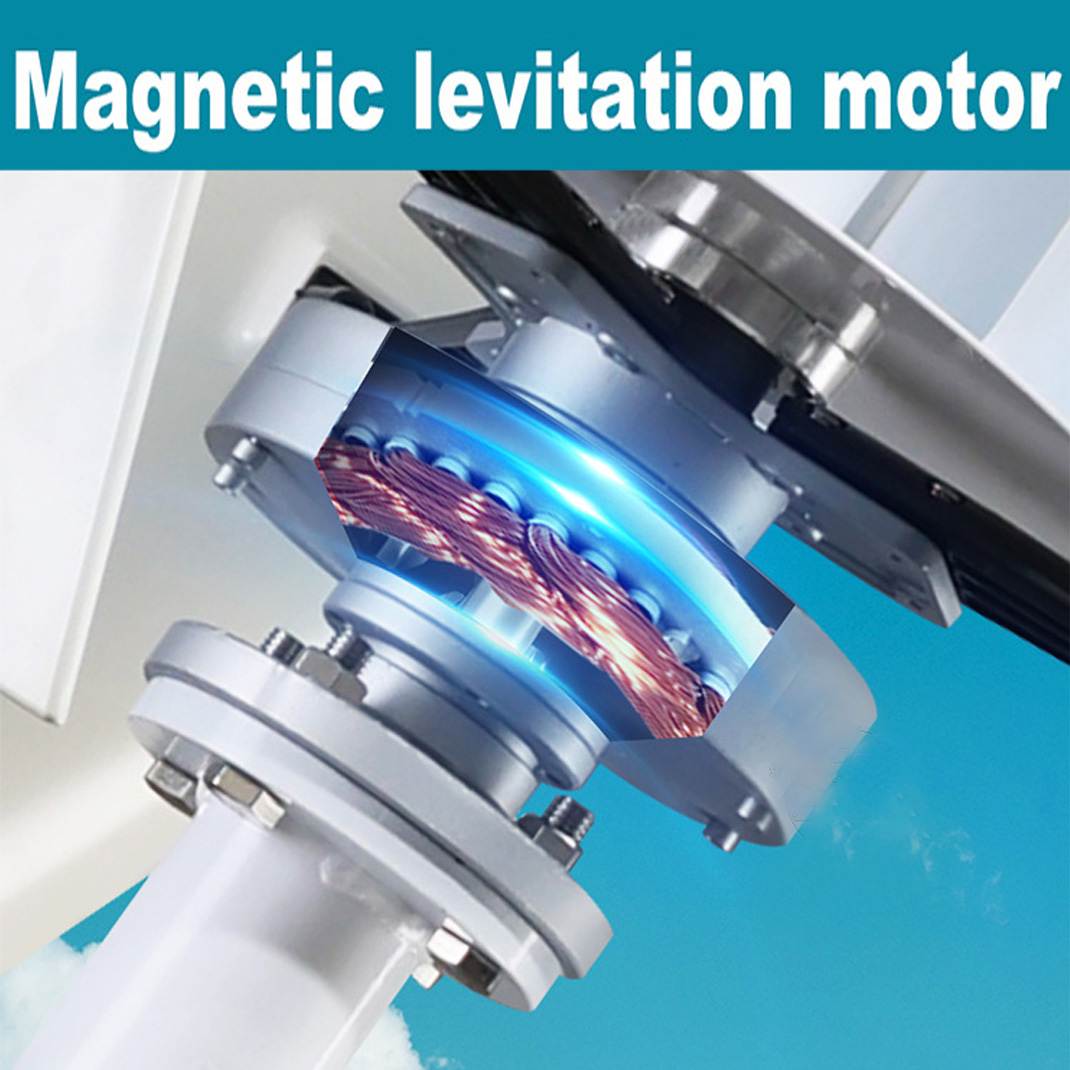

Generator: Maglev Generator
Service Life: 10-15 Years
Installation:

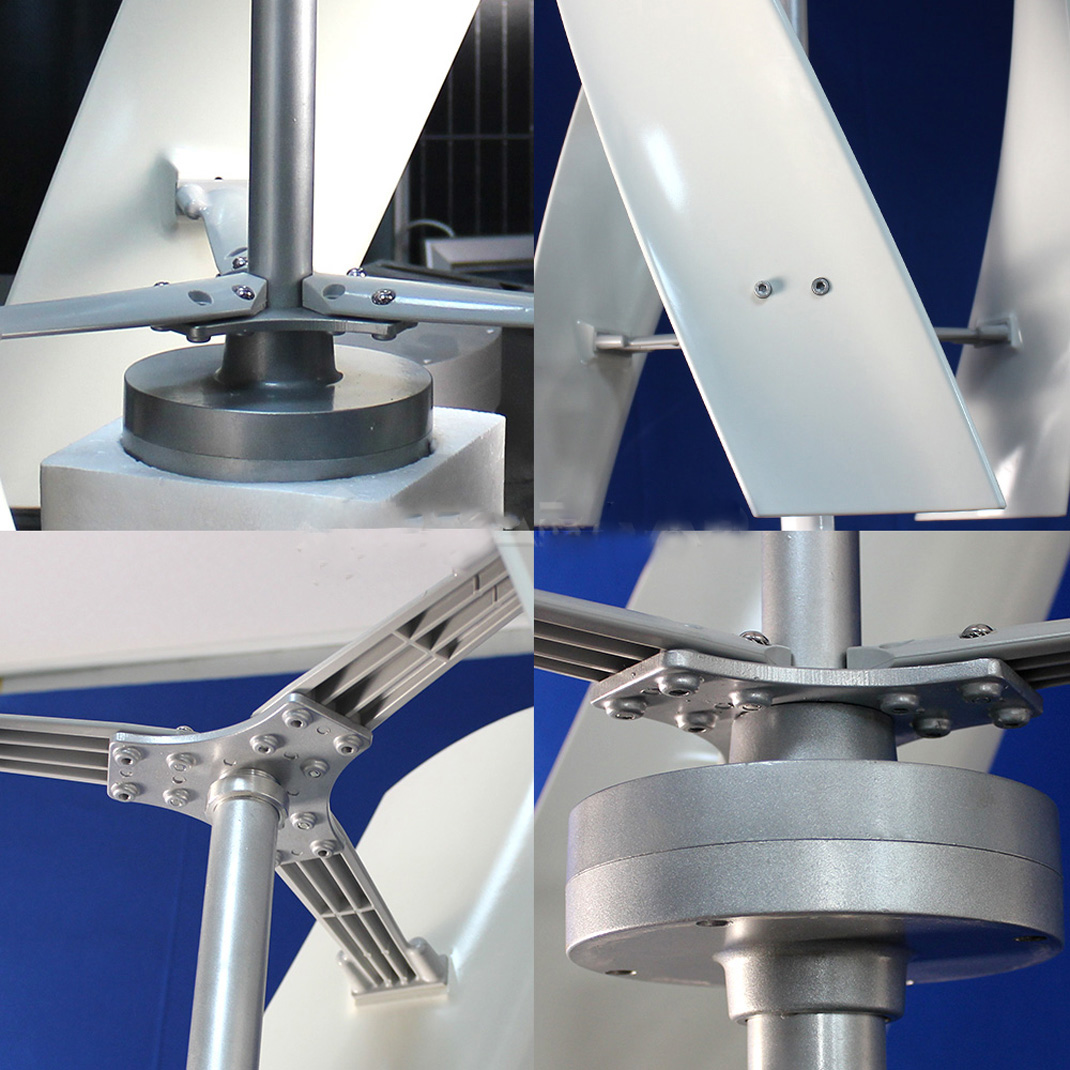

1. Check All the Parts of the Wind Turbine, Which Includes 6 Brackets and 3 Blades in Total.

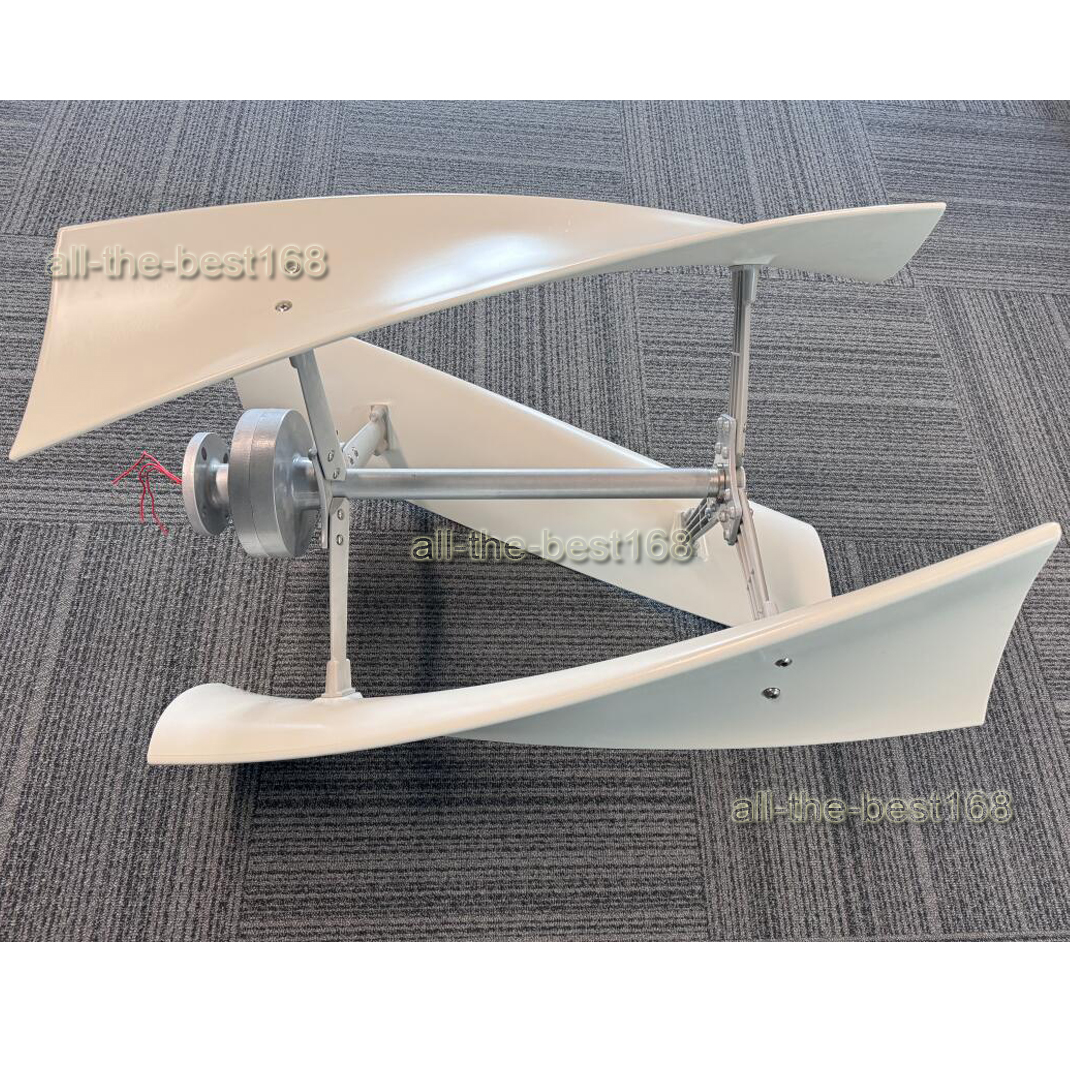

2. Place the Wind Turbine Vertically.

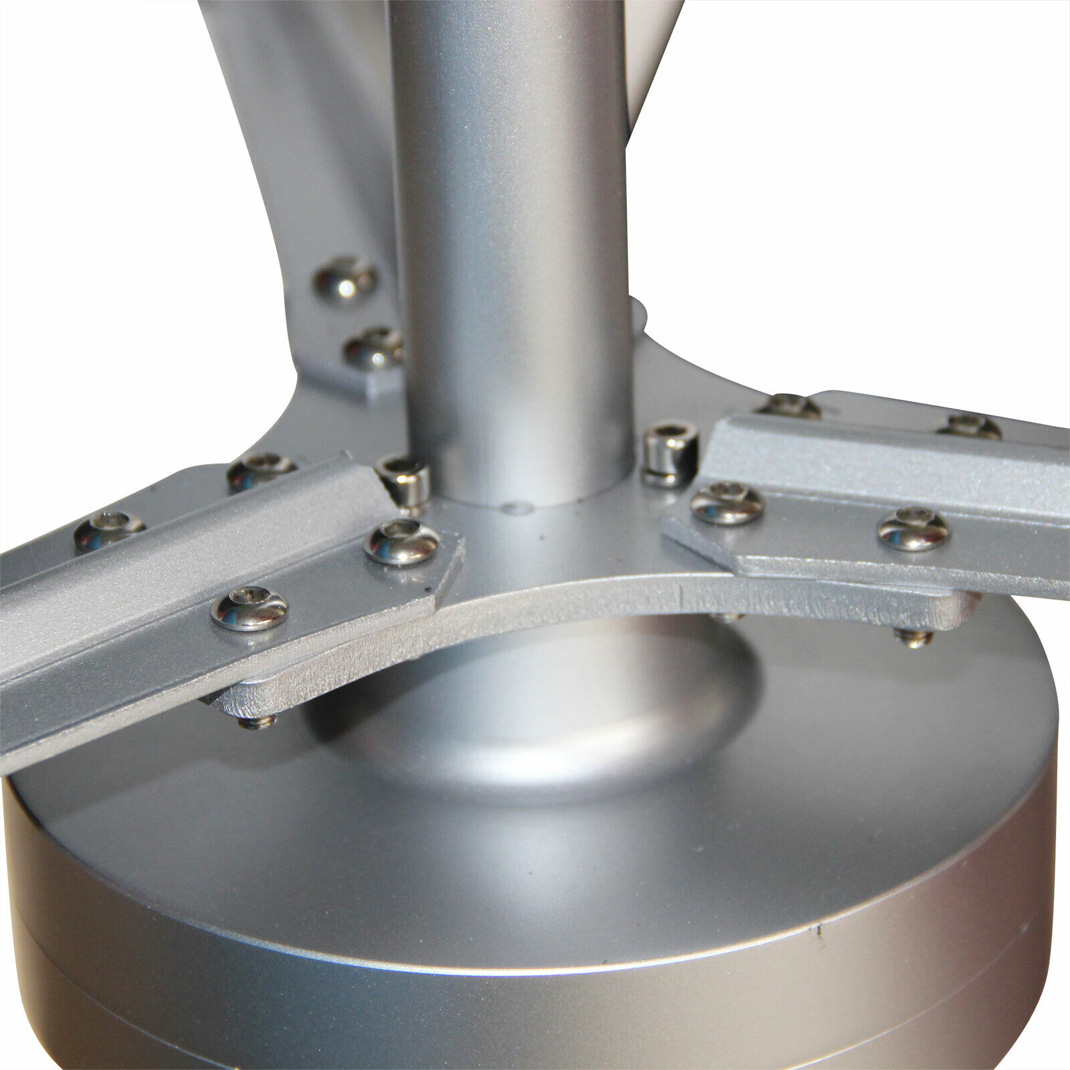

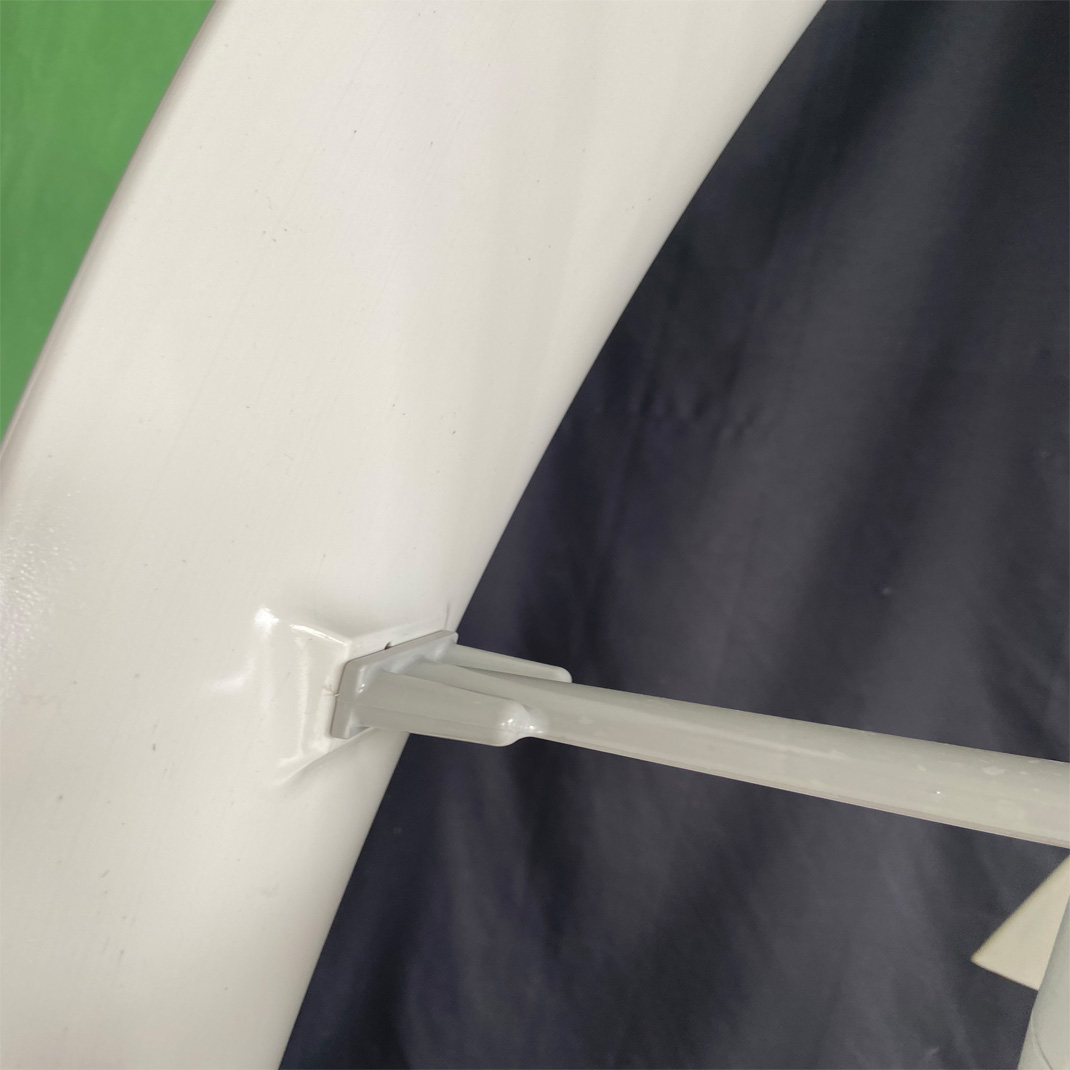

3. Connect Brackets with Blades by the Bolt. Load the Upper Cover Plate and Lower Cover Plate.
4. Fix the Bolt in the Mounting Hole (at the End of the Bracket) from the Outside of the Wind Blade.
5.
Tighten All the Bolts of Blades and Brackets, and Toggle the Blades. It
Should Not Have Abnormal Noise or Jamming. Tighten the Nut (Under the
Upper Cover Plate of the Wind Turbine) to Make the Upper Cover Plate
Tightly Fixed.

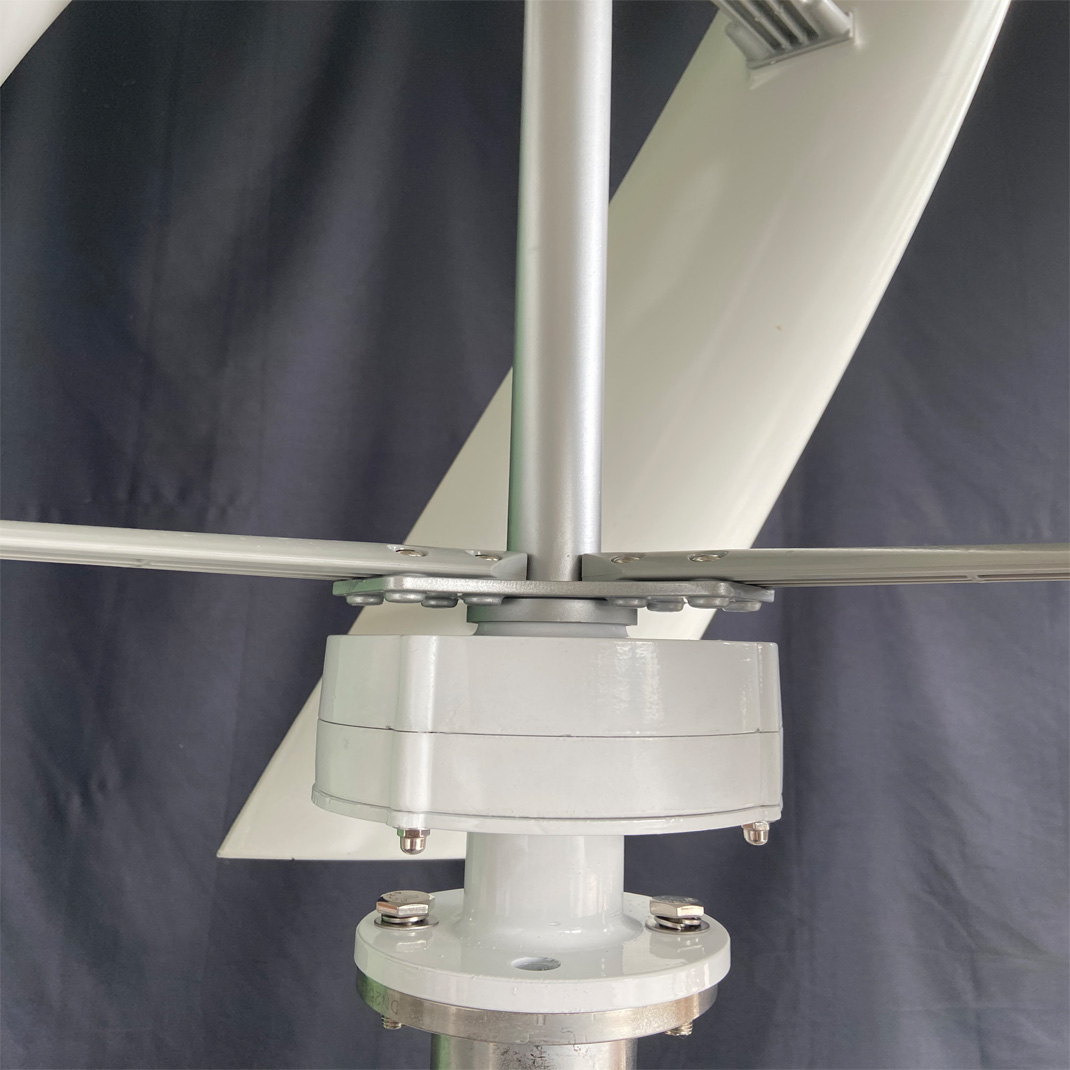

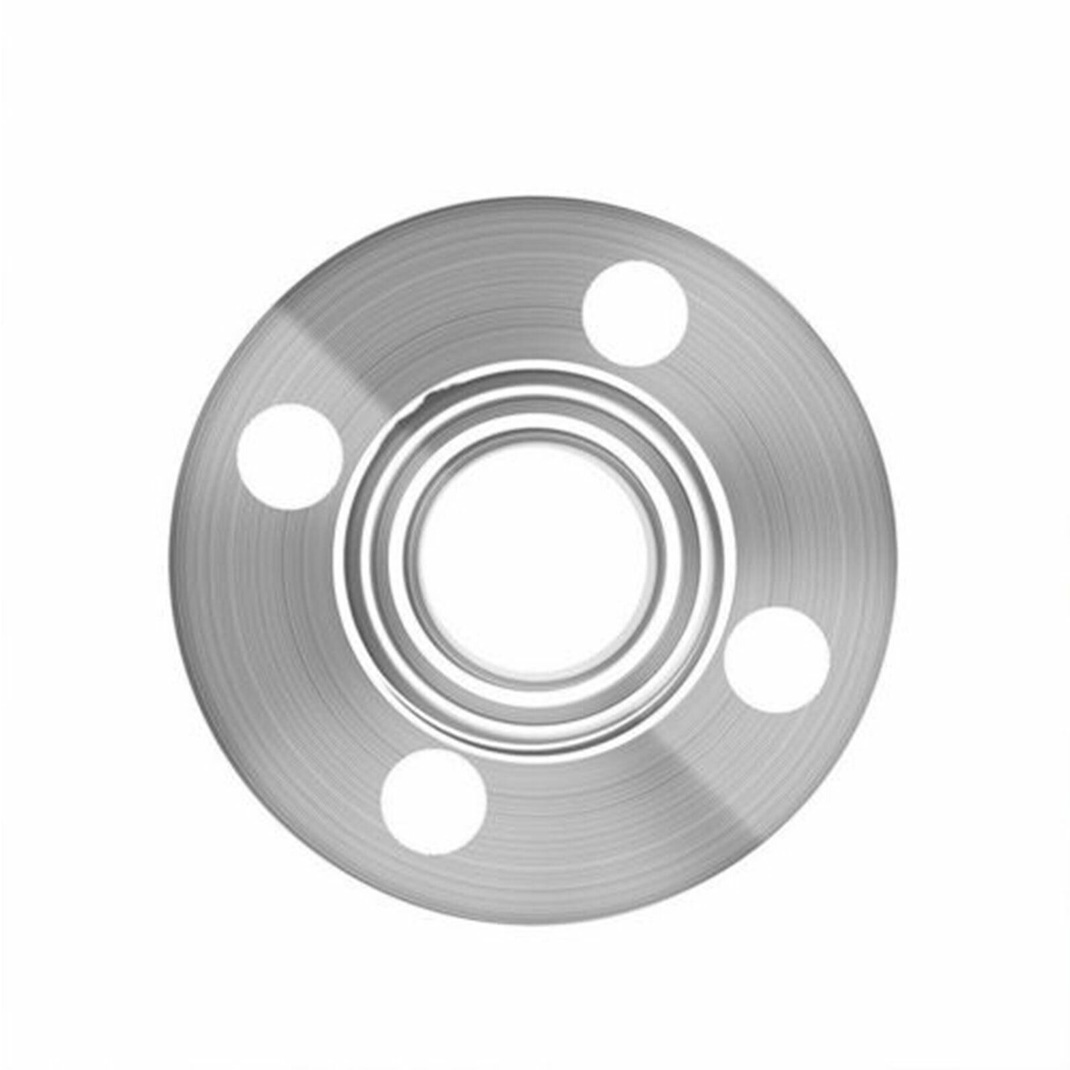

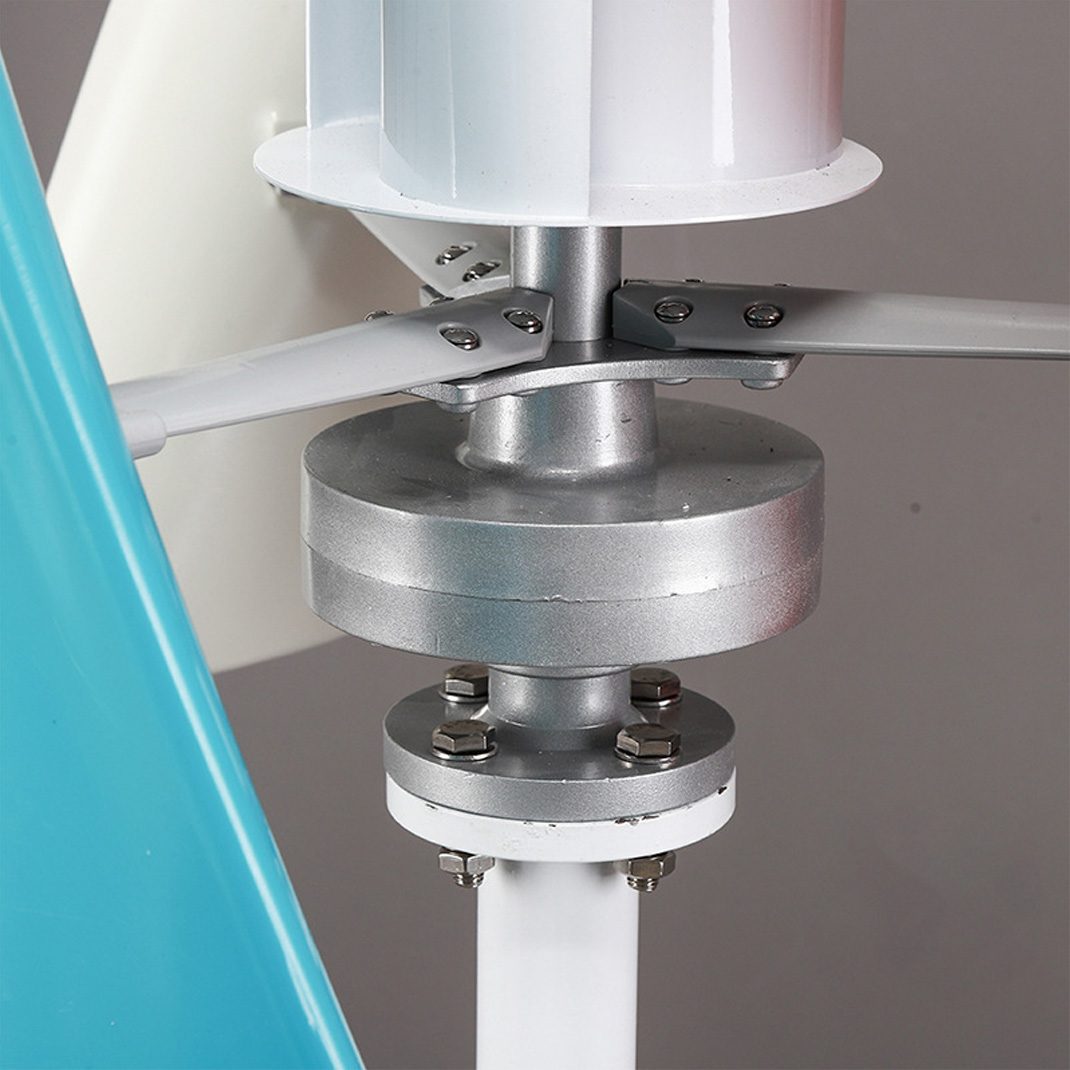

6. Align the Flange Hole of the Wind Turbine with the
Flange Hole on the Tower Pole, Put on Flat Washers and Spring Washers,
and Tighten the Nut.
7. Professional Installation Is Highly Recommended If You Have No Previous Installation Experience.
8. You Can Watch the Attached Installation Video As a Reference.
9. If You Have Any Problems, Please Feel Free to Contact Us. We Will Reply and Solve the Problem for You As Soon As Possible.

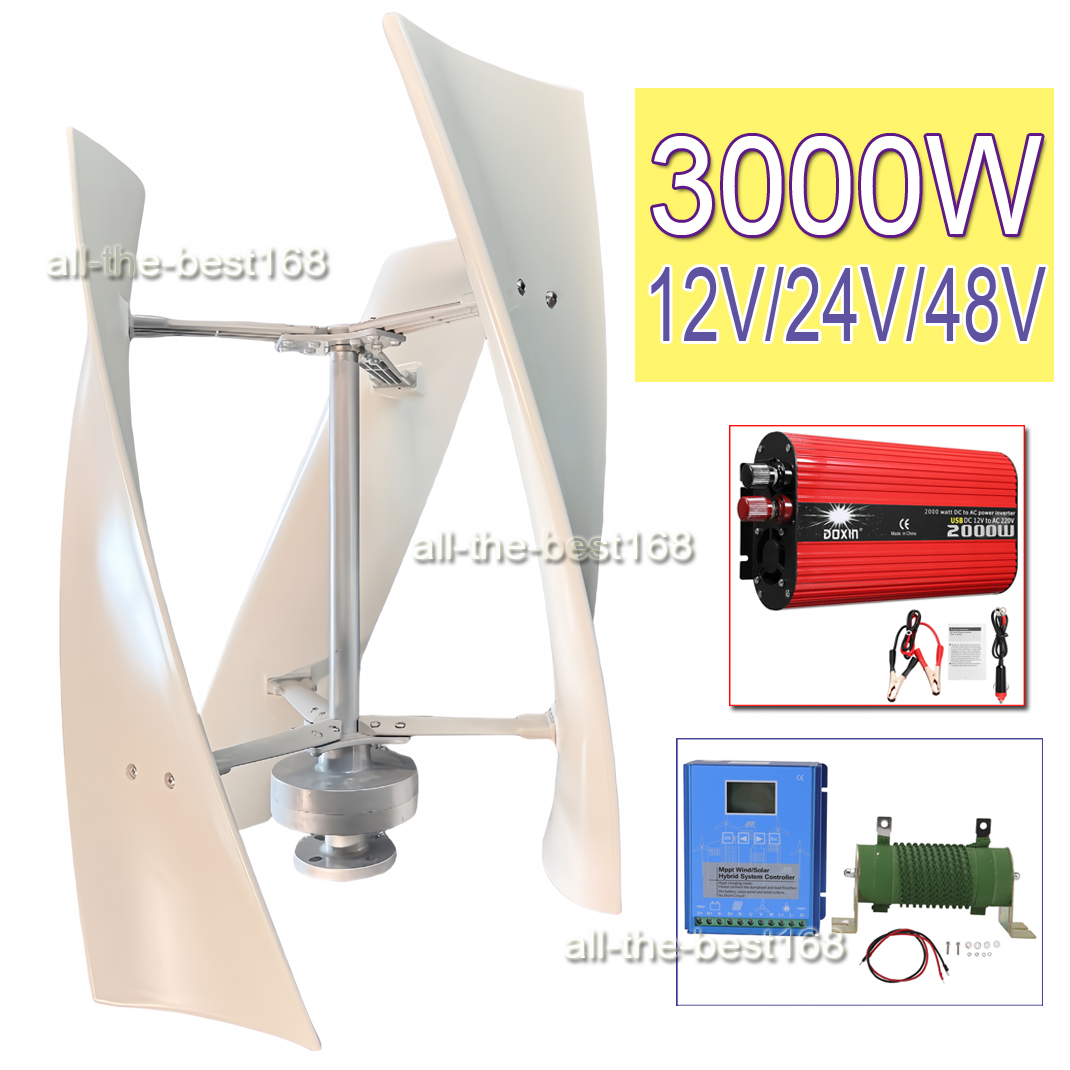

Package Included:
1 X Wind Turbine
1 X Controller
3 X Blades

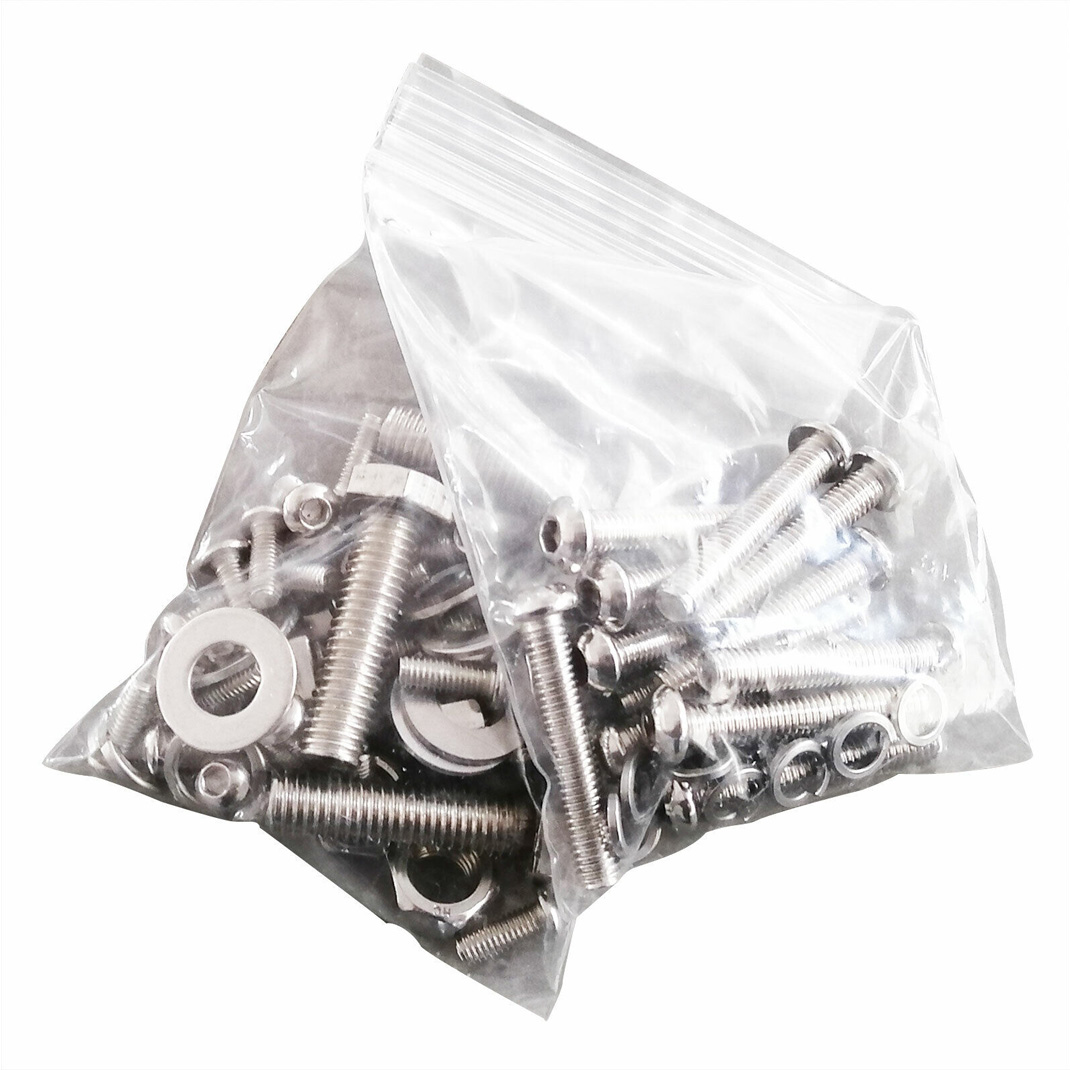

1 X Bag of Screws to Connect the Main Body
1 X Bag of Screws for Connecting the Bracket Blades
Other Accessory for Assembly
Notes:
1. There Are Two Different Kinds of Screws. Please Confirm the Correct Position of the Screws Before Installation.
2.
The Upper Cover Plate of the Wind Turbine Does Not Need to Be
Tightened, and the Blades Can Be Properly Adjusted Upward or Downward
During Installation.

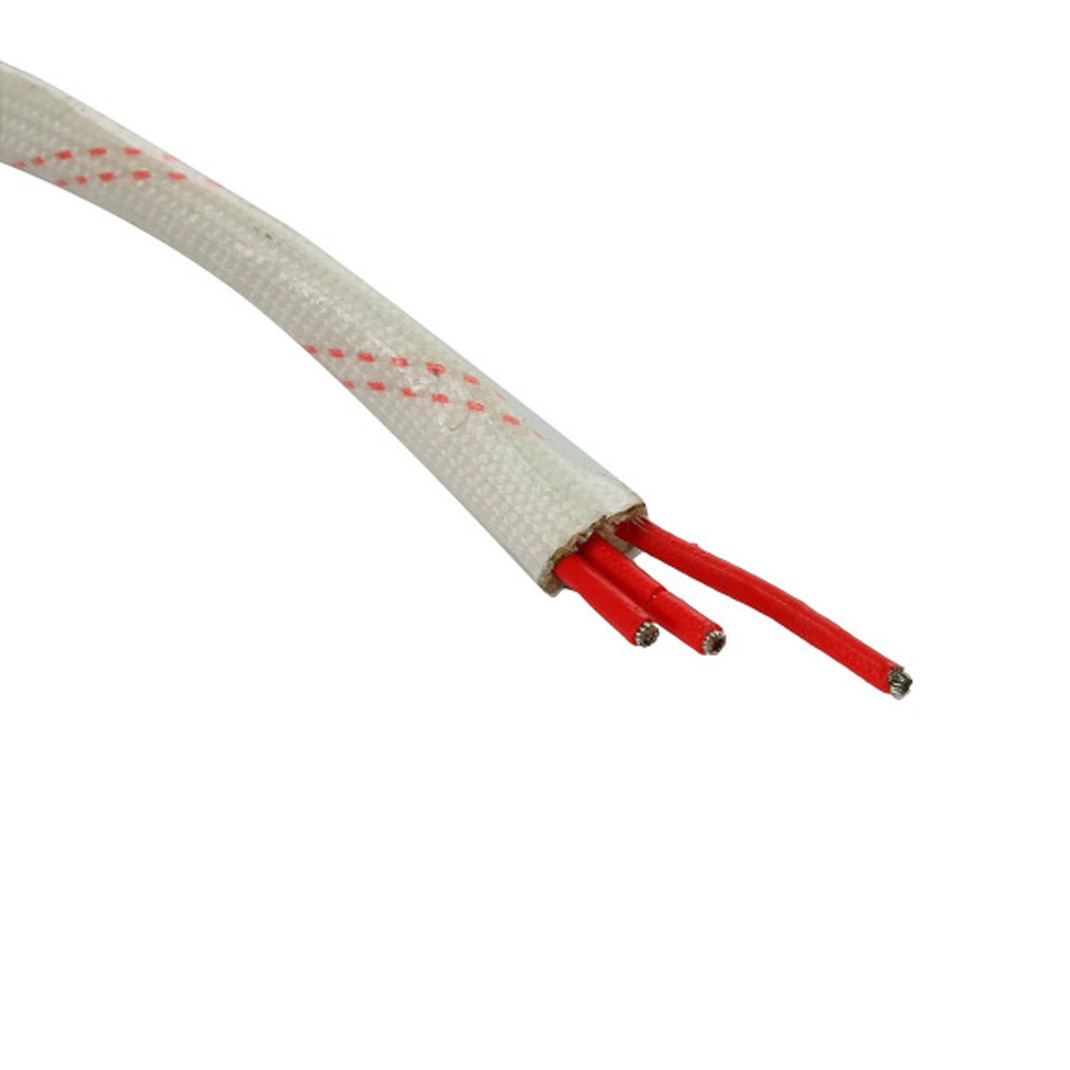

3. When You Place the Wind Turbine Vertically, Please Prevent the Bottom Flange from Crushing the Output Wire.
4.
Please Allow the Slight Color Difference Caused by the Shooting Light
and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not
Mind Before Ordering.
5. The controller, screws and flange are fixed in the foam.
[Hybrid Controller]
Product introduction:
This
kind of wind solar hybrid street light controller is a special design
for small off-grid devices where wind generators and solar panels charge
batteries safely and efficiently.
Functions:
** Wind generator MPPT boost charging function.
** Wind PWM dump load, external dump load resistor, intelligent solar charge separation.
** Dual power supply function: battery + solar power supply.
** LCD displays parameters such as voltage and current of wind, sun and load. Some parameters can be set by the user.
** DC output with 3 output modes.
** The inner circuit board of the controller is sprayed with protective paint to prevent dust, moisture and static electricity.
Features:
** Wind MPPT charging method, ensure the power get max input into the battery and high charging efficiency.
** Can be used for 2000W wind turbines with high compatibility.
** Independent Boost Circuit: The charging efficiency of the low-power vertical wind generator has been solved.
** 12V/24V/48V system auto-detect function.
** Mini size, easy to install.
** LCD display with visible and intuitive parameters.
** Rated wind power: 100-1000W
** PV Rated Power: 100-600W
Package list:
1 * Wind&Solar hybrid charge controller with dunpload
Thank
you for purchasing our products. This manual is intended for people who
need to install and operate the controller. Read this manual before
doing any work on the controller and keep it in a safe place. The
content of this manual is regularly updated or revised as necessary.
However, deviations cannot be ruled out. Please refer to the actual
product(s).
General Safety Information:
** Before you
receive the product, please check it carefully. Make sure the product
has not been damaged in transit. If it is damaged, contact the carrier
or our company immediately.
** All installation and electrical work may only be carried out by qualified personnel.
** Do not disassemble or attempt to repair the controller without professional guidance.
** Do not use the controller without batteries.
** Do not disconnect the controller and batteries when the controller works normally.
** Keep children away from the controls.
** Do not allow water to get into the controller.
**
Ensure power connections are tight to avoid excessive heating from a
loose connection. Make sure the cables are appropriate for the system.
[Power Inverter]
Features:
Max continuous power: 2000W
NO Load Power Rate: <0.5A,<0.3A
Input DC voltage Range: DC10-15V,20V-30V
Output Voltage Range: AC220±5%
Output Frequency Range: 50+/- 3Hz
Max Outer Temperature: < 75℃
Max Power Efficiency: >85%
High Voltage Cut Off Level: 15 +/- 1V,30V+/-1V
Low Voltage Alarm Level: 11V+/-0.1,21V+/-0.1V
Low Voltage Cut Off Level: 10.5 +/- 0.3V,20V+/-0.3V
Input Voltage: AC 12V, AC 24V, AC 48V (according to your choose)
USB: 2
THD: ≤5%
Size: 200*116*56 mm
Weight: 1.25kg
Package Include:
1 x Power Inverter
