Features:

✅Sturdy and Durable: It adopts a permanent magnet generator with an iron core paired with two aluminum alloy blades,
and the surface is sprayed with plastic, which can withstand bad weather and ensures the product's long and stable operation.

✅Efficient Work: It has a power of up to 800W and a wind speed of up to 42.65ft/s, and the starting wind speed is lower than that of other
wind turbines, and the power generation increases gently, so it can generate more power than other wind turbines within a certain range.

✅Safe and Relbiale: It adopts a permanent magnet rotor alternator with a special stator design, which effectively reduces the torque
resistance of the generator, and at the same time makes the wind turbine and the generator have more favorable matching characteristics
and the reliability of the unit operation. In addition, it will automatically brake when it reaches the maximum speed of 300 revolutions per minute.

✅Low-noise Operation: Adopting a precision double-bearing design and a quiet and reliable rotor, it effectively reduces the operating
noise, which is less than 62dB, not affecting the tranquility of the surrounding environment.

✅Aesthetically Pleasing: Its white and blue appearance allows it to harmonize with its surroundings wherever it is installed, enhancing the
overall aesthetics of the premises.

✅Easy to Assemble: Clear installation instructions are provided to help you get started and complete the installation quickly. In addition, the humanized flange mounting design makes the installation, maintenance, and overhaul of the equipment more convenient.

✅Worry-free Cleaning: Thanks to its smooth surface, you can finish cleaning quickly.

Details:

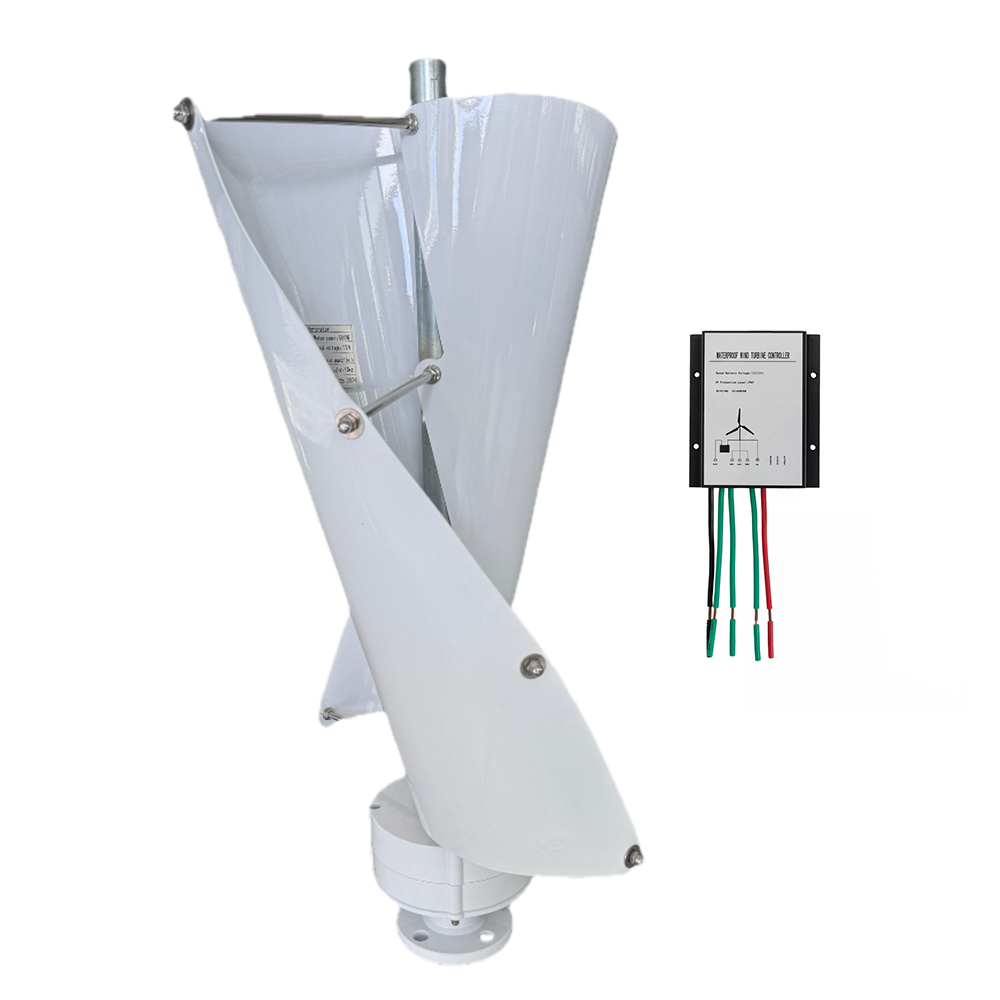

High-quality Controller: It adopts a high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage.

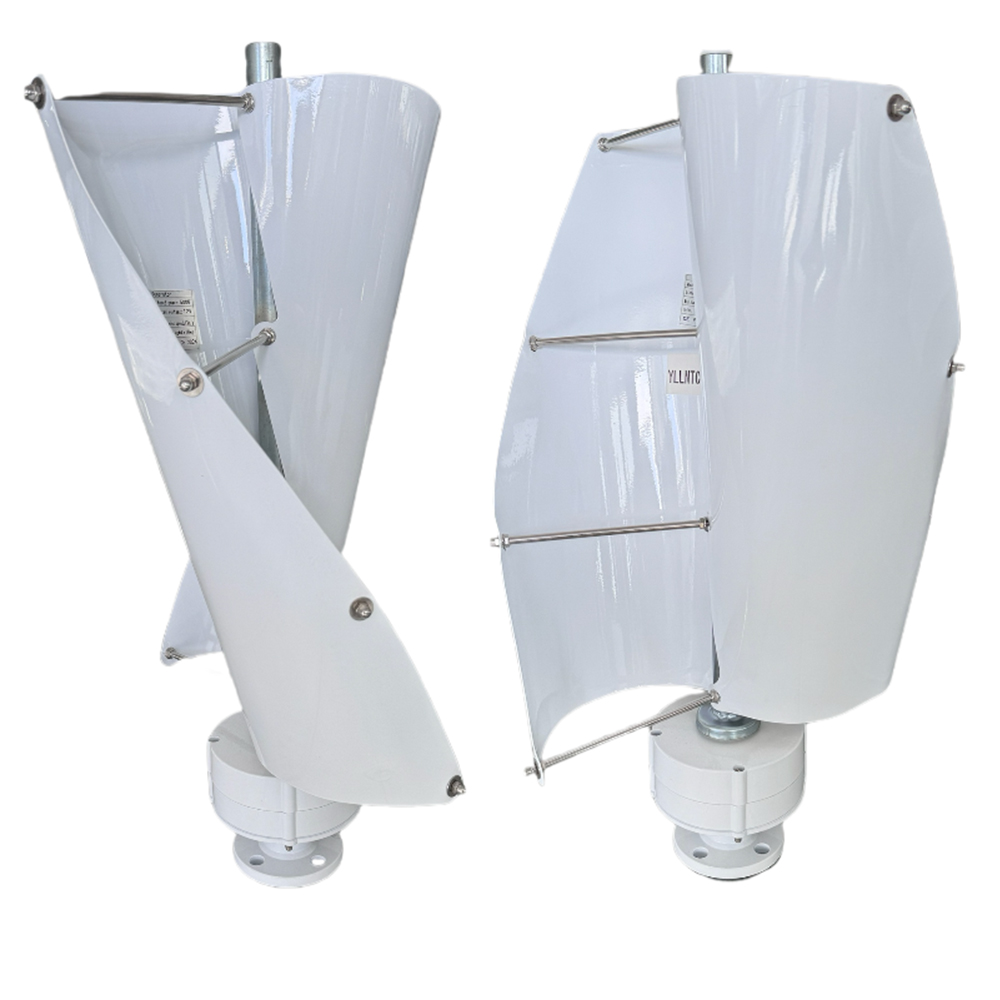

Spiral Design: It adopts the spiral design principle, rotating in the horizontal plane brings low wind pressure, which can withstand super strong typhoons.

Application:

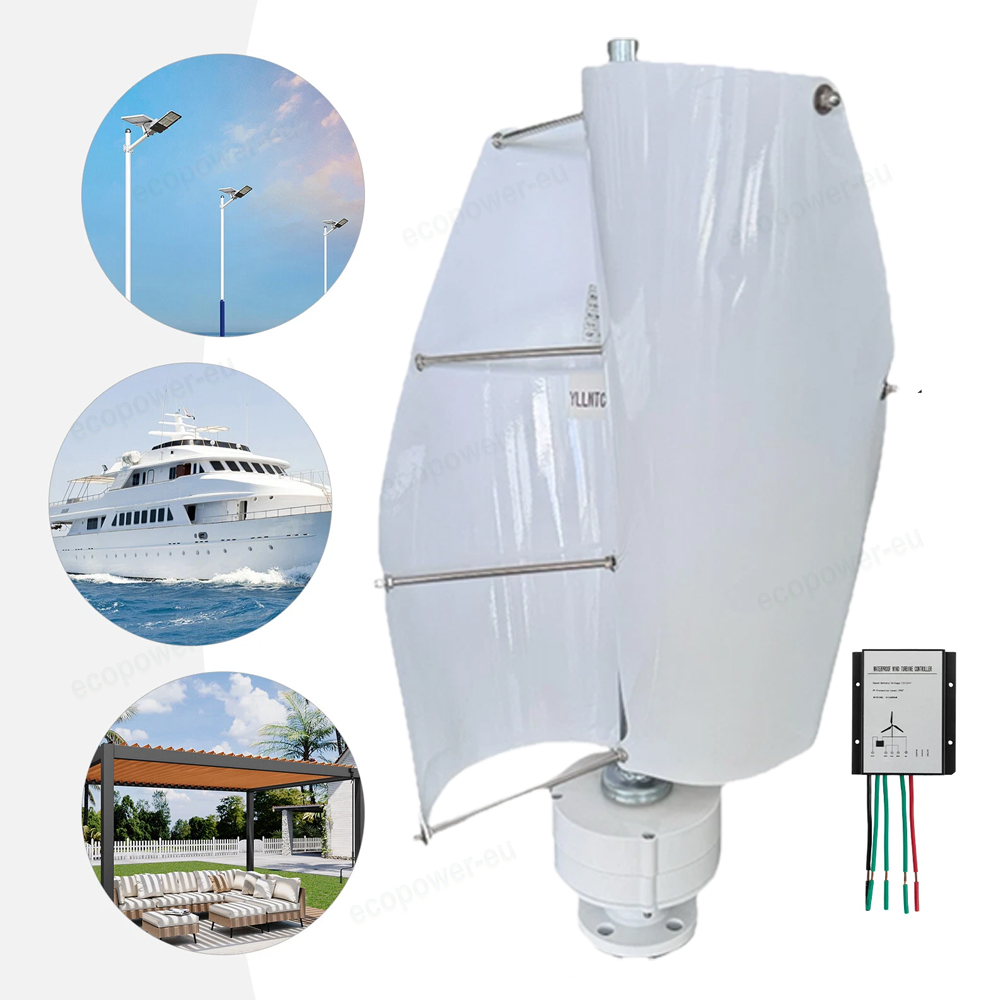

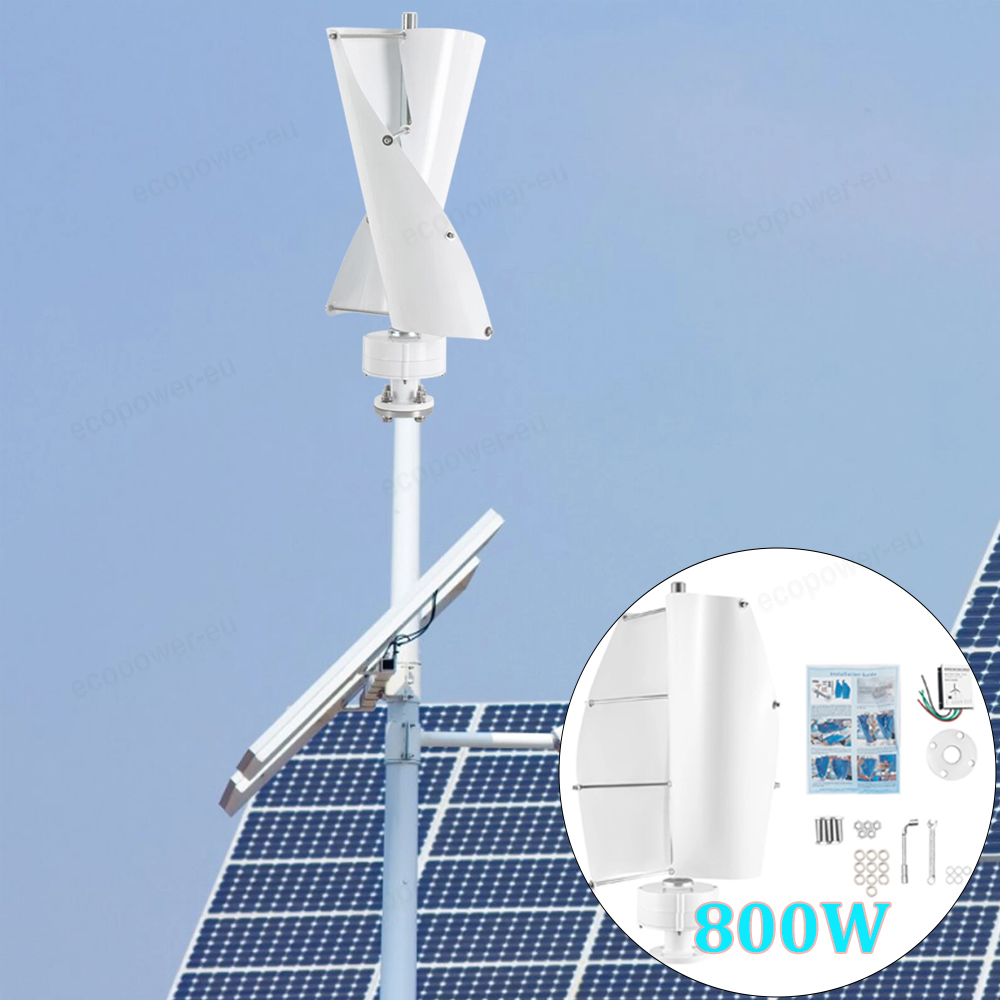

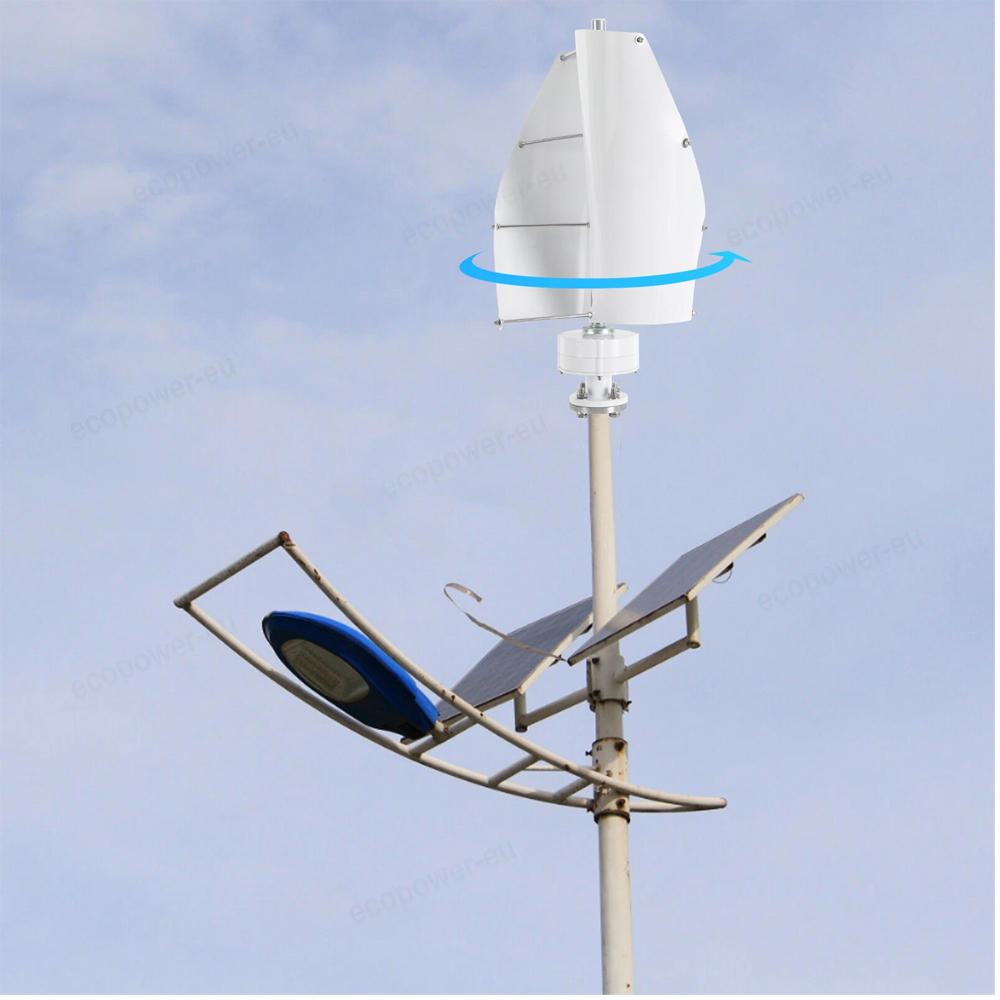

It is suitable for home, business, and industrial energy supply in boats, gazebos, cabins, or mobile homes, and on top of streetlights.

Specification:

Material: Iron, Aluminum Alloy, All Copper

Color: White and Blue

Process: Spray-plastic Treatment

Model: NE-800W

Blade Numbers: 2

Flange: DN25

Rated Battery Voltage: 12V/24V/48V
IP Protection Level: IP67

Wheel Diameter: 0.4m/1.31ft

Rated Power: 800W

Rated Voltage: 12V/24V/48V

Rated Wind Speed: 13m/42.65ft/ s

Control System: Electromagnetism

Assembly Required: Yes

Noise: Less Than 62dB

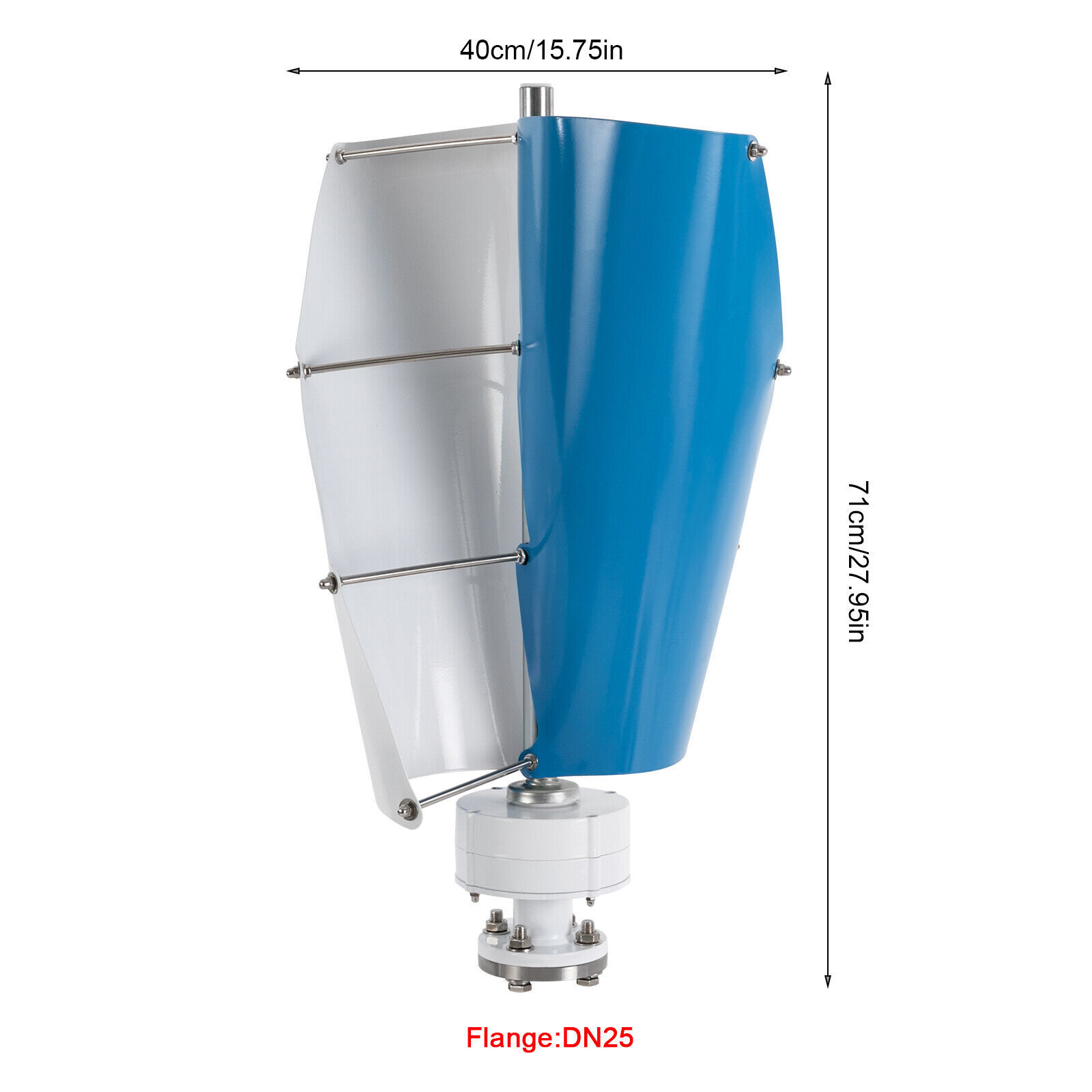

Product Size(L*H): 40*71cm/15.75*27.95in

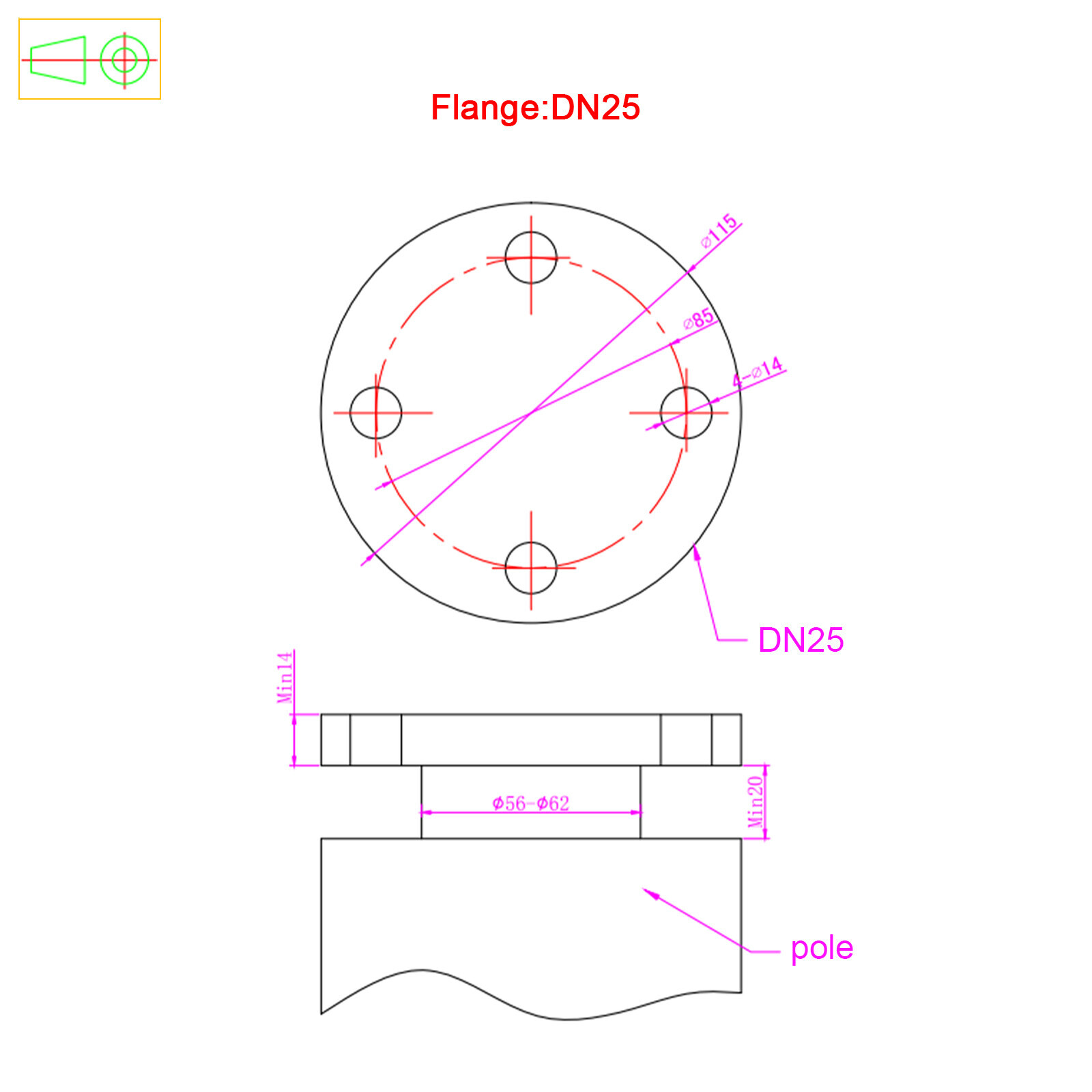

Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in

Number of Connection(Smallest) Holes: 4

Flange Thickness: Min14mm/0.55in

Pylon to Flange Distance: Min20mm/0.79in

Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in

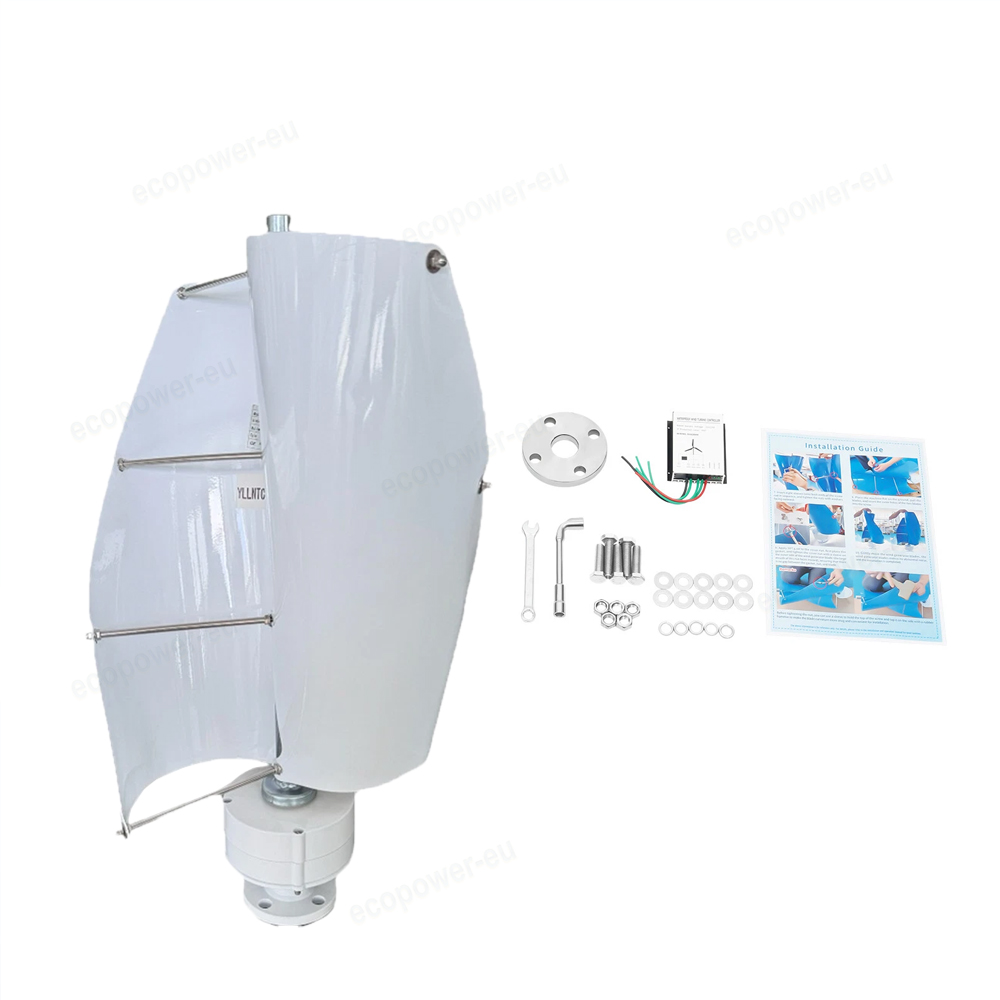

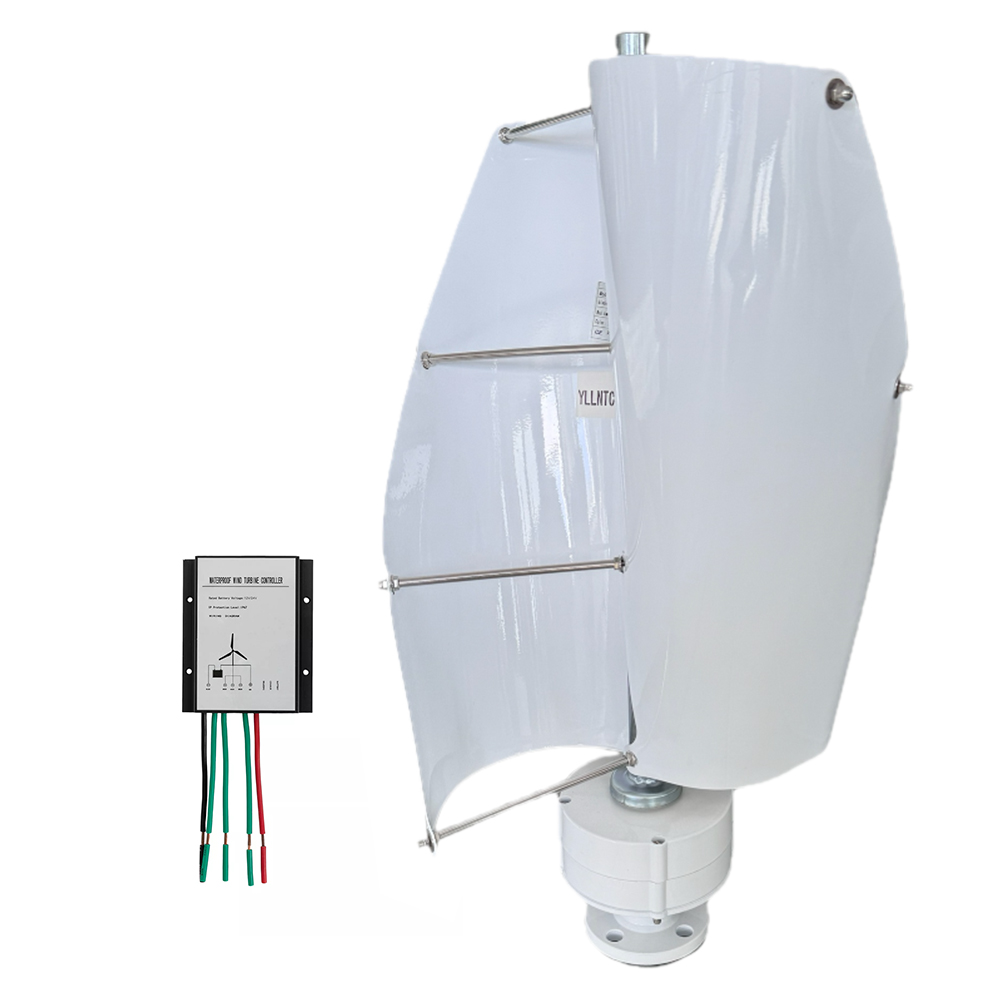

Package Included:

1* Wind Turbine

1* Controller

1* English Manual

Notes:

1. Please check the style and size before purchasing.

2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

3. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles),

and the red and black wires to the positive and negative poles of the battery respectively.

4. Please be sure to use gel batteries or lead-acid batteries, not lithium batteries.
