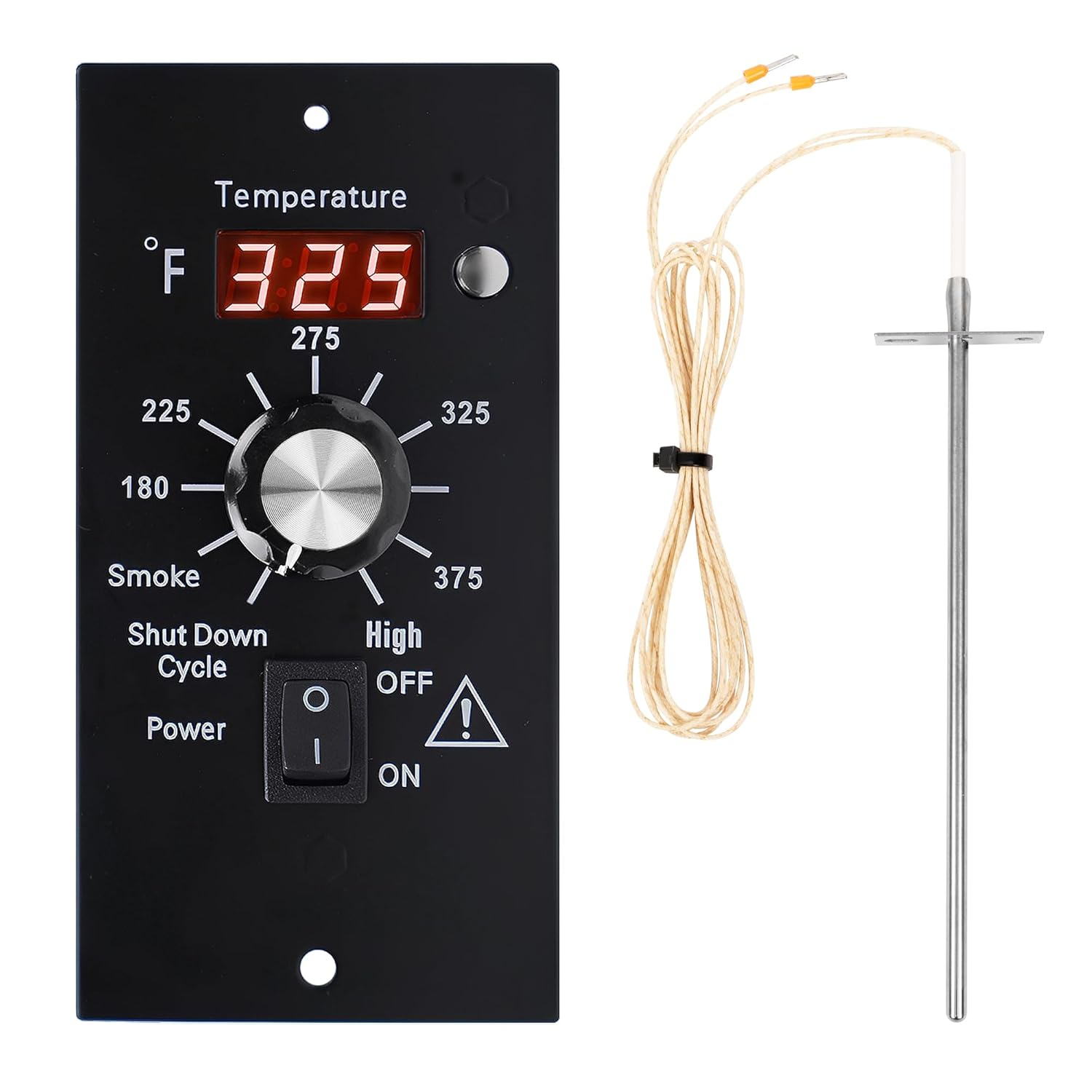

Digital Thermostat Pro Controller Compatible with Traeger Wood Pellet Grills, Traeger Grill Replacement Parts Upgrade Control Board Panel Temperature Thermometer, with RTD Probe Sensor
Description
| Unit Count | 1.0 Count |
| Display Type | Digital |
| Color | Red Screen |
| Brand | OUTGIK |
| Outer Material | Wood |
| Connectivity Technology | Usb |
| Age Range (Description) | Adult |
| Special Feature | High Accuracy |
| Included Components | Control board and RTD probe |
- REPLACEMENT PARTS FOR TRAEGER GRILL, replaces old 3 speed smoker control board, Replacement for Traeger Controller BAC200 BAC283 BAC388 BAC389 BAC382 and compatible with Traeger wood pellet grill models (except PTG,Ranger).
- 10 COOKING MODES, including smoke mode and other 9 temperature setting modes, from 180 to 450 degrees.
- 7" RTD, temperature sensor is simple to install, maintain temperatures more consistently than a manual temperature gauge.
- UPGRADE CONTROLLER, equipped with "P" Setting button, front panel control and automatic cooling function for safe BBQ grilling.
- WIRING DIAGRAM: Black wire is for power cord, red wire is for auger motor, orange wire is for draft inducer fan, purple wire is for hot rod.
Product description
About FlameSky Grillers
We focus on designing, development, production and sale of pellet grill parts. Including temperature controller, meat probe, auger motor, hot rod, fan motor, temperature sensor probe etc.
OUTGIK digital thermostat kit replacement for Traeger grills
OUTGIK digital thermostat kit is upgraded pro controller replacement parts(BAC236/ BAC365) for Traeger pellet grills, which is compatible with most Traeger grills (except the PTG, Ranger, and Scout). Our control board is equipped with smoke mode and 9 temperature modes from 180~450 ℉, you can set your desired temperature based on your demand. Compared with older control panel, we add cooling down program to protect you, fan motor will keep working for 10 minutes when you shut down the controller. Besides that, we also add P set button function, which is used to control the smoke mode from P0~P7. Kindly remind that P set function is only available with Smoke mode.
Features
High clear LED display screen
It's easy for you to monitor cooking progress, you can see the cooking temperature even in direct sunlight.
PID control program
This Traeger controller replacement has 10 cooking modes, including smoke mode and 9 temperature modes from 180~450 ℉.
P set button
It's used to control smoke mode and you could set smoke mode from P0~P7.
RTD sensor
RTD temperature probe sensor is included in the package, it's equipped with Germany PT1000 chip, which is more accurate and fast respond.
Error code explanation and how to fix
Error code: ErO
ErO means RTD temperature sensor is not connected, please turn off the grill and check the RTD connection or replace new RTD and try again.
Error code: ErL
ErL means grill's temperature is too low, please turn off the grill and check if there any trouble with auger motor/ igniter/ or pellet is run out off.
Error code: ErH
ErH means grill is overheated, please turn off the grill and restart grill after cooling down.
How to connect RTD sensor to controller
1) Locate the Green Terminal Block on the back of the Controller in the lower left corner. Using a small screwdriver, loosen the two screws to open the clamping jaws enough to insert the RTD Wire ends.
2) Insert a bare wire end on one of the RTD Wires into the clamping jaws on one post of the Terminal Block. Tighten the screw to securely attach the wire. Do not over tighten. Repeat this process on the remaining wire. The RTD Wires may be connected to the Terminal Block in any combination.
How to connect pellet grill control board?
This Traeger control board replacement is easy to install：
Pls connect Red/ White wire to auger motor
Pls connect Purple/ White wire to igniter
Pls connect Orange/ White wire to fan motor
Pls connect Black/ White wire to power cord
