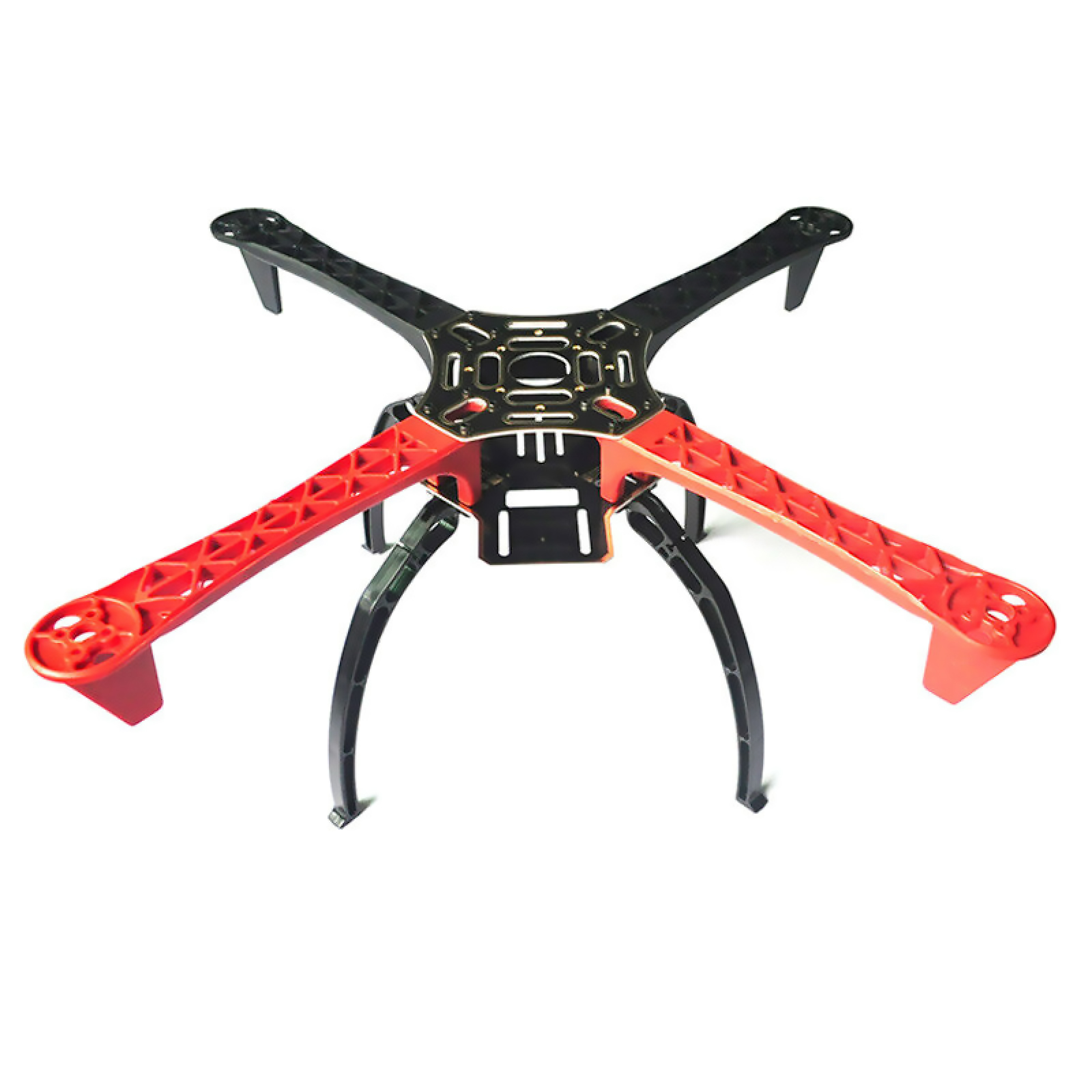

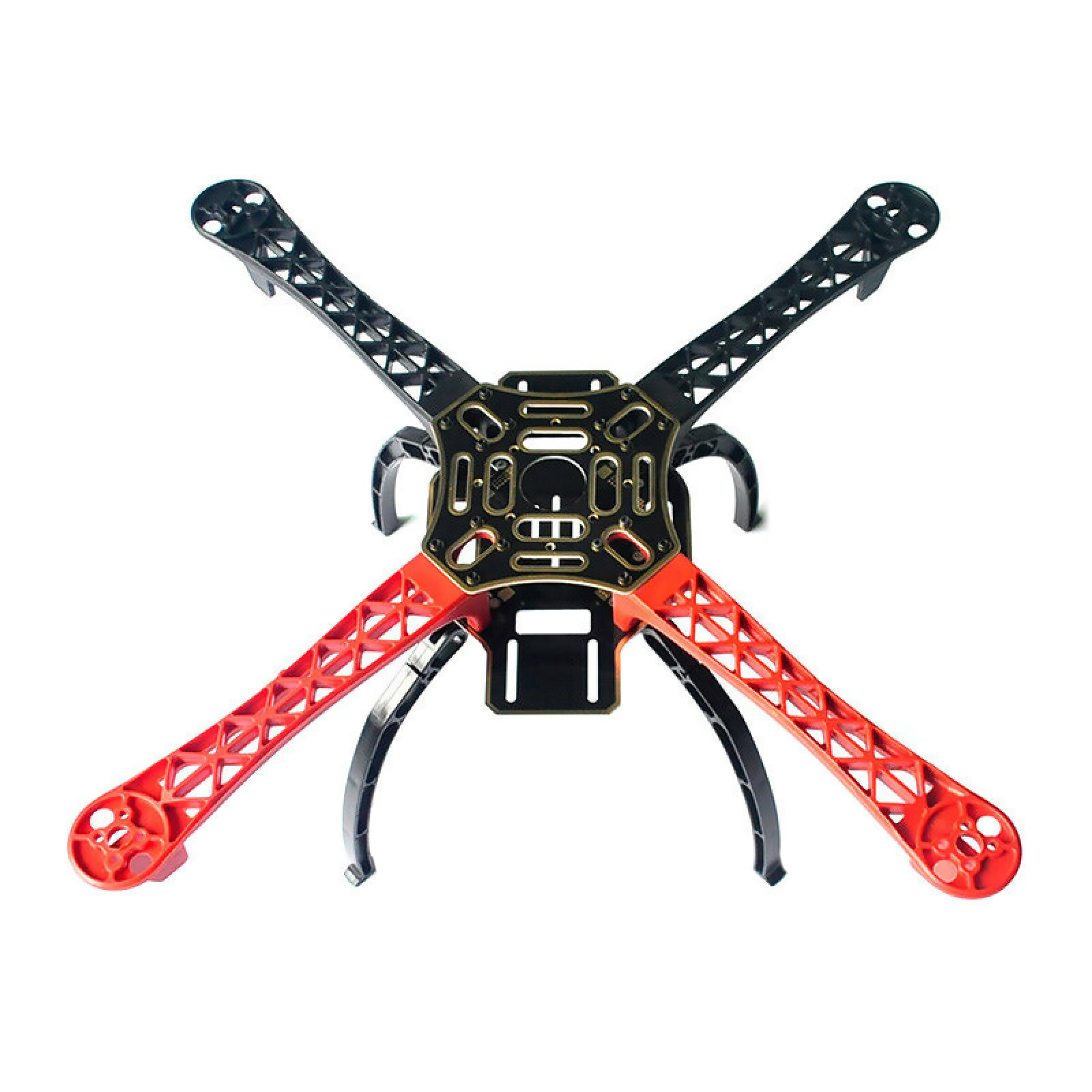

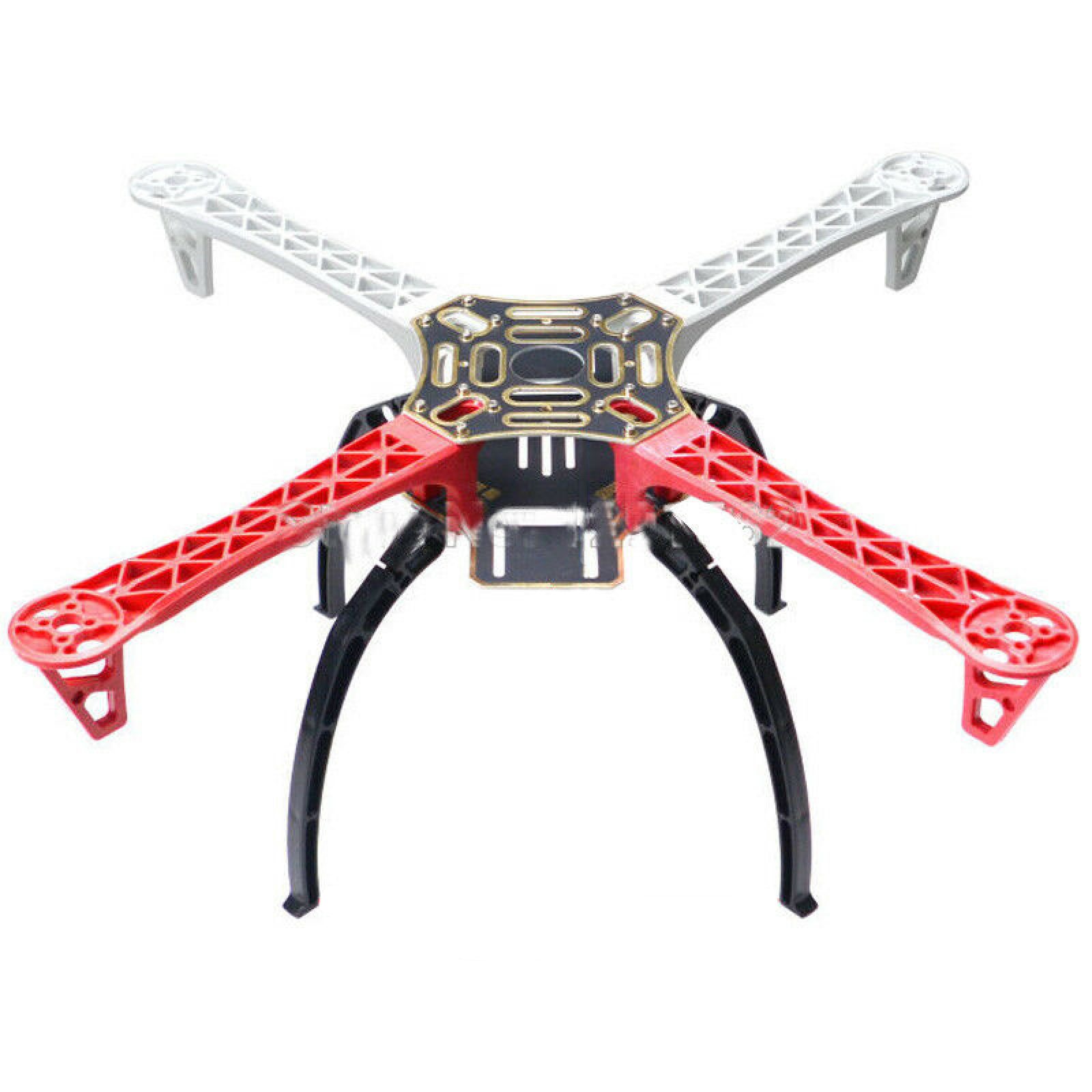

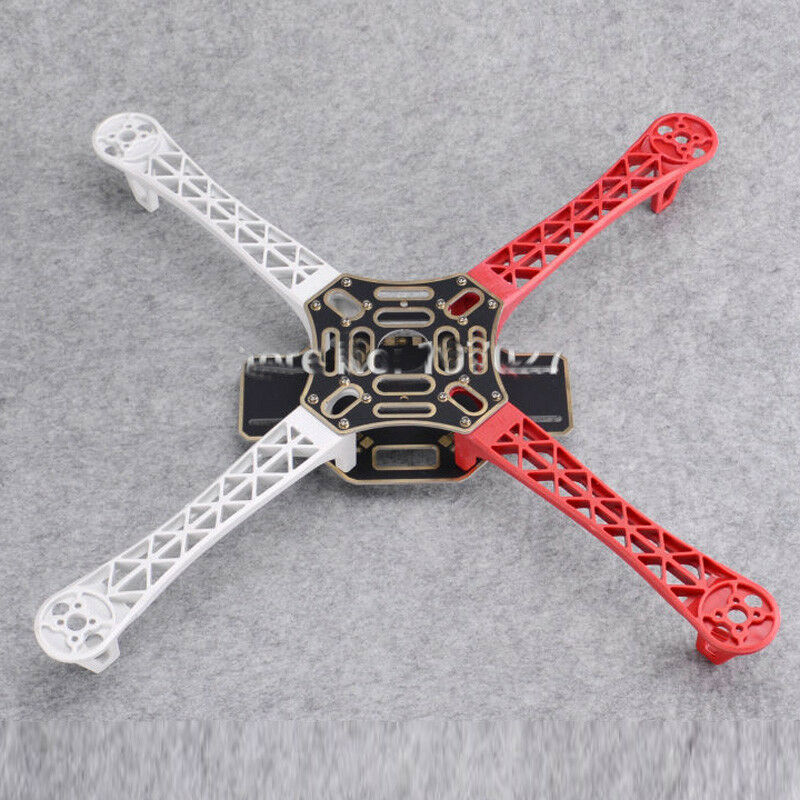

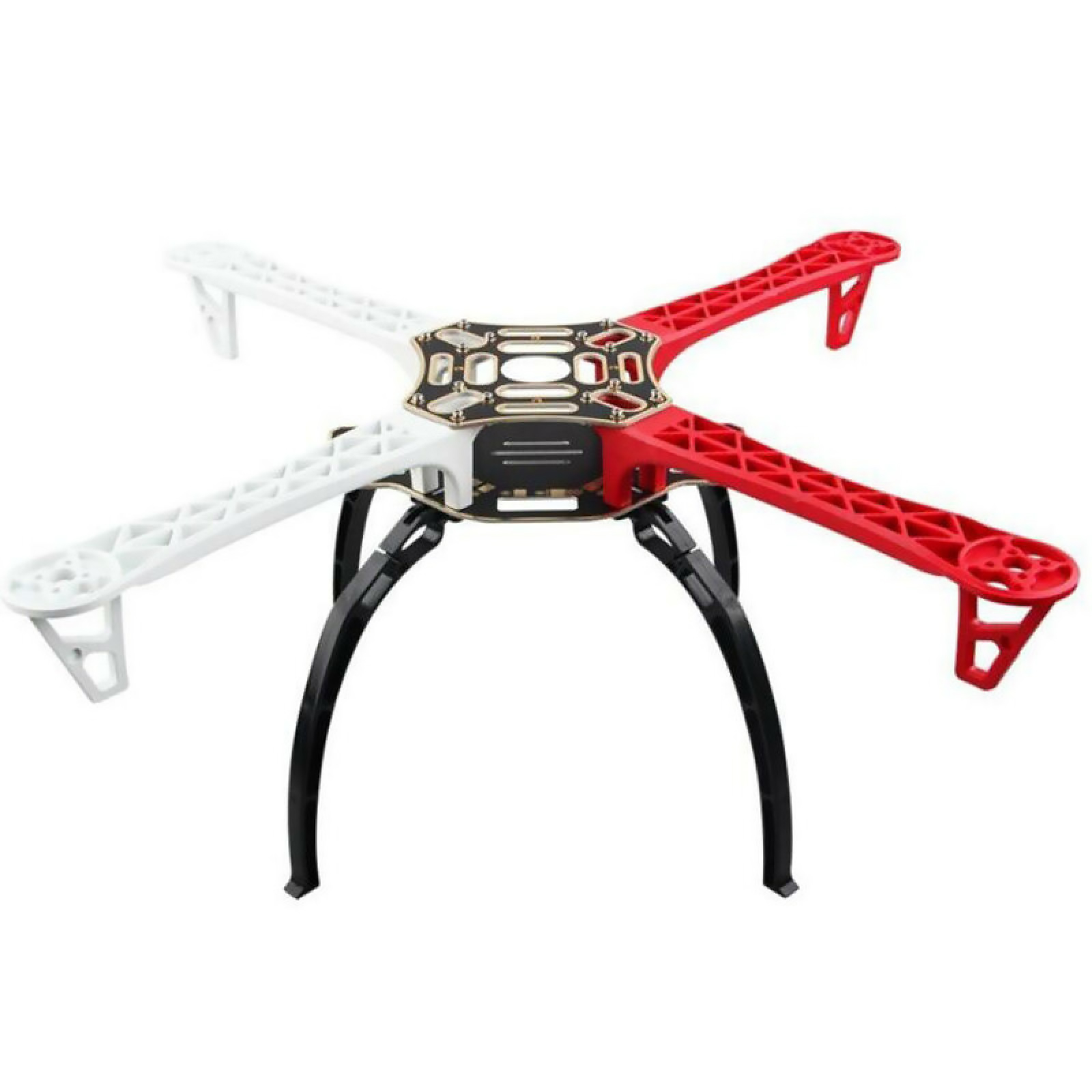

Features:
This is a very popular frame, it has a strong rack, beautiful appearance, and a stable system of flight for smooth flight.
with universal Tall Landing Gear Skids compatible with FOR DJI F450 F550 SK480 FPV aerial photo.
It is very suitable for both beginners and senior players.
Suitable for beginners to practice flight, aerial photography, DIY drone.
Frame Speicifications:
Color: Red + White +Black
Shaft distance: 17.7in/450mm

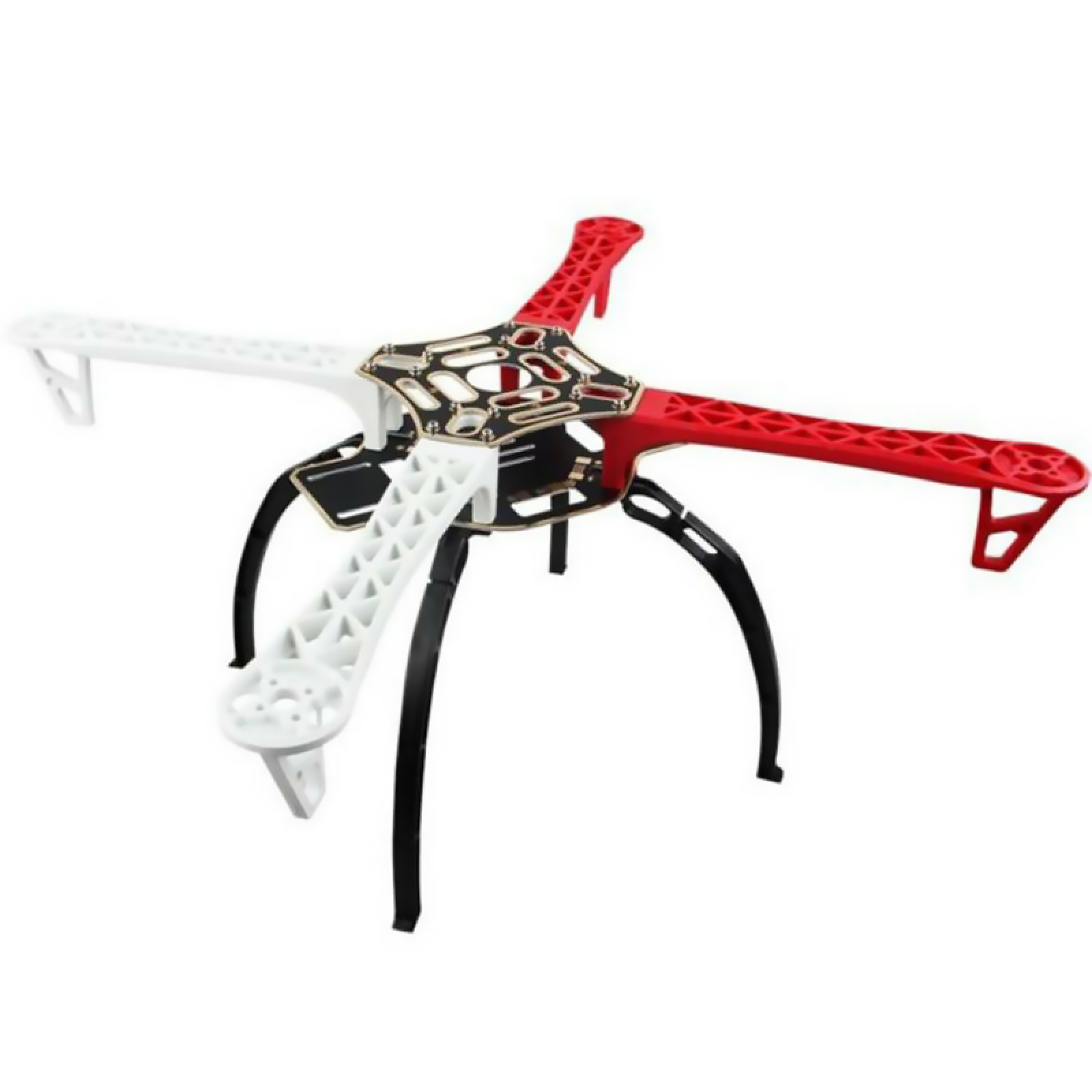

Assembled Size(LxWxH): 361mm x 361mm x 191mm

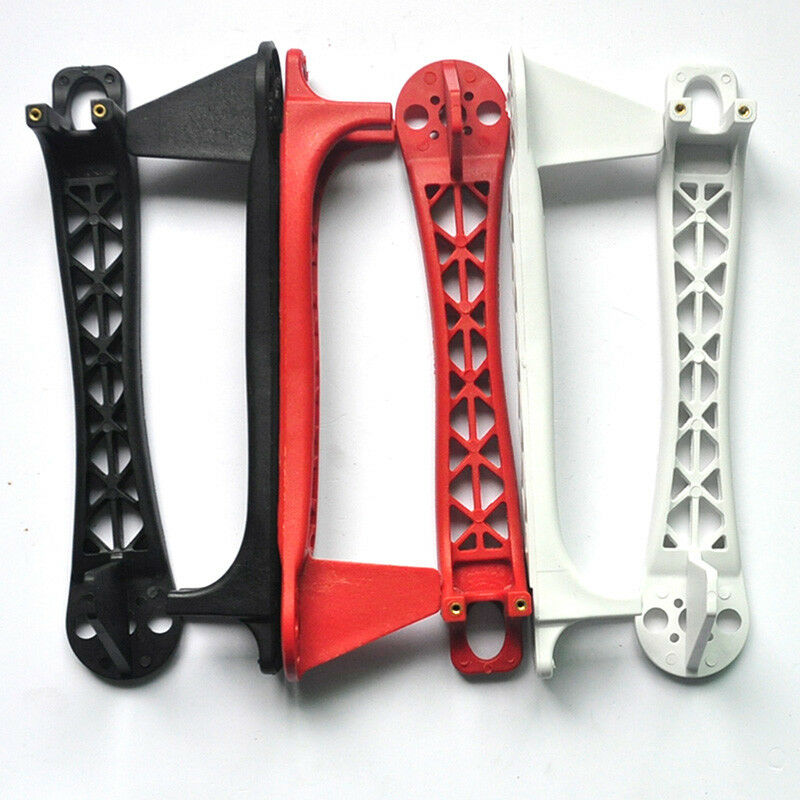

Material: fiberglass center board + plastic arm, tripod
Color: red+white+black
Weight: about 282g
Installation hole distance: 3.5mm

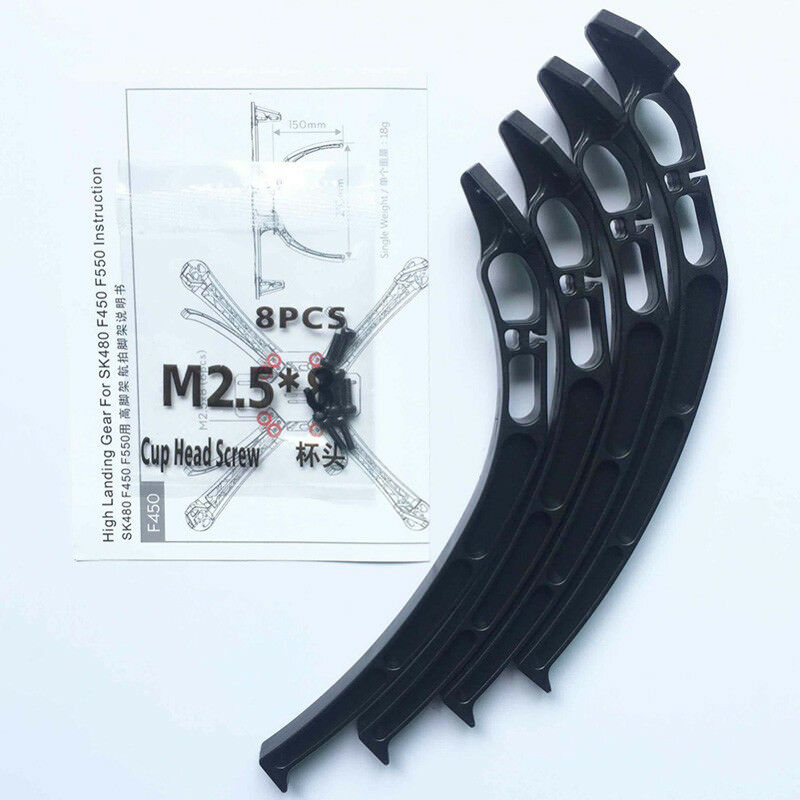

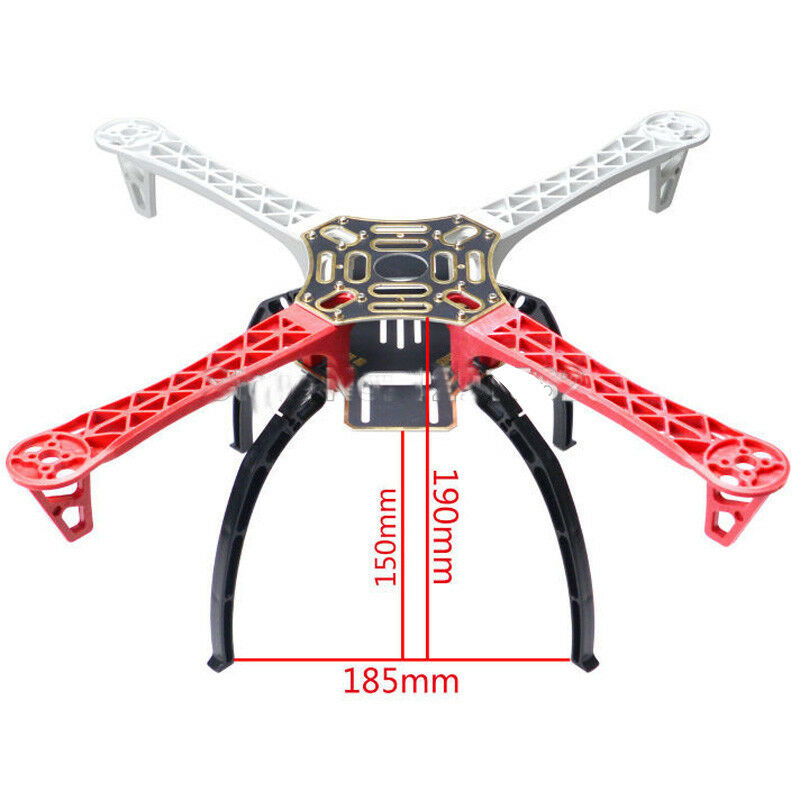

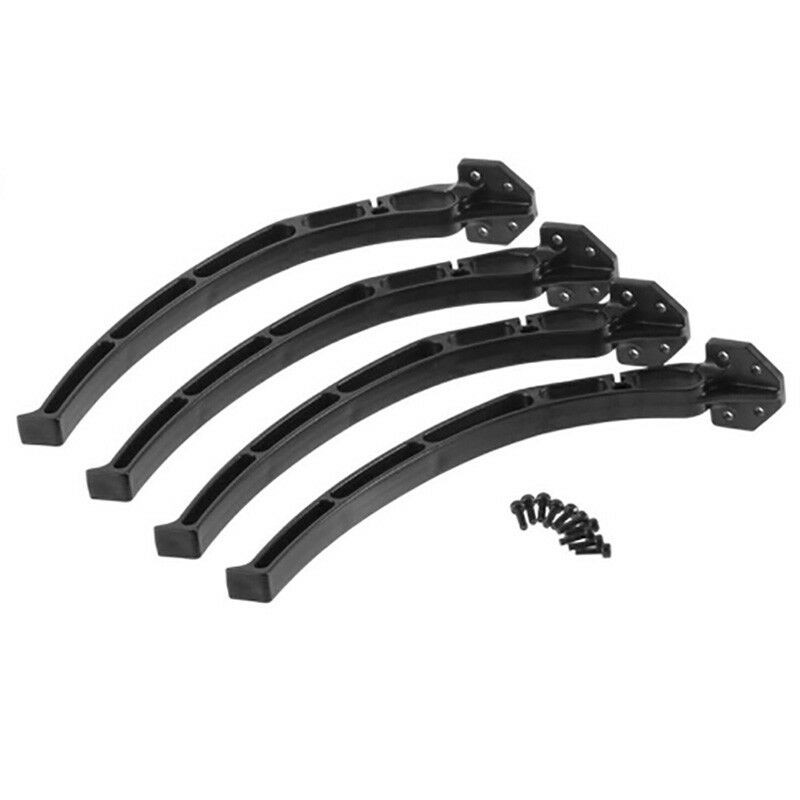

Landing Gear Speicifications:
4 pcs on 1 Set. Easy for Install on F450 F550 or other Similar Frame
Come with M3*8 Screws for Assembling
Weight: about 48g
Recommended config (Not Included):
Support APM、PIX、NAZA、KK、QQ by new disign PCB board
2212~2216 800KV~1100kv brushless motor * 4
20~40A ESC * 4
3-4S 2200mah-5200mah LiPo battery * 1
9-10inch propeller * 4
6CH Transmitter*1
Note:
If
the flight controller mounting hole spacing is 30.5mm, you can add an
expansion board or adapter bracket to the center board for installation.

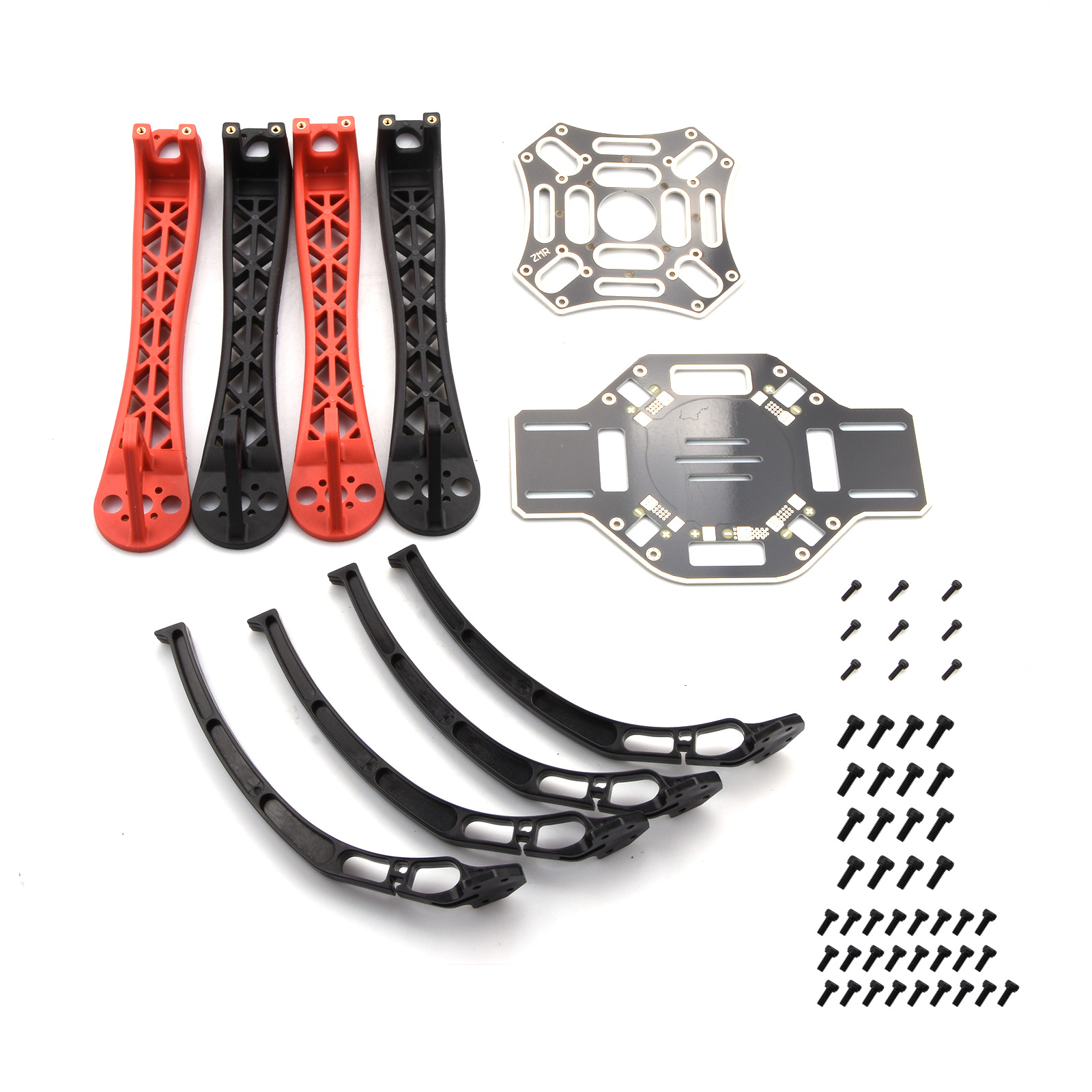

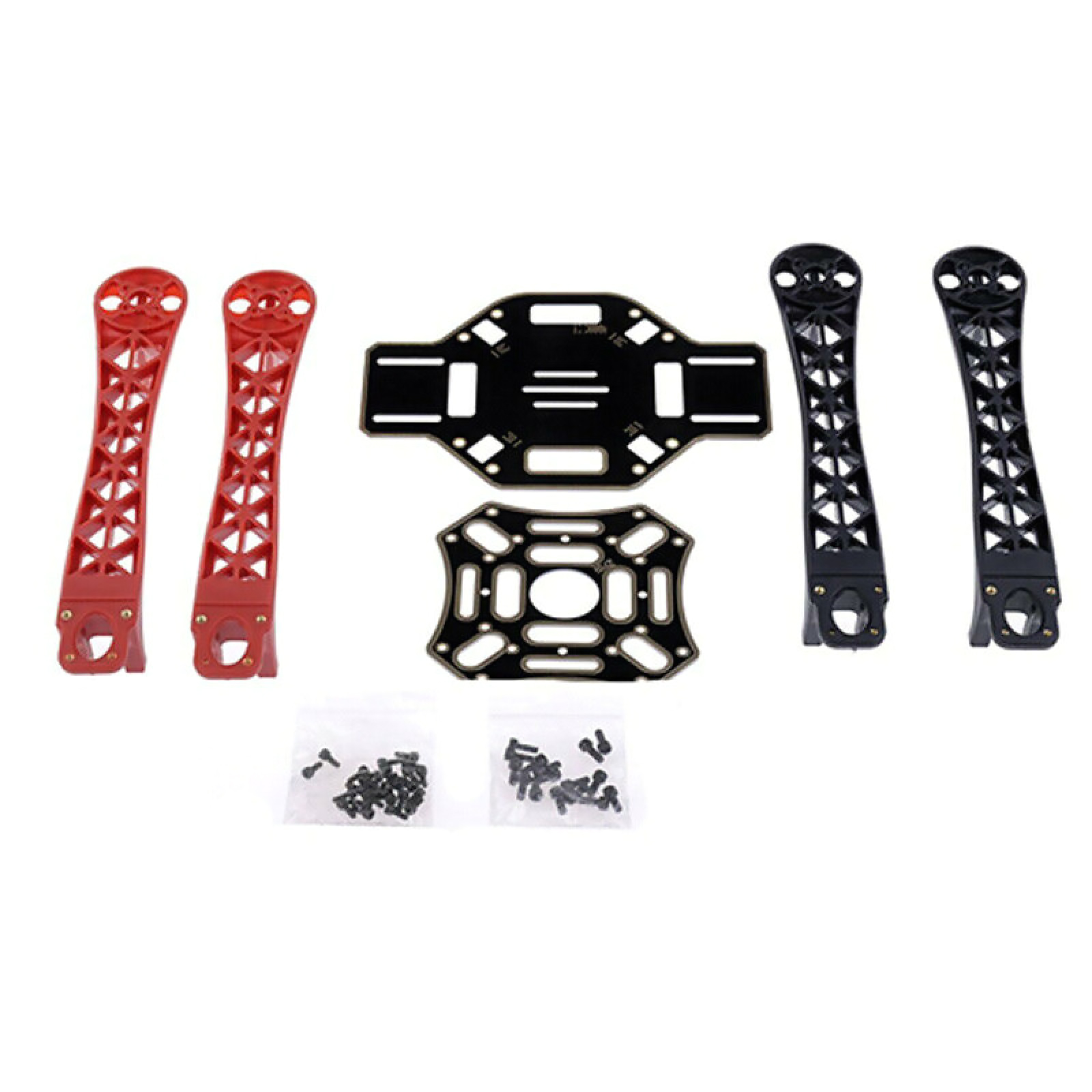

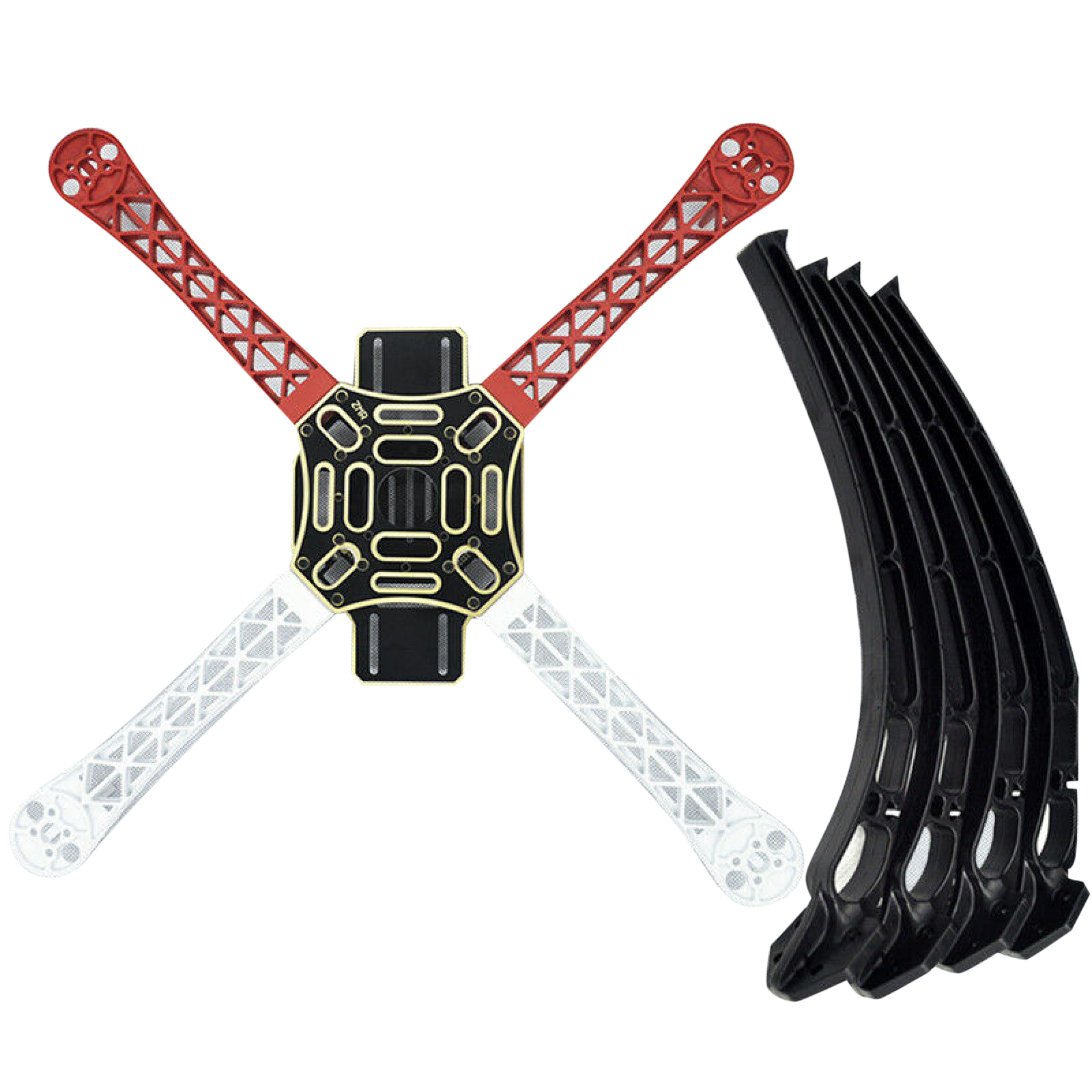

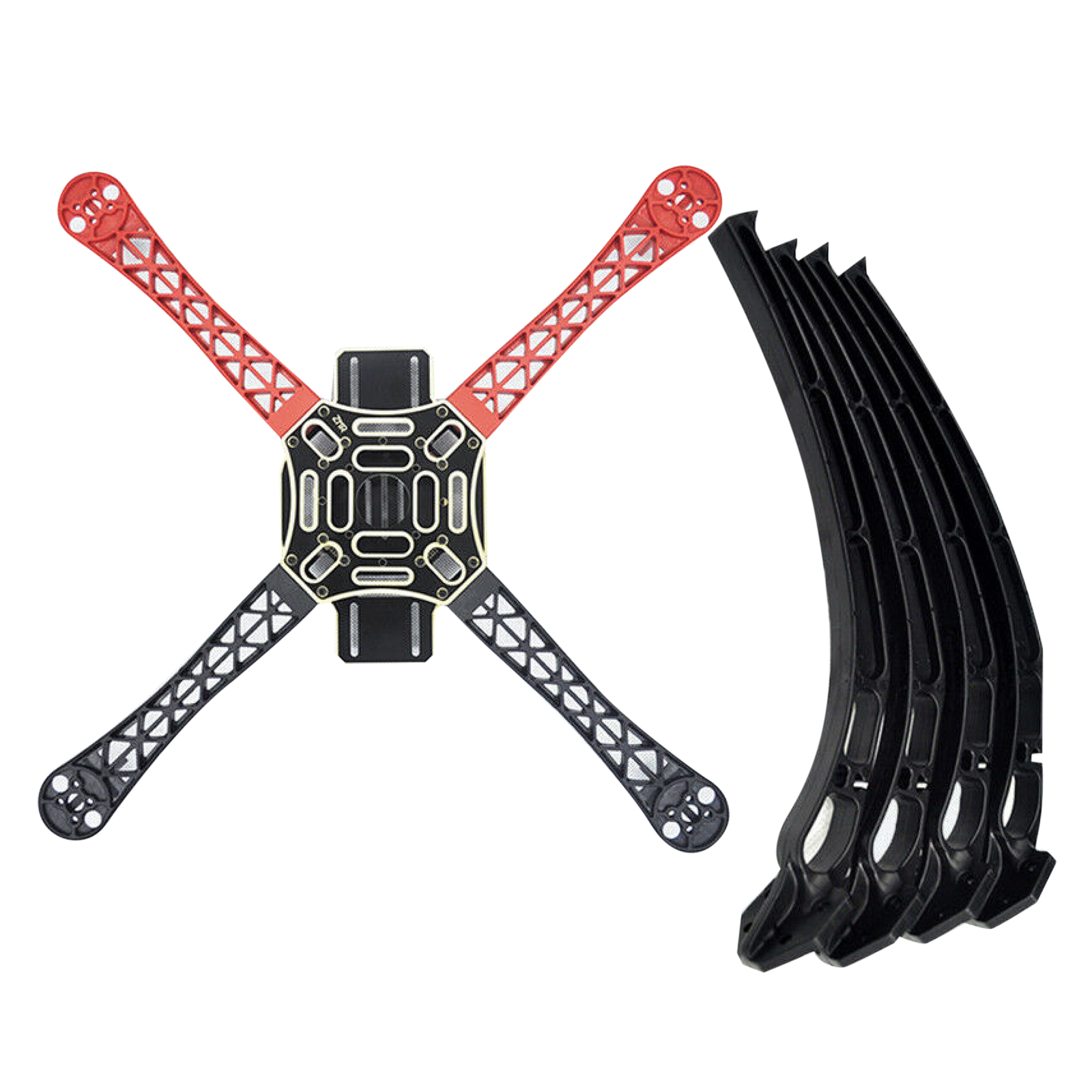

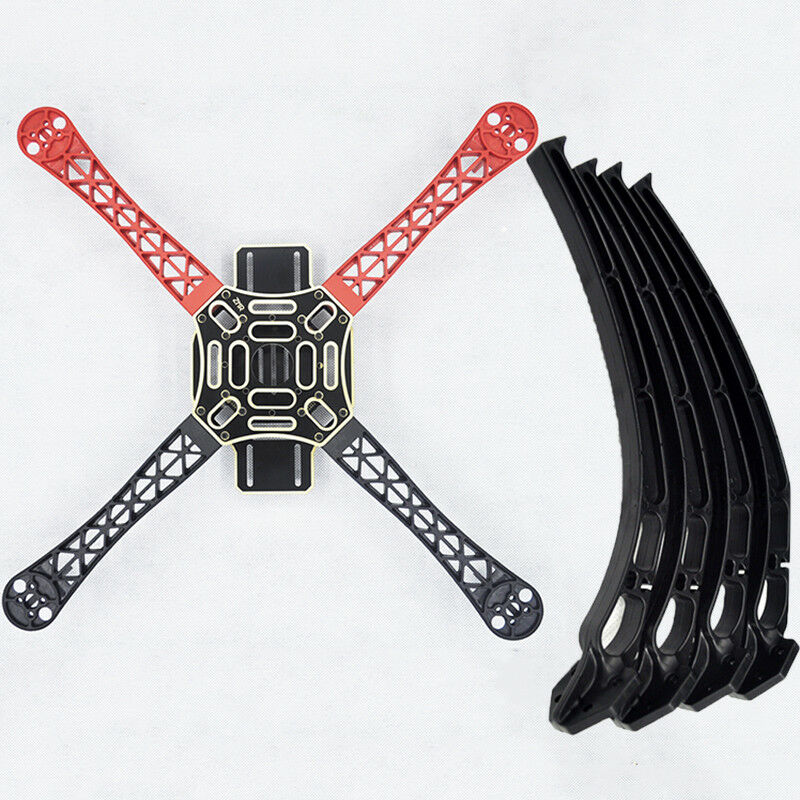

Package includes:

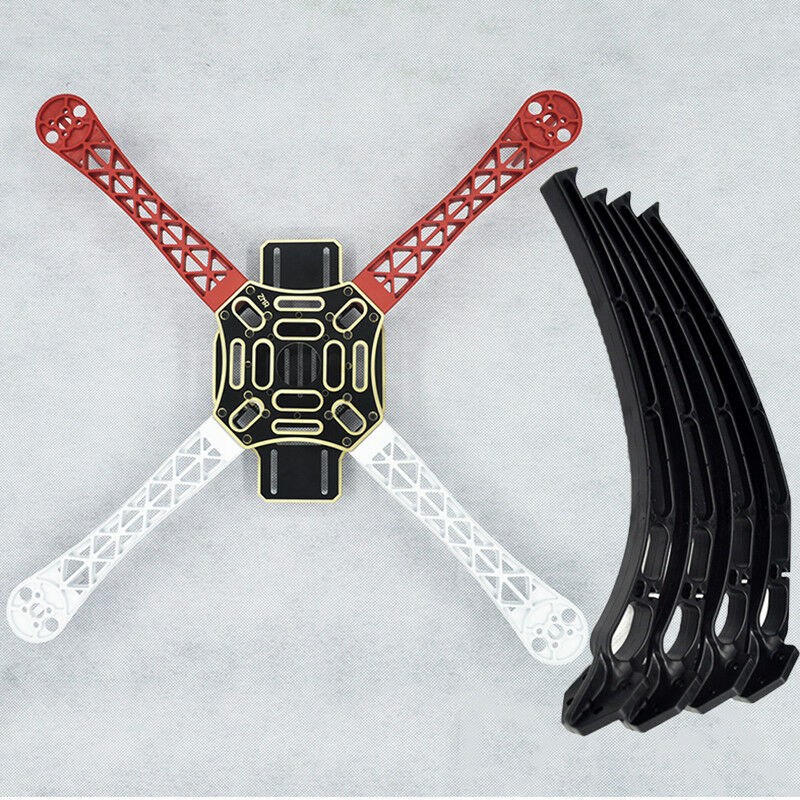

Drone Kit:
4 x Wings

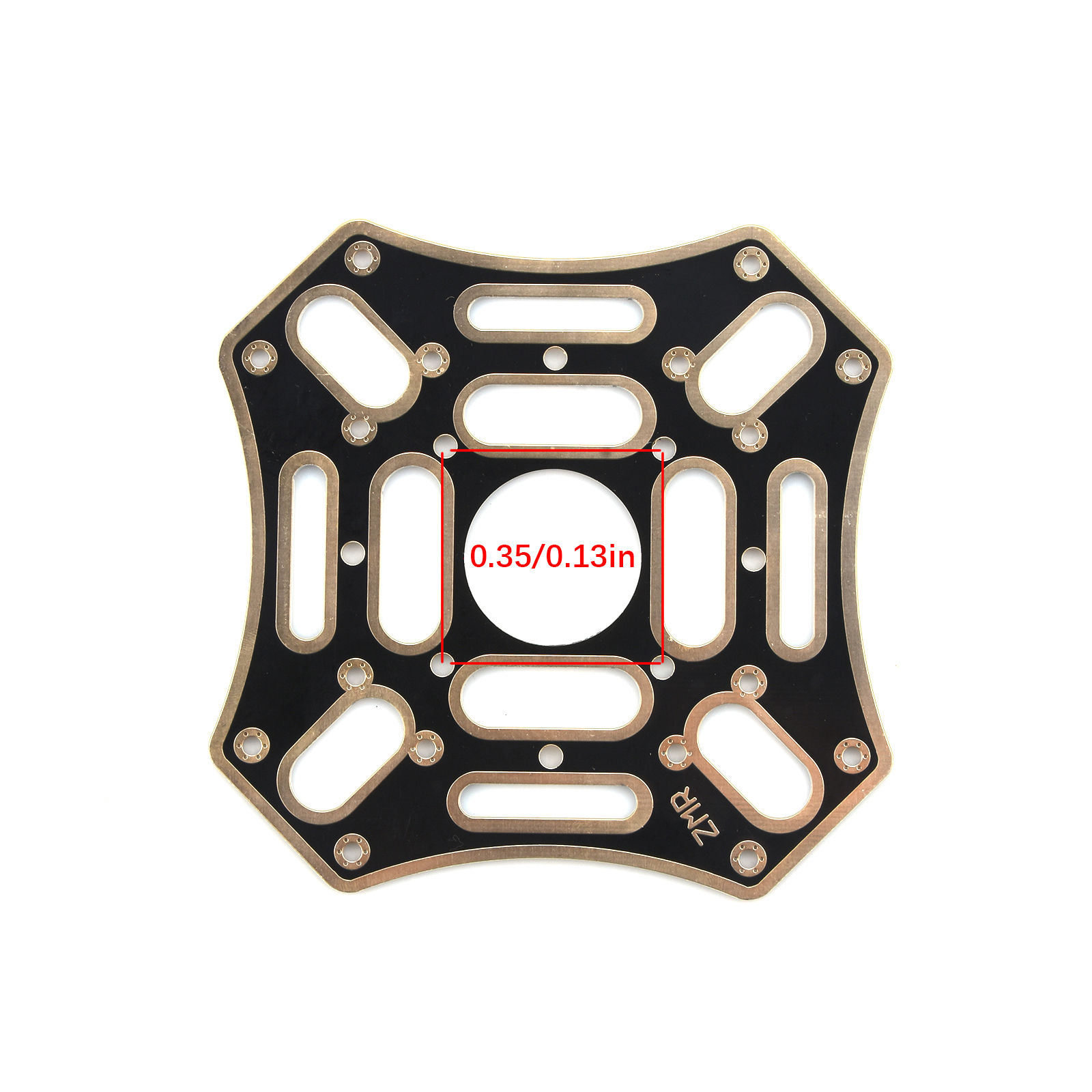

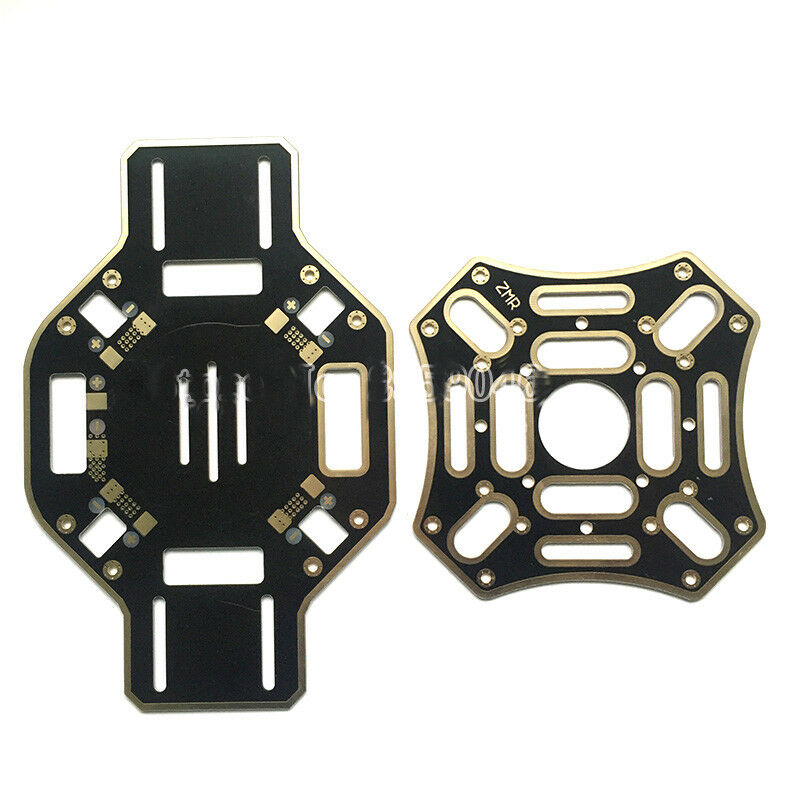

1 x Upper cover plate
1 x Lower cover plate
24 x M2.5x6 Screws
Landing Gear Kit:
4 x 140mm Tripod
16 x M3x8 Screws
