Omron K3NX-AD1A-FLK2 Process Meter DC Current Input RS-485 Panel Meter
- In Stock: 1
- Brand: Omron
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: K3NX-AD1A-FLK2
- Type: Panel Meter
- Shelf: K-46
- Series: K3NX
- Part Number: K3NX-AD1A-FLK2
- Manufacturer: Omron
- MPN: K3NX-AD1A-FLK2

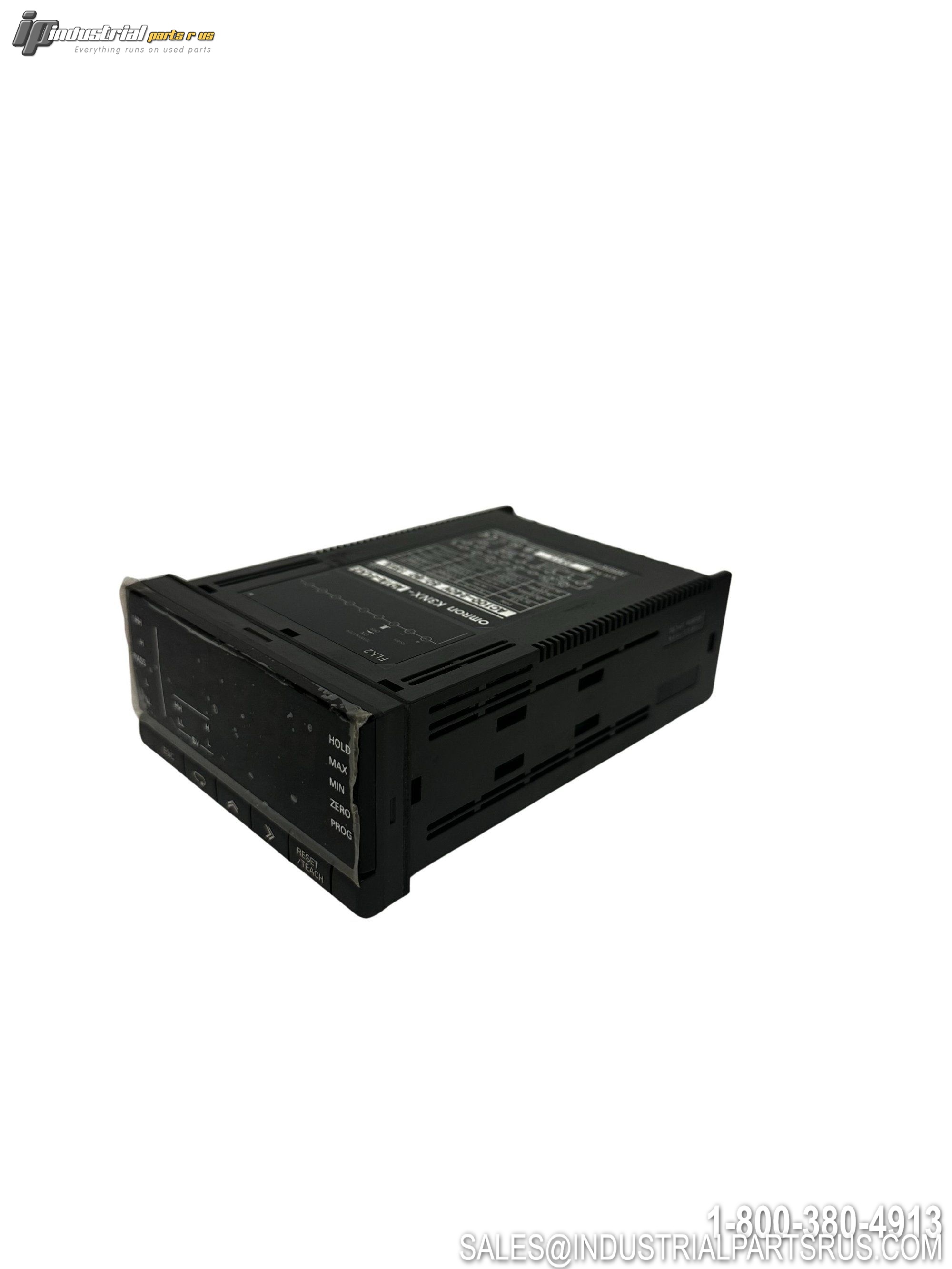

- Media 1 Description: Omron K3NX-AD1A-FLK2 Panel Meter - Photo 1

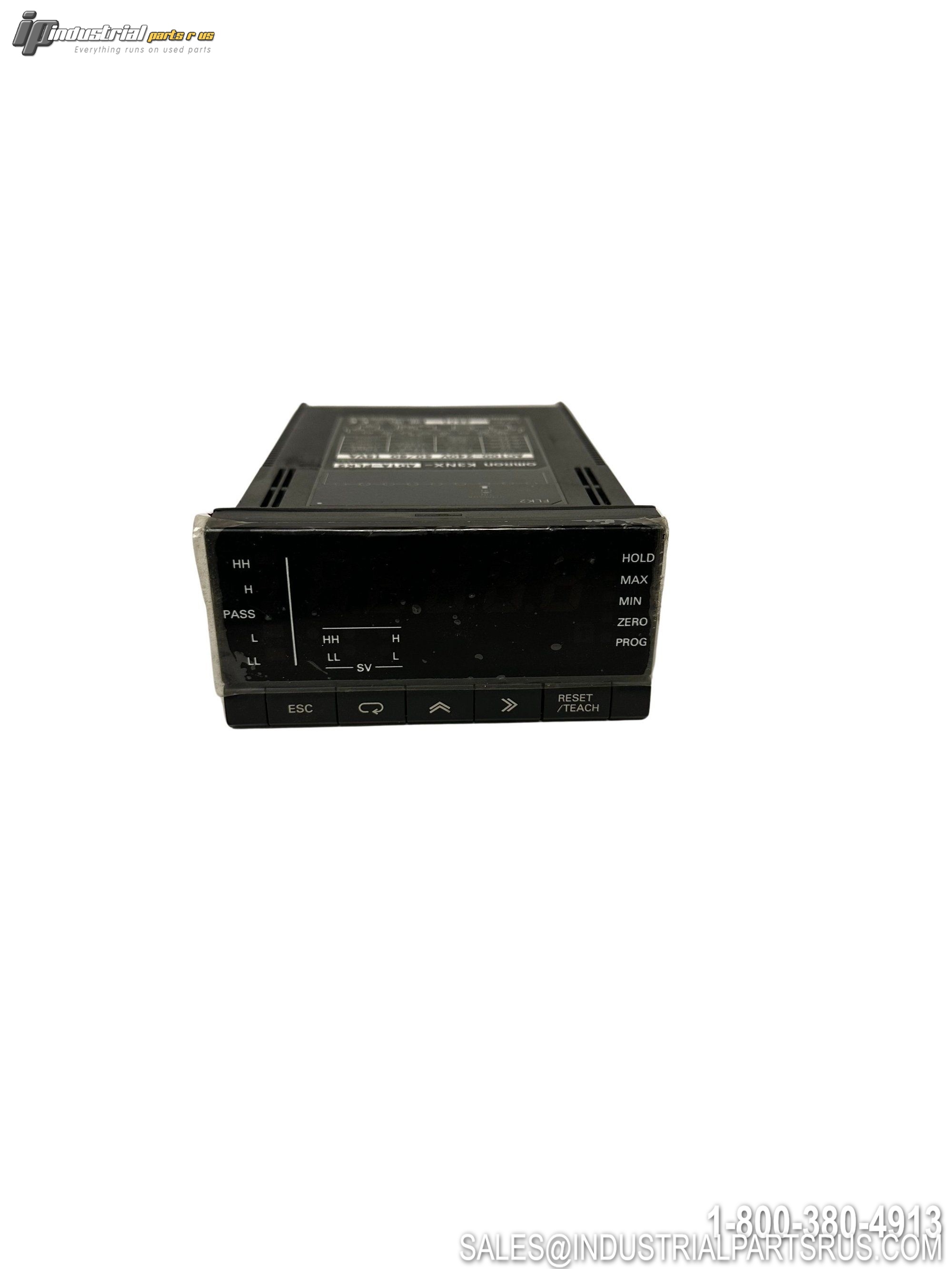

- Media 2 Description: Omron K3NX-AD1A-FLK2 Panel Meter Image 2

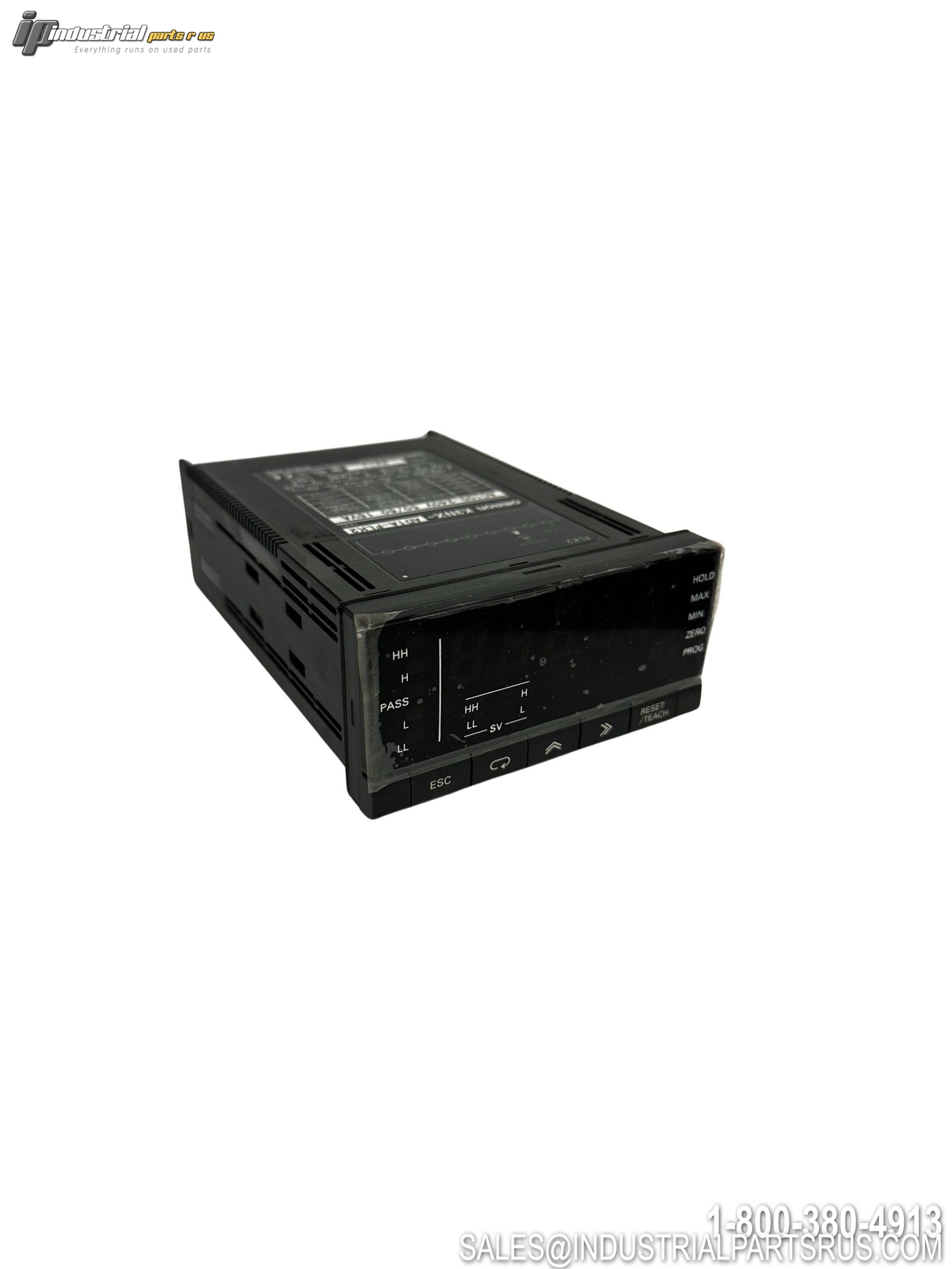

- Media 3 Description: Omron K3NX-AD1A-FLK2 Panel Meter View 3

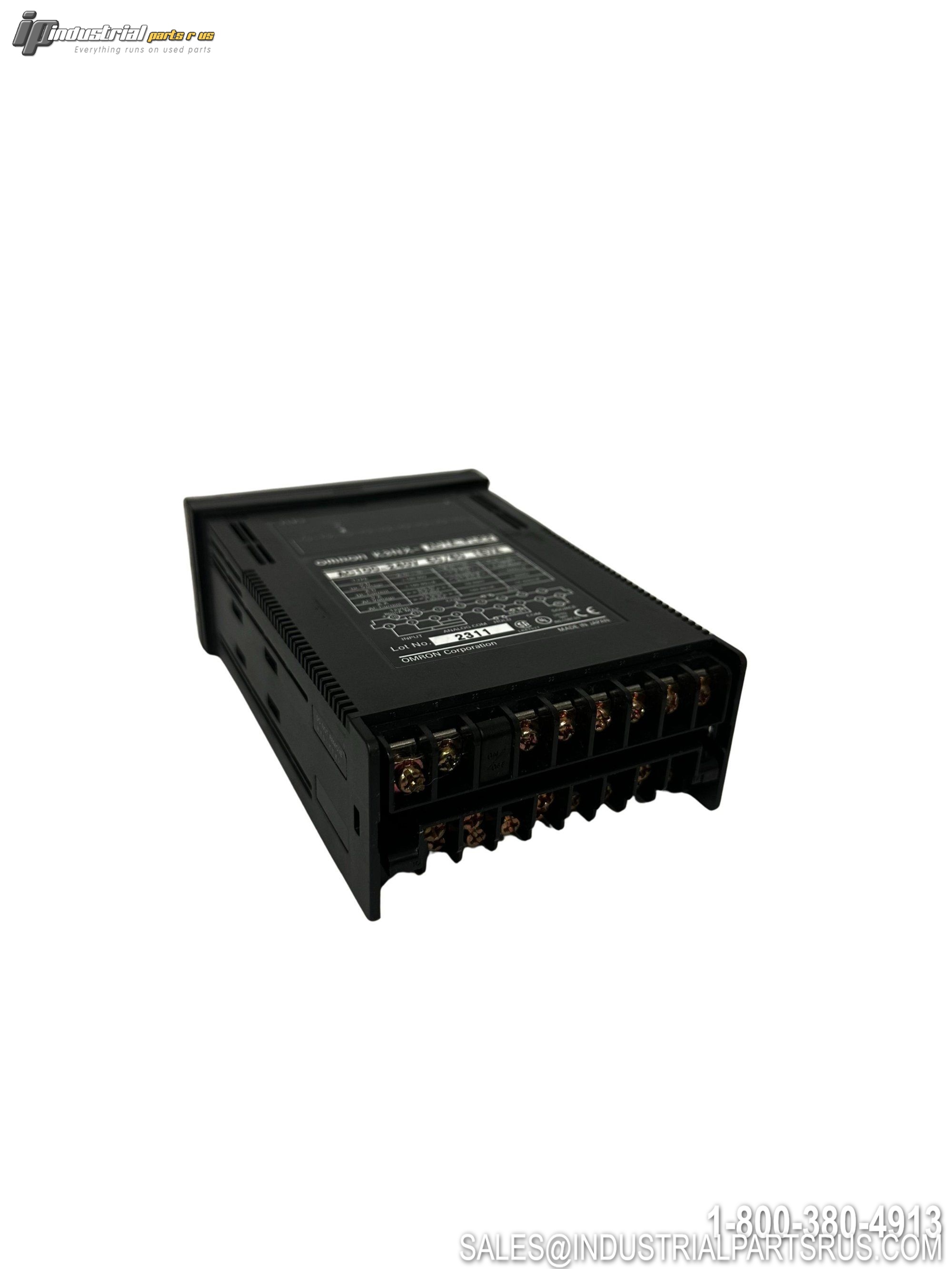

- Media 4 Description: Omron K3NX-AD1A-FLK2 Panel Meter - Photo 4

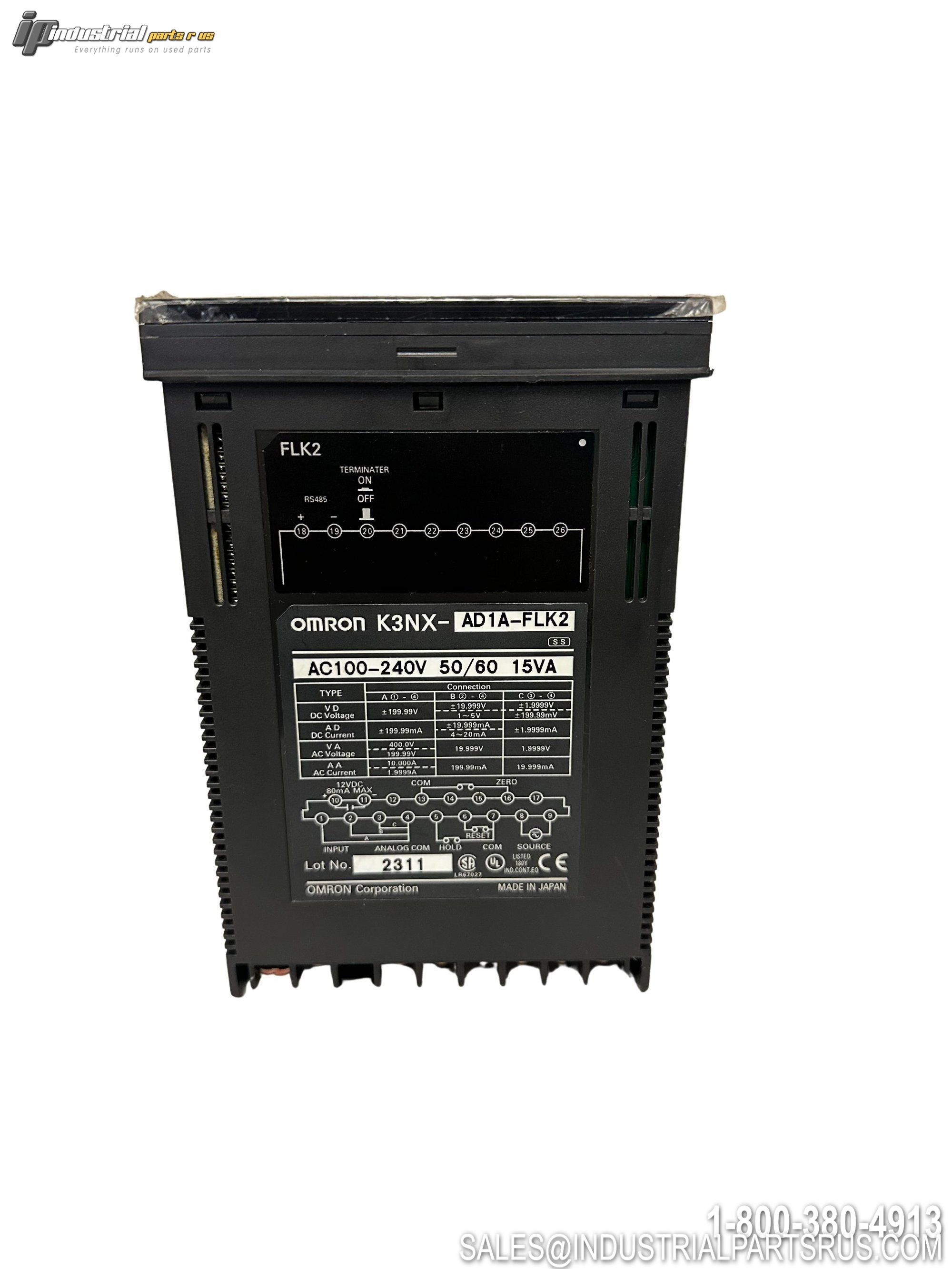

- Media 5 Description: Omron K3NX-AD1A-FLK2 Panel Meter Image 5
- Number of Phases: 1
- Mounting Type: Panel Mount
- Maximum Amperage: 20 mA
- Country of Origin: Japan
The Omron K3NX-AD1A-FLK2 is an advanced intelligent signal processor and process meter designed for DC current measurement applications. This unit features front panel control keys for local operation and includes an RS-485 communication interface for remote monitoring and control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | K3NX-AD1A-FLK2 |
| Product Type | Process Meter |
| Input Type | DC Current |
| Supply Voltage | 100-240VAC |
| Frequency | 50/60Hz |
| Power Consumption | 15VA |
| Communication Interface | RS-485 |
| Display | Process Value LED |
| Controls | Front Panel Control Keys |
| Operating Modes | RUN, Setting, Protect, Maintenance |
| Series | K3NX |
