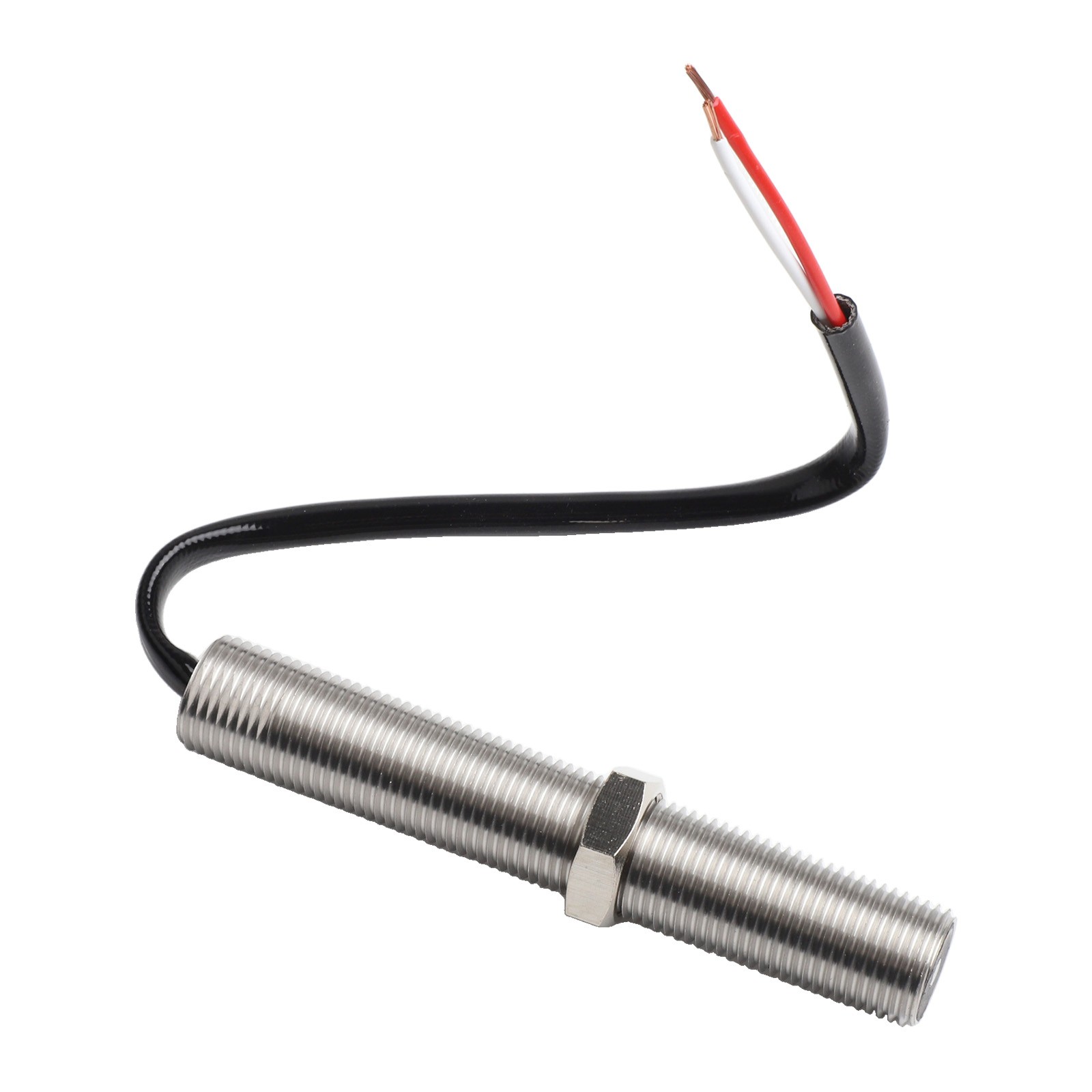

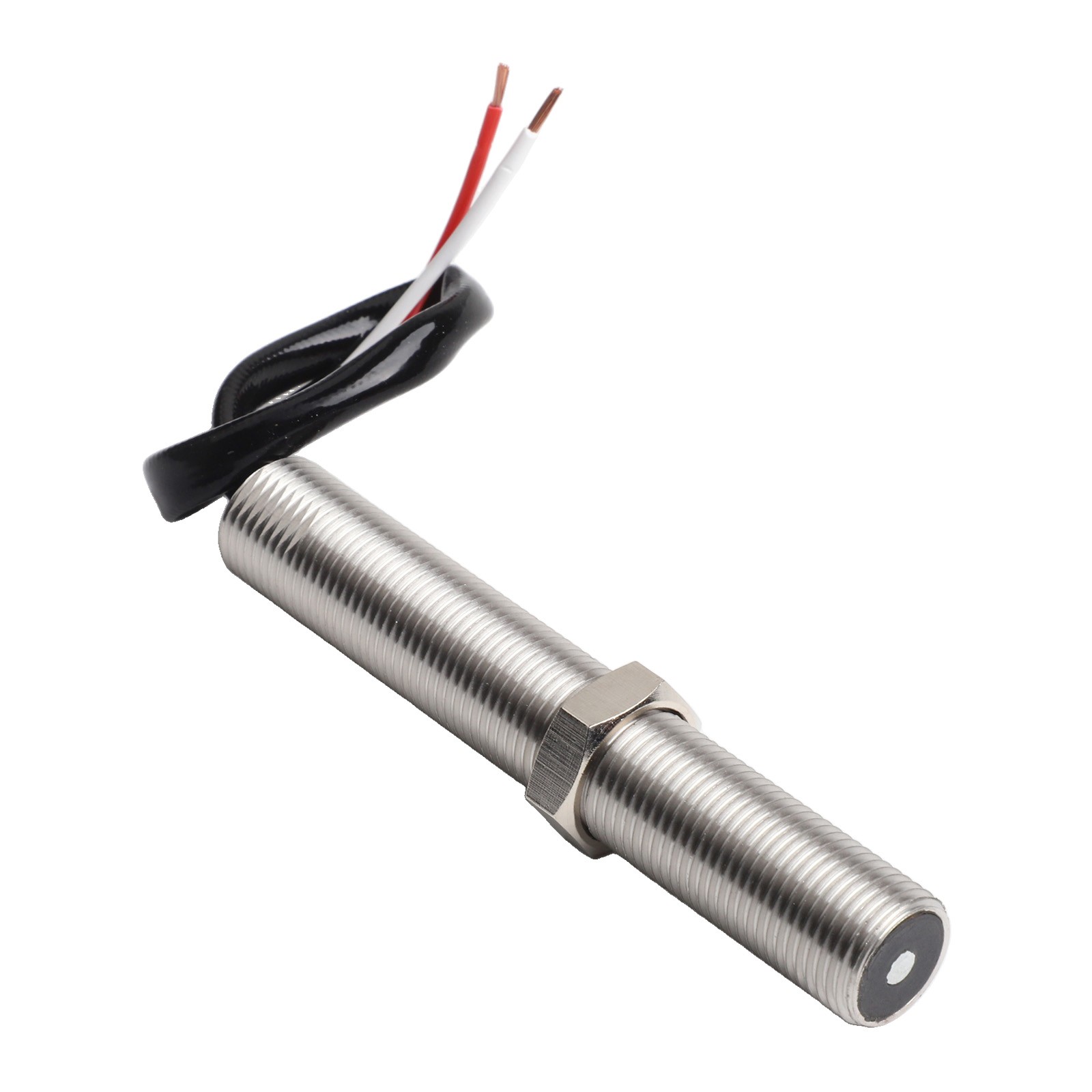

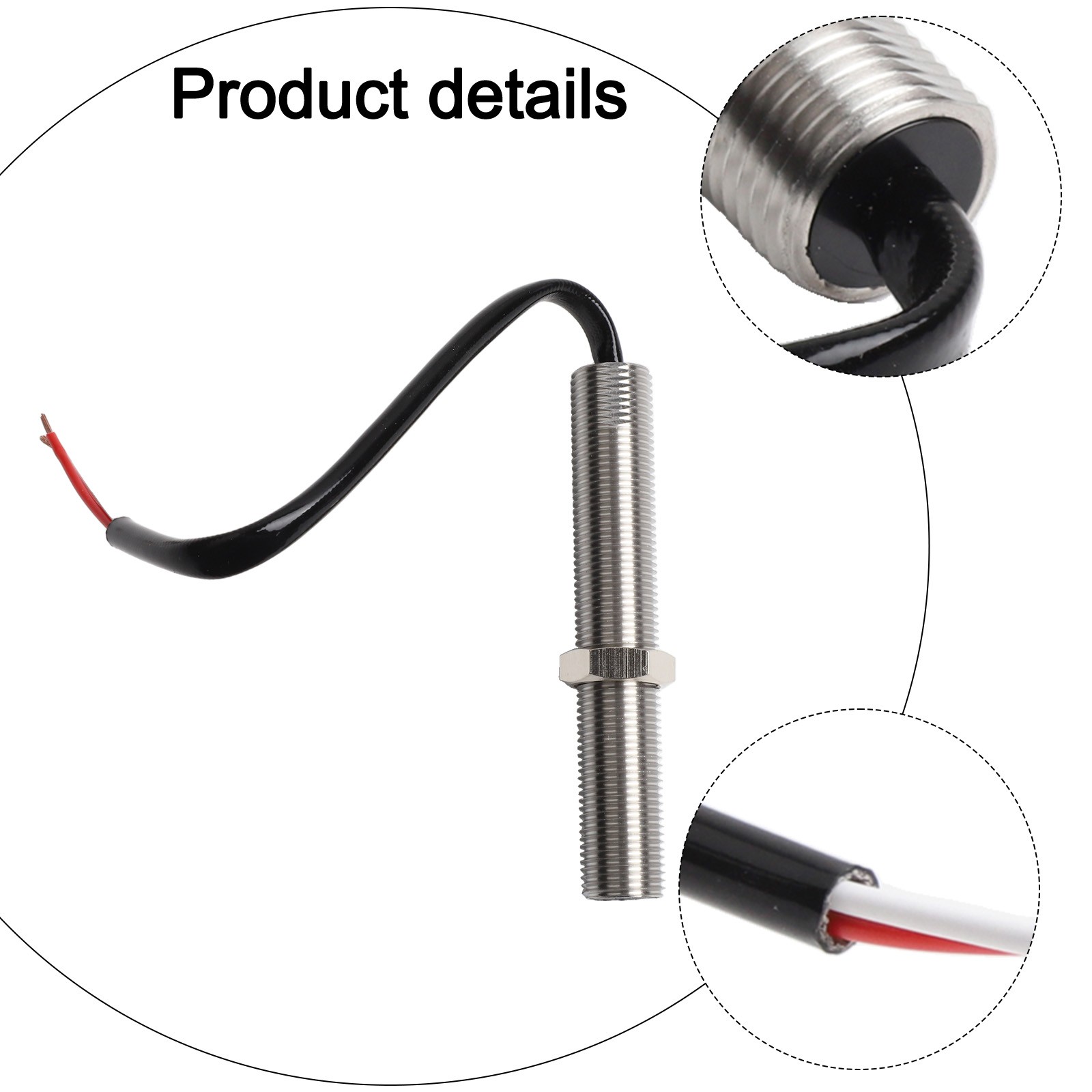

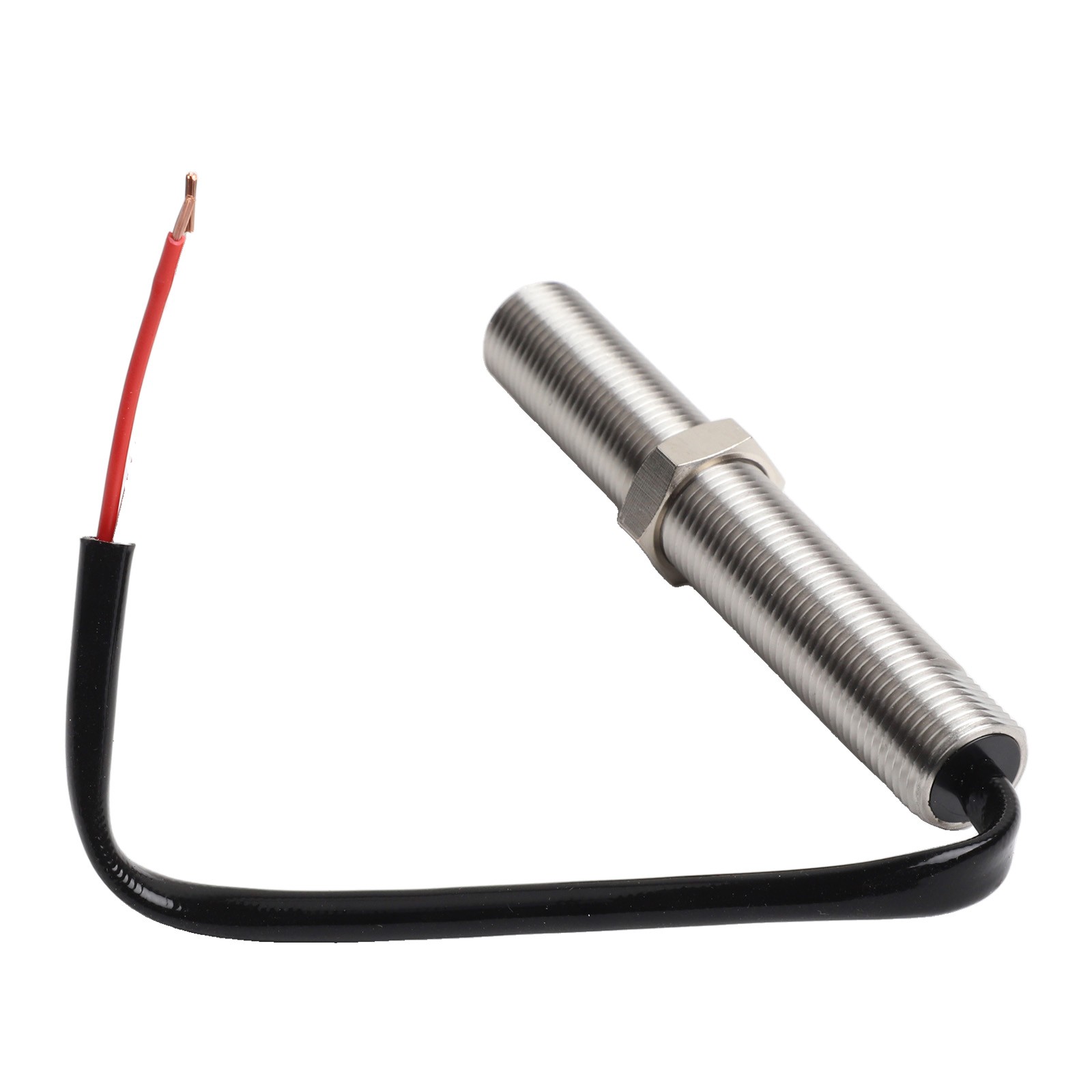

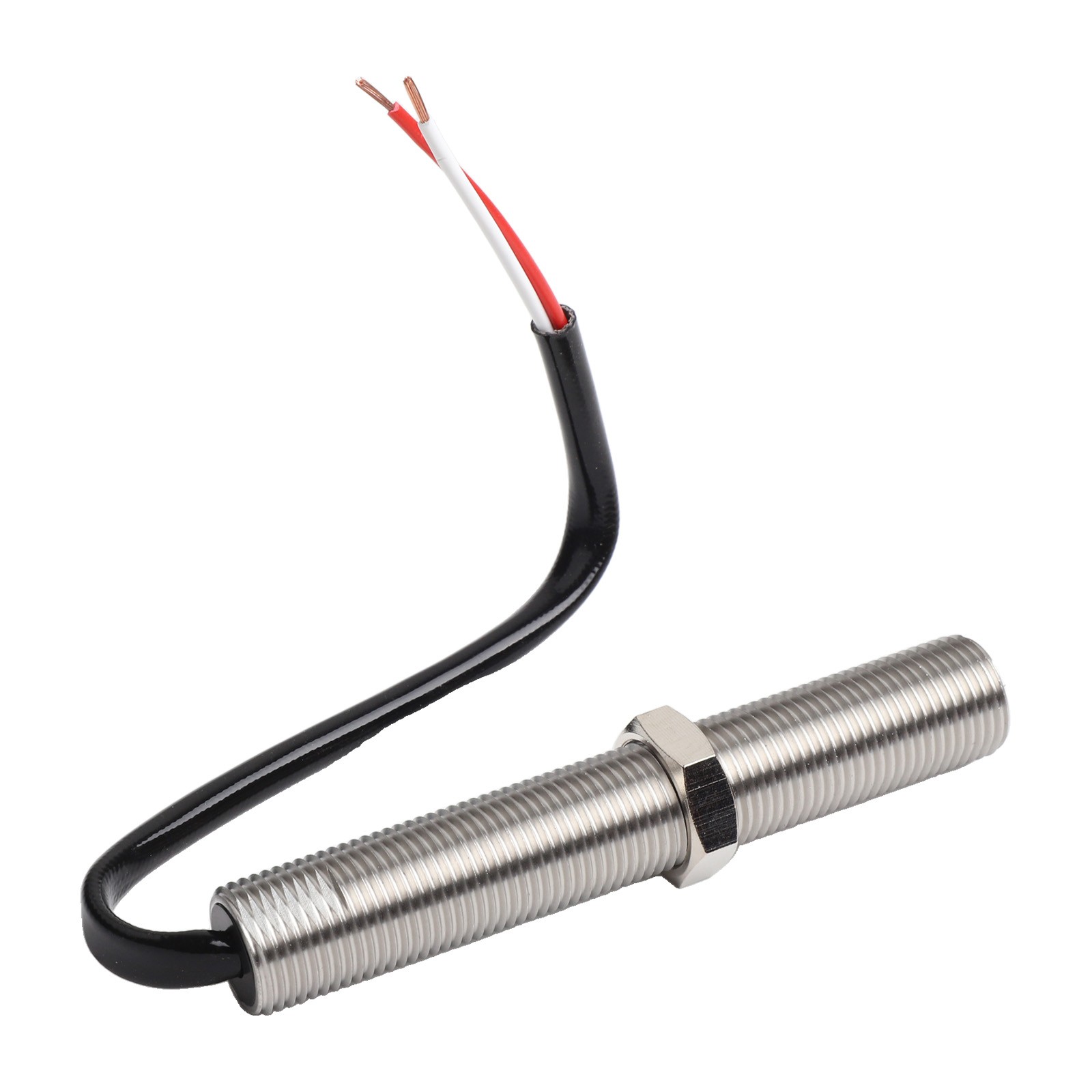

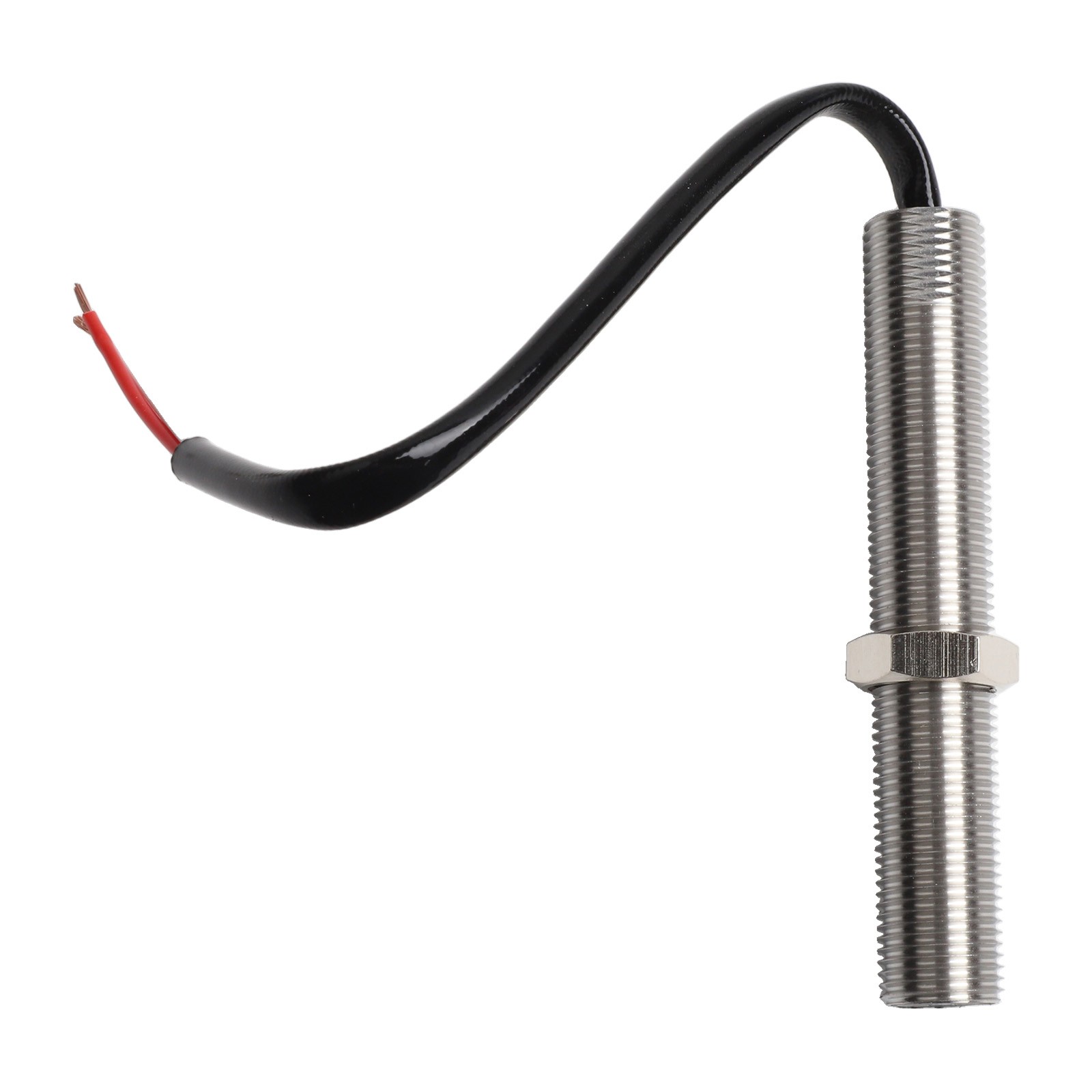

MSP6720 Magnetic Pickup Speed Sensor for Consistent and Accurate RPM Monitoring
DESCRIPTION

Features:
* Strict quality control standards to build and test.
* Stable performance, high reliability.
* MSP6720 Pickup MPU Generator Speed Sensor Rotation Speed Sensor RPM.

Specifications:
Part Name: Speed Sensor
Part Number: MSP6720
Material: Metal
Color: As shown in the picture

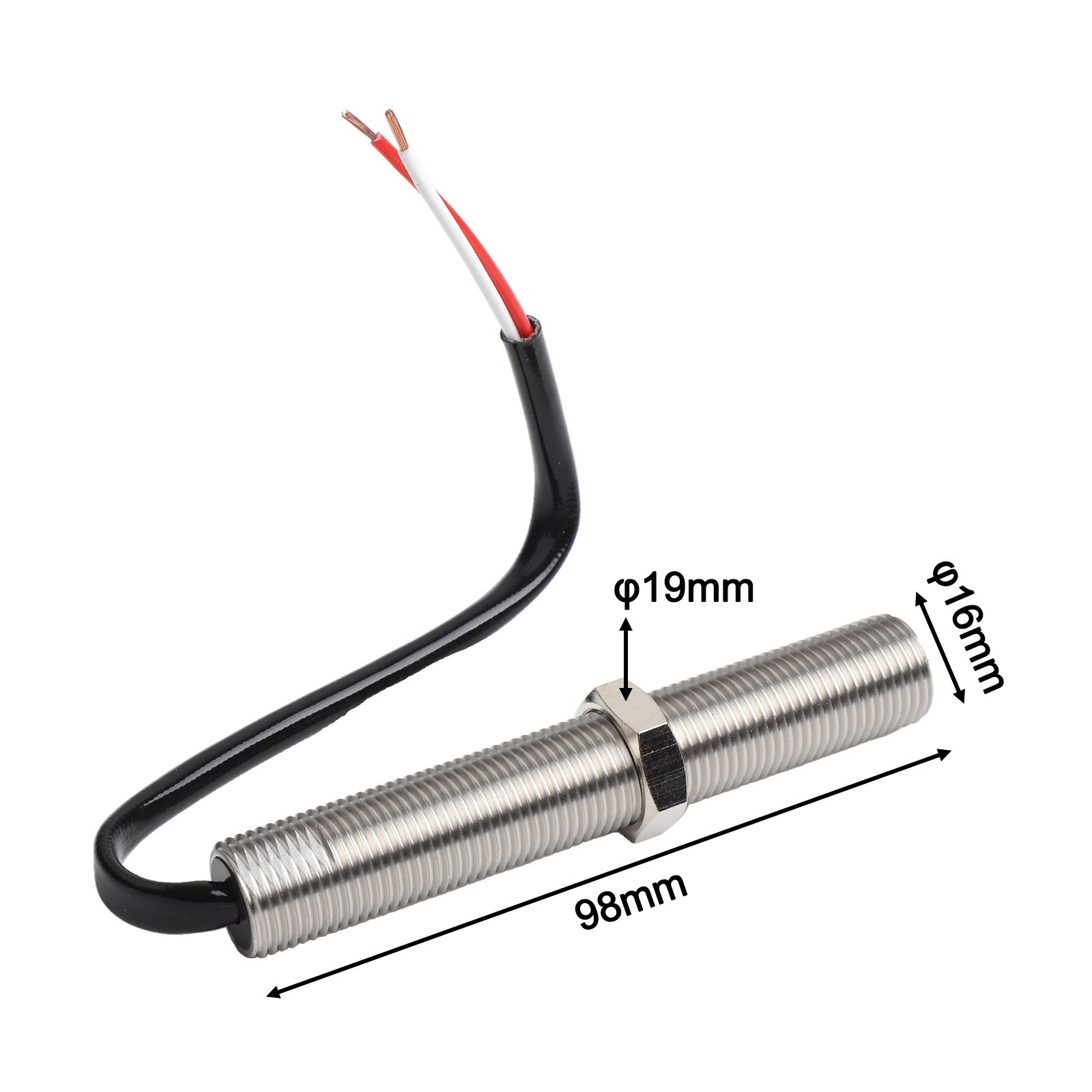

Size: As shown in the picture
Range: 50-5000Hz
Inductance: 142MH+25%
Resistance: 300Ω MAX
Thread: 5/8-18UNF-2A
Tooth Pitch: 0.64-0.89mm
Temperature Range: -55℃ Celsius to 105℃
Idle Output: .5V AC Min.
Max Output: 30V AC

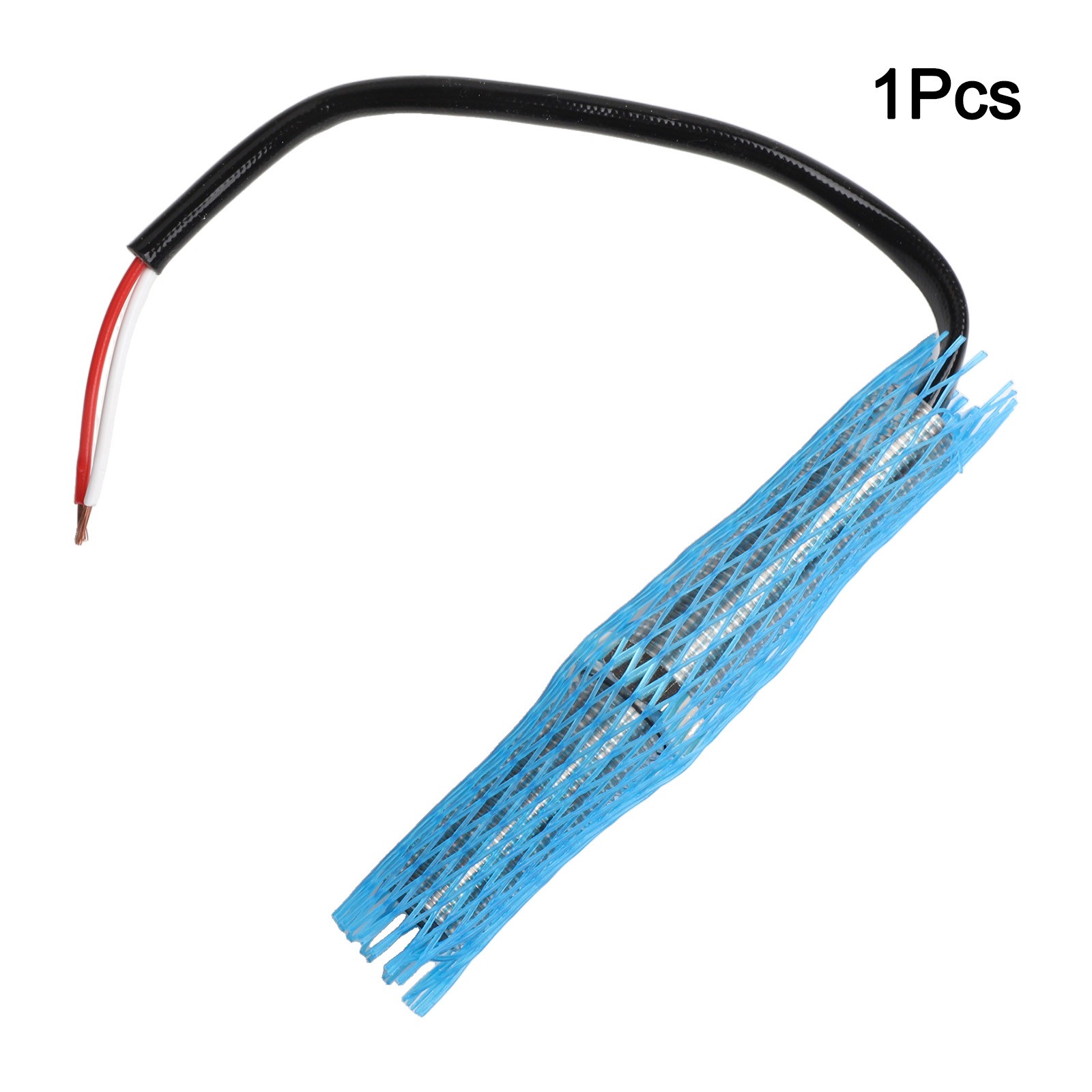

Package Contents:
x MSP6720 Speed Sensor

Note:
.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
