Features:

1. Wide Application –

 Our Communication Cable fits for SuperFlo VST, SuperMax VS, WhisperFlo XFVS and Max-E-Pro XFVS Pumps. Communicating with Easytouch, Intellitouch, Intellicenter and Jandy Aqualink Systems. Replacement Part Number: 356324, 356324Z.

2. Powerful Function –

The cable uses RS485 communication interface, balanced transmission and differential reception, has the ability to suppress common mode interference, and is suitable for communication over long distances and in high noise environments. Closely connecting the pump and monitoring system can improve the interface with automation systems and IoT devices, providing greater flexibility.

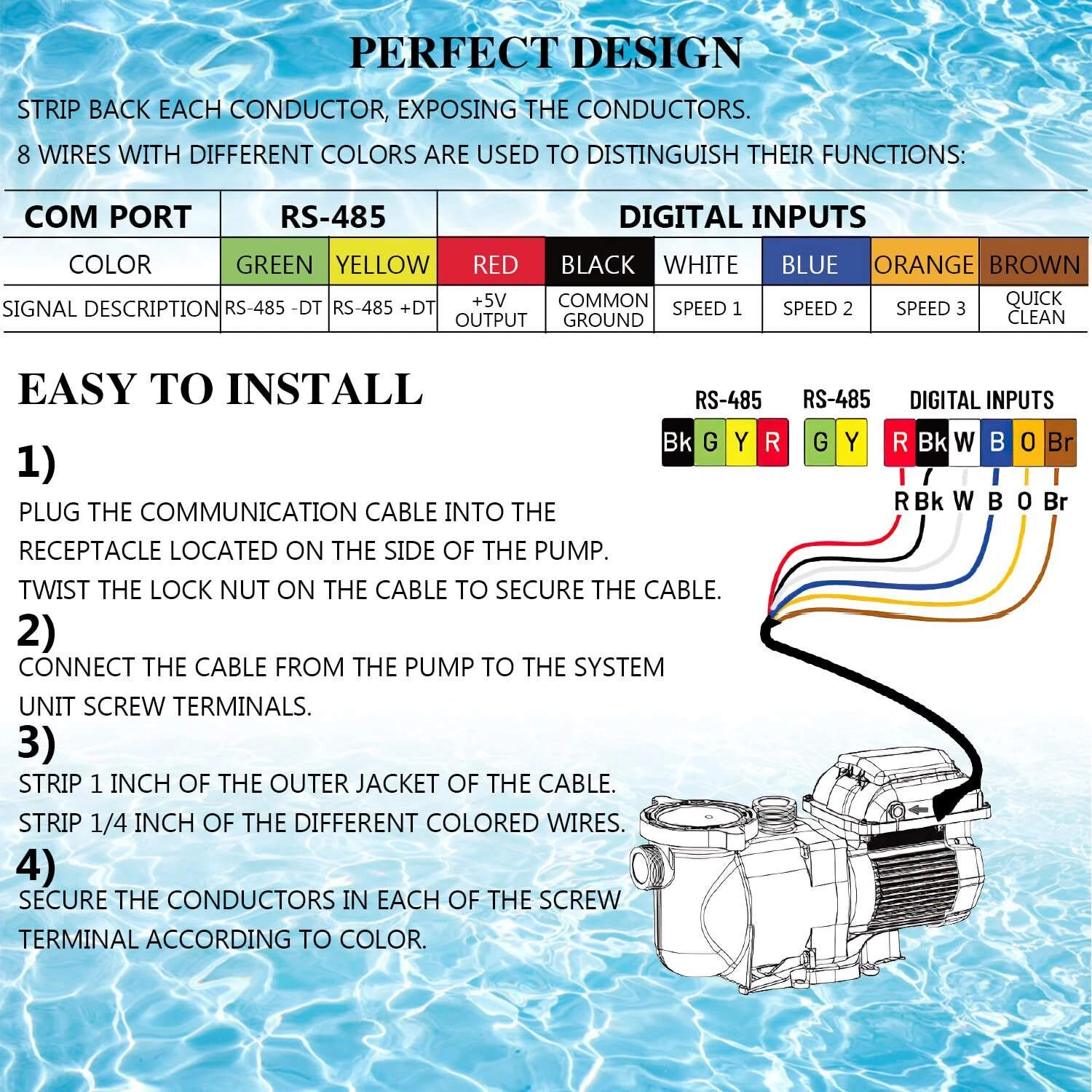

3. Perfect Design -

Strip back each conductor, exposing the conductors. 8 wires with different colors are used to distinguish their functions: Green (RS485 -DT), Yellow (RS485 +DT), Red (+5V OUTPUT), Black (COMMON GROUND), White (SPEED 1), Blue (SPEED 2), Orange (SPEED 3), Brown (QUICK CLEAN).

4. Superior Material –

Made of excellent quality copper, the sheath is made of PVC (Polyvinyl chloride) material, it has superior performance and corrosion resistance, IP68-rated waterproof connectors are metal tipped. Meeting or exceeding OE specifications.

5. Easy to Install –

1) Plug the communication cable into the receptacle located on the side of the pump. Twist the lock nut on the cable to secure the cable.

2) Connect the cable from the pump to the System unit screw terminals.

3) Strip 1 inch of the outer jacket of the cable. Strip 1/4 inch of the different colored wires.

4) Secure the conductors in each of the screw terminal according to color.

Descriptions:

Package Included:

1*356324 Z Cable


Hinweis: Es handelt sich um ein kompatibles Zubehör-Ersatzteil, kein werkseigenes Original-OEM-Teil.
