Thank you for purchasing our product(s). This manual is provided to people who need to install and operate the controller. Read this manual before any work with controller and keep it carefully. The contents of this manual will be periodically updated or revised if necessary. However discrepancies
cannot be excluded. Please refer to the actual product(s).

General Safety Information:
1. Before receive the product, check it carefully. Make sure whether the product is damaged during transport. If it is damaged, contact the shipping company or our company immediately.
2. All installation and electrical work must only be performed by professional personnel.
3. Without any professional guidance, do not disassemble or attempt to repair the controller.
4. Do not use the controller without batteries.
5. Do not cut off the connection of controller and batteries when controller is working normally.
6. Keep children away from controller.
7. Do not allow water to enter the controller.
8. Strictly prohibit the use within flammable, explosive gases environment, cautious fire and
sparks
9. Confirm that power connections are tightened to avoid excessive heating from a loose connection.
Make sure cables are suitable for system.

Product Introduction:

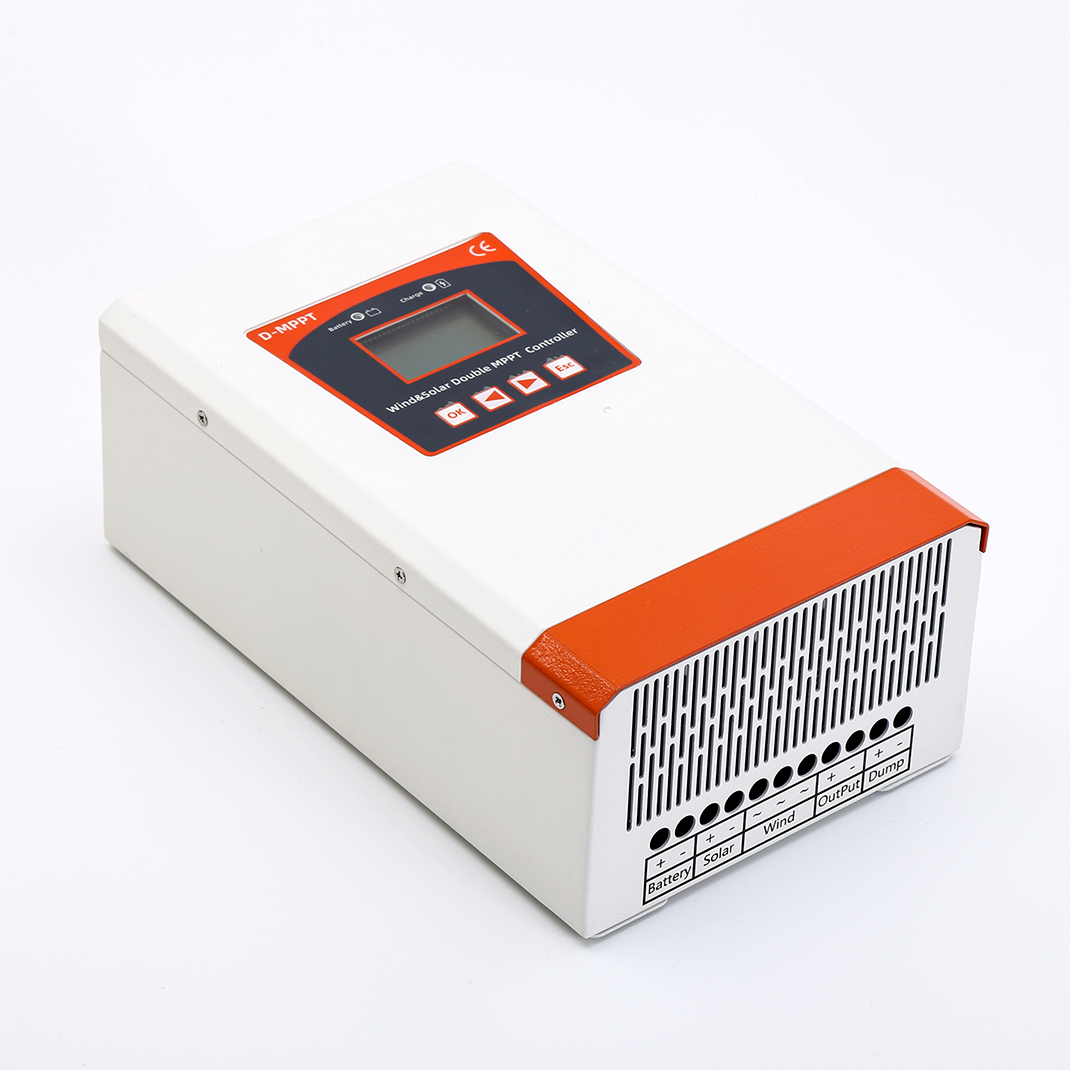

This kind of wind & solar hybrid charge controller is special designed for small off-grid wind
generation and solar hybrid system. Appearance is elegant, operations are easy. It also makes the
course of which wind generator and solar panels charge to batteries safely and efficiently.

Functions and Features:
1. Wind generator MPPT boost charging function,improved charge efficiency.
2. External dump load resistant to strong wind,work more stable .
3. Solar MPPT charge，Solar intelligent disconnect charging,high efficiency charge.
4. Bluetooth function can monitor the system information by the app on the app on the phone(Only for Android).
5. Dual power supply function: Battery + solar power supply.
6. LCD displays parameters such as voltage and current of wind, solar and
load .Some parameters can be set by users.
7. DC output with 3 output modes.
8. Battery module type can be selected and parameters can be set；
9. The controller has a built-in dust net, which is easy to replace and clean, ensuring
the service life of the controller.
10. The inner circuit board of the controller is sprayed with conformal coating to prevent dust, moisture and static electricity.

Protection:
** Reversed charging & Protection of solar: Such as at night, the voltage of the battery may be higher than solar panel. The controller protect the battery from charging the solar panel.
** Reverse polarity  & Protection of battery: When the battery polarity is reversed, the controller does not work and there is no
display. The fuse protects the internal circuit.If the battery does not work properly after it is connected correctly, just need to replace the fuse .
Battery open circuit  & Protection: After long-term use, the battery may be Open-Circuit or poor connect. The controller can protect itself from damage.Check the connection regularly.
** Over voltage & Over current & Over load voltage & Protection: When it’s strong wind or over voltage, the controller will automatically start braking function to protect the wind generator and battery. The controller will
automatically cuts off the circuit when the output is over voltage.
** Lightning Protection: Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, special lightning protection devices and other components of the multilevel lightning protection system are needed. It need additional payment If the user need this function.

Package include:
Charge controller
