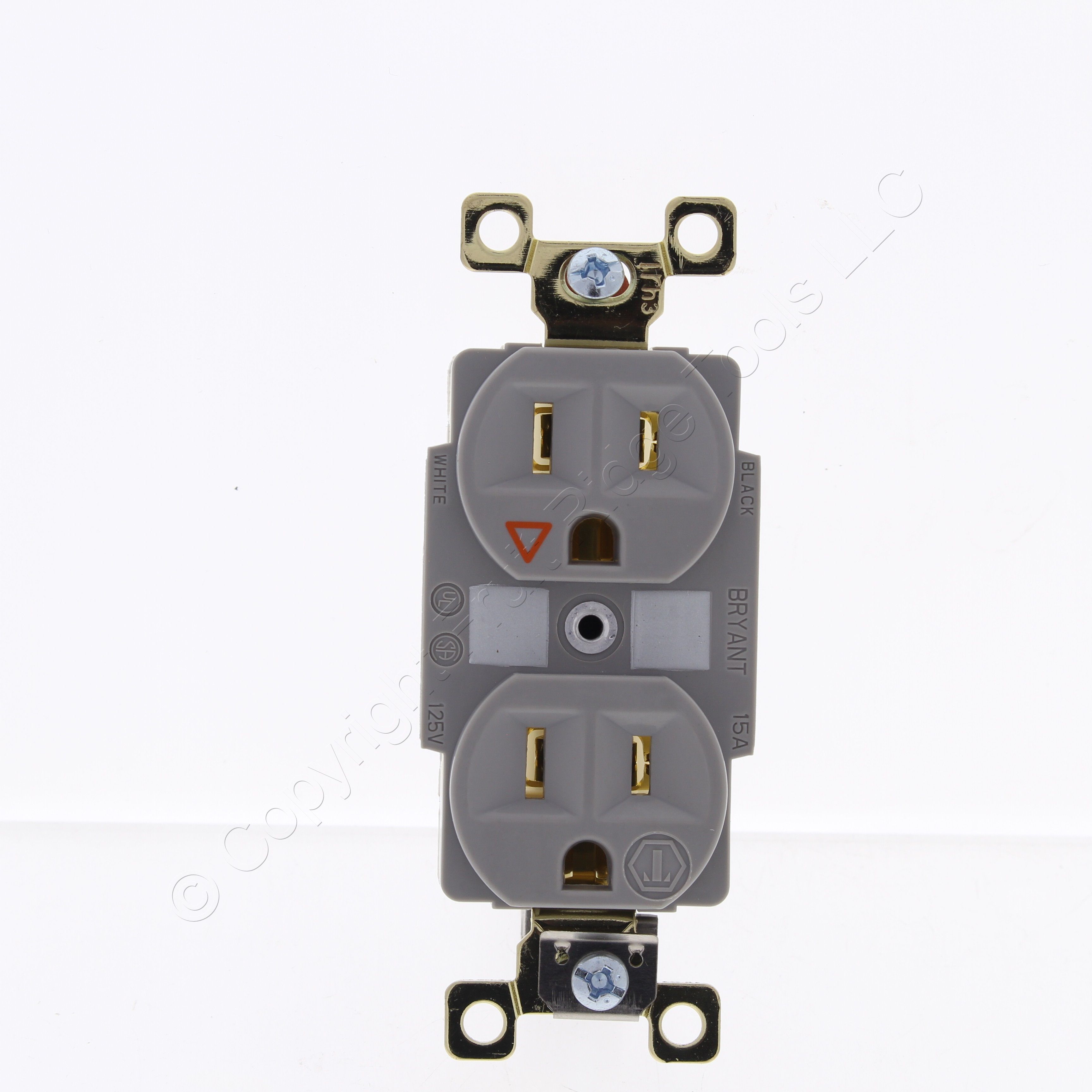

Bryant Gray Isolated Ground Industrial Receptacle Duplex Outlet 15A 5262IGGY

Bryant/Hubbell 5262IGGY gray straight blade receptacle (Bryant is a division of Hubbell). Tech-Spec Industrial Specification Grade, NEMA 5-15R, 2-pole, 3-wire, isolated ground, rated 15A 125V. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Grounding of this device requires that an isolated ground path be established from the receptacle grounding terminal to a suitable equipment grounding point "upstream" from the device. Each is individually packaged; packaging may differ from photo. Features include:

• Full-face, wraparound design is molded of high-impact, chemical-resistant nylon. Wraparound, full-face design will not come off under stress. Overlapping, thick walled nylon face and base construction is virtually unbreakable. Interior walls isolate and support contacts while overlapping design provides excellent arc and tracking resistance
• Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors
• Heavy-duty 0.050" steel yoke is wrapped around receptacle and locked in place for maximum mechanical strength and security
• Double-plated yoke (nickel & brass) for superior corrosion resistance
• Back wiring: eight wiring pockets for convenient feed thru wiring, clamp-type terminals accept up to #10 wire
• Terminal screws: brass combination Phillips/slotted/Robertson binding head accepts up to #10 wire
• Approved for CU wire only
• Large green, combination Phillips/slotted/Robertson hex head grounding screw
• Back wire ground clamp for quick and convenient wiring
• Center splined bushing interlocks with receptacle body to prevent rotation when fastening wall plates
• Easily accessible break-off tab for two-circuit wiring
• High-performance brass line contacts deliver excellent conductivity for low resistance, low heat rise. Triple-wipe design assures contact at three points on the plug blades. Superior spring properties and the rivetless, one-piece construction provide reliable, long-life blade retention
• Double-wipe brass grounding contacts
• Strip gauge for accurate wiring
• Washer-type, break-off plaster ears
• Thread cleaning captive mounting screws

This is New Old Stock and is returnable for any reason. (SKU # BRY5262IGGRY-EA; Weight: 0.2000 lbs.)
