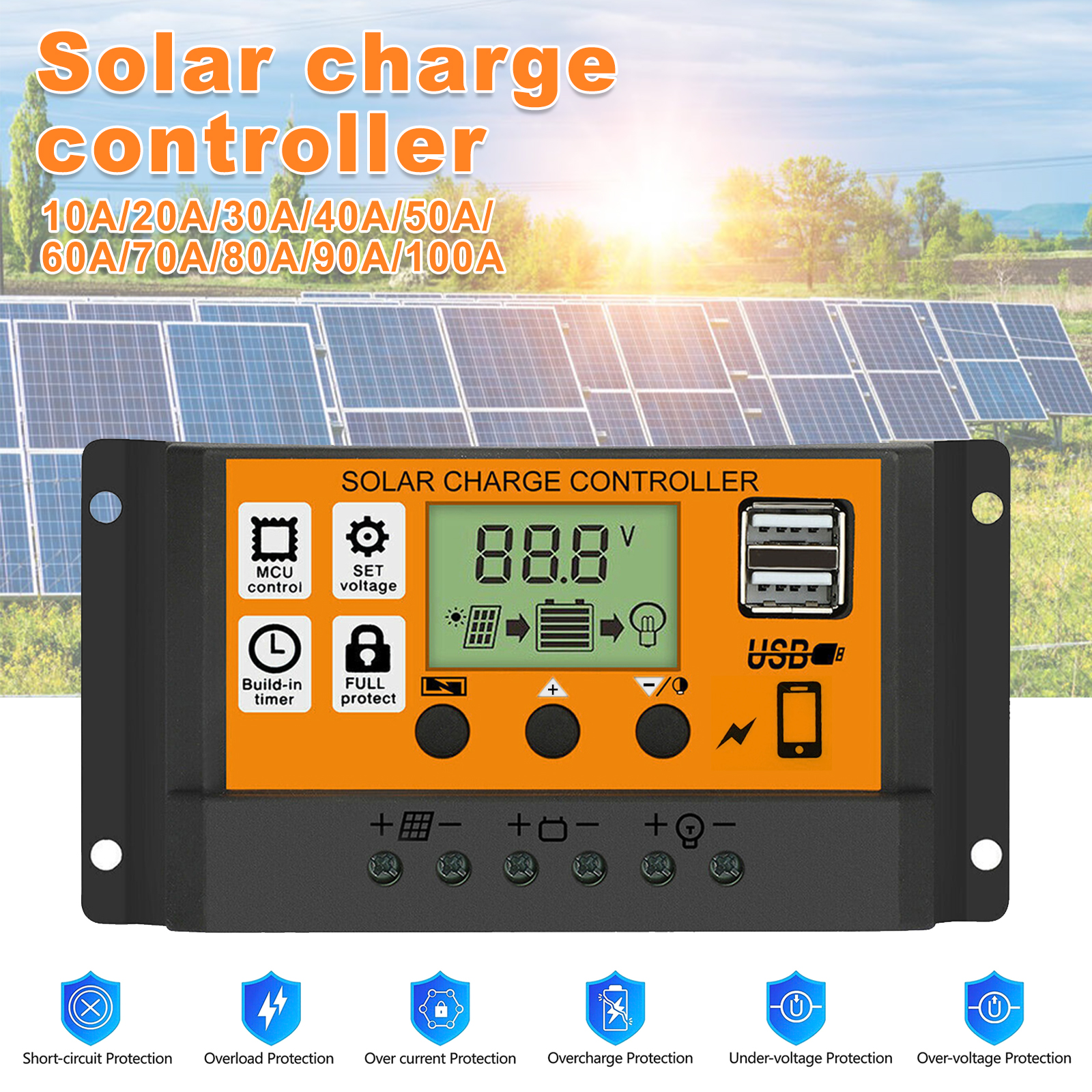

- Charge controller build-in industrial micro controller for automatical management, memorizing various parameters set by the user and the data won't be lost when the battery runs out. Compatible with 12V/24V system.

- The 12v solar charge controller is only suitable for lead-acid batteries: OPEN, AGM, GEL. Do not support any other batteries. Dual USB output, the maximum current of 2A, to support mobile phone charging.

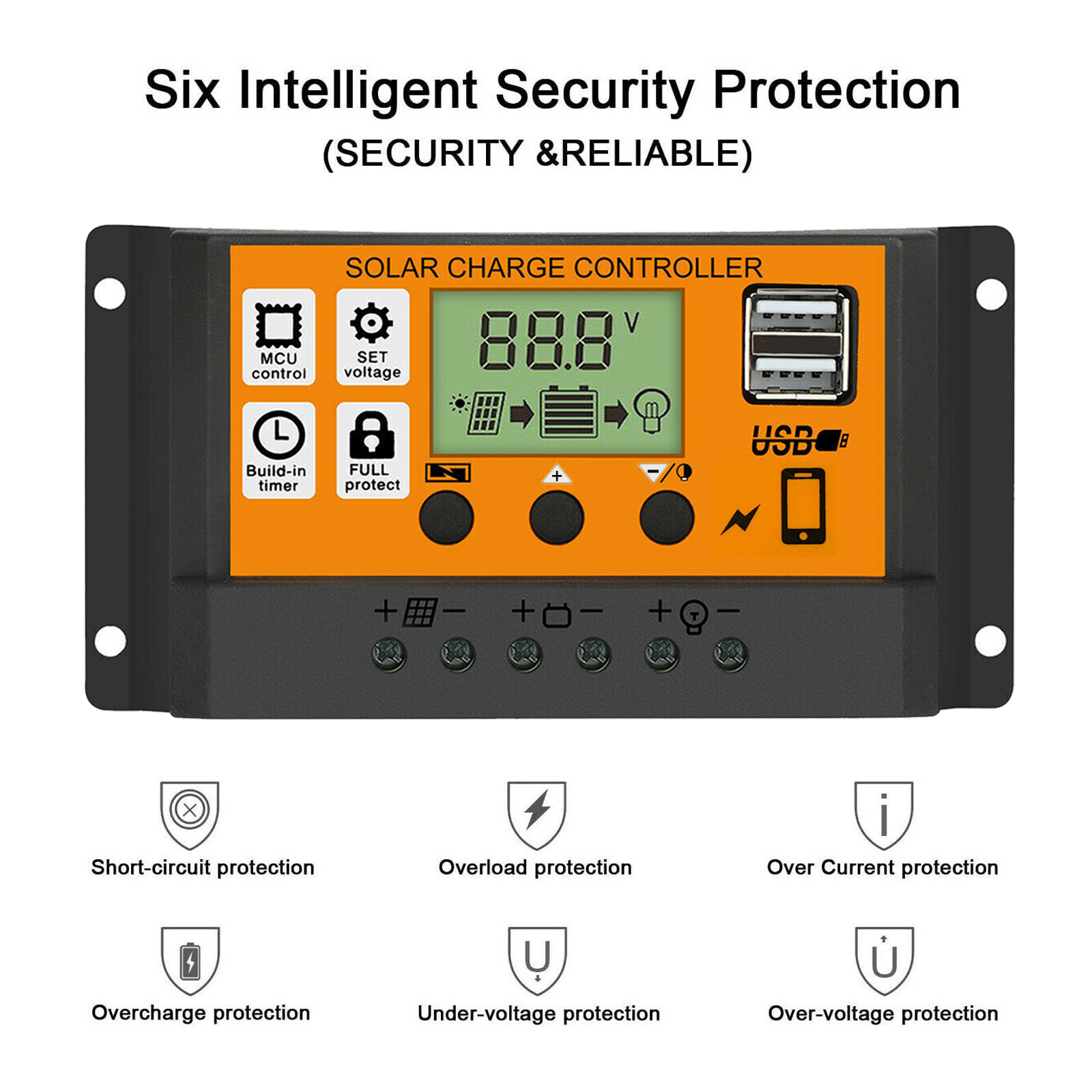

- Charge controllers for solar panels with Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection. 12v solar charge controller takes fully 3-stage PWM charge management, improve system efficiency and prolong the life span of the battery.

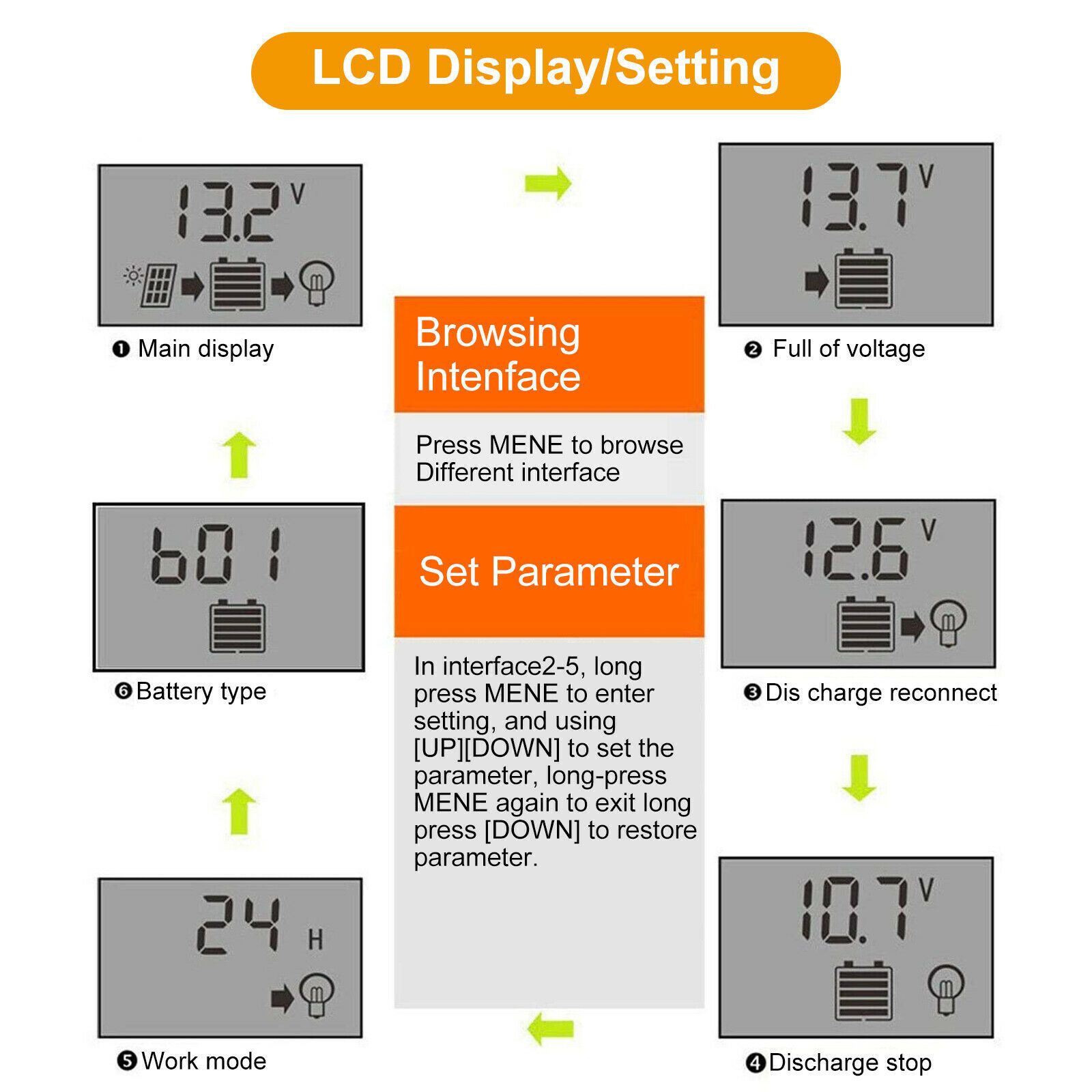

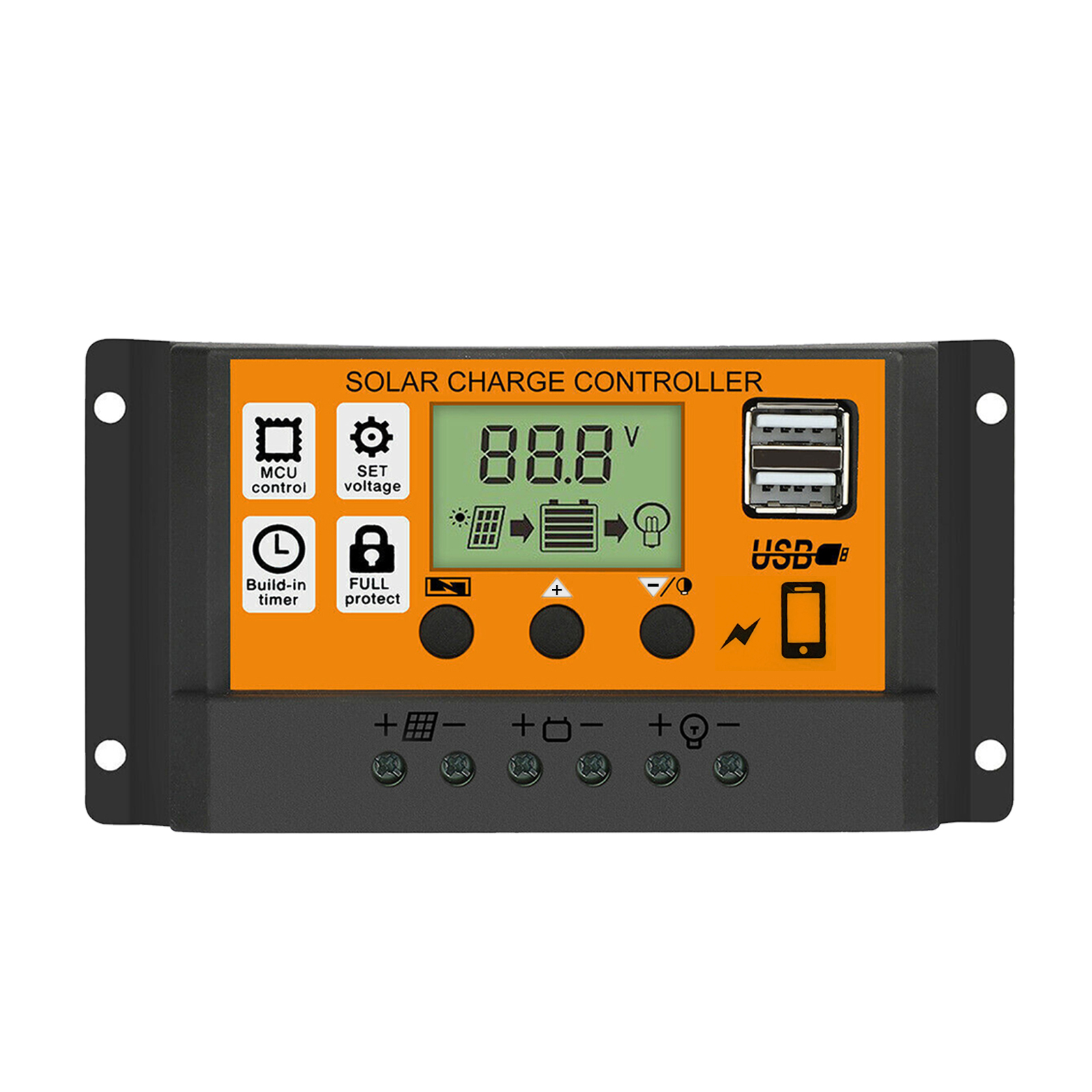

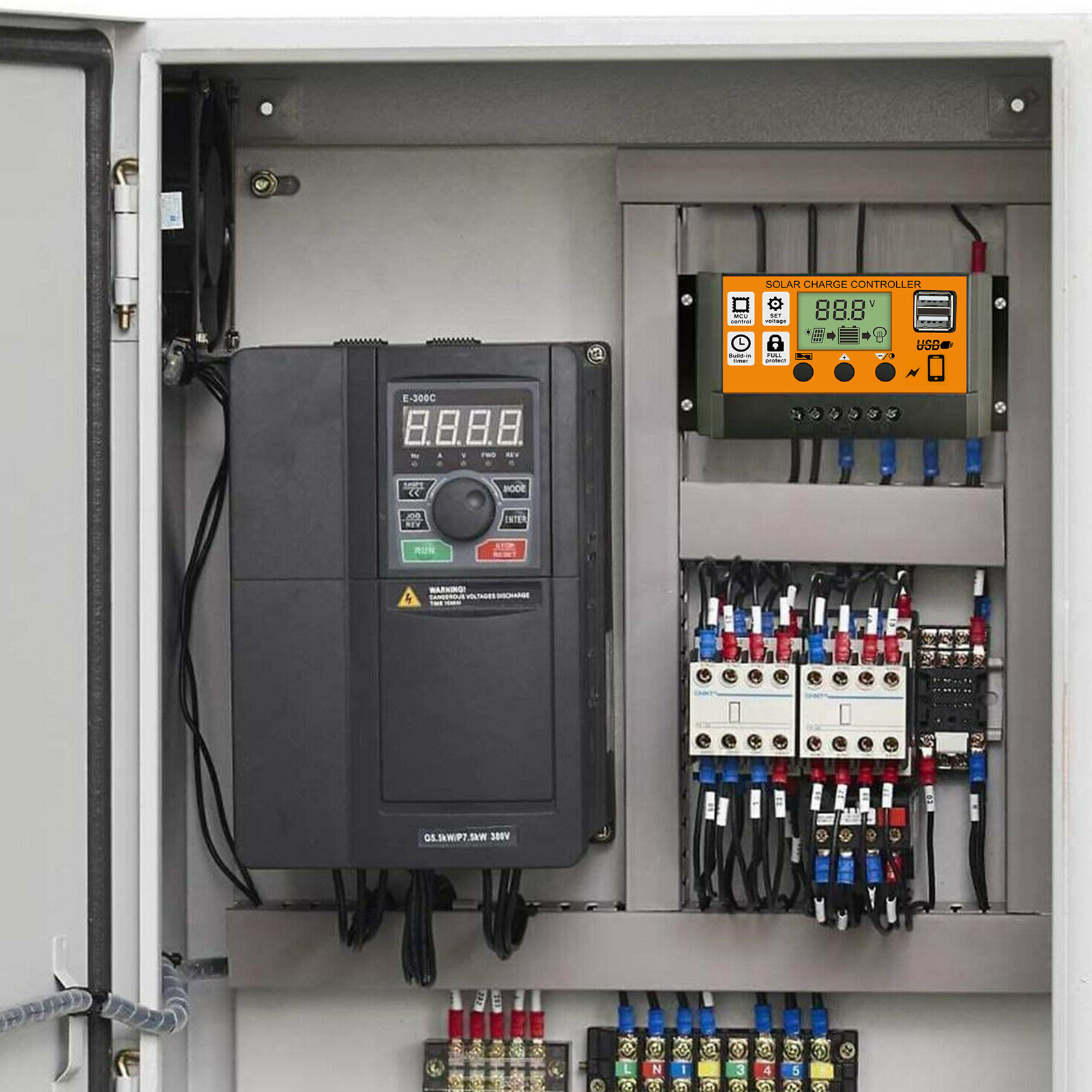

- Solar controller 12v with big LCD display, you can also switch modes and adjustable parameter, clearly indicate the status, suitable for home, industrial, commercial etc.

Safety Instruction:

1. make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2. The battery cable should be as short as possible to minimize loss.

3. The regulator is only suitable for lead acid batteries: OPEN, AGM,GEL. It is not suitable for nickle metal hydride, lithium ions or other batteries.

4. The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

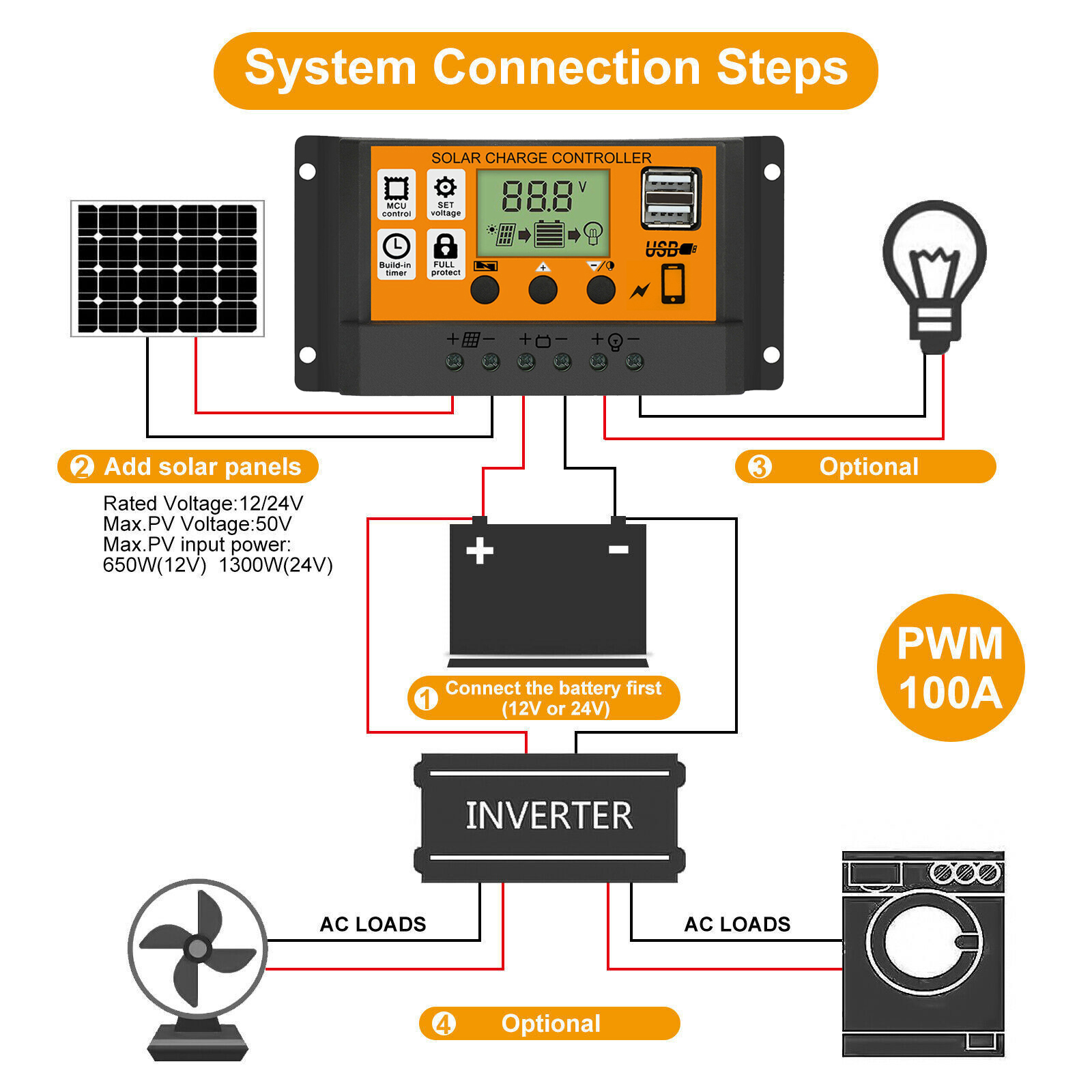

Connection of the System:

1. Connect the battery to the charge controller plus and minus. 1 will be displayed, in case of detecting 12 V battery, 2 in case of detecting 24 V battery.

2. Connect the photovoltaic module to the plus and minus regulator.

3. Connect to the consumer for the charge controller plus and minus.the reverse order applies when uninstalling!

An incorrect sequence order can damage the controller!

Specifications:

Battery voltage: 12V/24V

Charge current: 10A/20A/30A/40A/50A/60A/70A/80A/90A/100A(Optional)

Discharge current: 10A/20A

Max Solar input: <50V

Float Charge: 13.7V (defaul,adjustable)

Discharge Stop: 10.7V (defaul,adjustable)

Discharge Reconnect: 12.6V (defaul,adjustable)

USB output: 5V/1.2A

Operating temperature: -35~+60℃

Make sure the battery has sufficient voltage for the controller to recognize the battery before the first installation.

Package Include:

1 x Solar Charge Contorller

1 x User Manual
