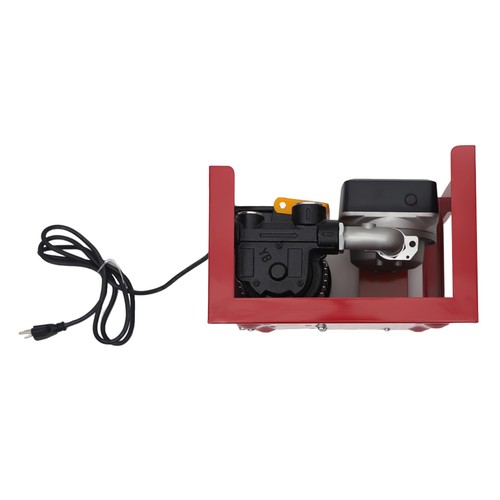

Electric Fuel Transfer Pump Self-priming Oil Diesel Pump 110V + Hoses & Nozzle
Description
Self-priming Diesel Pump
This diesel pump which can achieve automatic self-priming, high power, high efficiency, but also accurate measurement, so you no longer worry about refueling. This self-priming diesel pump has a wide range of applications and can be used for automotive repair shops, automotive recycling or agricultural purposes, refueling of machines, tractors or other vehicles, and cargo ships.The self-priming 110V diesel pump with hoses and nozzle for immediate use.
Key Features：
1.The motor power is 550 watts, which gives the pump a flow rate of max at a speed of 2800 rpm. 3600 l / h.
2.The diesel pump and fuel oil pump is suitable for pumping diesel oil, biodiesel and fuel oil from tanks or barrels. Use the diesel pump to refuel machines, tractors or other vehicles or to pump diesel fuels or oils.
3.The self-priming diesel pump or fuel oil pump is ideal for use in car workshops, car recycling or agriculture. It is compact, handy and powerful.
4.Do not use the diesel pump and fuel oil pump for pumping water, gasoline or flammable, volatile substances!
Detail：
Power (x/hp) / Speed (rpm): 2800 rpm
Length(hose): 2m/4m
Product Type: Pump Type Diesel Pump
Product weight: 18 KG
Power consumption: 550 W
Input Voltage: 110V~50Hz
Hose connection Ø / inch: 25 mm (1 inch)
max. Flow rate: 60 l/min
Head: 10-15 m
Pressure max.: 3 bar
Pump distance: ≈ 30M
Protection class: IP55
Protection class / Insulation class: IP X4
- 1x Dieselpume DP60L
- 1x Manual Filling Nozzle
- 1x Rubber Outlet Hose
- 1x Clear Suction Hose
- 1x Counter
- 1x Spouts and Connections
- 1x Housing
Notes:
The user must absolutely observe the accident-prevention measures in force, and must read the manual before operating the pump.
- Never shift the motor pump during operation for any reason whatsoever.
- Before using the motor pump, always make sure that the power supply cable and all the other devices are in perfect working condition.
- Before starting the motor pump, make sure that you are not barefoot, that your hands are not wet, and that you are not even partially standing in water.
- The motor pumps are constructed in such a way that all the moving parts are protected by casings. Never remove any of these casings when the motor pump is running for any reason whatsoever.
- It is very important to keep the motor pumps' power socket protected from sprays of water, rain and atmospheric agents in general and all the other liquids.
- Not for use with gasoline or alcohol, fluids for human consumption or fluids containing water.
- Do not dispense fluid that is thicker than diesel fuel. The motor may overheat.
- Not for use in hazardous locations.
- Do not smoke near the pump or use the pump near an open flame.
- Do not use this product for fluid transfer into aircraft.
- Remember that excessively low temperature (-30℃) can freeze the diesel oil inside the pump and that this can cause serious damage to all parts of the motor pump. Excessively high temperature (40℃in the shade) can cause the sagging or dilatation of the unit’s plastic parts. We recommend fastening the unit in a well-ventilated area protected from direct sunlight.
- Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
