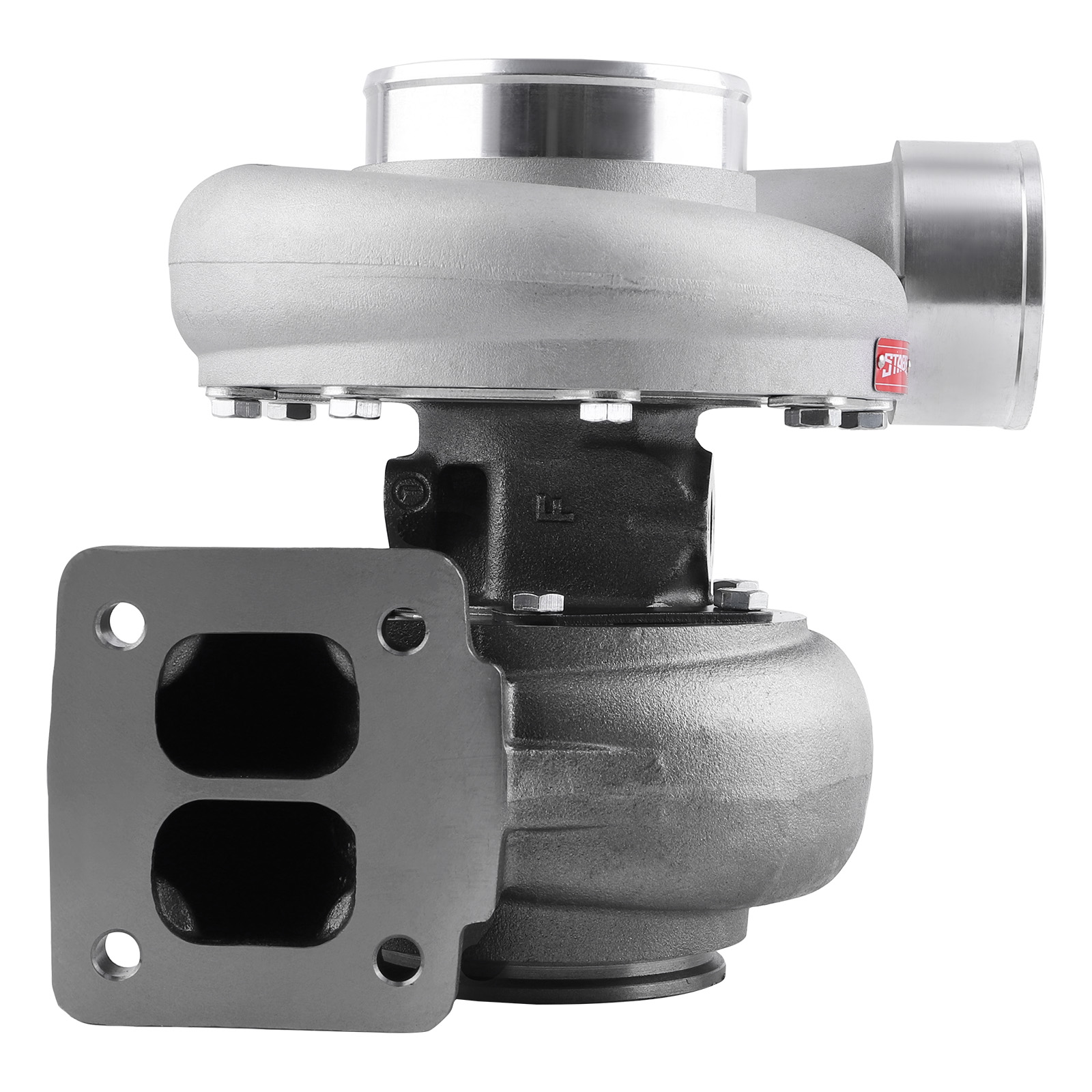

Billet GT45 T4 Turbo 600+HP for 4.0L-6.0L Engines V-Band Turbine A/R 1.05

Billet GT45 T4 Turbo 600+HP for 4.0L-6.0L Engines V-Band Turbine A/R 1.05Billet GT45 T4 Turbo 600+HP for 4.0L-6.0L Engines V-Band Turbine A/R 1.05Billet GT45 T4 Turbo 600+HP for 4.0L-6.0L Engines V-Band Turbine A/R 1.05Billet GT45 T4 Turbo 600+HP for 4.0L-6.0L Engines V-Band Turbine A/R 1.05Billet GT45 T4 Turbo 600+HP for 4.0L-6.0L Engines V-Band Turbine A/R 1.05
DESCRIPTION



Application:

This turbo is a universal application turbo, some modification may be required based on individual vehicle.

Perfect for all 4.0L-6.0L engine



Specification:

Exhaust Inlet (Turbo Manifold) Flange: T4 Flange

Exhaust Outlet Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band

Compressor Trim: 49.6

Compressor Inducer Diameter: 69 mm

Compressor Exducer Diameter: 98 mm

Compressor Air Inlet Size: 107mm

Compressor Air outlet Size: 86.3mm

Compressor A/R: 0.66

Turbine Trim: 77.6

Turbine Inducer Diameter: 88 mm

Turbine Exducer Diameter: 77.5 mm

Turbine A/R: 1.05

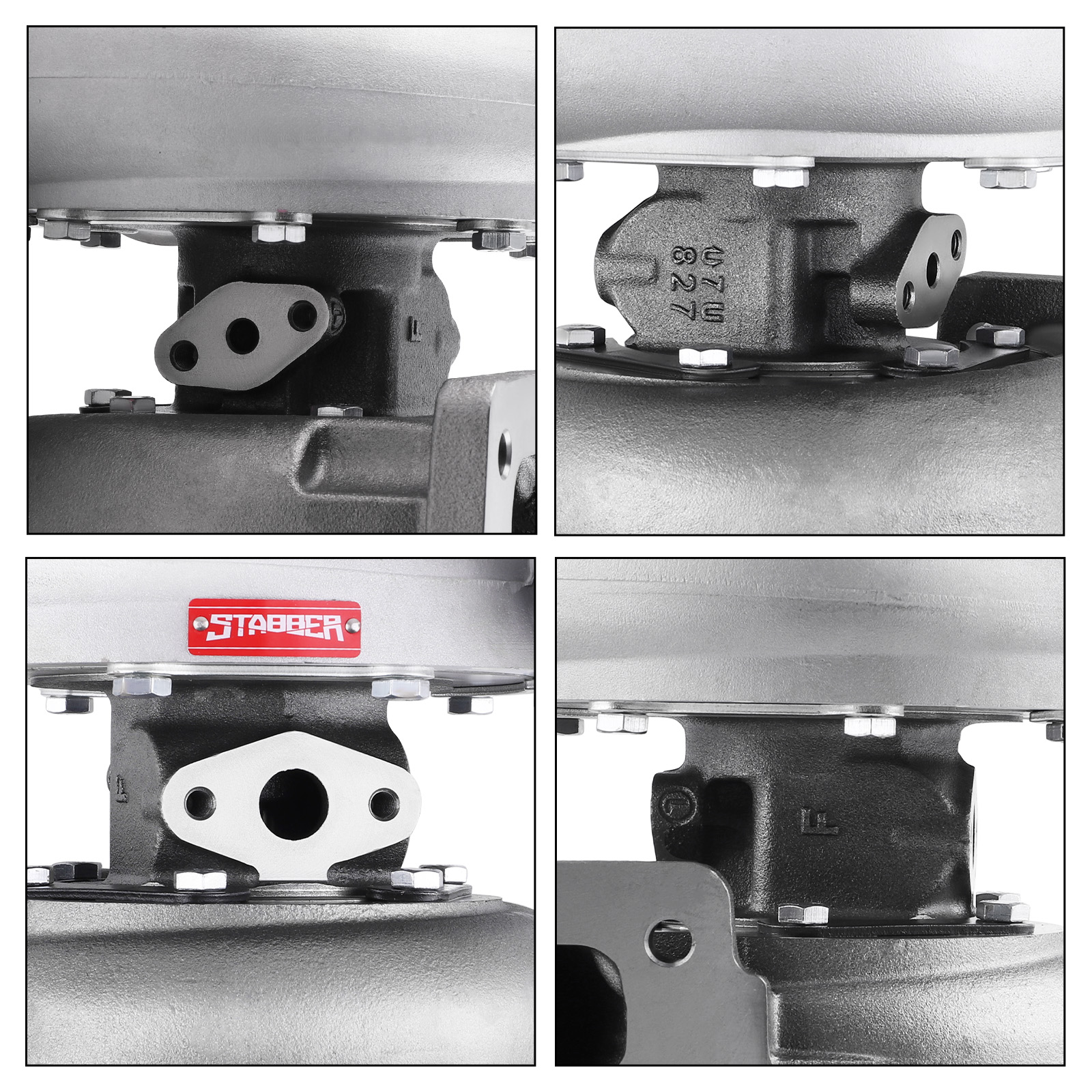

Oil Inlet: M9 & 2*M8*1.25

Oil Outlet: M19 & 2*M8*1.25

Bearing Type: Floating Bearing

Cooling Type: Oil Cooled

Wastegate：Without Wastegate

Hosepower: Up to 600+HP

Condition: Brand New

Package Size: 29.8*25.9*32.2 CM

Package Weight: 16850g

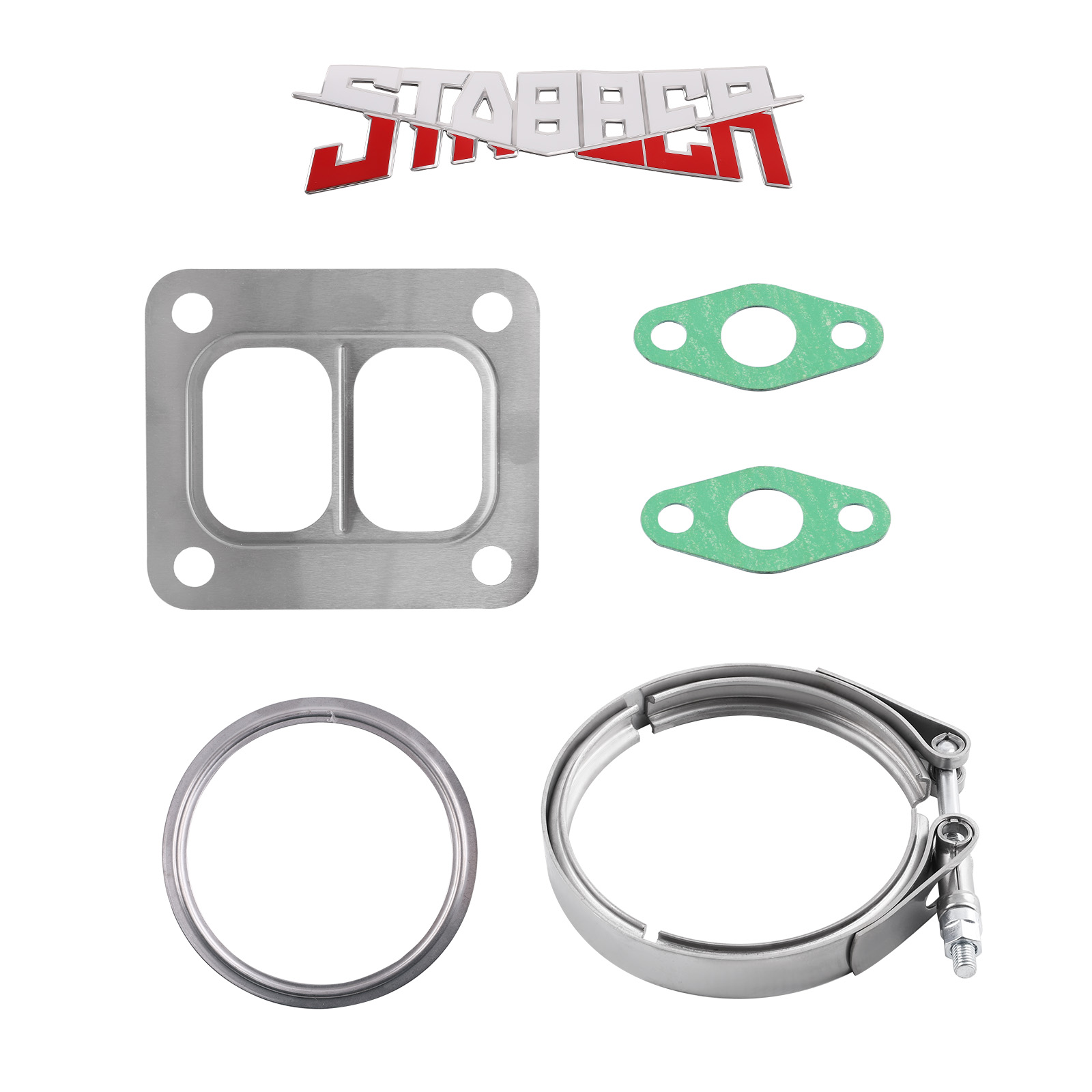

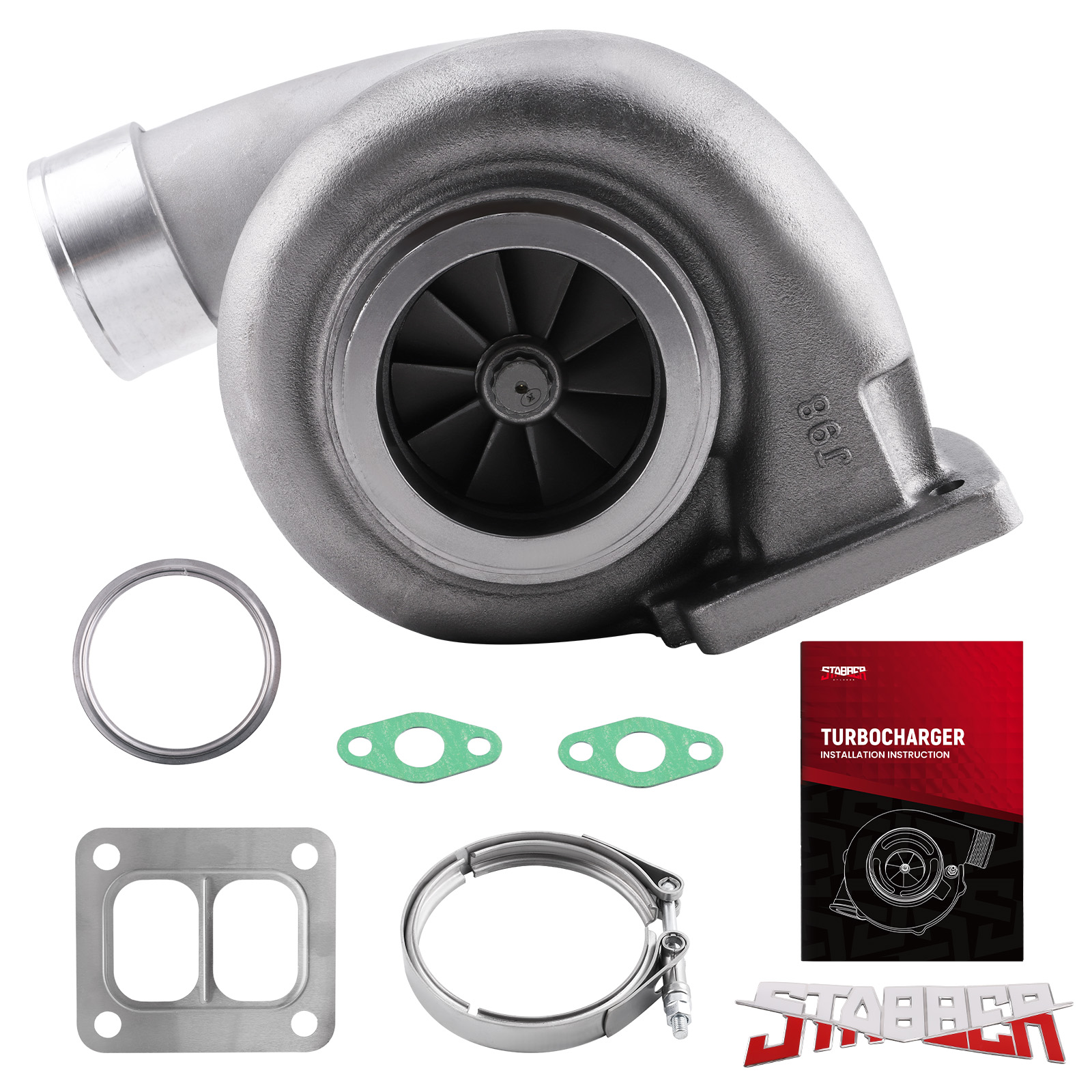

Package included:

1x Turbocharger

2x Oil Gaskets

2x Flange Gaskets

1x Manual

1x Sticker



Feature:

1. Silicon-Molybdenum Turbine Housing

Engineered for high-temperature resistance up to 850℃, highly stable and ductile, resistant to corrosion and cracking, enhancing both durability and reliability.

2. K419 Alloy Turbine Wheel

Capable of withstanding high-temperatures up to 1000℃, efficiently converting engine exhaust gases into kinetic energy while resisting thermal breakdown for smooth and reliable operation.

3. Flank Milled Billet Compressor Wheels

Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.



Note:

* Replace, repair or reconnect air cleaner element for manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
