1. Multi-interface dual-port design: Features Type-C male/female connectors supporting bidirectional charging with plug-and-play functionality.
2. 360° gravity sensor: 1.54-inch HD LCD display with gravity sensor enabling automatic four-way rotation.

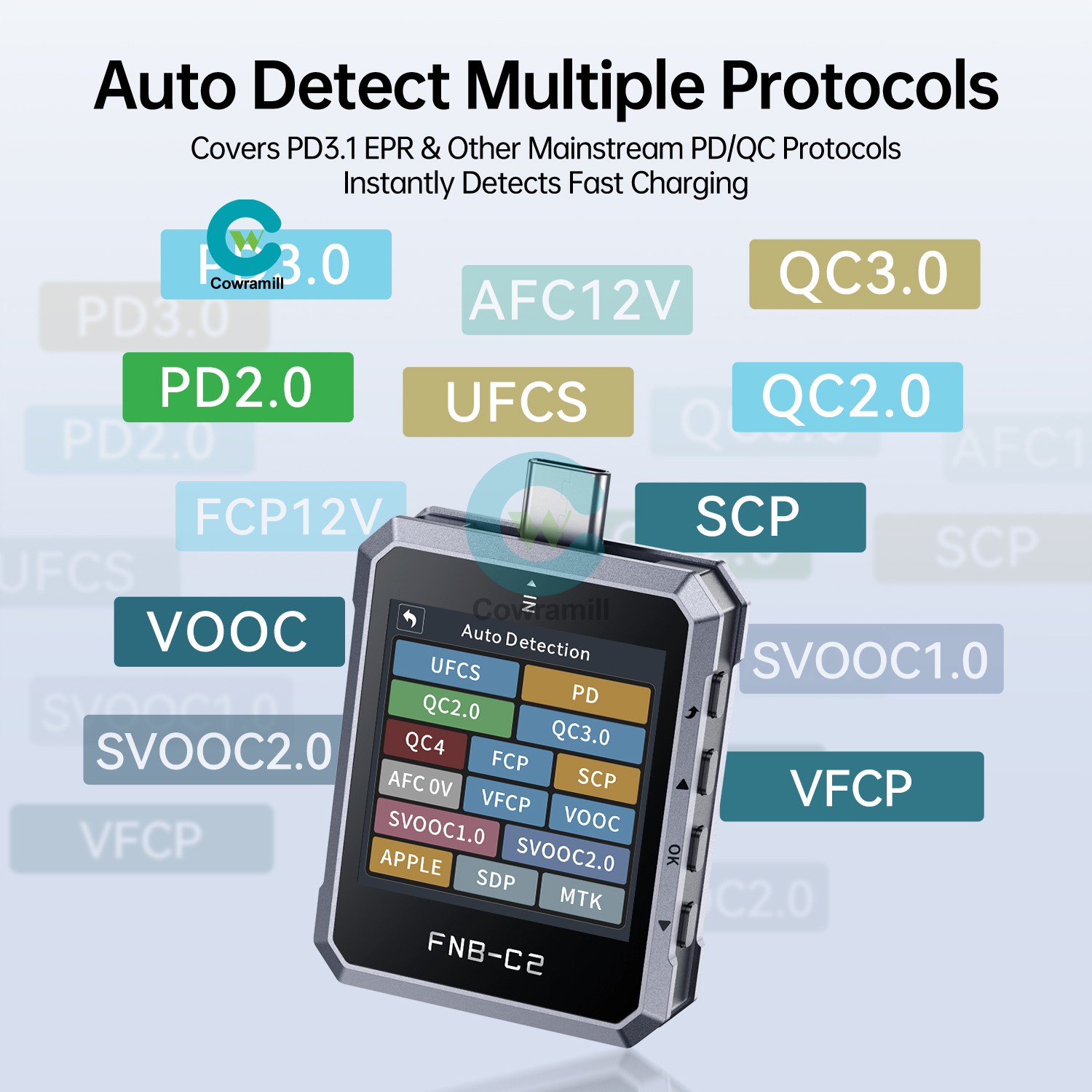

3. Automatic Protocol Detection: Supports PD3.1, EPR, and other mainstream PD/QC protocols for instant fast charging detection.

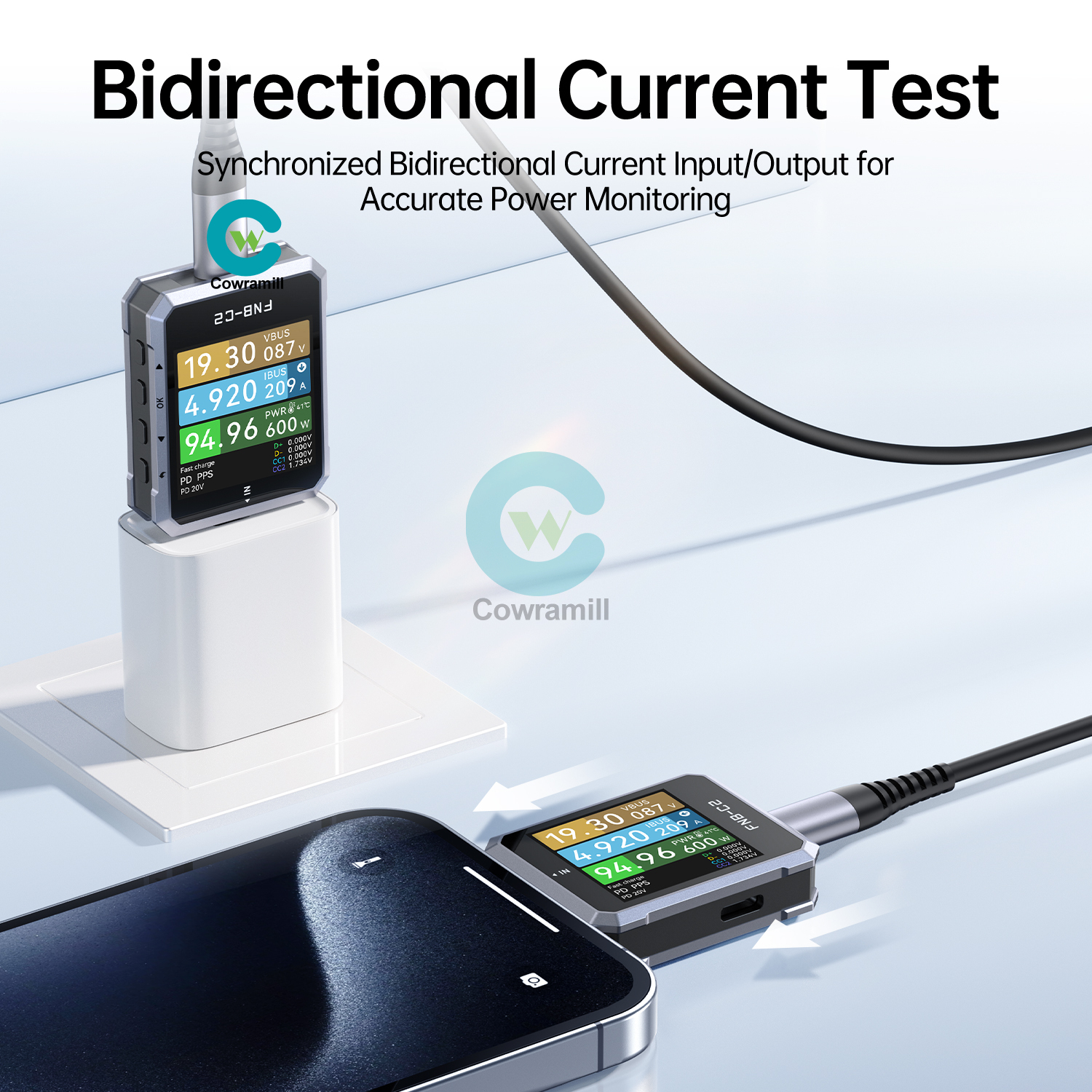

4. Real-Time Power Monitoring with Bidirectional Charging: 6.5A high-current direct-through power detection, supporting bidirectional input/output without polarity reversal.
4. Automatically detectable protocols include: UFCS/PD2.0, PD3.0/QC2.0/QC3.0/QC4, QC5/FCP/SCP/AFC/VFCP/VOOC/SVOOC2.0/APPLE/BC12/MTK.

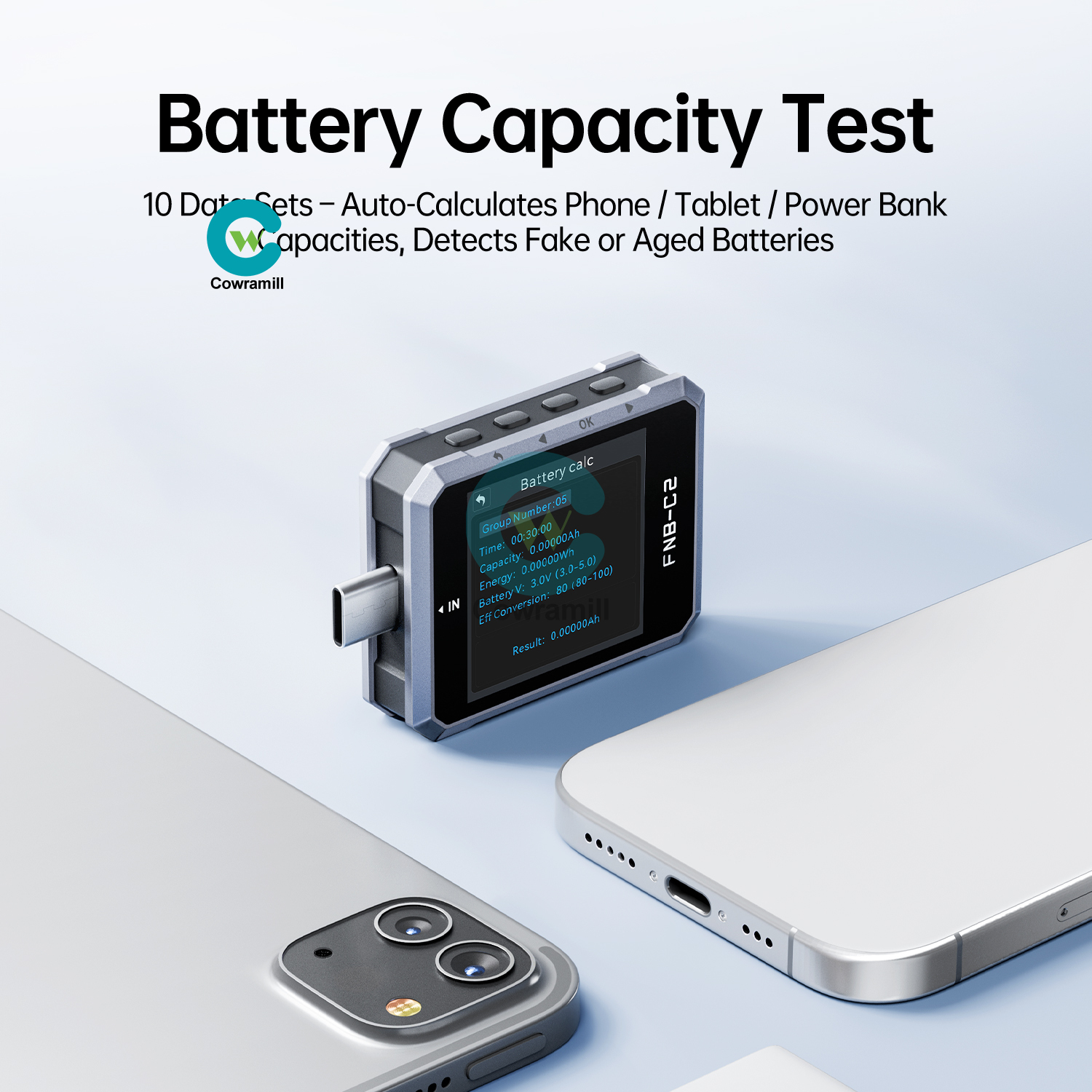

5. Precise battery capacity detection with multi-group data logging: Records 10 sets of data, automatically calculates capacity for phones/tablets/power banks. Detects counterfeit or degraded batteries.
6. Wide applications: Charger aging testing, data cable charging testing, power bank charging testing, laptop charging testing.
Specifications:
Model: FNIRSI FNB-C2
Display: 1.54-inch TFT-LCD screen
ADC: 20-bit
Input Monitoring Port: Type-C, 24-pin
Output Monitoring Port (Male): Type-C, 24-pin female socket
PC Interface Port: Type-C, 24-pin female socket
Monitoring Voltage: Range 4~50V, Resolution 0.000001V, Accuracy: ±(0.2‰+2)
Monitoring Current: Range 0~6.5A, Resolution 0.000001A, Accuracy: ±(0.2‰+2)
Monitoring Power: Range 0~240W, Resolution 0.000001W, Accuracy: ±(0.2‰+2)
D+/D- Voltage: 0~3.3V, Resolution 0.001V, Accuracy: ±1 (0.1%+2)
CC1/CC2 Voltage: 0~3.3V, Resolution 0.001V, Accuracy: ±1 (0.1%+2)
Device Temperature: Celsius range ℃, Resolution 1℃, Accuracy: ±(1.2%+3)
Capacity: 0~9999.99Ah, Resolution 0.00001Ah, Accuracy: /
Energy Consumption: 0~9999.99Wh, Resolution 0.00001Wh, Accuracy: /
Recording Time: 9 hours 0 minutes 0 seconds, Resolution 1 second, Accuracy: /
USB Tester*1
Manual*1
Color Box*1
