Features：
Working With All Kinds Of Lights And Ceiling Fan LED
It Can Be Stuck Onto Anywhere. It Is A Learning Code Transmitter EV1527 IC Chip. It Can Be Learned Into Most Of The Learning Code Receiver.
Specifications:

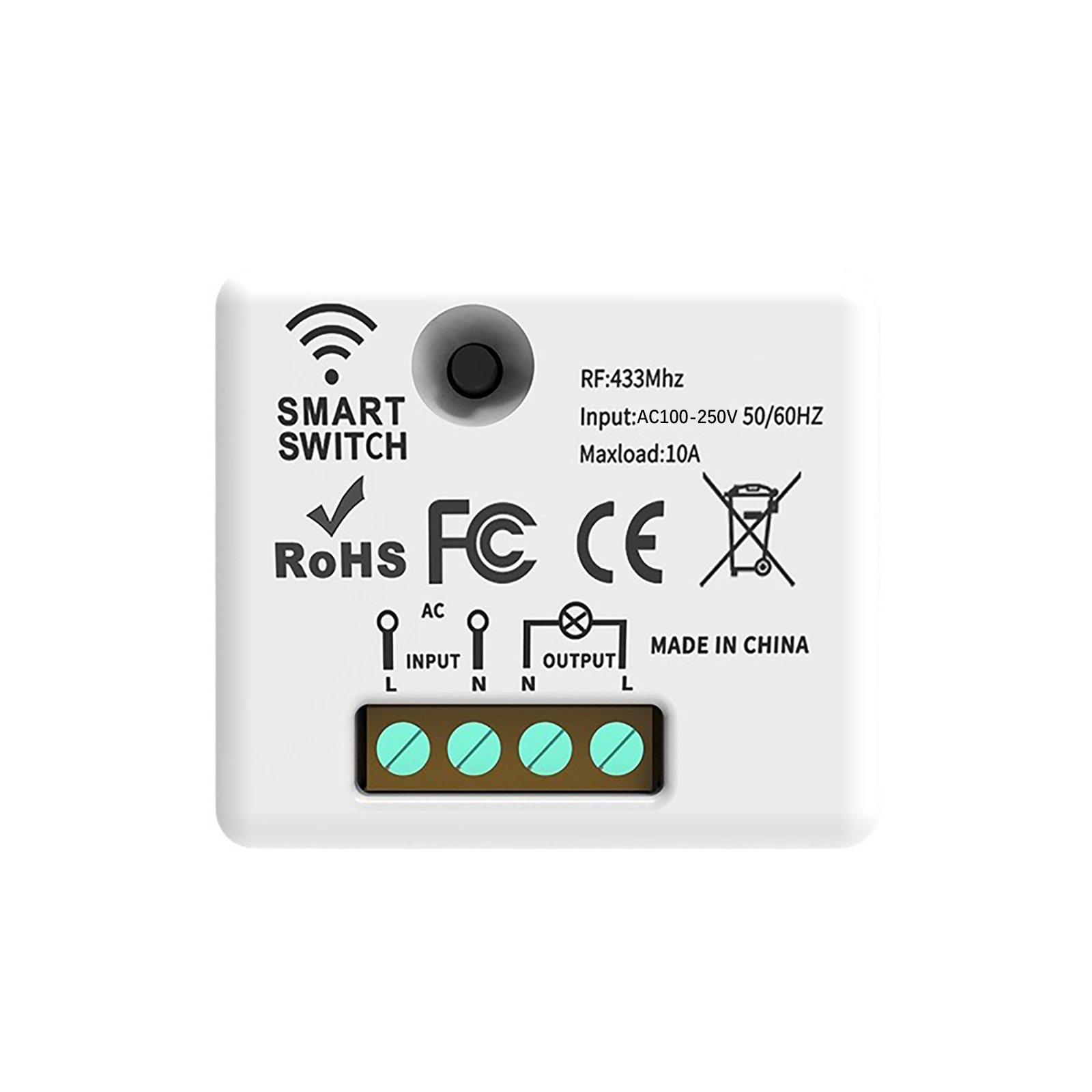

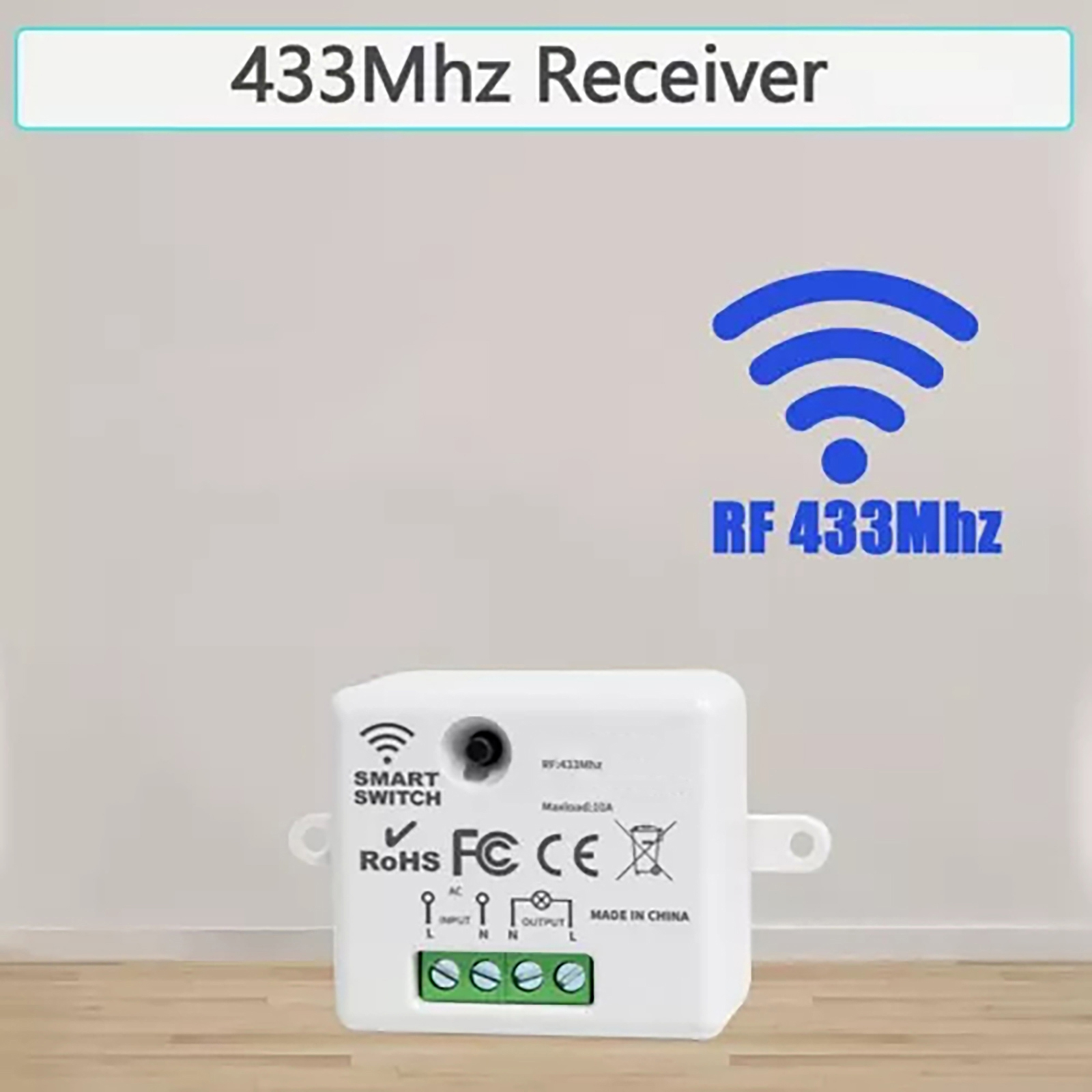

1.Controller (Receiver):
Working Voltage: AC100-250V 60hz/50hz
Working Frequency: 433mhz
Power Consumption In Standby Mode: <0.3W
Load Power: <1100W
Receiving Sensitivity: -108dbm
Working Way: Wireless Control
Coding Way: Learning Code
Working Temperature: -10*C~+70"C

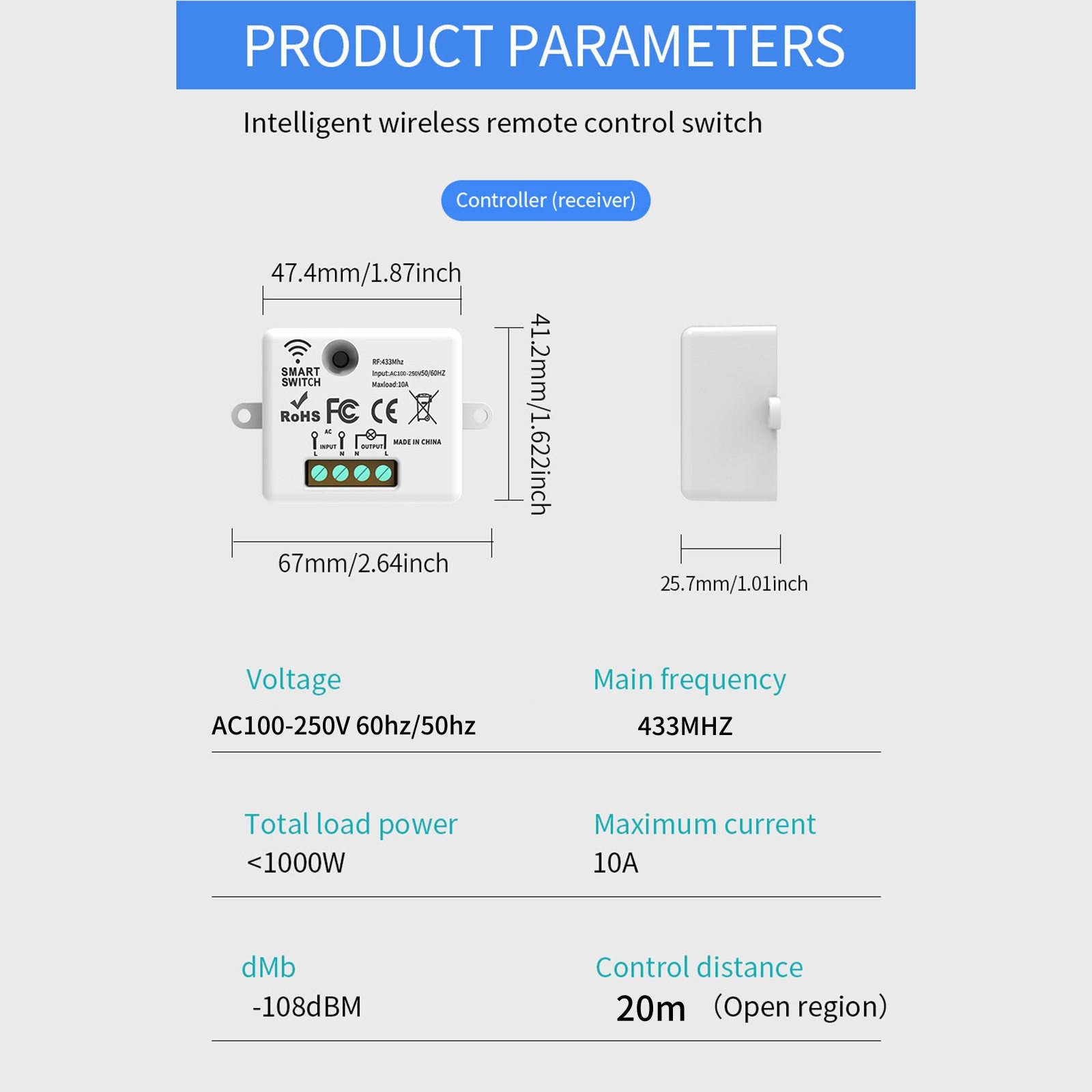

Size: 47.4*42*22.8 (mm）

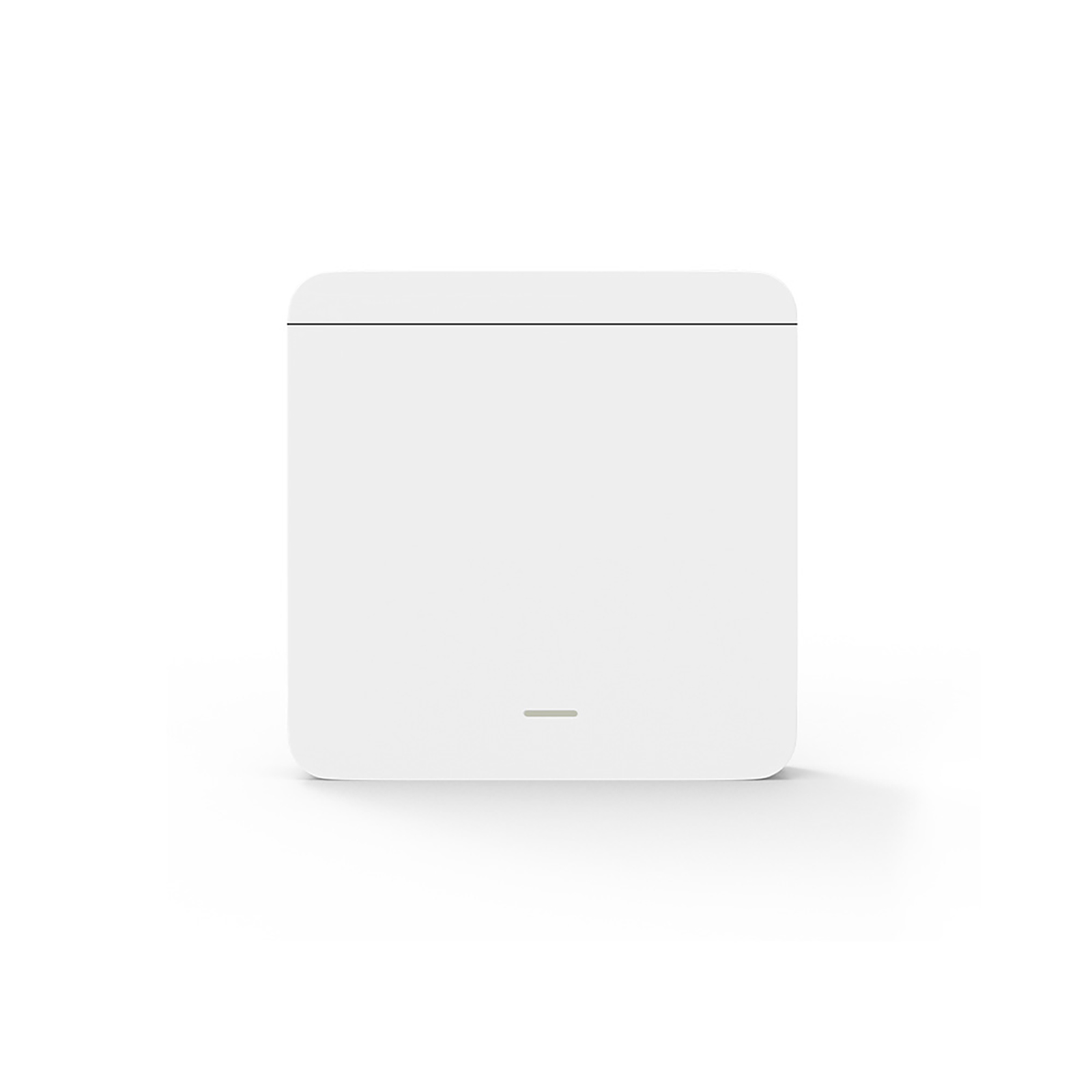

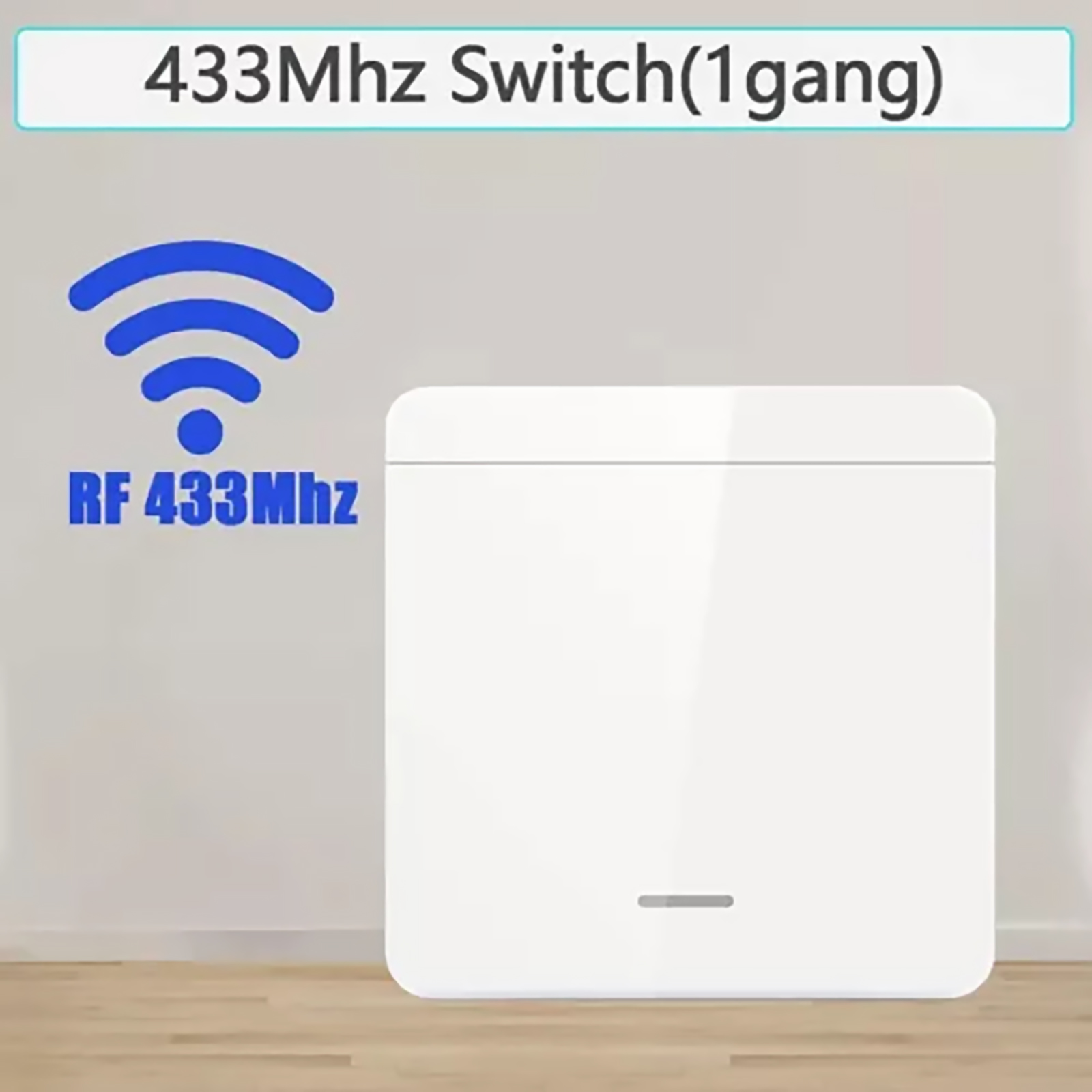

2.Wireless Wall Switch:
Working Voltage: DC12V
Working Frequency: 433mhz
Power Consumption In Standby Mode: <1uA
Transmitter Power: <10mW
Working Way: Wireless Control
Coding Way: EV1527 Learning Code
Working Temperature: -10"C~+70*C
Size: 86*86*15mm

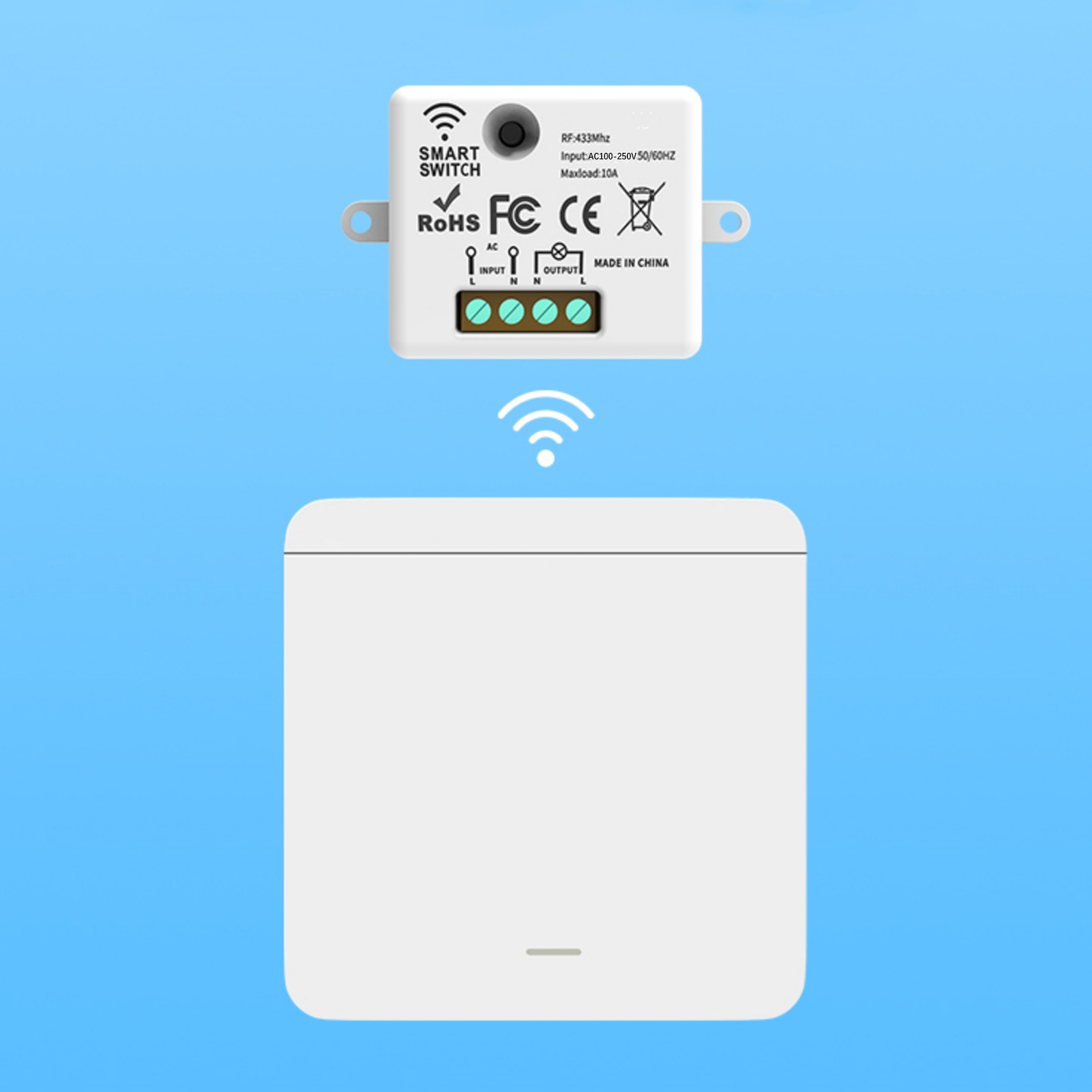

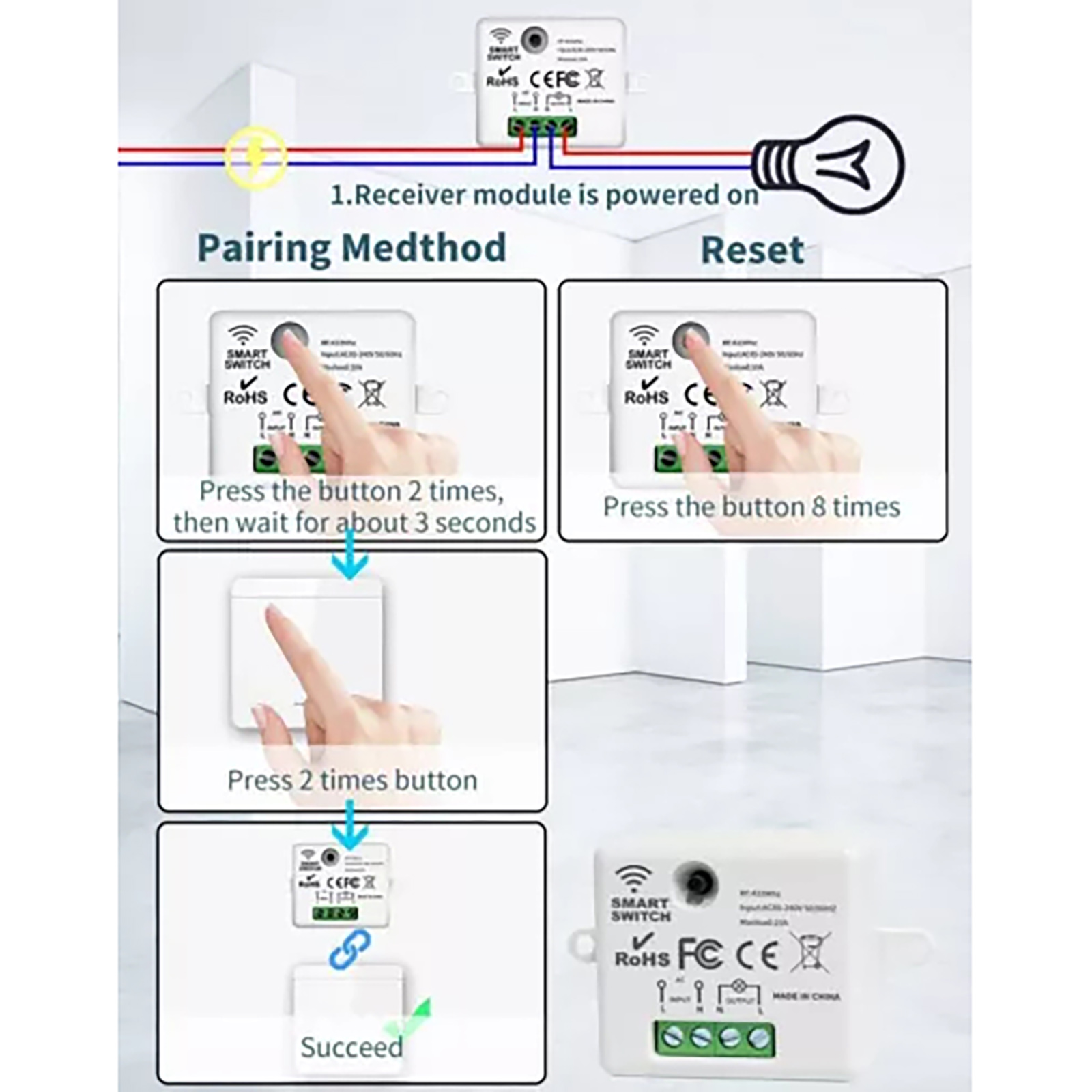

Pairing Method
Press The Button Above The Controller For 3 Seconds, The Light Blinks 5 Times, Then Press The Stickers Switch Once To Pair Successfully Reset Signal
Press The Controller Button For 10 Seconds, The Indicator Flashes 10 Times To Clear The Signal

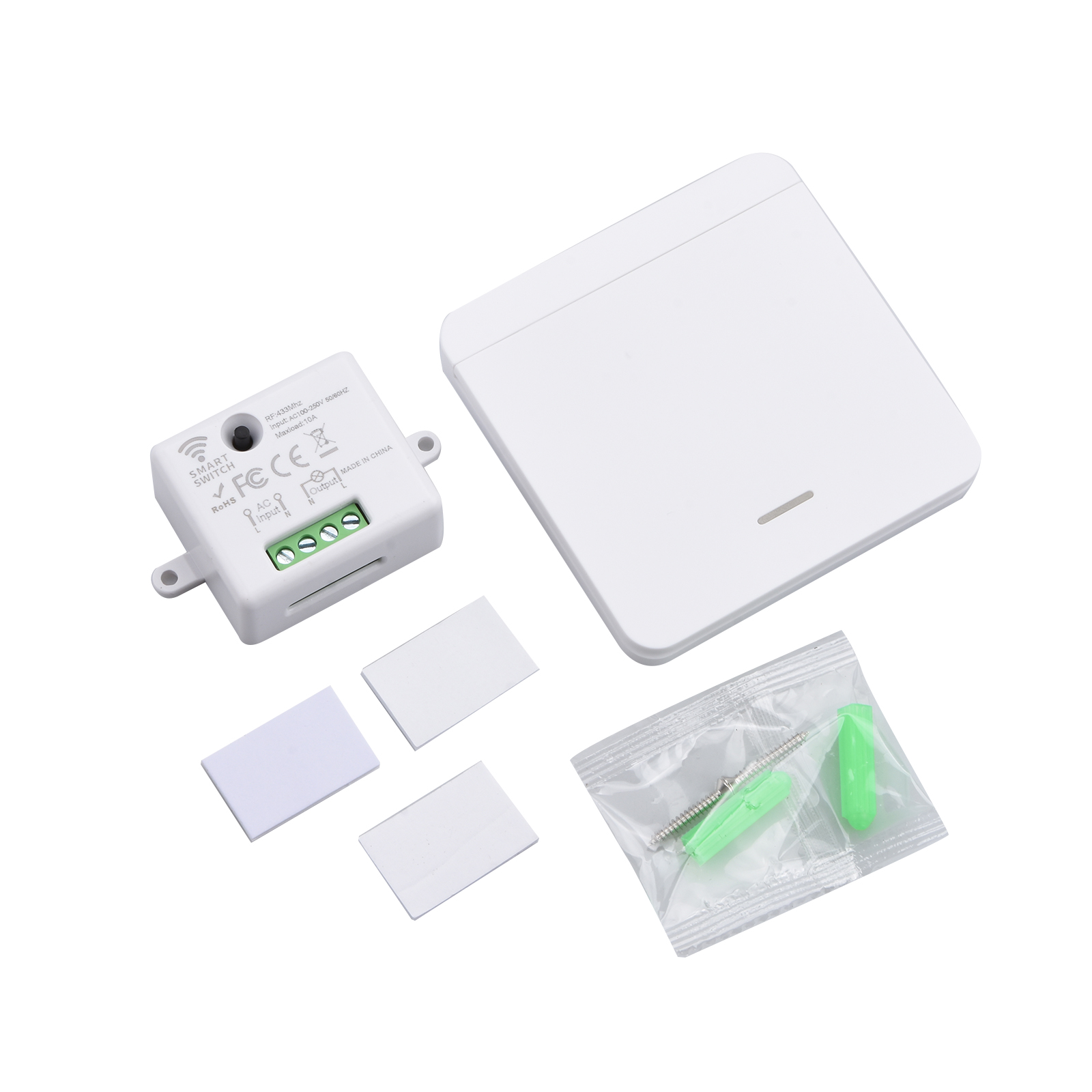

Package Included:
1pcs Switch
1pcs Receiver
