Pls check the item pictures and size to get the suitable items.
-------------------------------------------------------------------------------------------------------------------------------------------------------
Radiator Size
Row: 4 Row Core
2x 9" Fans(Includes mounting kits)
1x 12" Fan(Includes mounting kits)
1 X Thermostat Relay Kit
Specification:
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Dimensions: 28- 1/2" High x 24" Wide x 2 1/2"
Overall Dimensions: 34-1/2" High x 31" Wide
Upper Inlet: 1.97" located on the Driver side.
Lower Outlet: 1.97" located on the Passenger side.
Vehicle Fitment
For 2004-2006 Dodge Ram 1500 8.3L V10 ONLY
12" Fan
Fan Diameter: 12"
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
9'' Fan:
Maximum Fan CFM: 1730 cfm
Fan Diameter: 9"
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

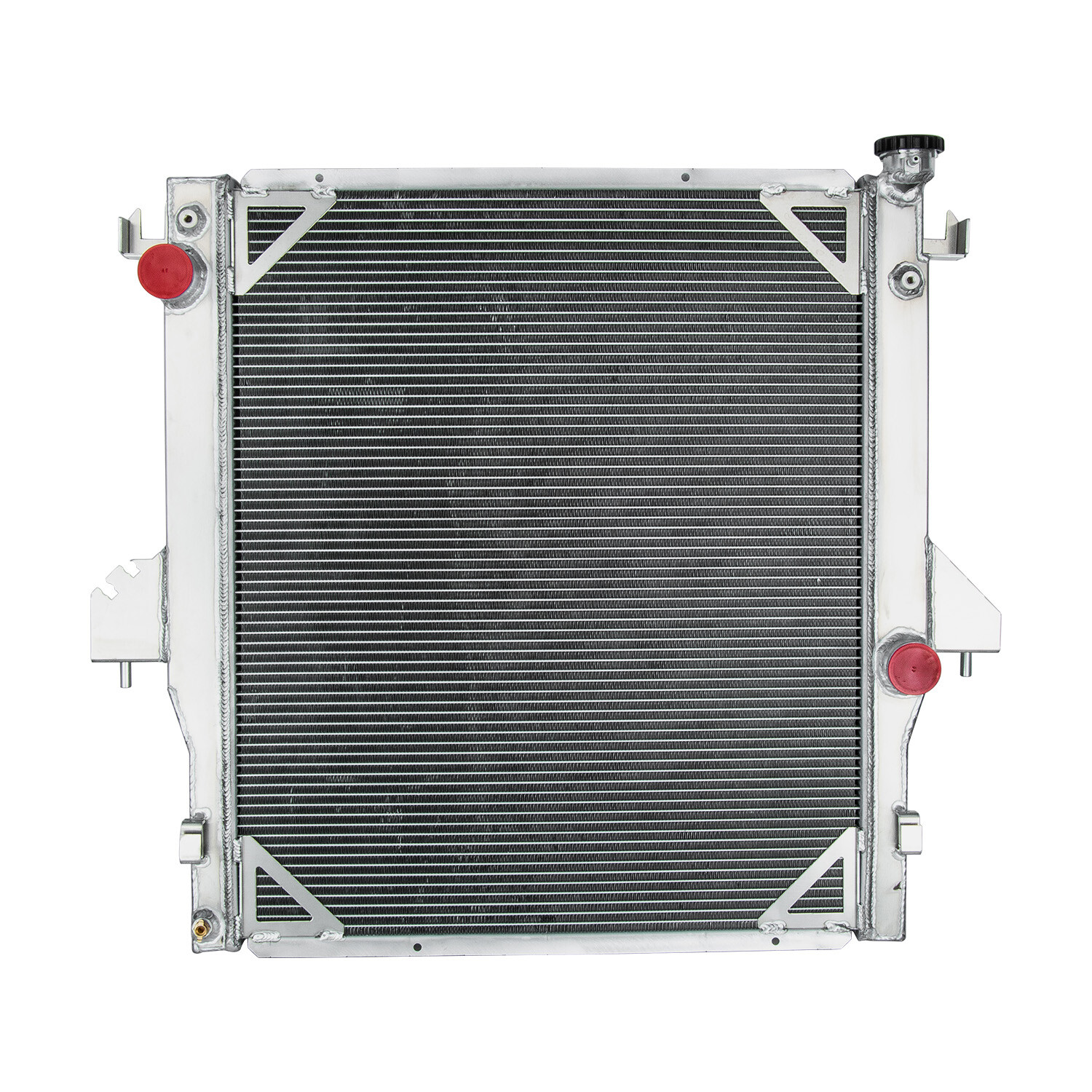

AA5052 Aluminum Guard Plate：
The guard plate is composed of AA5052 aluminum, which has enough strength and toughness.
The triangular design does not affect the heat dissipation effect, but also has good stability, preventing the radiator from damage and leakage due to collision, and prolonging the service life of the radiator.
DESCRIPTION:
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
--------------------------------------------------------------------------------------------------------------------------------------------------------
