Name: Slotting Bracket for Trimming Machine

Material: Aluminum alloy + plastic handle

Application: Support fixed diameter 65mm trimmer

Net weight: 2kg

Package Included:

Slotting Bracket*1

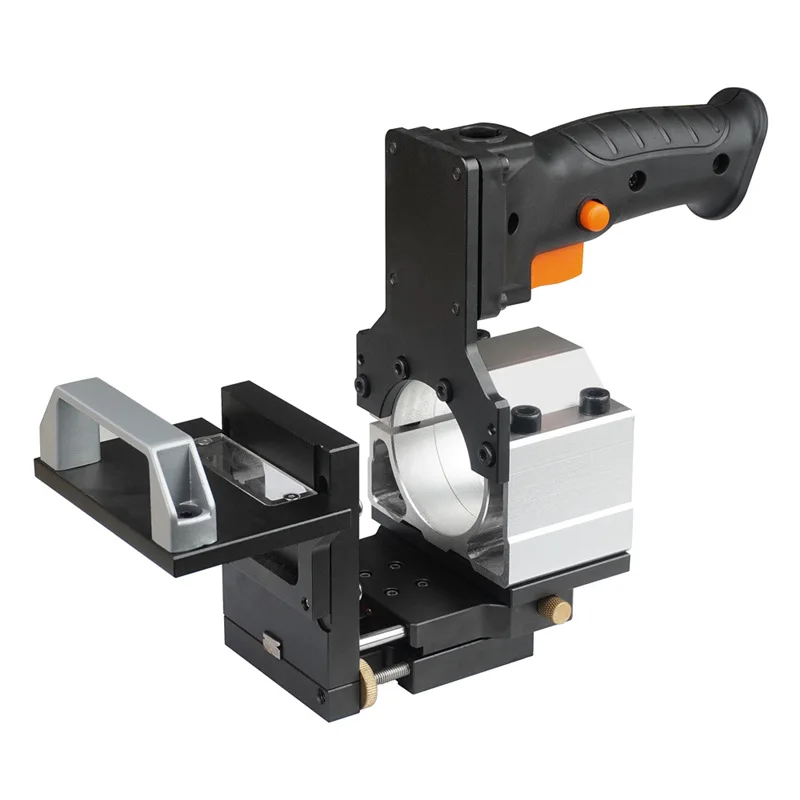

This trimming machine side milling machine is made of aluminum alloy processed by CNC CNC machine tools, and the black parts are all CNC processed, with 6061 aluminum alloy. Surface anodized black, net weight of 1.98kg (excluding trimming machine)

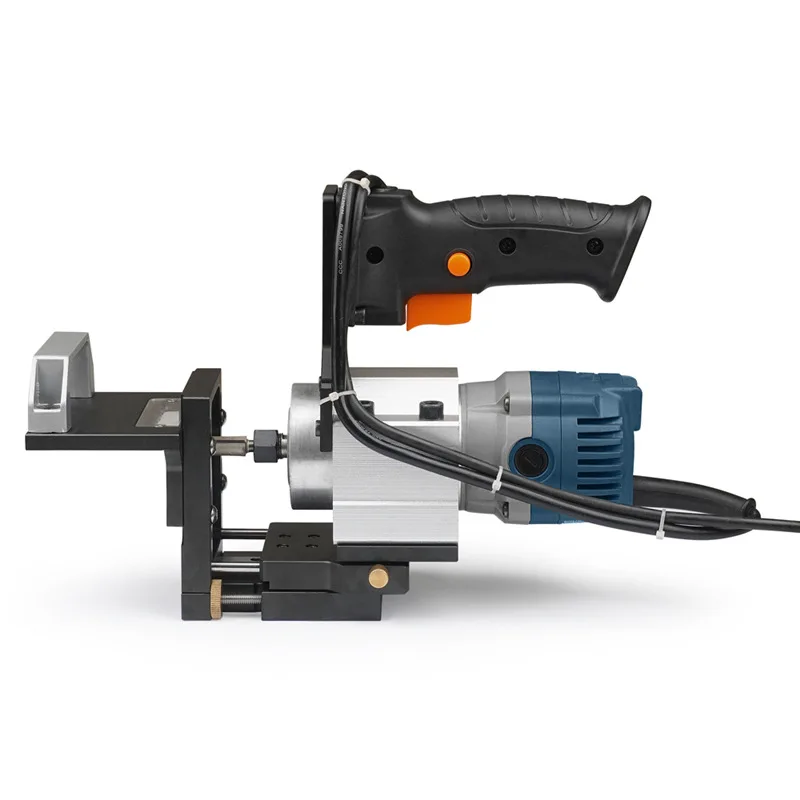

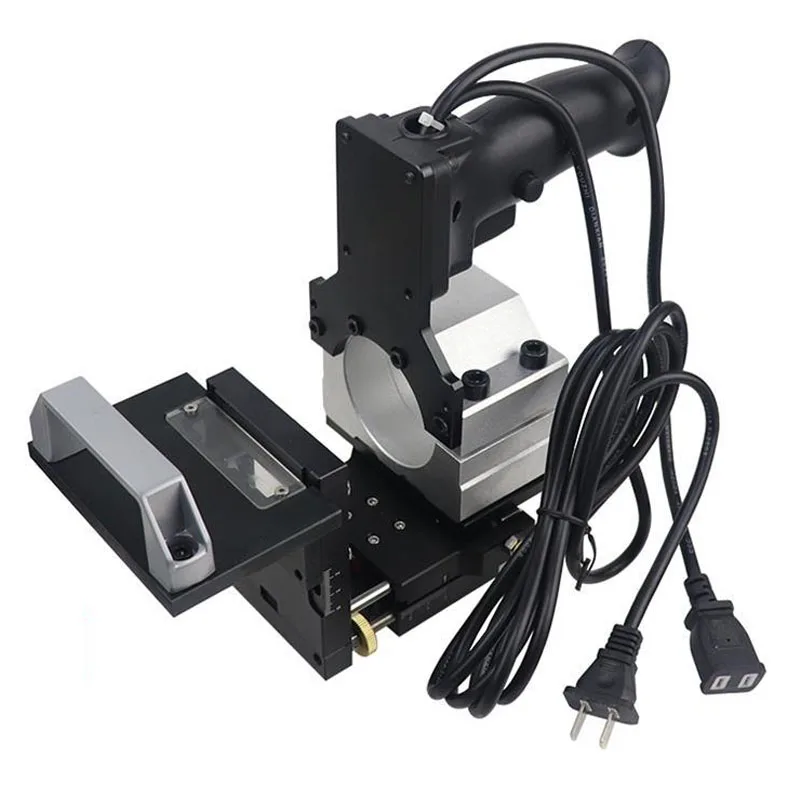

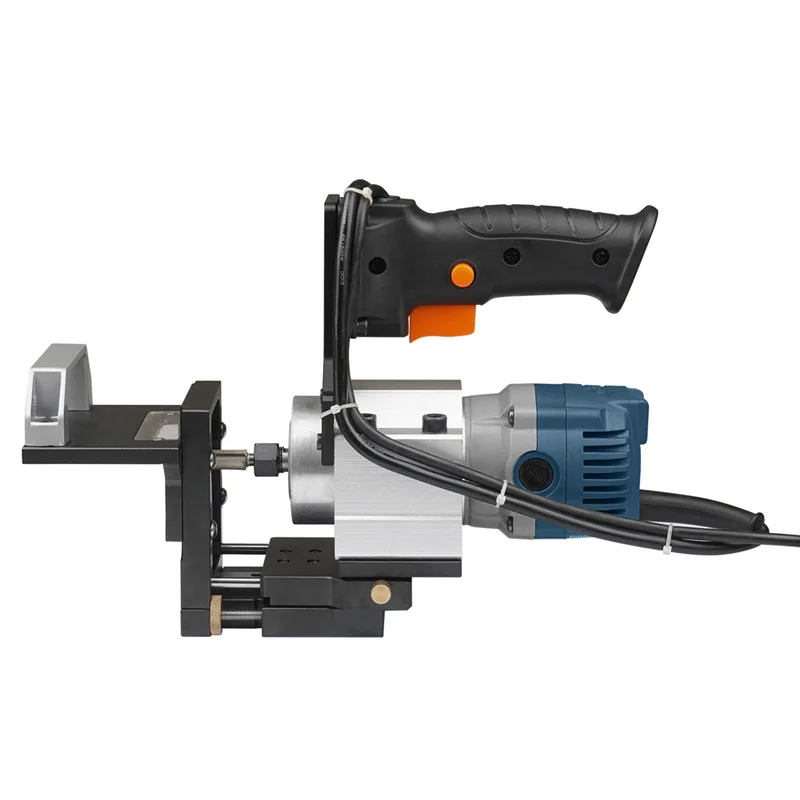

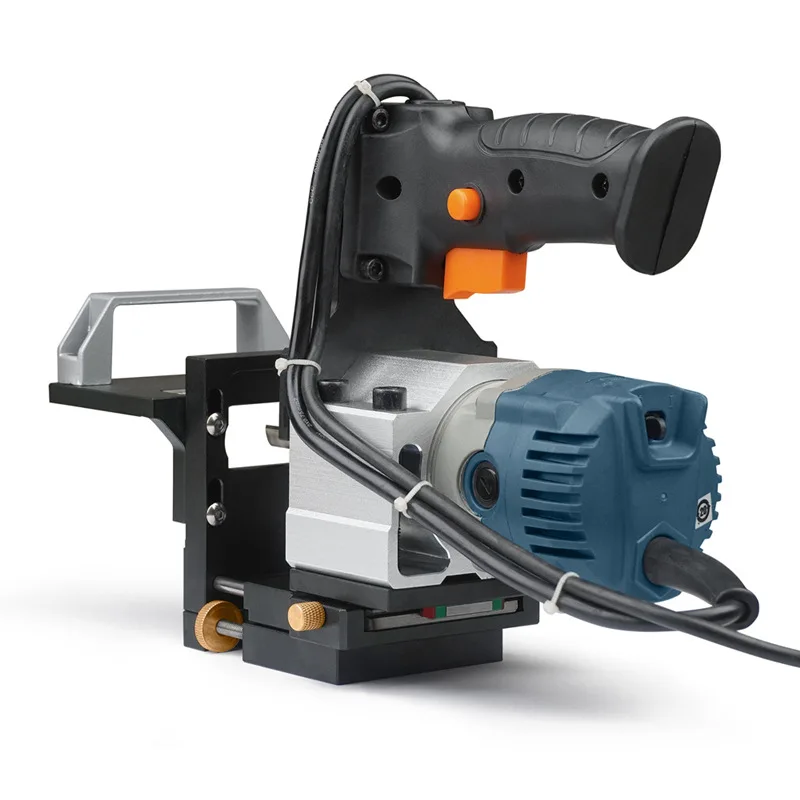

Equipped with a fixed diameter 65mm edge trimming machine (if you have other size requirements, please consult customer service for a grip switch. The power switch can be connected to the grip

Product features:

1. The opening width and depth of the sharp cone can be controlled. 2. The upper and lower heights can be adjusted to be suitable for different plate thicknesses. 3. The front, back, and left and right movements are sliding through precision wire tracks, with high smoothness

4. Moving forward and backward with rebound function, manually pushing and releasing the pushing force can rebound to the rear end

Product Introduction:

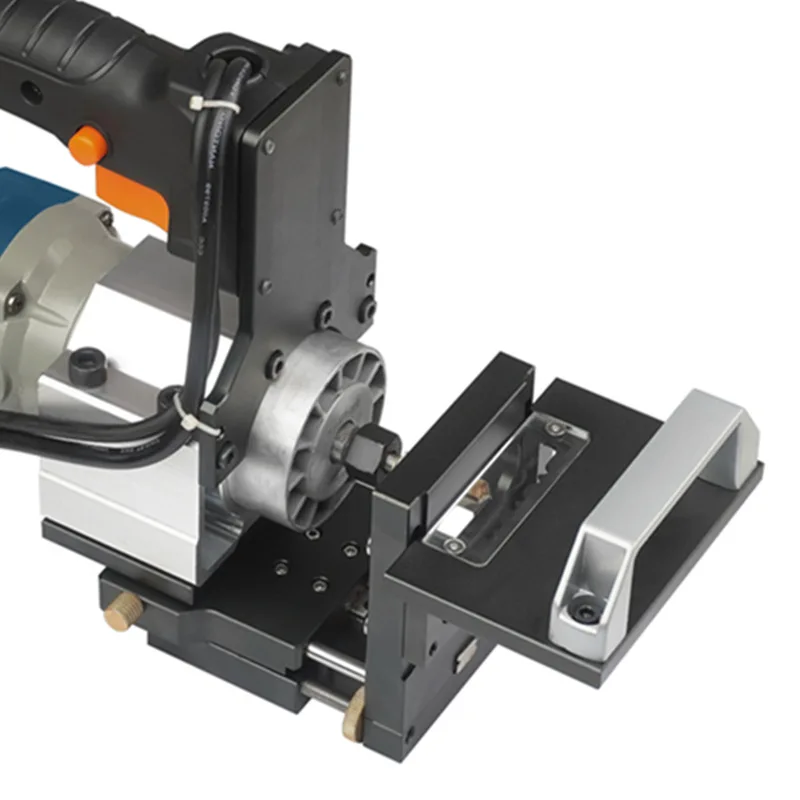

The left side is equipped with limit nuts to control the depth of the opening. The left and right sides of the trimming machine are equipped with two brass nuts, which can limit the range of left and right movement of the trimming machine. After adjusting the front, rear, and left and right limit screws, the machine can start working. Start the trimming machine to move forward and move left and right
