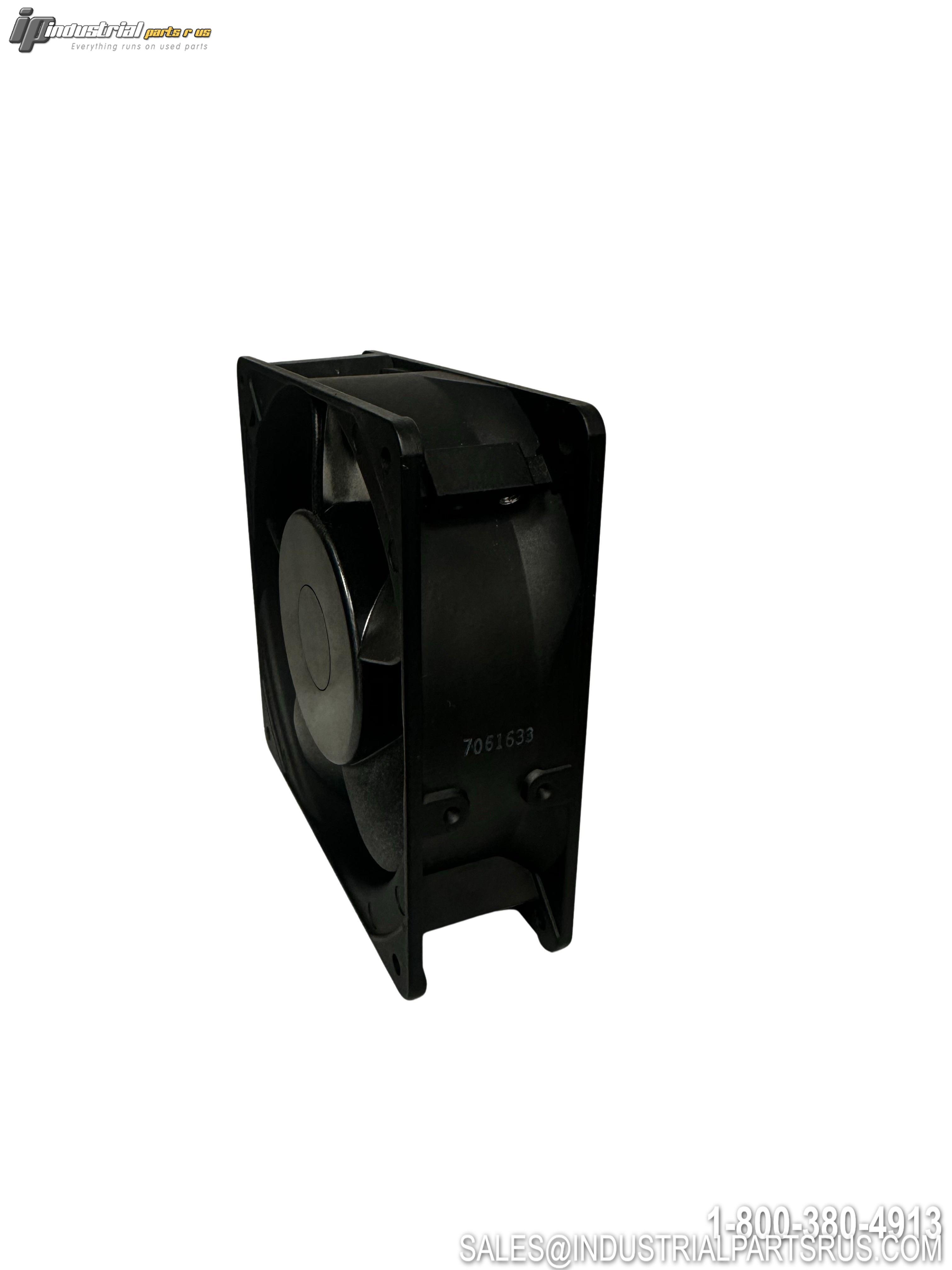

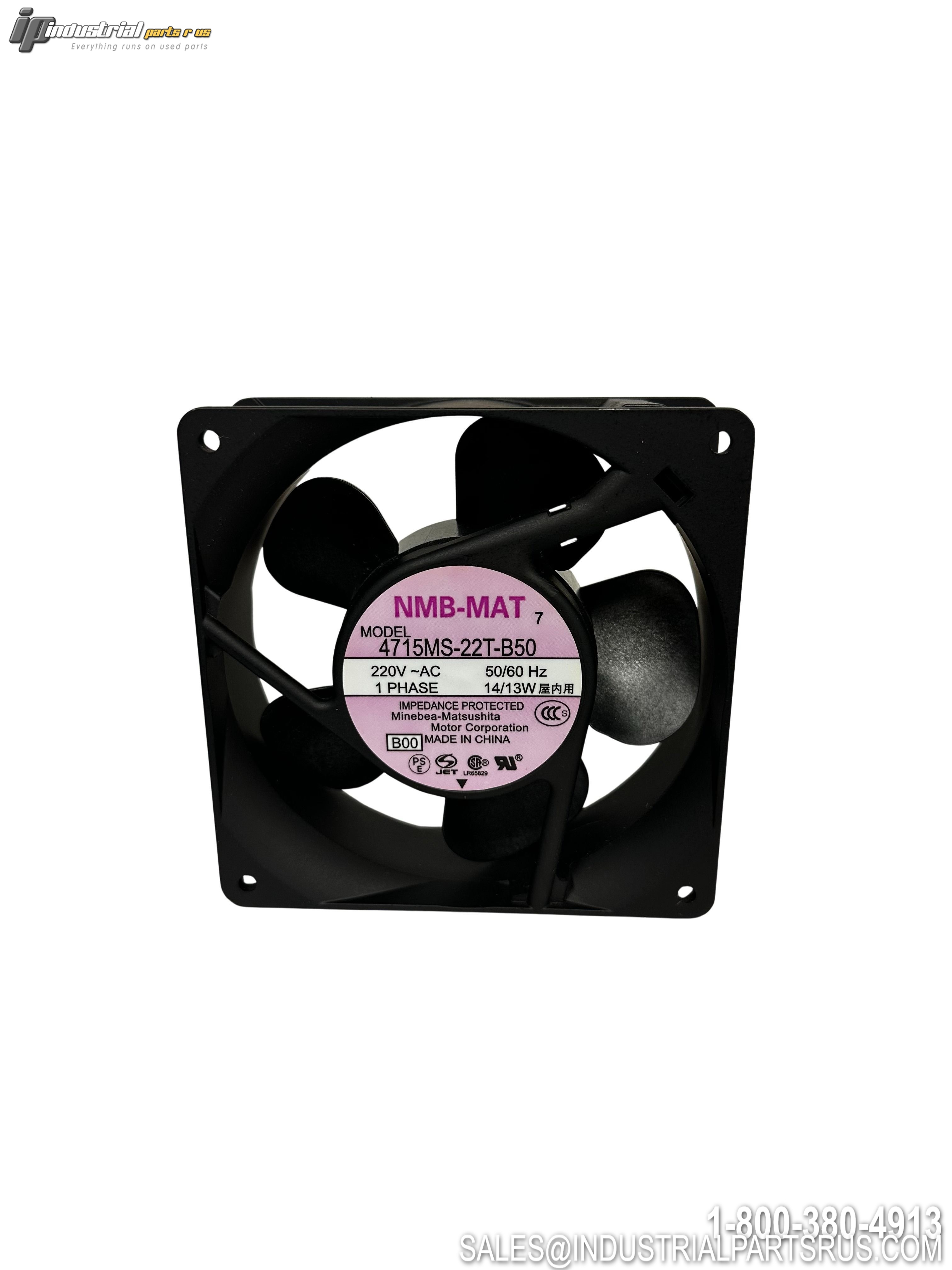

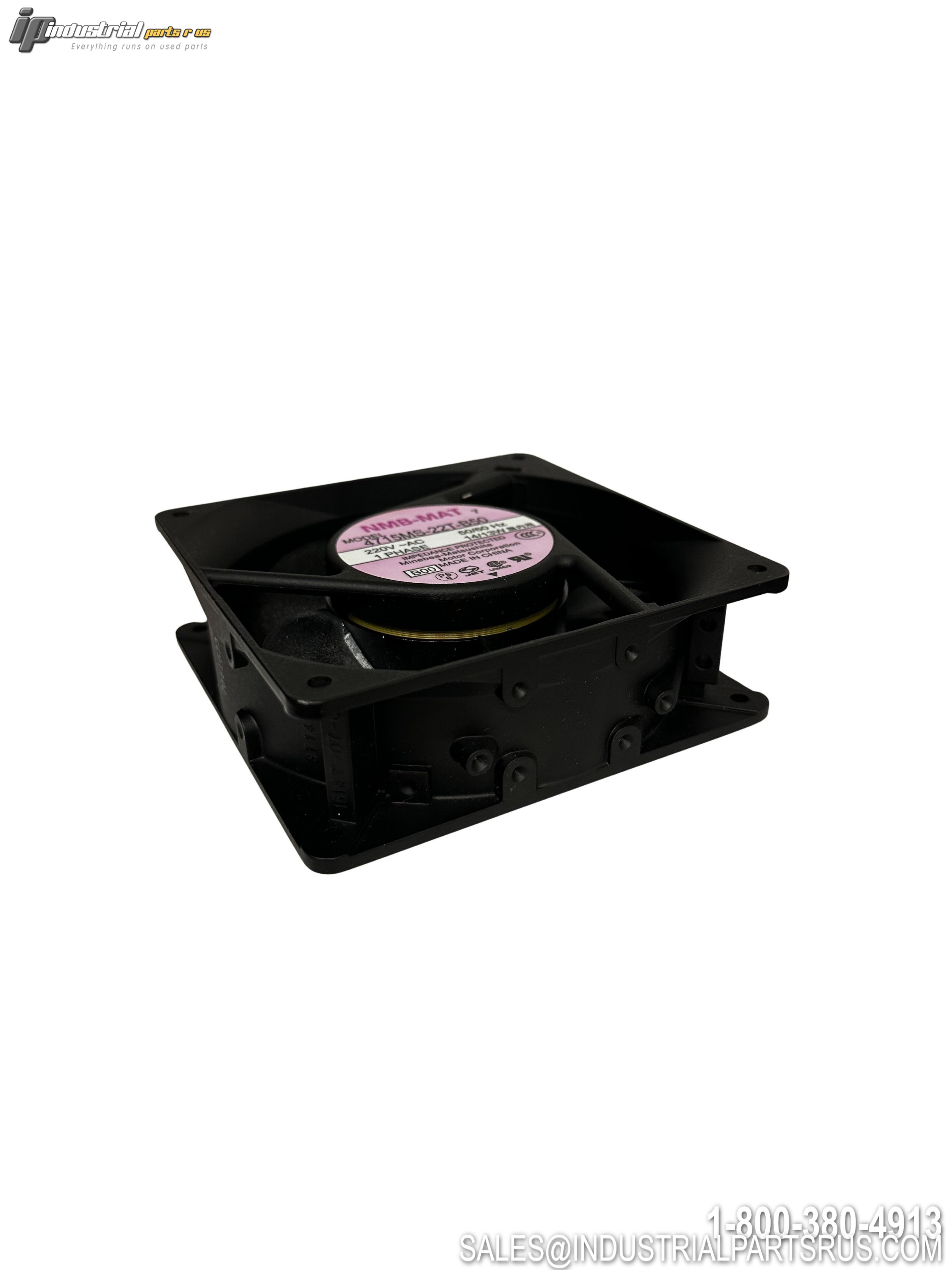

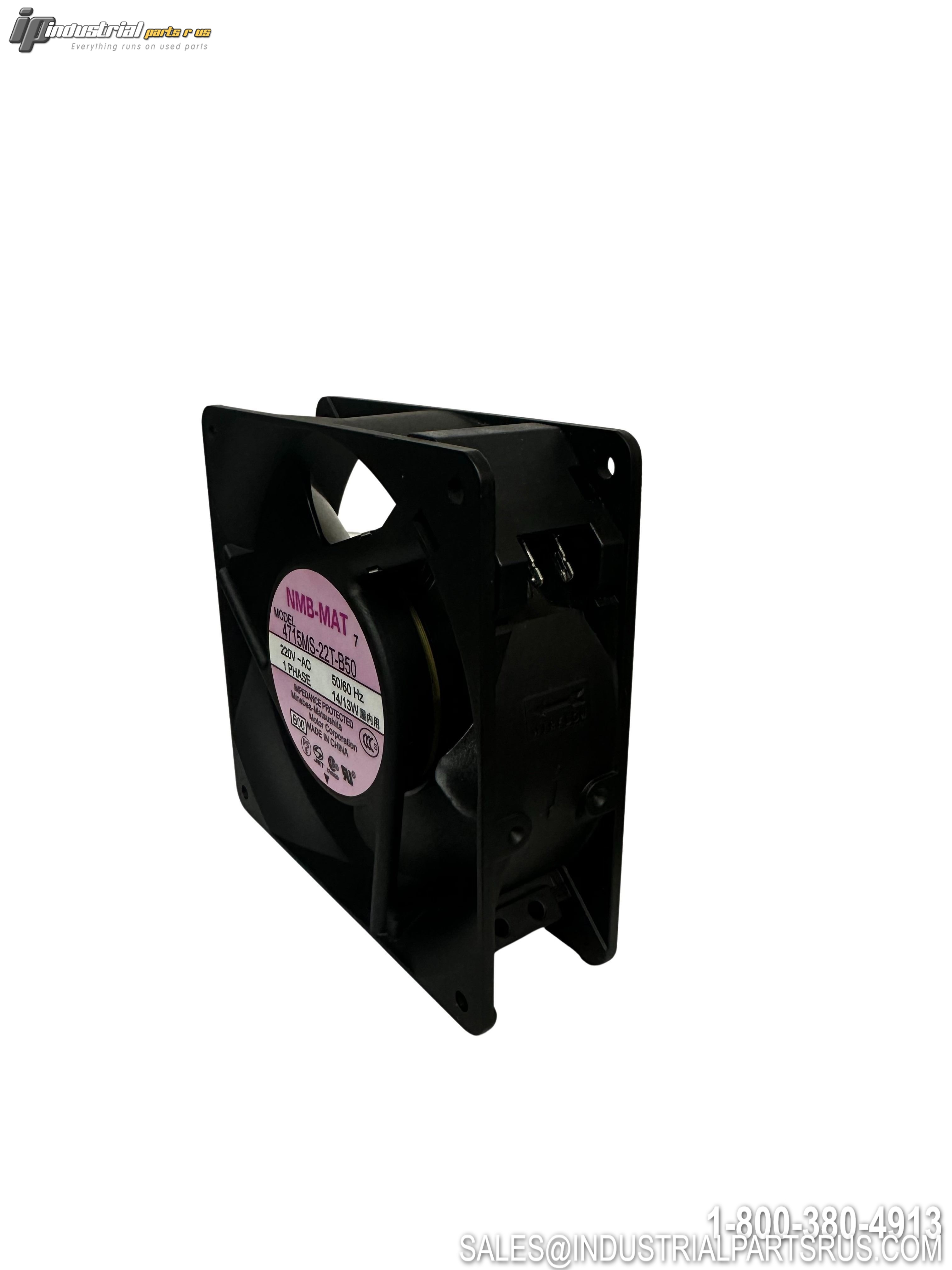

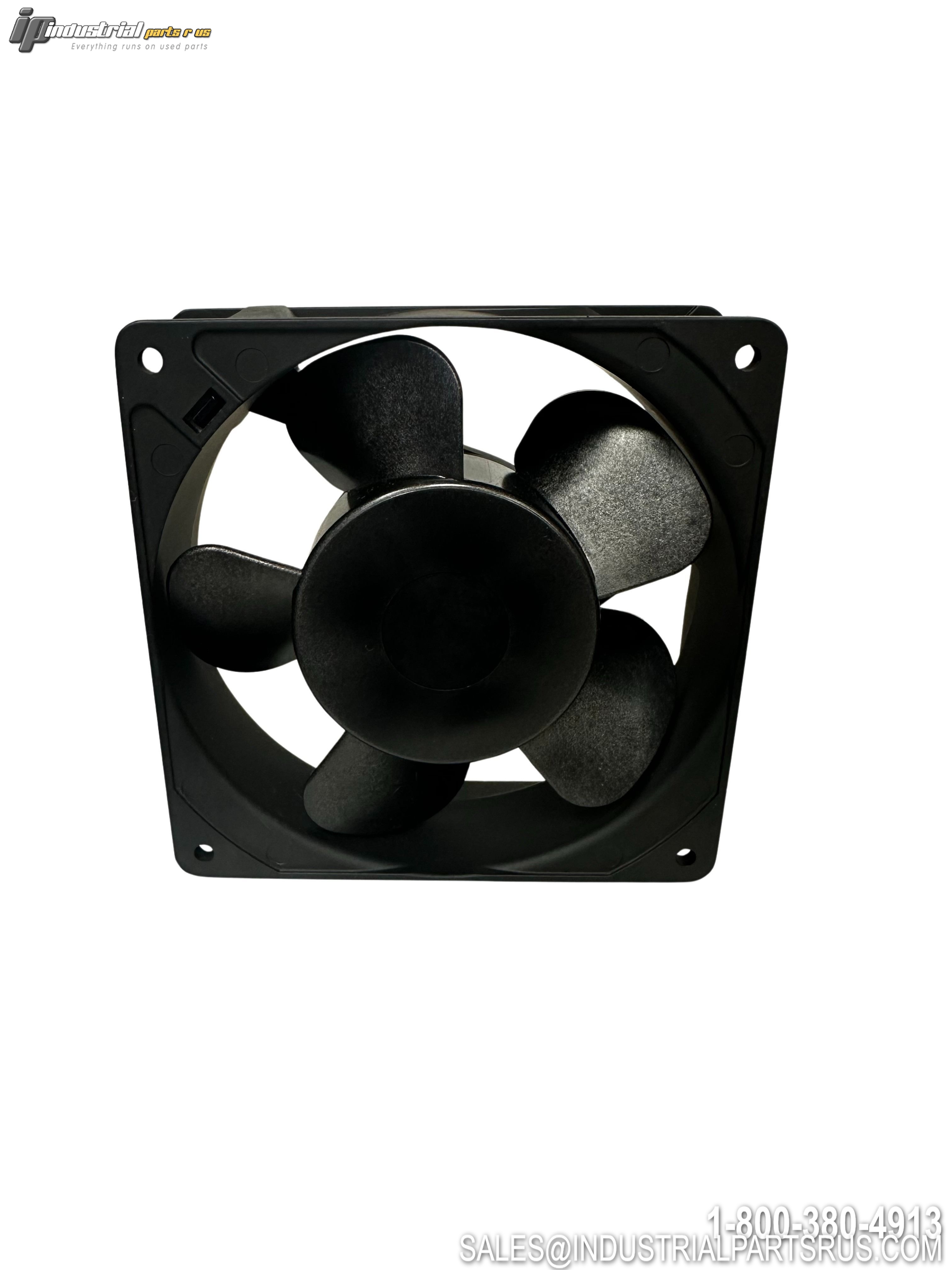

NMB-MAT 4715MS-22T-B50 AC Axial Fan 220V 119mm 38mm Ball Bearing 13W
- In Stock: 4
- Brand: Nmb-Mat
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: 4715MS-22T-B50
- Type: AC Axial Fan
- Shelf: J-112
- Part Number: 4715MS-22T-B50
- Manufacturer: Nmb-Mat
- Full Load Amps:: 0.12A (50Hz) / 0.10A (60Hz)
- MPN: 4715MS-22T-B50
- Media 1 Description: NMB-MAT 4715MS-22T-B50 120mm AC Axial Fan 220V
- Media 2 Description: NMB-MAT 4715MS-22T-B50 AC Axial Fan 115mm Square Frame Ball Bearing Cooling Fan with Mounting Brackets Black Housing
- Media 3 Description: NMB-MAT 4715MS-22T-B50 AC Axial Fan 115mm Square Frame Black Housing Four Mounting Holes Industrial Cooling Fan
- Media 4 Description: NMB-MAT 4715MS-22T-B50 AC Axial Fan 115V 119mm Square Black Plastic Frame Wire Leads Cooling Fan
- Media 5 Description: NMB-MAT 4715MS-22T-B50 AC Axial Fan 115VAC 119x119x38mm Black Square Frame with Mounting Holes Industrial Cooling Fan
- Base RPM: 2600 RPM (50Hz) / 2900 RPM (60Hz)
- Rated Pressure: 63.8 Pa (50Hz) / 75.6 Pa (60Hz)
The NMB-MAT 4715MS-22T-B50 is a professional-grade AC axial cooling fan designed for industrial applications including UPS systems, server cooling, and telecommunications equipment. This square frame fan features ball bearing construction for reliable operation and optimized airflow performance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | NMB-MAT |
| Model/Part Number | 4715MS-22T-B50 |
| Supply Voltage | 220VAC |
| Frequency | 50/60Hz |
| Power Rating | 14W (50Hz) / 13W (60Hz) |
| Current Rating | 0.12A (50Hz) / 0.10A (60Hz) |
| Frame Size | 119mm x 119mm |
| Depth | 38mm |
| Speed | 2600 RPM (50Hz) / 2900 RPM (60Hz) |
| Air Flow | 88.3 CFM (50Hz) / 102.4 CFM (60Hz) |
| Static Pressure | 63.8 Pa (50Hz) / 75.6 Pa (60Hz) |
| Noise Level | 37dB (50Hz) / 41dB (60Hz) |
| Bearing Type | Ball Bearing |
| Connection Type | Terminal |
| Series | 4715MS |
| Mass | 550g |
