Concord Series

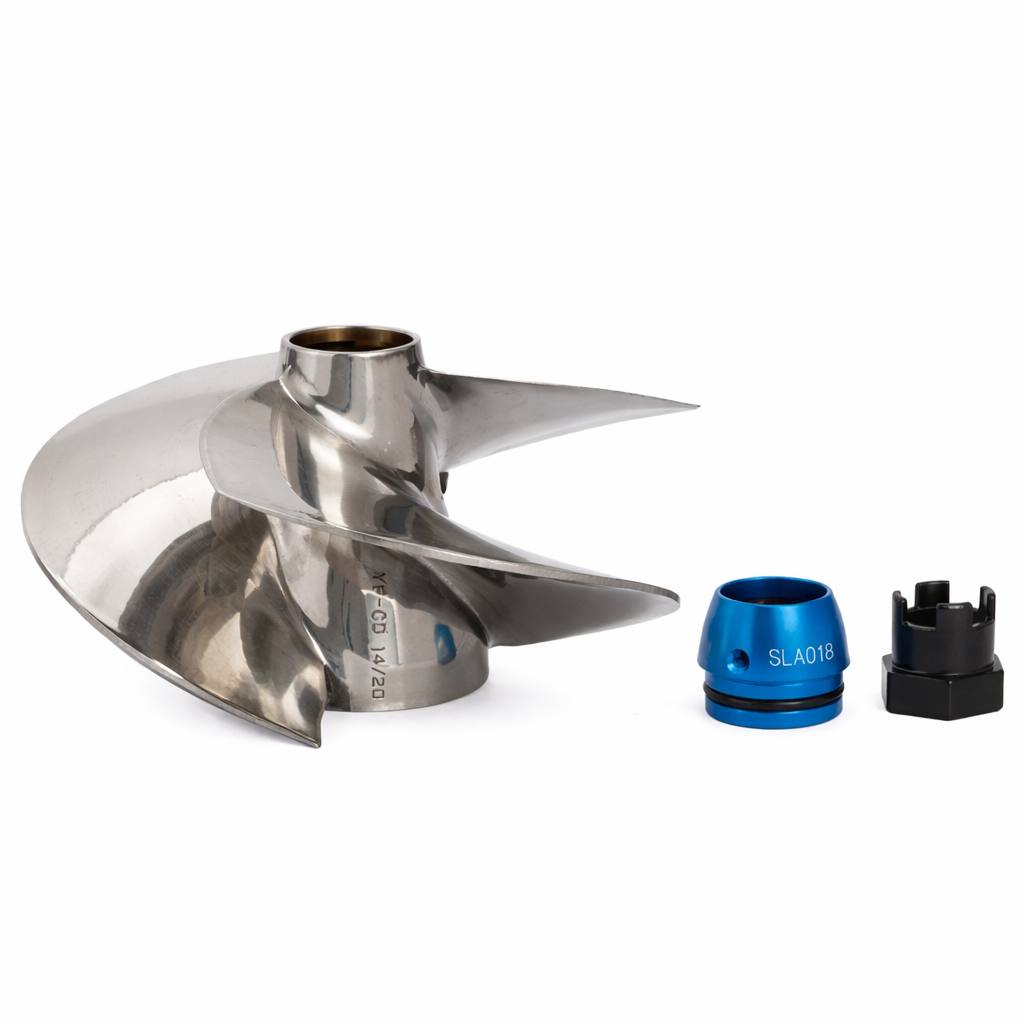

The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.

Applications

1999 Wave Runner XLT 1200

2000 Wave Runner XLT 1200

2001 Wave Runner XLT 1200

2002 Wave Runner XLT 1200

2003 Wave Runner XLT 1200

2004 Wave Runner XLT 1200

2005 Wave Runner XLT 1200

2000 Wave Runner GP 1200R

2001 Wave Runner GP 1200R

2002 Wave Runner GP 1200R

2003 Wave Runner GP1300R

2004 Wave Runner GP1300R

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)For YH Series impeller, remove the trail cone (or cap) from the stator. For all others, hold the front end of the drive shaft with a shaft holder (optional part) on bench vise.

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench (optional part). Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and refill O/E pump oil or grease to spec. (for YH series assemble the pump and put it back on the PWC)

*this installation guide is suggested for reference only

*please refer to your original service manual or contact your PWC dealer for detail

*guide provided by Solas

*some wrenches are optional parts and are available for purchase on our website

Impeller Series - Wrench - Holder - Seal

YA Super Camber (ABC/IJK Series) - WR003 - WR003H - SL003

YB Super Camber (IJK Series) XProp Series, Concord Series - WR004 - WR004H - SLA008 (18mm shaft) SL008A (15mm shaft)

YD Super Camber Series (IJK Series) Xprop Series - WR004 - WR004H - SLA008

YD Concord Series - WR007 - WR007H - SLA009A

YF Concord/Xprop Series - WR007 - WR007H - SLA009

YG Dynafly Series - WR007 - WR007H - SLA009

YS Dynafly Series - WR014 - WR014H - SLA014

YS Concord Series - WR014 - WR014H - SLA016

YH Concord Series (only for 2005-06 VX110 Sport and VX700 2006) - WR001 - Â - SLA009
