Key Features

High Safety: When the temperature exceeds 140℉, the tool will automatically stop to protect the tool not being burned, after the temperature drops then can continue to work. The battery also has overload protection and low-voltage protection to ensure safe use.

Thoughtful Design: It has a built-in pure copper coil motor for smooth operation, high reliability, and low noise. Moreover, it adopts a built-in intelligent chip control, so that your operation is more easier.

Excellent Crimping Performance: The 120kn crimp force and 1.65in stroke will show you the strong power that ensures every crimp is solid and reliable.

Good Compatibility: The 360° rotatable head and the 13 sizes of crimping molds give you a wide crimping range (10-400mm²) and allow you to easily deal with different crimping angles.

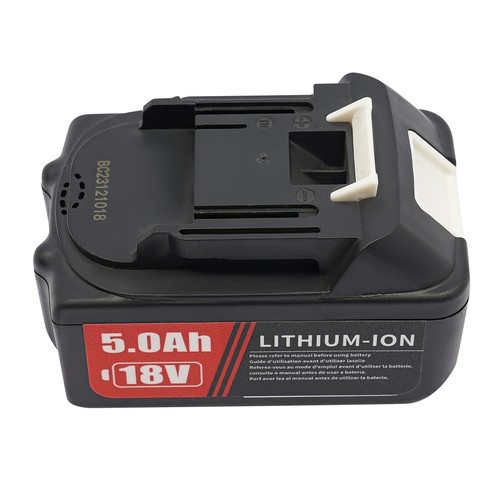

Lithium-ion Batteries: We provide two 18V 5Ah rechargeable batteries to allow the product to carry out a long period of continuous work, and each battery can crimp about 100 times with a full charge (about 1 hour). Rechargeable batteries are more cost-effective. The cordless design allow you to carry the product around for outdoor work. At the same time, it reduces the potential safety hazards that may be brought about by wire problems.

Quick Heat Dissipation: The air vents accelerate the heat dissipation speed and prevent the product from overburning due to long time working.

Details

Battery Level Indicator: Each battery is equipped with an indicator that shows the remaining capacity so you can plan your work wisely.

C-shaped Head Opening: It allows you to easily change the molds.

Limiting Block: It can prevent the molds from falling off when the clamp head rotates.

LED Indicator Light: It lights up when energized, making it easy for you to check if the product circuit is working properly.

Battery Lock: It allows for quick and easy installation and disassembly of the battery.

Battery Charger: The professionally provided charger can quickly charge the battery to full capacity.

Application

It is suitable for electric power engineering, automobile maintenance, machinery manufacturing, construction engineering, and other fields to crimp all kinds of cables, wires, and wire ropes.

Specifications

Color: Blue

Material: Cr40, PPC

Process: CNC Machining, Quenching, Galvanize, Blackening

Assembly Required: Yes

Plug Standard: US Standard

Power Source: Battery Powered

Motor Type: Copper Wire Motor

Crimping Molds: 10/16/25/35/50/70/95/120/150/185/240/300/400mm²

Number of Crimping Molds: 13

Crimping Time:10-15s Every Time(According to Wire Diameter)

Charge Voltage: 21.5V 2A

Crimping Range: 10-400mm²

Battery Type: 2* 18V 5Ah Lithium-ion Batteries

Each Full Battery Crimping Times: About Crimping 100 Times (According to Wire Diameter)

Motor Speed: 10000rpm

Charging Time: About 1 Hour

Charger Power Cord Length: 80cm/31.5in

Stroke: 4.2cm/1.65in

Crimping Force: 120kn

Product Size: 42*5.5*32cm/16.54*2.17*12.6in

Package Size: 54*44*12cm/21.26*17.32*4.72in

Gross Weight: 14kg/30.86lbs

Package Included

1* Electric Hydraulic Plier

2* Batteries

13* Crimping Molds(One Already Installed)

1* Shoulder Strap

1* Charger

1* Carrying Case

Notes

• Please check the size carefully before ordering.
• Please read the product label carefully before use.
• It is strictly prohibited to crimp without a crimping die to avoid damage to the clamp head.
• Please pay attention to the light reminder when charging to avoid charging failure.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
