CMEAP

Adjustable Coilover Struts Shock Absorbers For VW Golf Mk7 Hatchback 1.4L 1.8L






























Specifications


Height Adjustable Lowering 0-25mm depending on the vehicle models
Damping Preset Damping
Spring Rate Front 6 kg/mm (336 lbs/in)
Spring Rate Rear 5 kg/mm (280 lbs/in)
Spring Length Front 200 mm
Spring Length Rear 210 mm
Packing List 2x Front + 2x Rear Coilovers + 2x Spanners

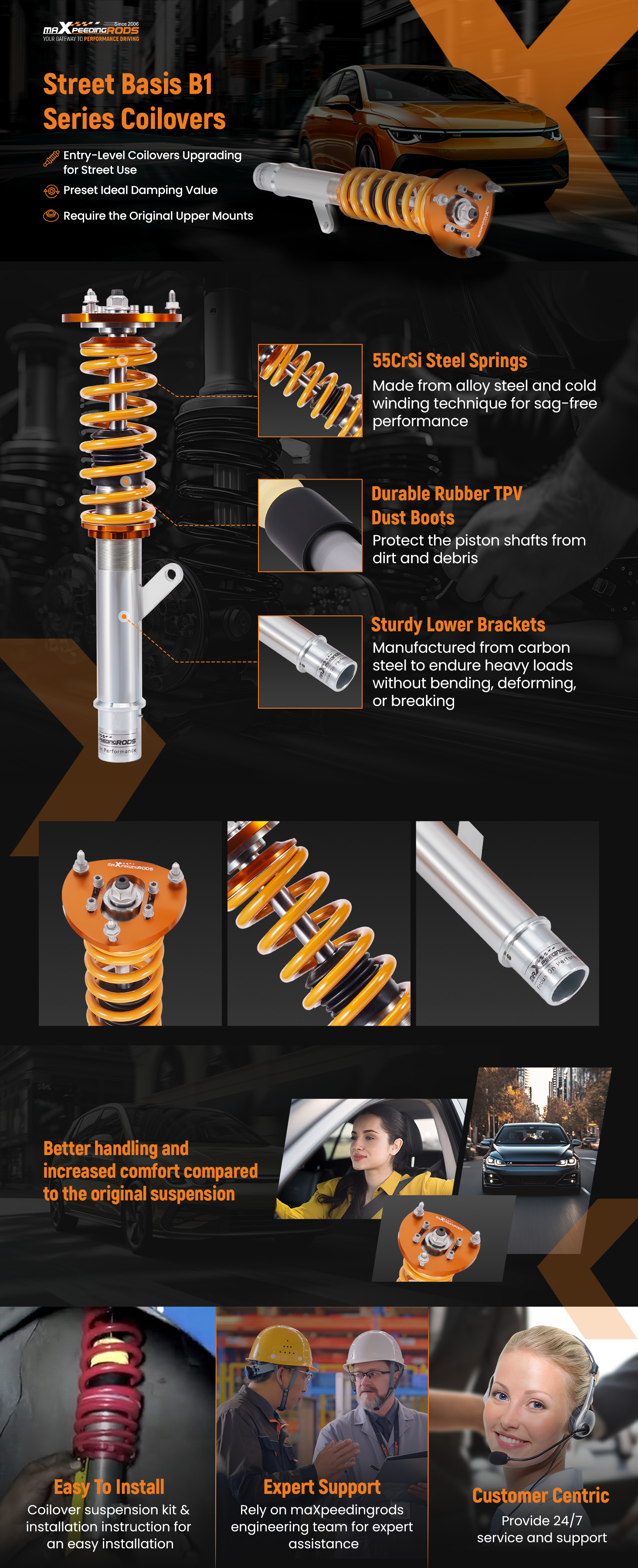

maXpeedingrods' B1 Coilovers

Features


1.  0-25mm(depends on vehicle models) lower height adjustable

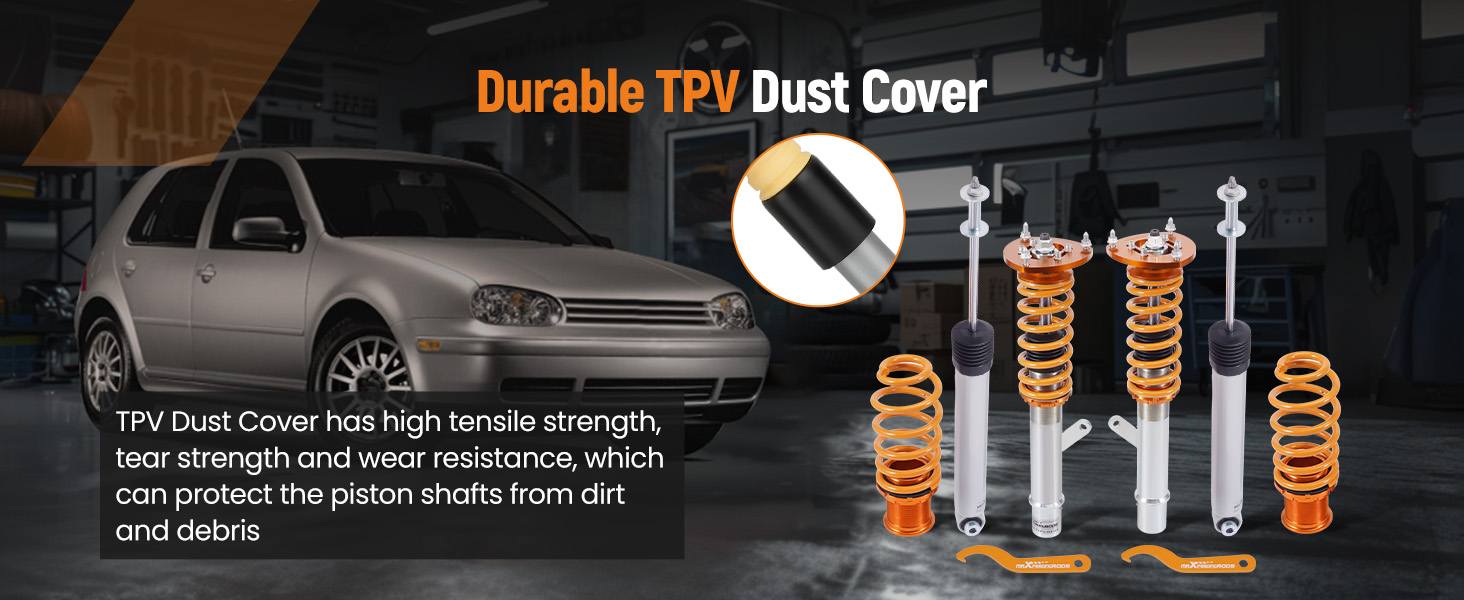

2. Dust boot, solid rubber bump stops

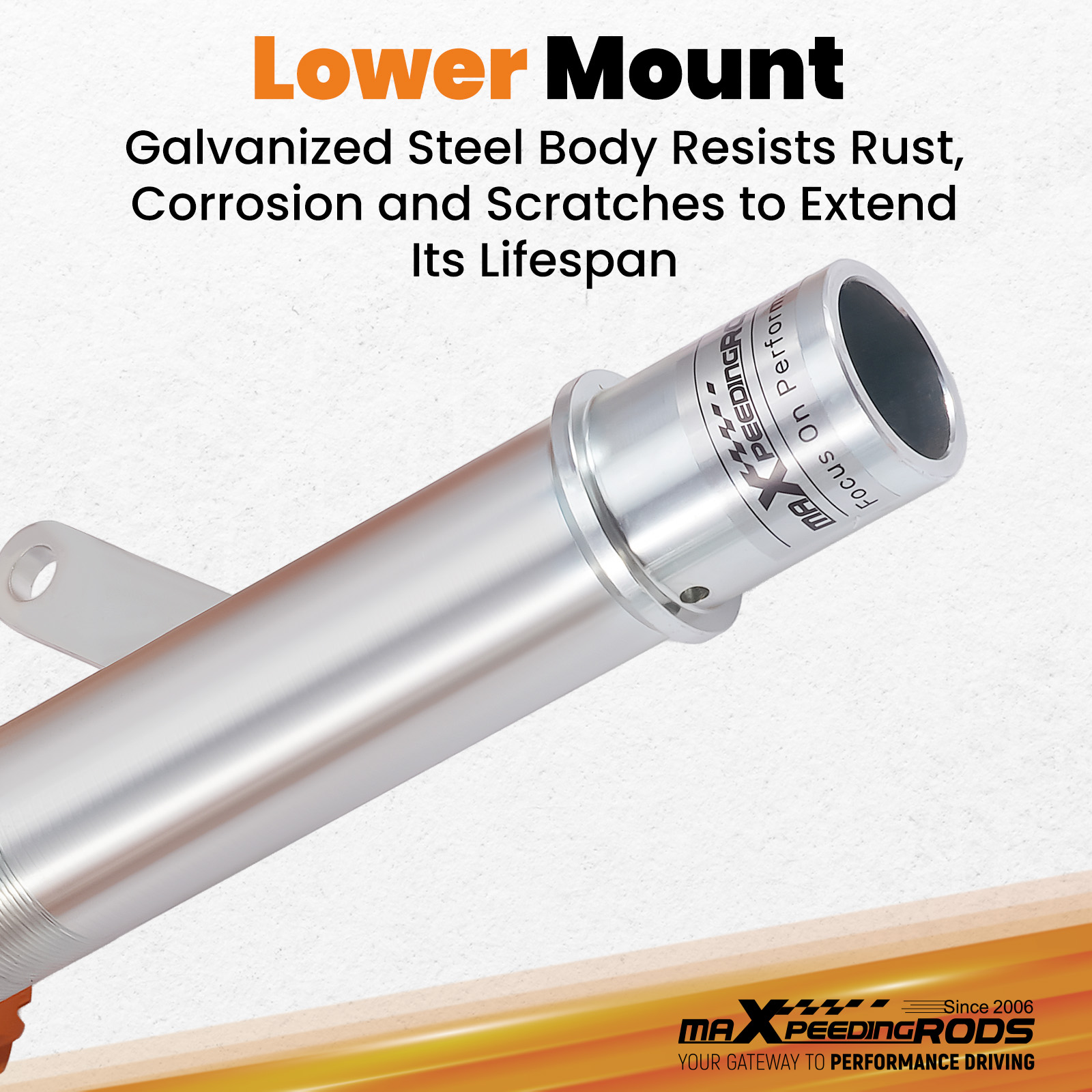

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.


Application


For Volkswagen Golf  MK7 2013-2019 with TORSION Rear Suspension only
Note: not fit for MULTILINK Rear Suspension
For Audi A3 / A3 Quattro / S3 / RS3 (8V) 2015-2020
For SEAT Leon Mk3  2012-2019
For Skoda Octavia Mk3 2012-2019


Specification


- Front top mount: Pillow ball with camber plate
- Rear top mount: OE top mounts required
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

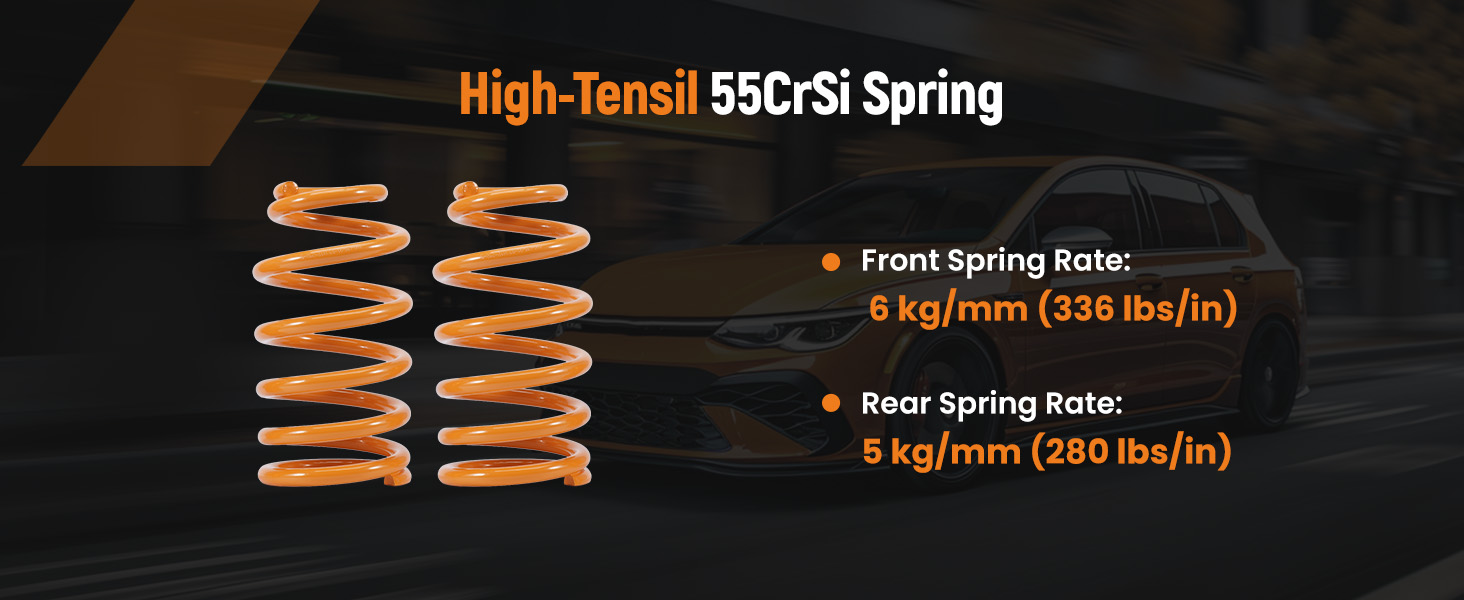

- Spring Rate Front: 6 kg/mm (336 lbs/in)
- Spring Rate Rear: 5 kg/mm (280 lbs/in)
- Spring length Front: 200 mm
- Spring length Rear: 210 mm
- Spring Preload advised: 7-10 mm
- Color: Silver body with golden spring

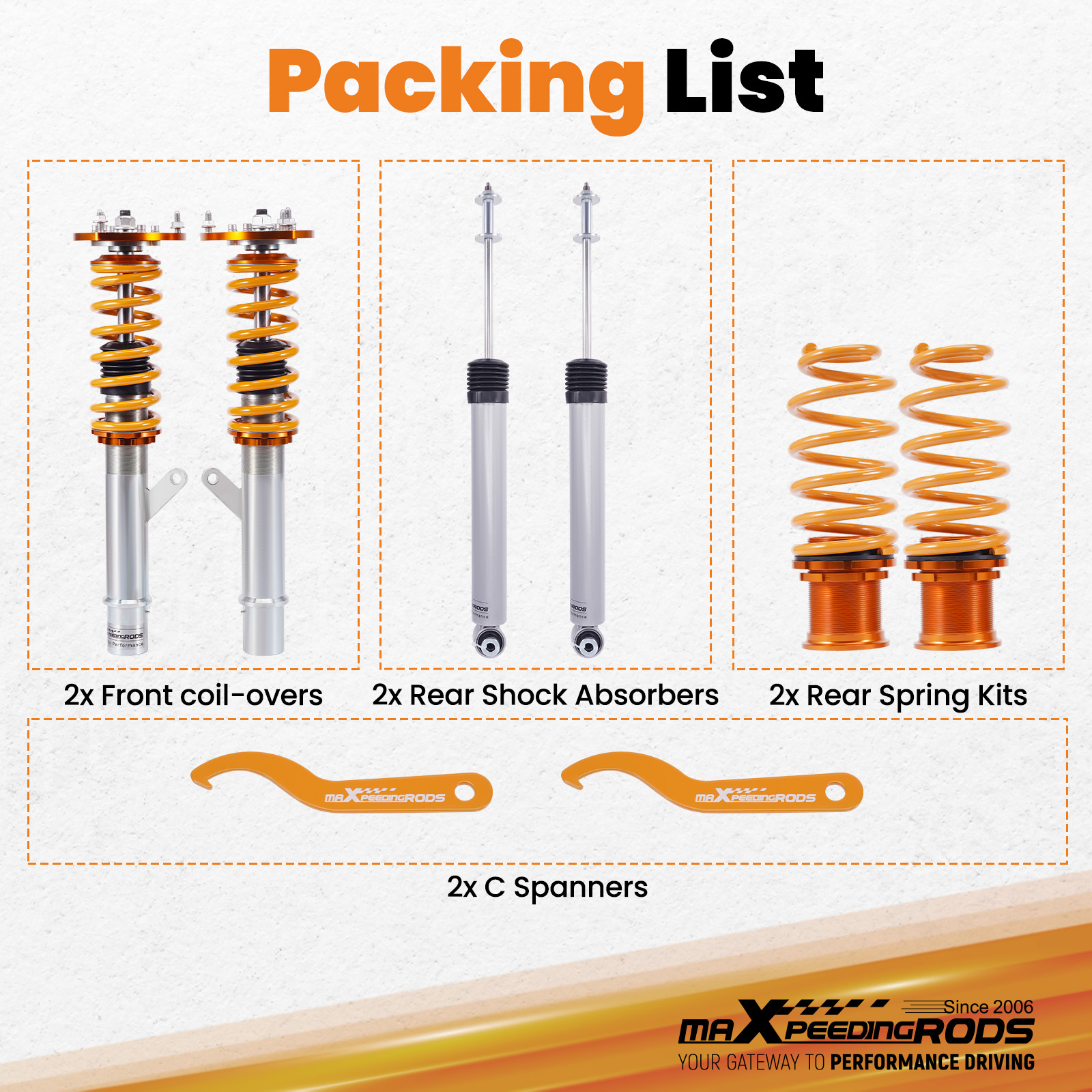

Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

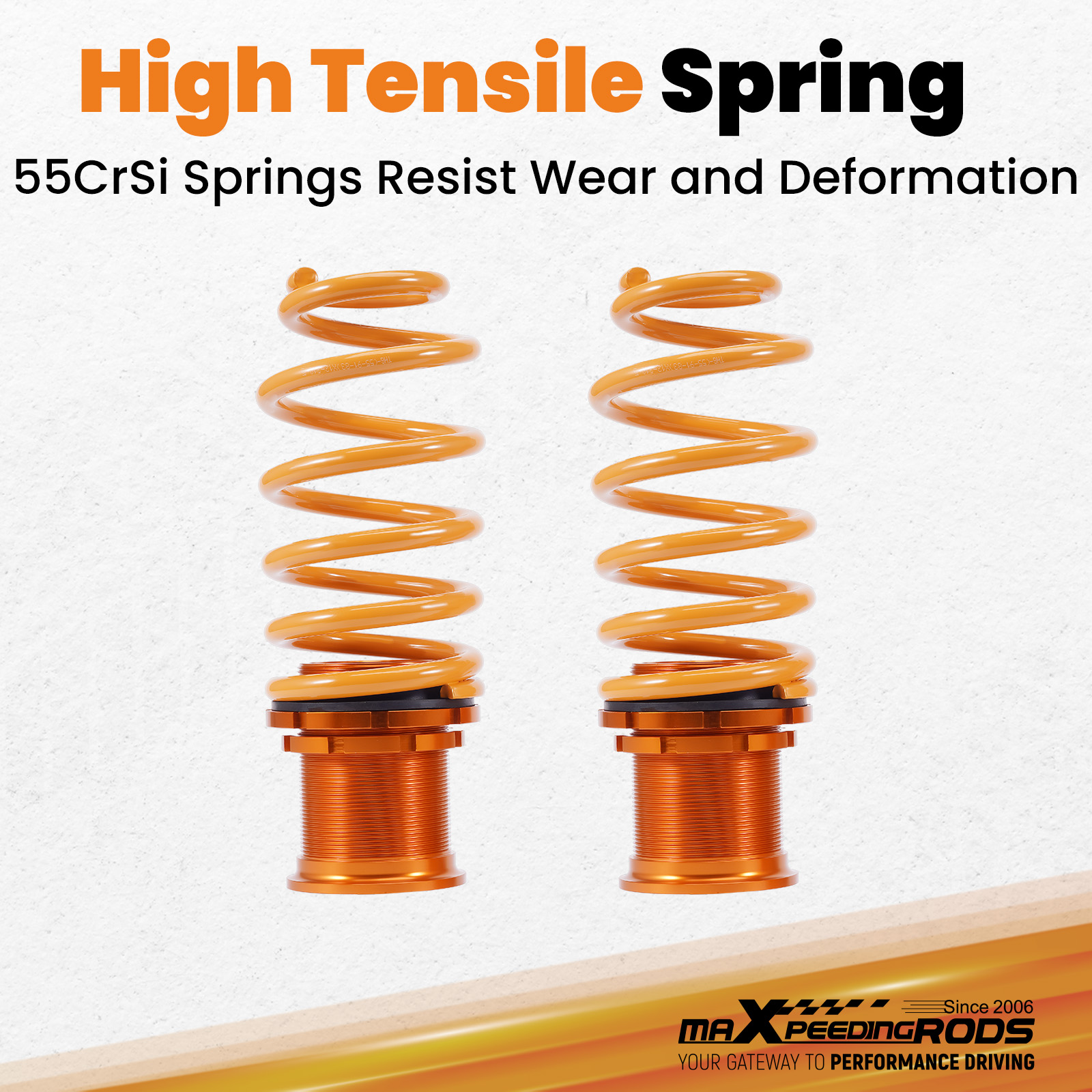

Full Length Adjustable, Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering;Full 1 Year Limited Warranty From Date Of Purchase.
