Features

- Racing damping oil and spring rates set for occasional track use and daily street use.

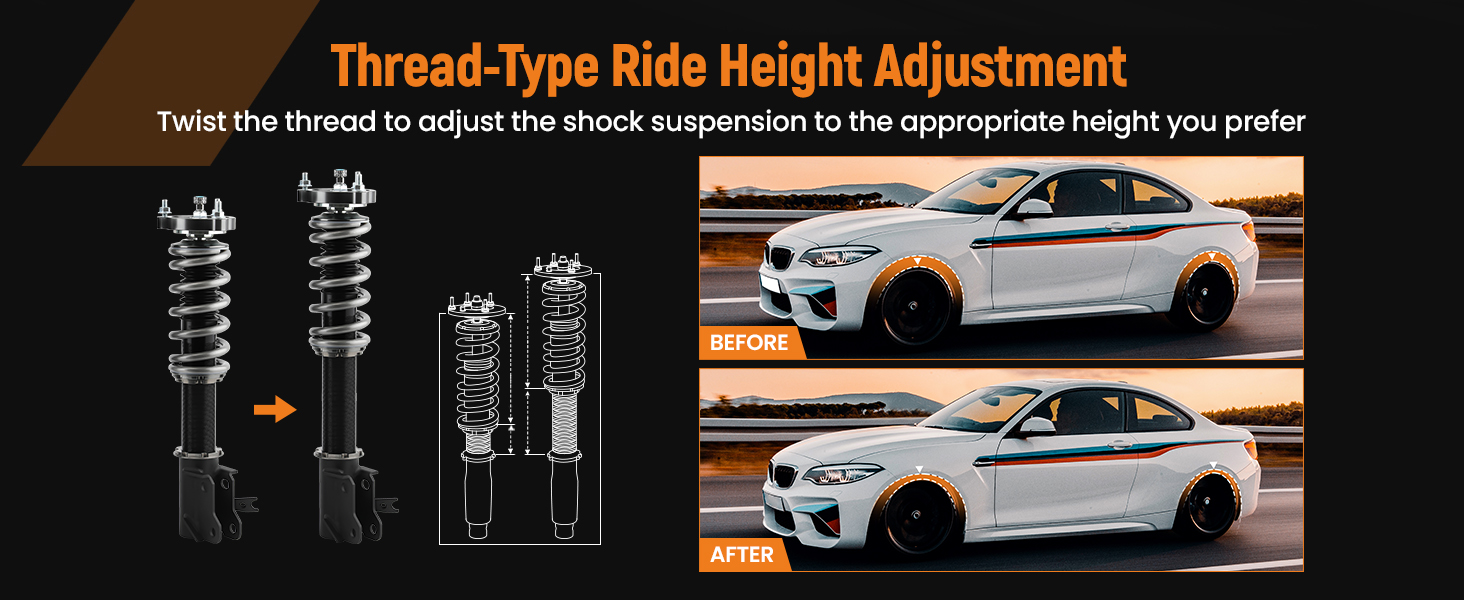

- Lowered height adjustment from 1" - 3" (depending on vehicle models) which adds a more aggressive stance and a lower center of gravity.
- Adjustable pre-load spring tension reduces shaking motion.
- 24 Clicks of Rebound Adjustments allow you to dial in your coil-overs system perfectly.

- High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.

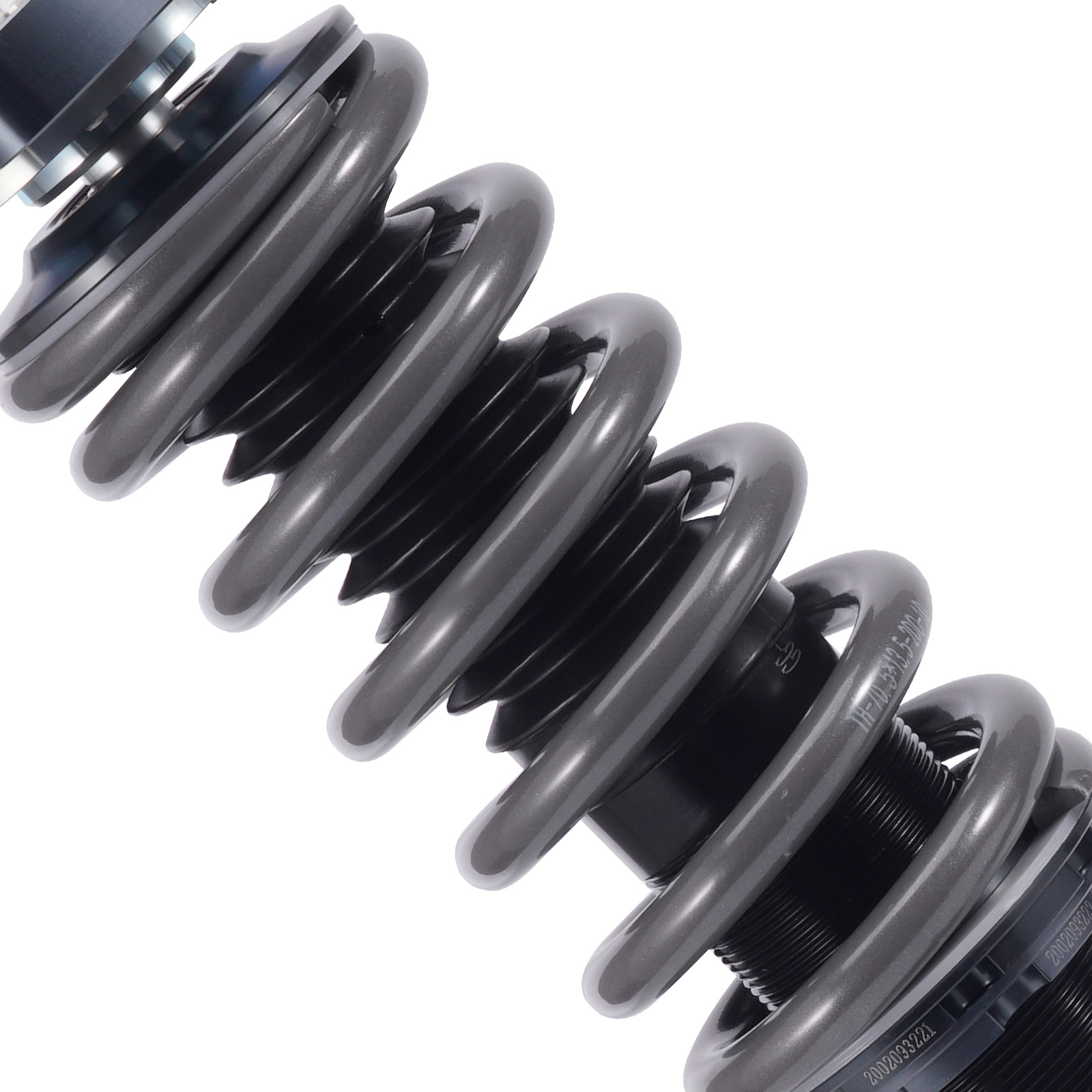

- High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.

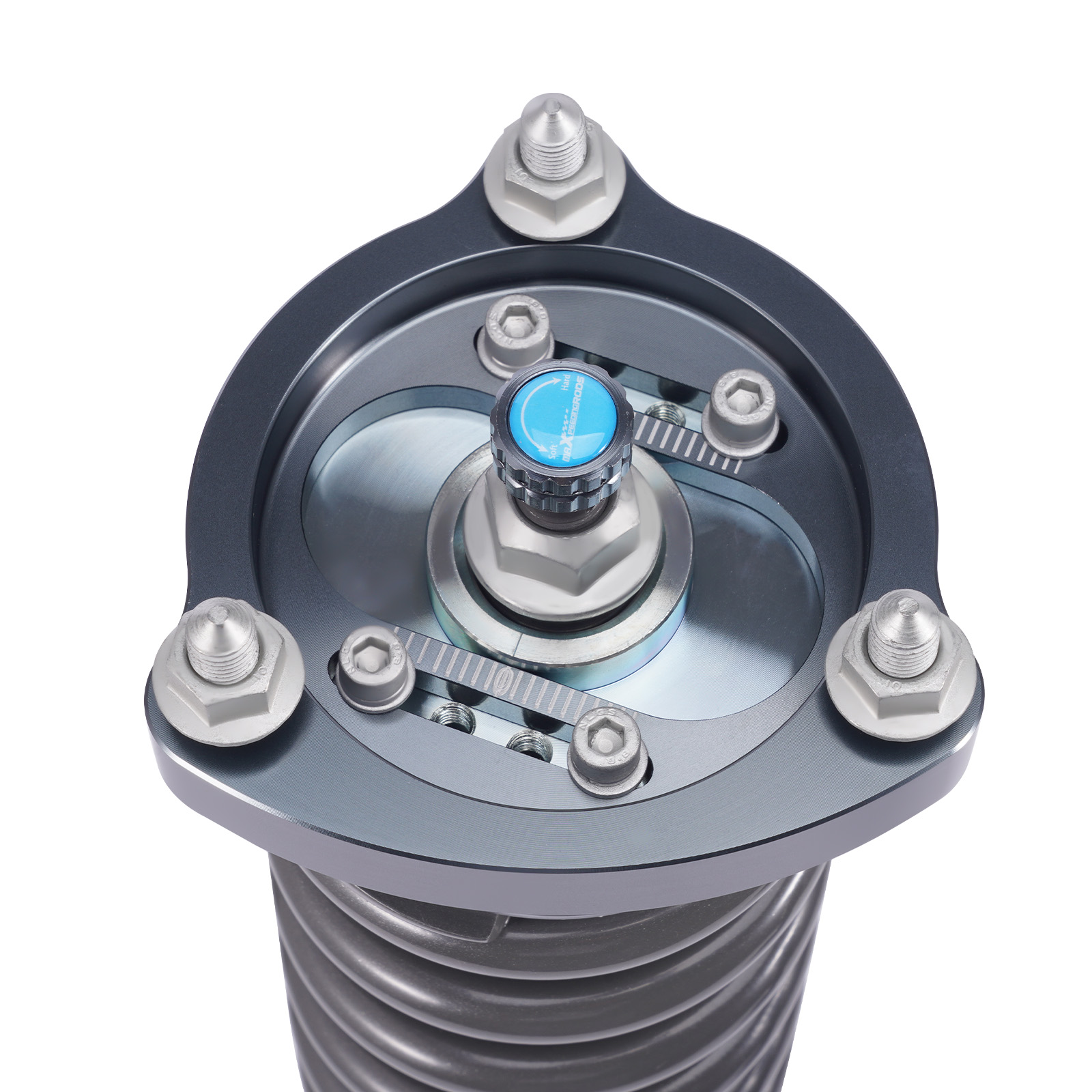

- CNC machined aluminum top mounts and lockers have excellent strength and save weight.

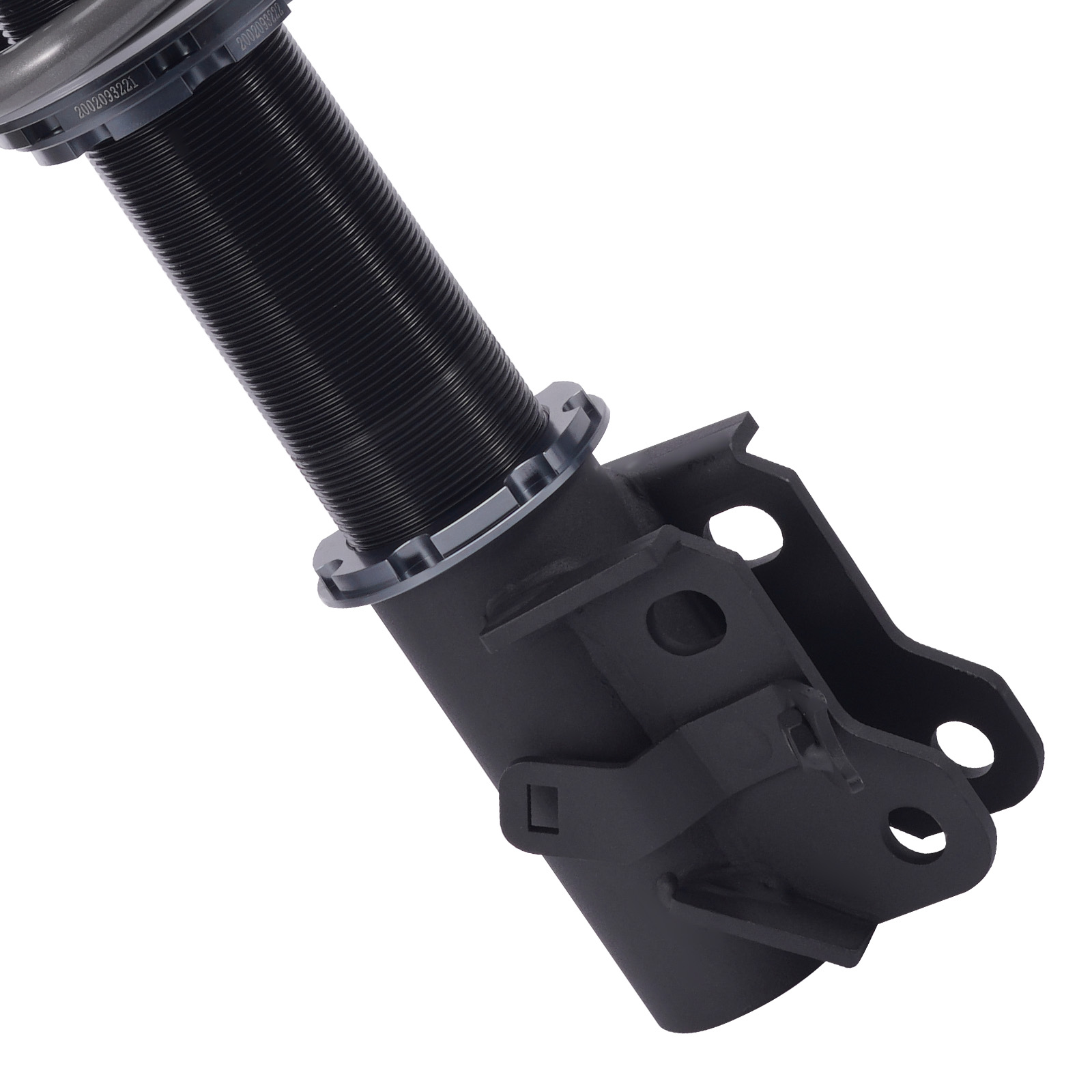

- Highly durable and reliable heavy-duty steel lower mounts.
- All inserts come with fitted long rubber boots to protect the damper and be durable.
- Twin-tube structure provides excellent handling & control characteristics for most driving conditions.
- Anti-Corrosion finish anodized aluminum and powder-coated carbon steel parts with a matt-finished surface.
- Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
- Clean room assembled maintains a higher level of accuracy and reliability.

Applications

For HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
For Acura CSX 4-door sedan（Canada）2006-2011
Note: not for the Mugen trim level.

Specifications

- Front top mount structure: Pillow ball with camber  plate
- Rear top mount structure: OE top mount required
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Camber adjustable: Available
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 8 kg/mm(448 lbs/in)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5mm
- Rear spring inner diameter: 70.5mm
- Spring length Front: 200 mm
- Spring length Rear: 160 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with grey spring

Package Including

2x Front coil-overs
2x Rear coil-overs
2x C spanners
2x Allen wrench
1x Sticker

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
