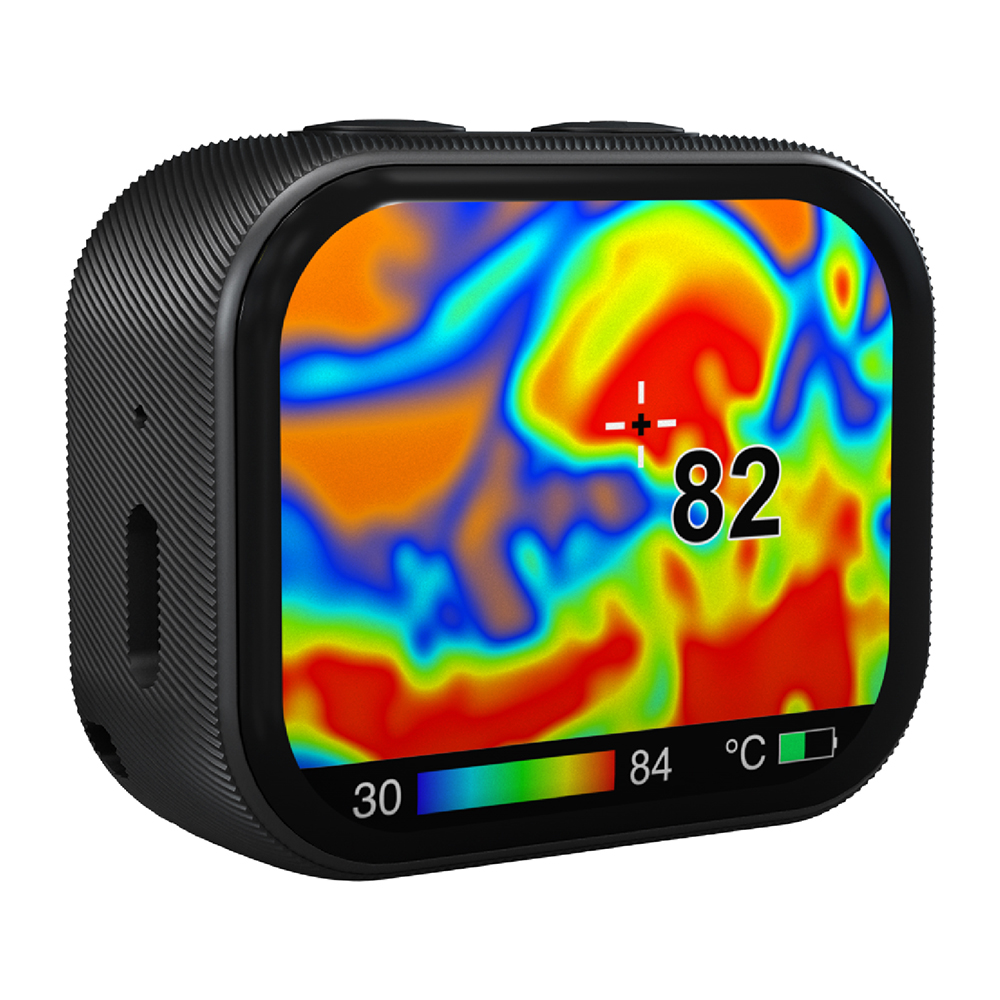

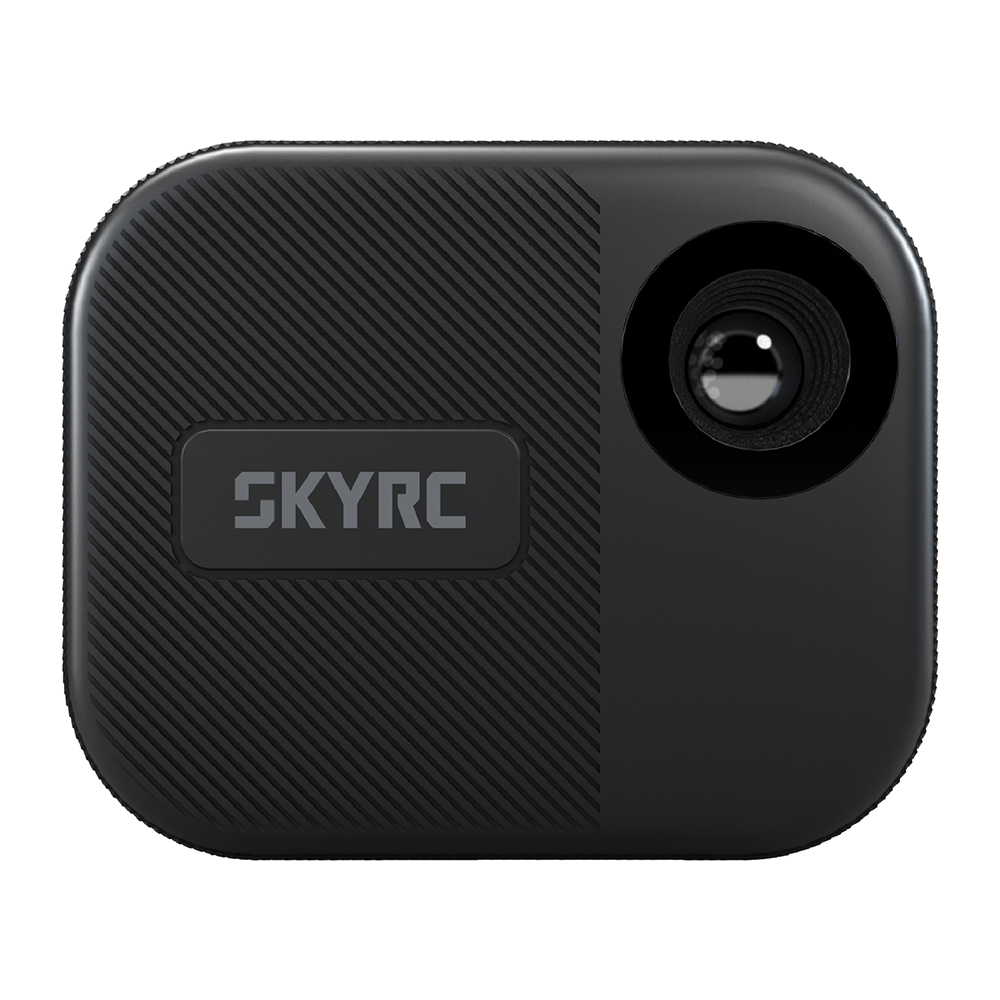

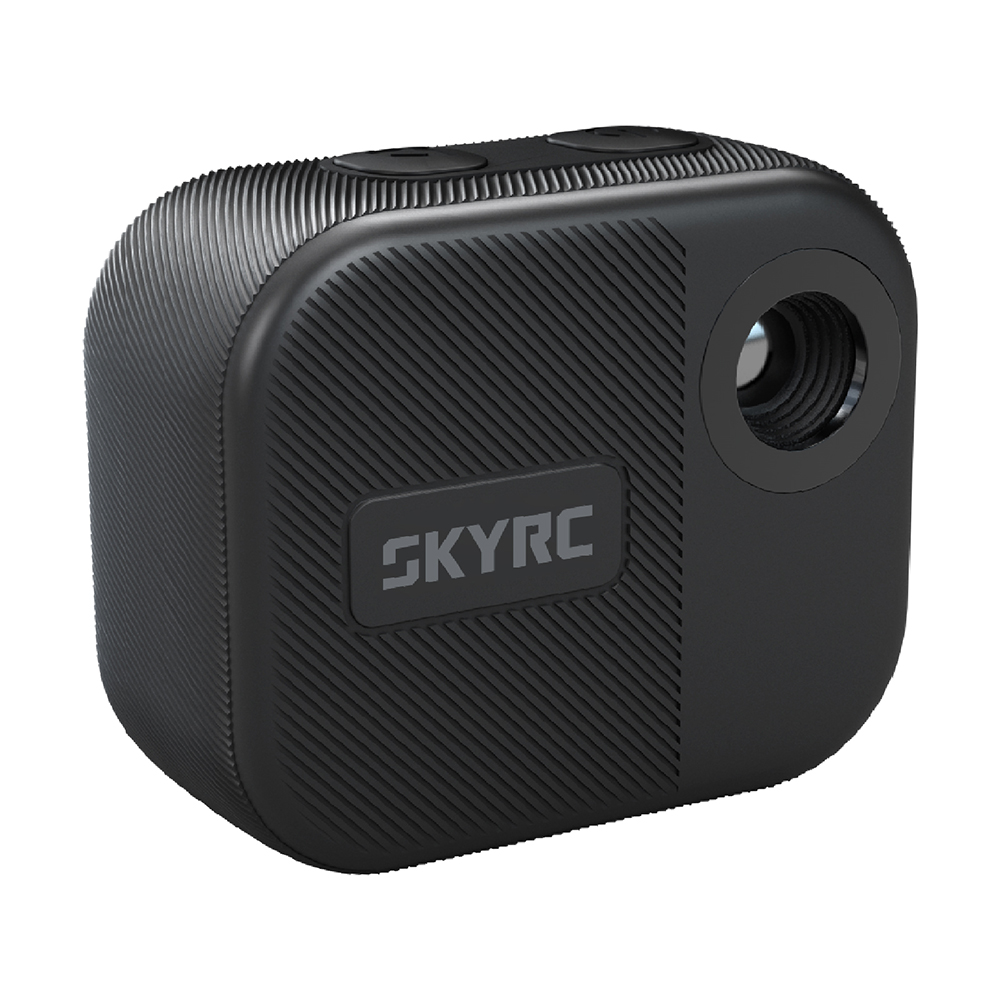

SkyRC Thermal Imager Mini HeatVision ITV500 Infrared Temperature Imager with Touchscreen for RC Motor ESC Battery Monitoring

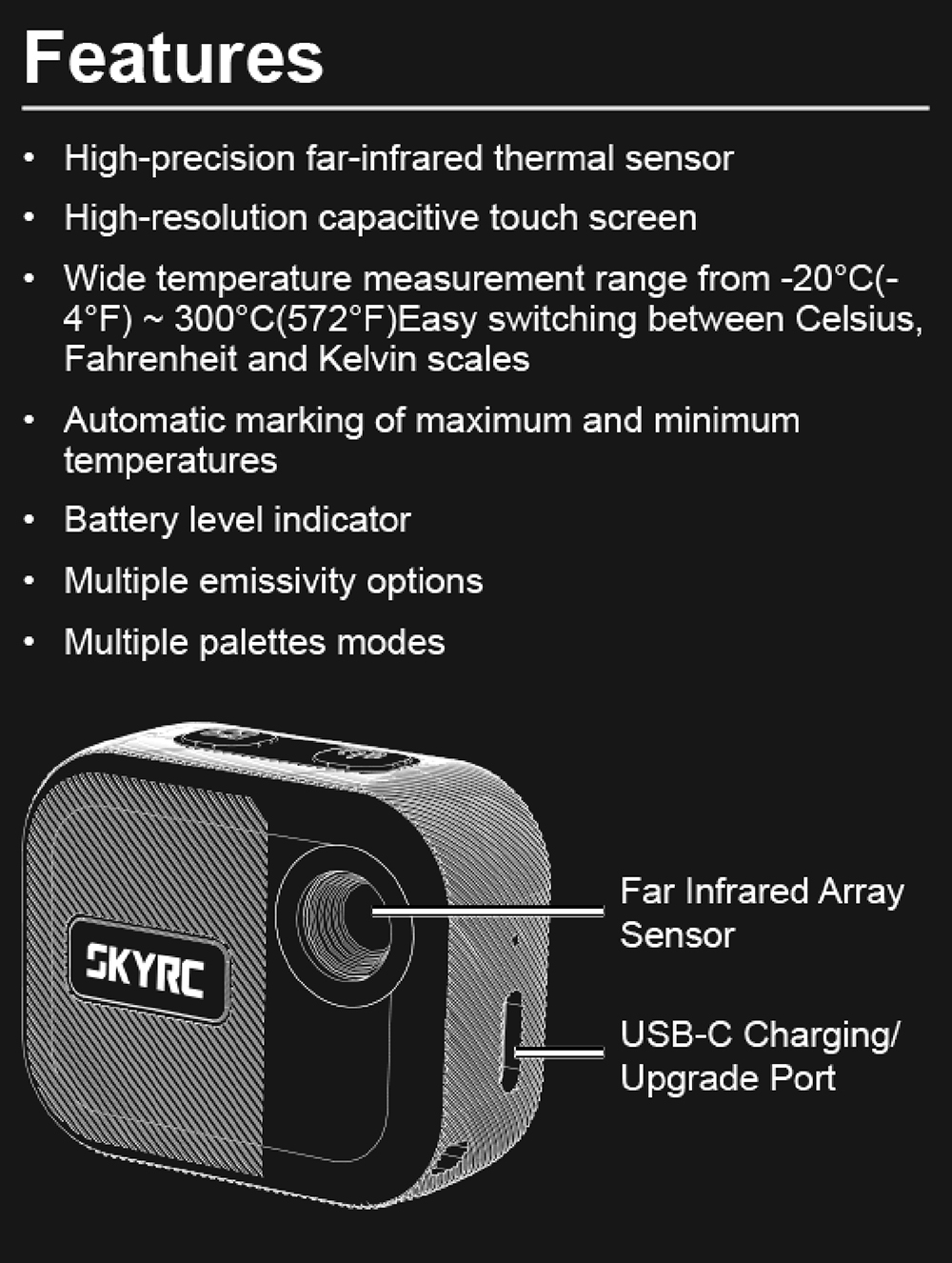

Features:

Contact-Free FIR Thermal Imaging: Detects far-infrared heat energy and converts it into real-time thermal images for instant surface temperature visualization.

Wide Temp Range & High Accuracy: Measures from -20°C to 300°C with ±2.0°C accuracy, ideal for motor, ESC, batteries, and connector.

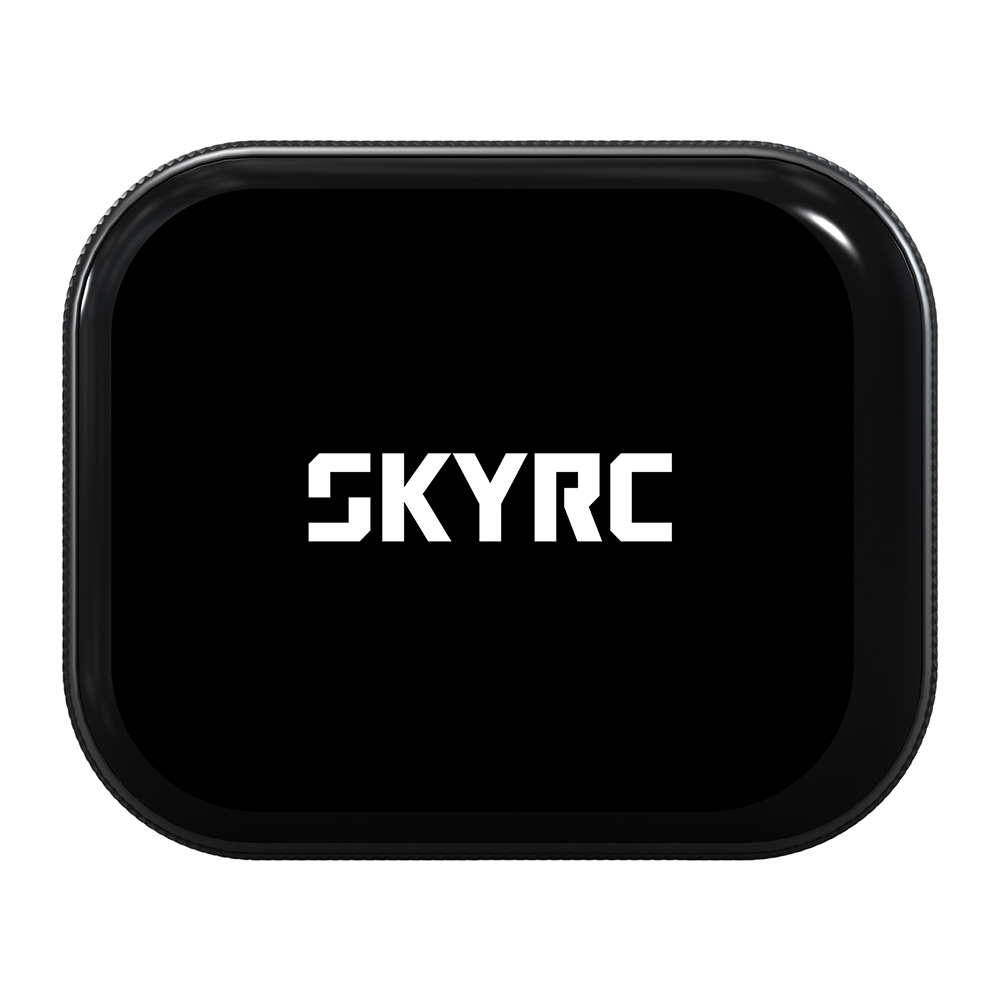

Compact & Pit-Ready Design: Pocket-size (46×38×20.1 mm) and ultra-light (~38 g) with a bright 1.83″ capacitive touchscreen for intuitive control.

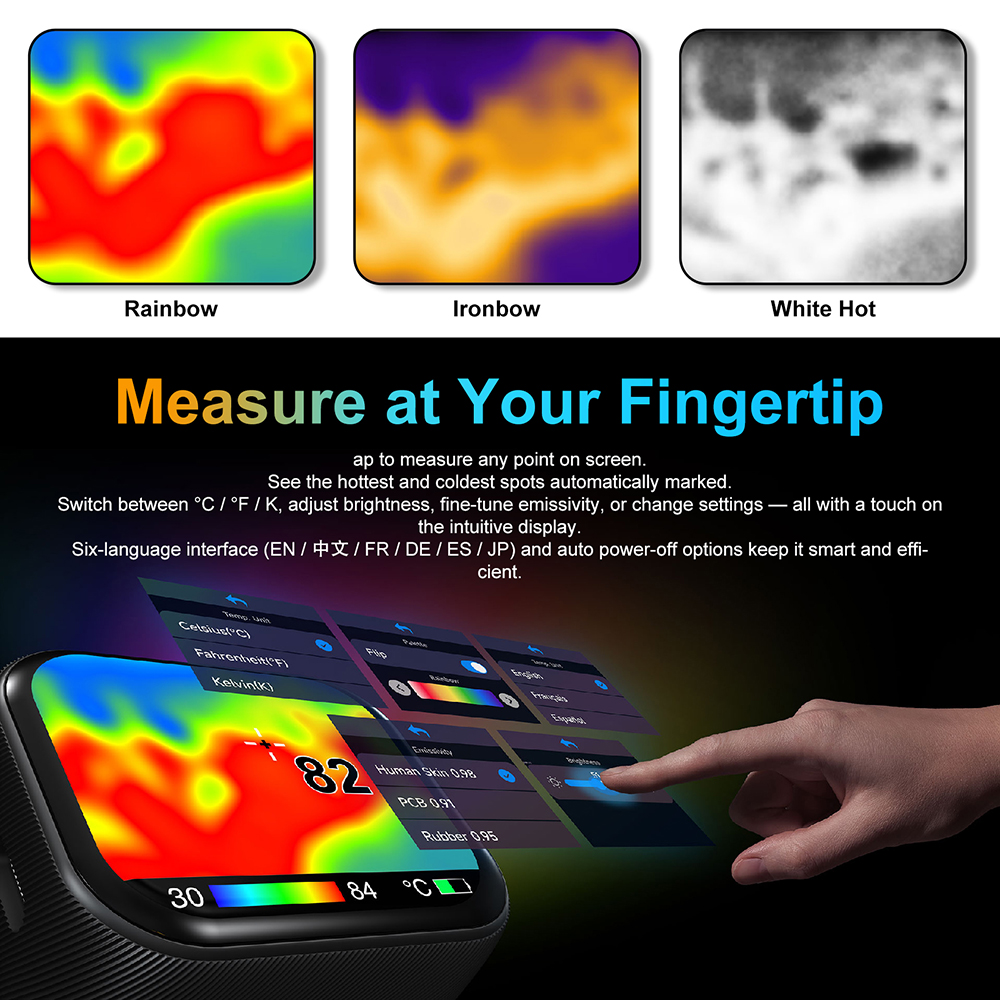

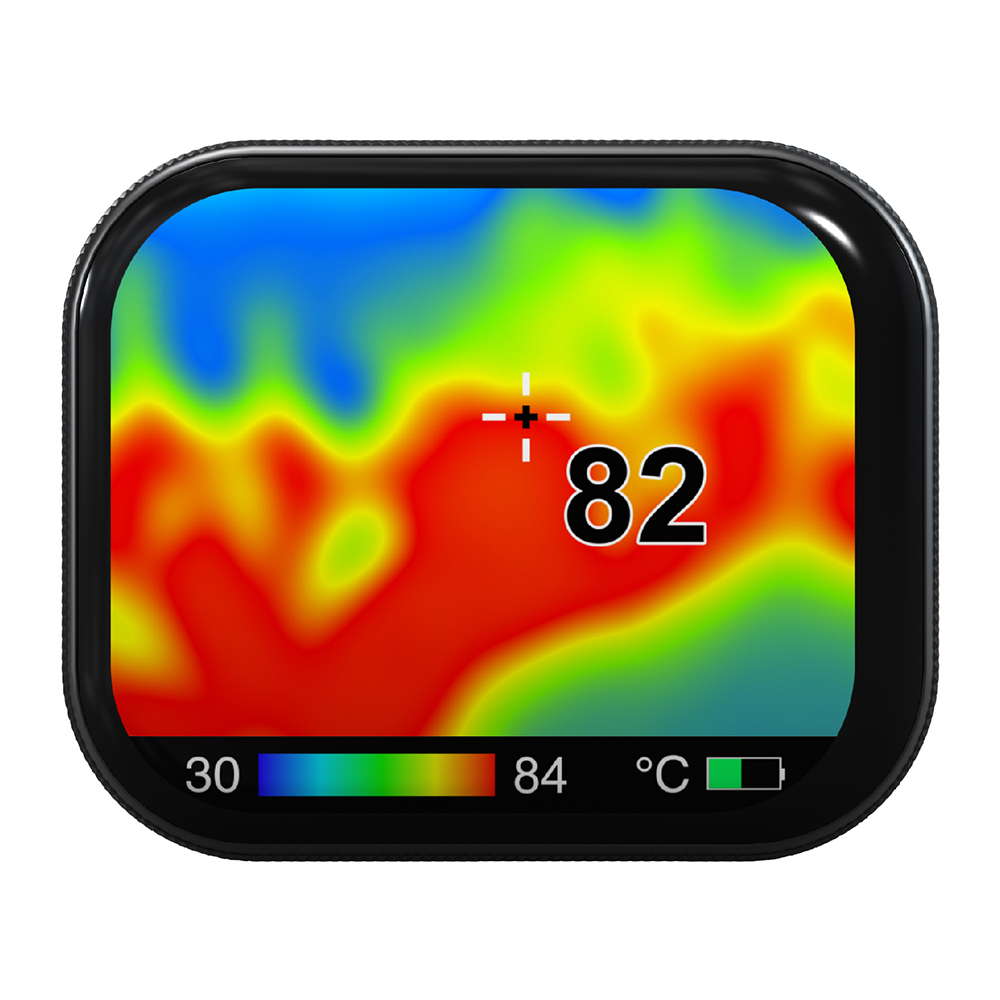

Smart Visualization Modes：Multiple color palettes like Rainbow, Iron Red, White Hot and auto-marking of hottest/coldest points during measurement.

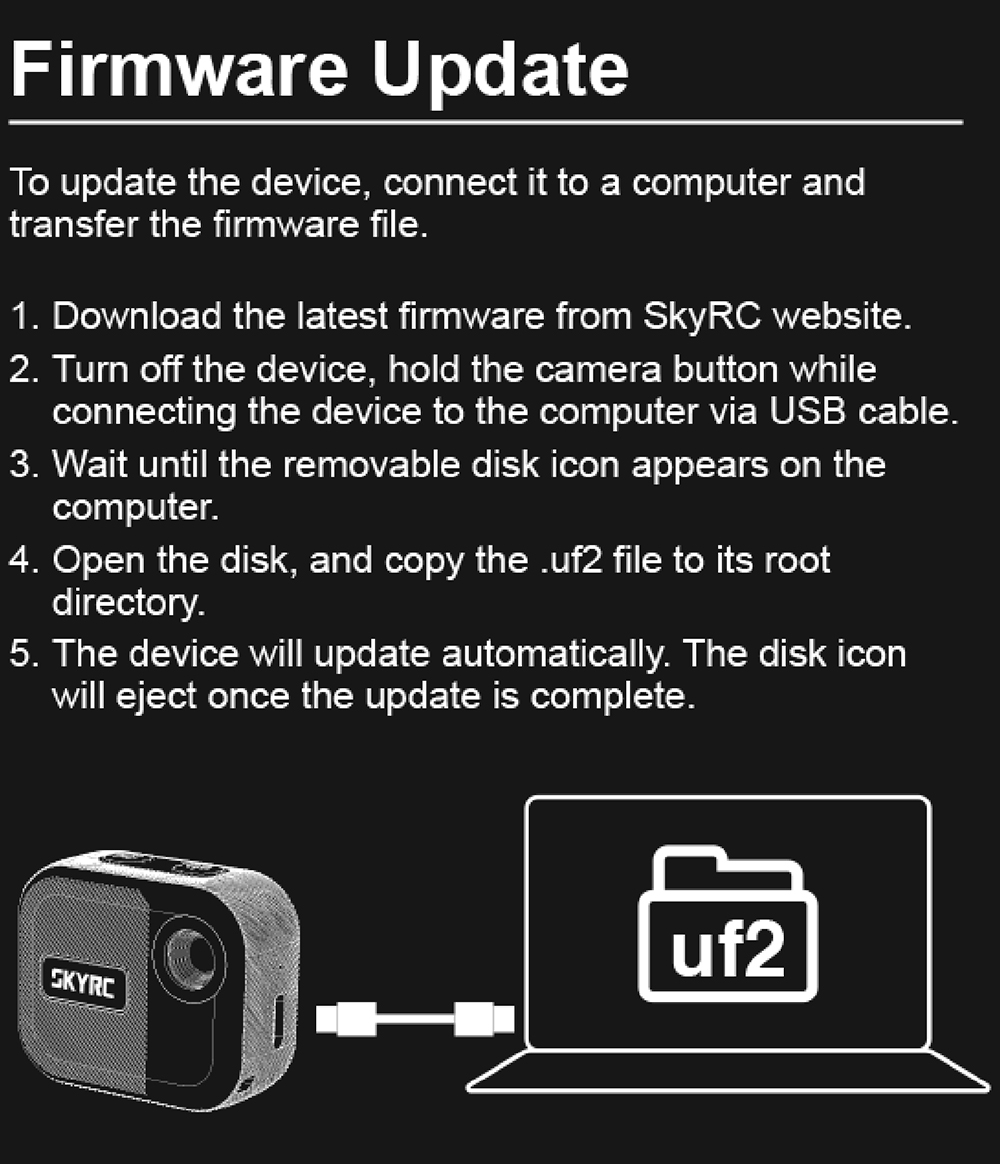

Rechargeable & Easy Firmware Update: USB-C rechargeable 600 mAh battery and effortless UF2 drag-and-drop firmware updates.

Description:

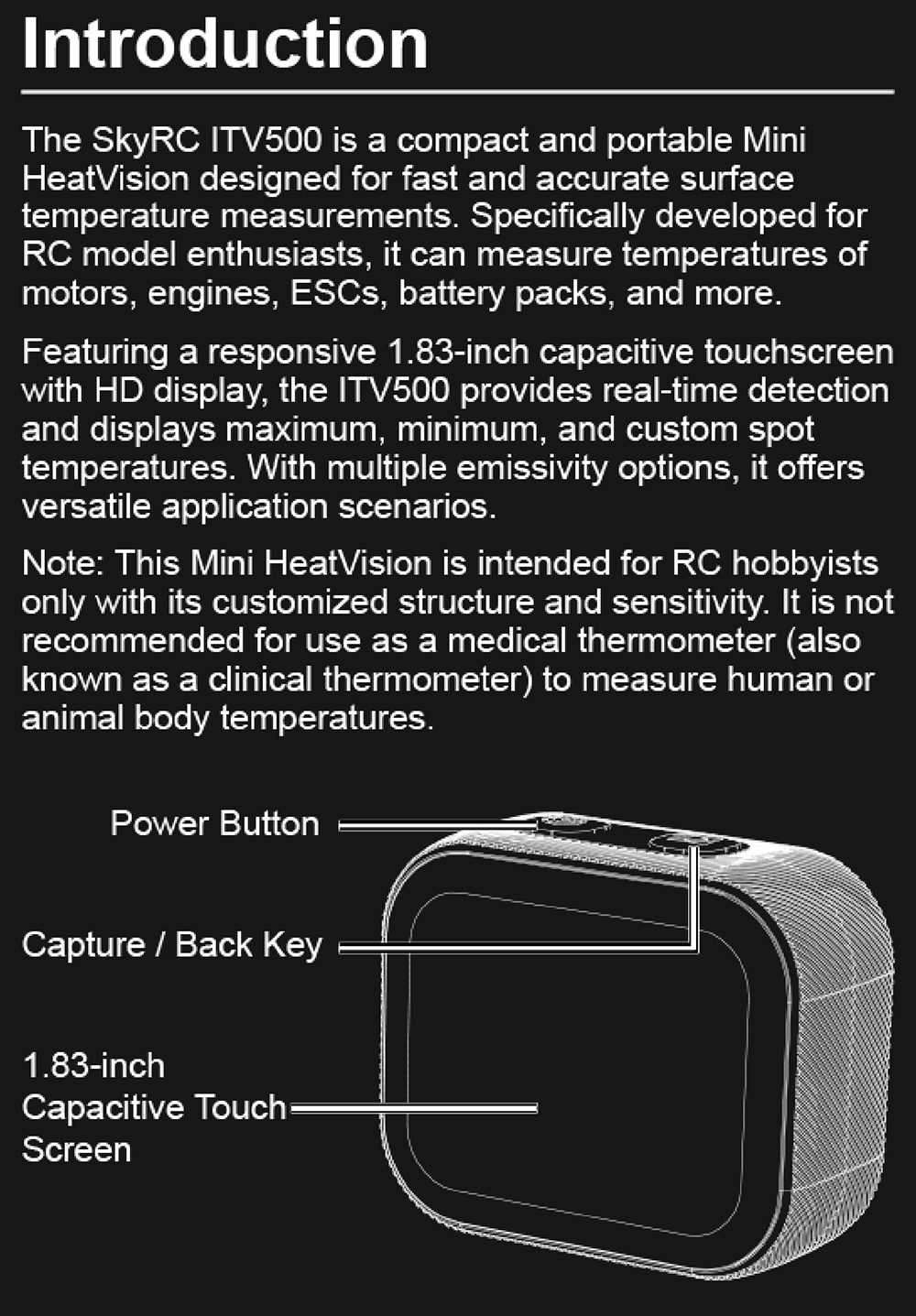

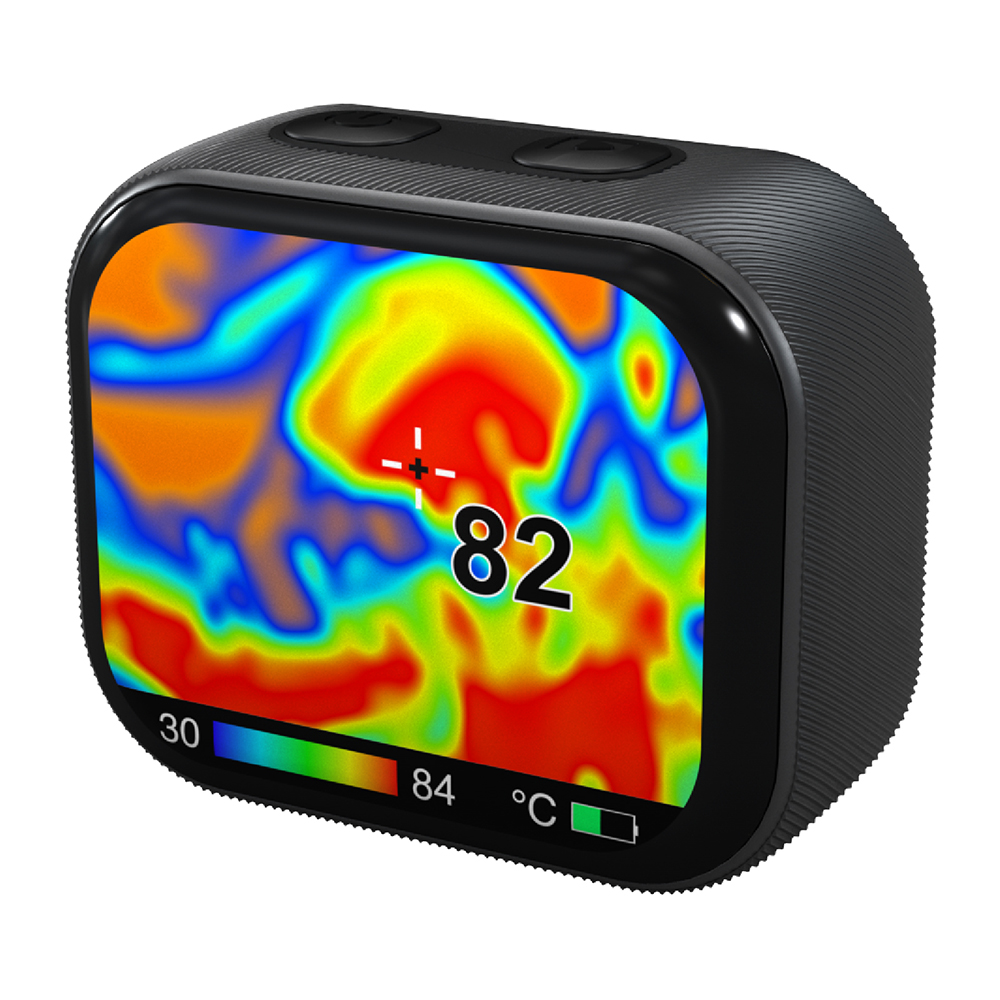

SkyRC ITV500 Mini HeatVision is a compact thermal infrared imaging tool that instantly visualizes temperature without contact. With a bright touchscreen, multiple palette modes, and wide measurement range, it helps RC enthusiasts diagnose hot spots on motor, ESC, batteries and more.

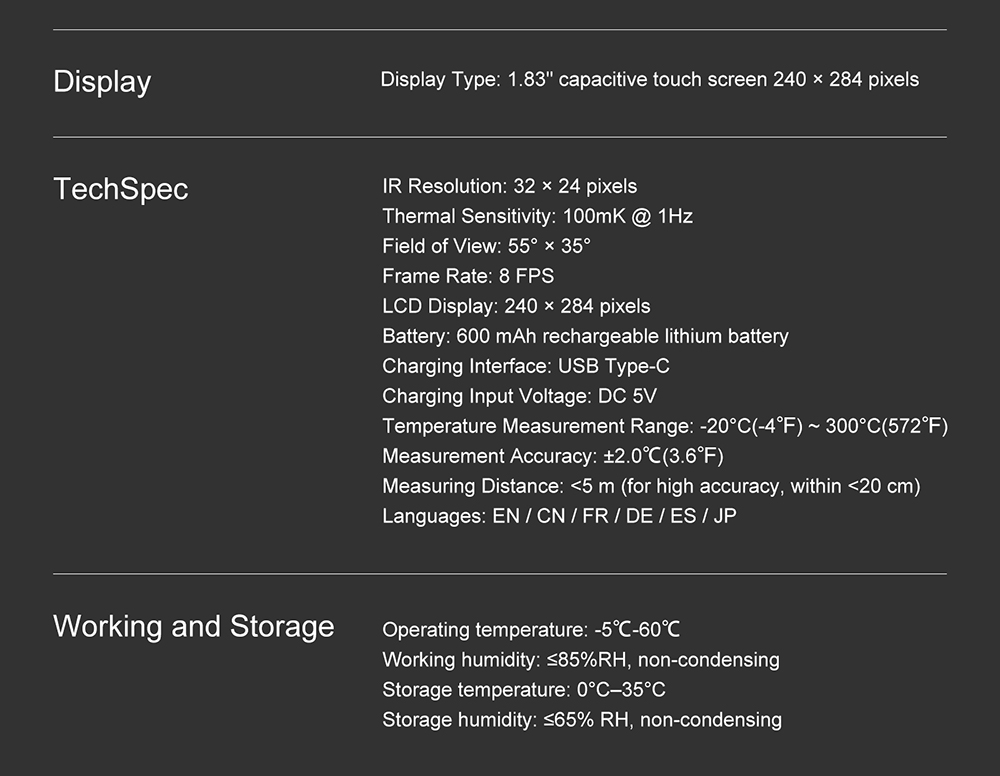

Specifications:

Model: SK-500047-01

IR Resolution: 32 × 24 pixels

Thermal Sensitivity: 100 mK @ 1 Hz

Field of View: 55° × 35°

Frame Rate: 8 FPS

Size: 1.83″ capacitive touch screen

Resolution: 240 × 284 pixels

Range: -20°C ~ 300°C (-4°F ~ 572°F)

Accuracy: ±2.0°C (±3.6°F)

Best Distance: Within <5 m (highest accuracy <20 cm)

Battery: 600 mAh rechargeable lithium

Charging Interface: USB-C

Charging Input Voltage: DC 5 V

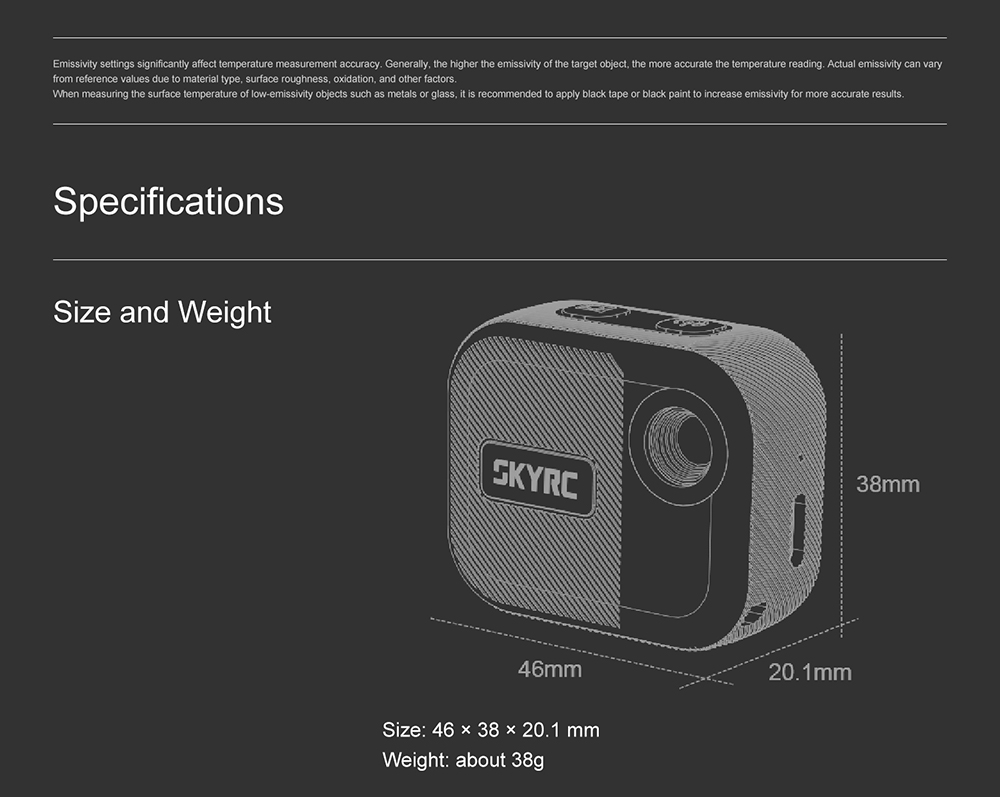

Dimensions: 46 × 38 × 20.1 mm

Weight: ≈38 g

Display Colors: Rainbow, Iron Red, White Hot

Units: °C / °F / K

Language Interface: EN / CN / FR / DE / ES / JP

Operating Temp: -5°C ~ 60°C

Storage Temp: 0°C ~ 35°C

Working Humidity: ≤85% RH

Storage Humidity: ≤65% RH

Package contents:

1*Mini HeatVision ITV500

1*Instruction manual
