3 Axis Moving Workbench 3D XYZ Marking Machine lifting Marking Working Table New

Description

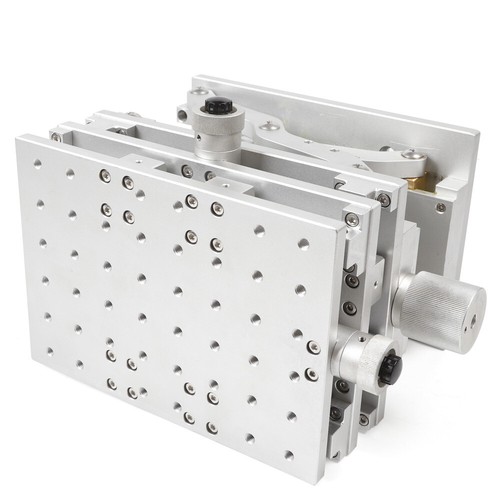

This 3D laser marking machine working platform made of high quality aluminum alloy is specially designed for positioning laser marking of IC, USB flash drive, MP3, and memory card. This 3D platform has the advantages of corrosion resistance, high smoothness, high load capacity, and sturdiness, making it a wise choice for marking small work-pieces.

Specifications

Color: Silver

Material: Aluminum Alloy

Shape Size: 26*15*13cm/10.23*5.90*5.11in

Workbench Size: 21*15 cm/8.26*5.90in

Work Stroke: X=8cm/3.14in Y=5cm/1.96in Z=12cm/4.72in

Installation Hole Spacing: 10X10cm/3.93*3.93in /(M4-M6)

Minimum Height: 14.5cm/5.70in

Maximum Height: 27.5cm/10.82in

Weight: 7kg/15.43lbs

Application

The platform is not only applicable to the position adjustment of various 3D laser marking machines, but also can be used for various experiments and other work surfaces that need to be moved.

Package Included

1*Platform

Features

High Smoothness: This platform is specially designed for laser marking, and its structure is solid. The excellent smoothness of this platform makes the work finish higher.

High Load Capacity: The platform is made of strong and durable aluminum alloy. The high strength of the aluminum alloy gives this platform an excellent load-bearing capacity.

Easy to Operate: The angle of this stage can be adjusted in multiple directions, providing flexible and convenient positioning for laser processing.

Wide Application: The platform is not only applicable to the position adjustment of various 3D laser marking machines, but also can be used for various experiments and other work surfaces that need to be moved.

Corrosion Resistance: The aluminum alloy raw material of this platform forms a tight oxide film when it comes in contact with air, which makes it good corrosion resistance.

Portable Design: The platform has a liftable function. The minimum height of the retracted platform is 5.70in, making it easier to store and carry.

Sturdy and Durable: The platform is made of high quality aluminum alloy, which is sturdy and durable.

Details

Standard Hole Spacing: The base and the platform have standard hole spacing holes, which are easy to combine with other series products.

Iron Screws: The screws of this platform are made of high-quality iron. The strong and durable iron material can extend the service life of the platform.

Plastic Handwheels: The surface of the handwheel of this platform is made of plastic. The surface of the handwheel is designed with unevenness to enhance friction and make it easy to use.

Notes

  • Minimum moving unit: 0.05 mm, rotating one circle to move 1.25 mm.
  • M6 threaded holes are displayed on the panel with a spacing of 25 mm.
  • Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
