Package Contents:1 pc Subwoofer Amplifier Board
luetooth version: 5.0 (unobstructed, 10 meters)
Amplifier chip: TPA3116D2 (with AM interference suppression function)
Colour:Black
Applicable power supply: DC 12-24V/5A or above (the higher the voltage, the greater the output power)
Number of channels: 2.1 channels
Input sensitivity: 500mV

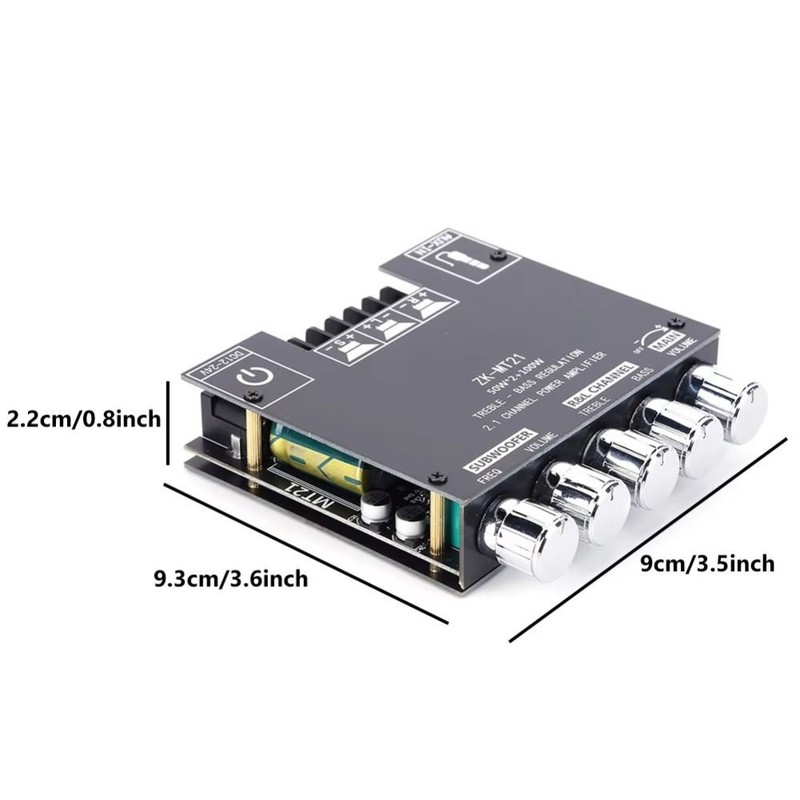

Size:9*9.3*2.2cm (3.54*3.66*0.87in)
Material:plastic
Input method: AUX+Bluetooth
Feature:

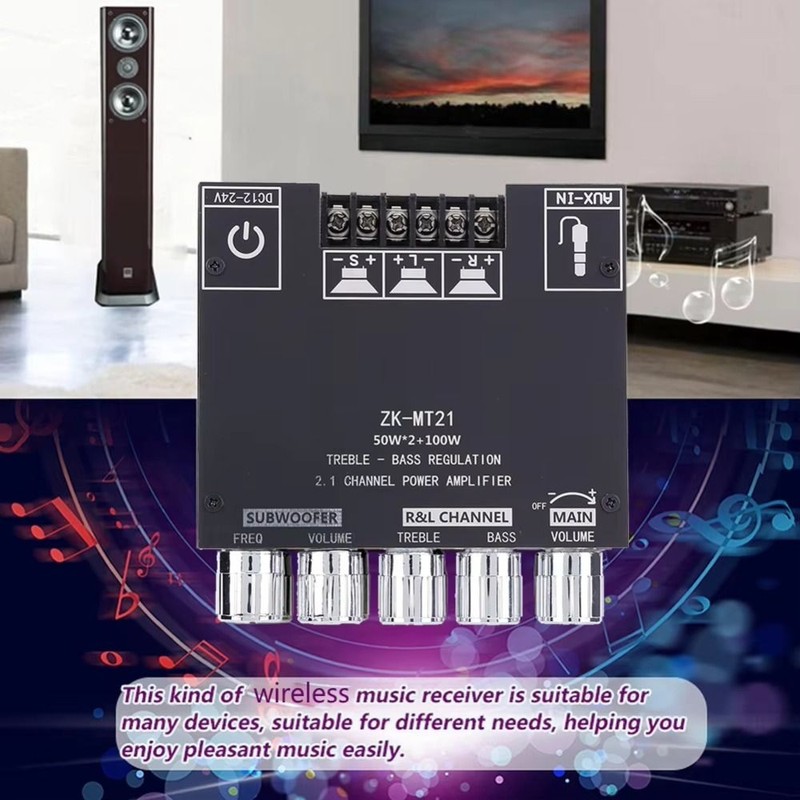

The Bluetooth-compatible audio power amplifier module has 2.1 channels and the maximum output power is 2X50W+100W.
It has two audio input modes, AUX and Bluetooth-compatible, and a two-in- power amplifier board. Bluetooth-compatible5.0, higher transmission efficiency, longer transmission distance
It has short-circuit protection, over-current, over-heating, and anti-reverse protection to prevent total failure. When an overload occurs, the device reports the fault condition to the processor to protect itself from damage
It adopts copper DC connectors and barrier terminals. It can withstand high current without heating or damaging wires.
Classic appearance multi-function main knob. The main knob adopts a rotary encoder that is only used in high-end power amplifiers, which realizes 360-degree stepless tuning and a smooth -key start and stop. The operation is simple and convenient by long pressing the switch.
With bass, treble, subwoofer frequency and volume control, you can easily adjust the volume and enjoy the music tone you want. It is widely used in shopping malls, home theaters, speakers, etc.
