Coilover Coil Spring Struts For Nissan S13 Silvia 24-Way Adjustable Damper Force

Introduction

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Package included

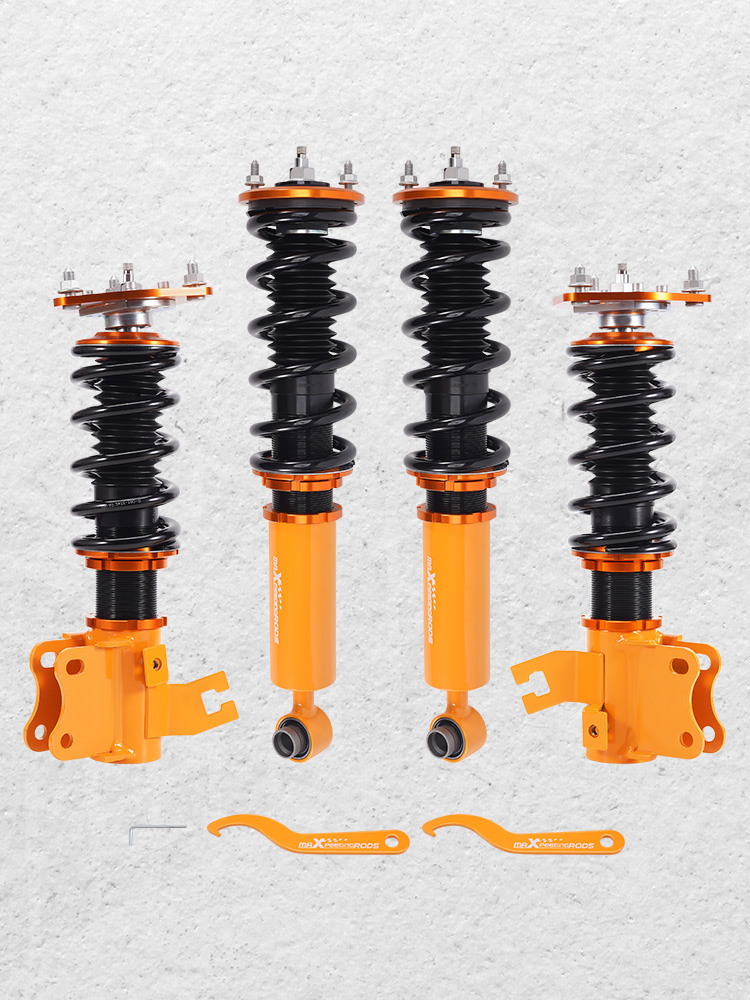

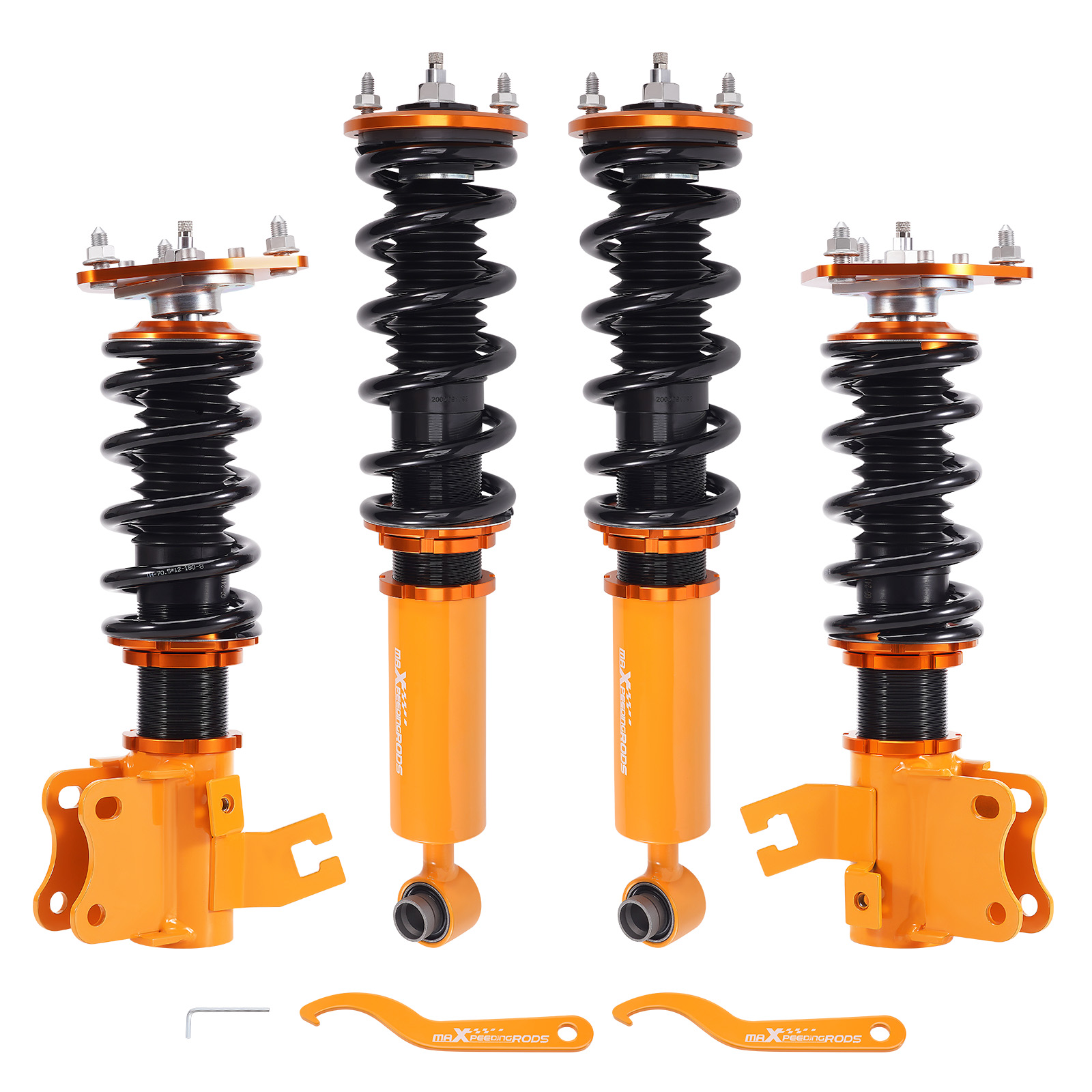

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Application

For Nissan S13 240SX 89-94 USA
For Nissan S13 200SX 89-93 Europe
For Nissan S13 Silvia 88-93 Japan
For Nissan S13 180SX 89-99 Japan
For Nissan S13 Sileighty 98 Japan

Standard Technical Specifications

Damping adjustable	Available, 24 levels of rebound damping force
Camber adjustable	Available, front only

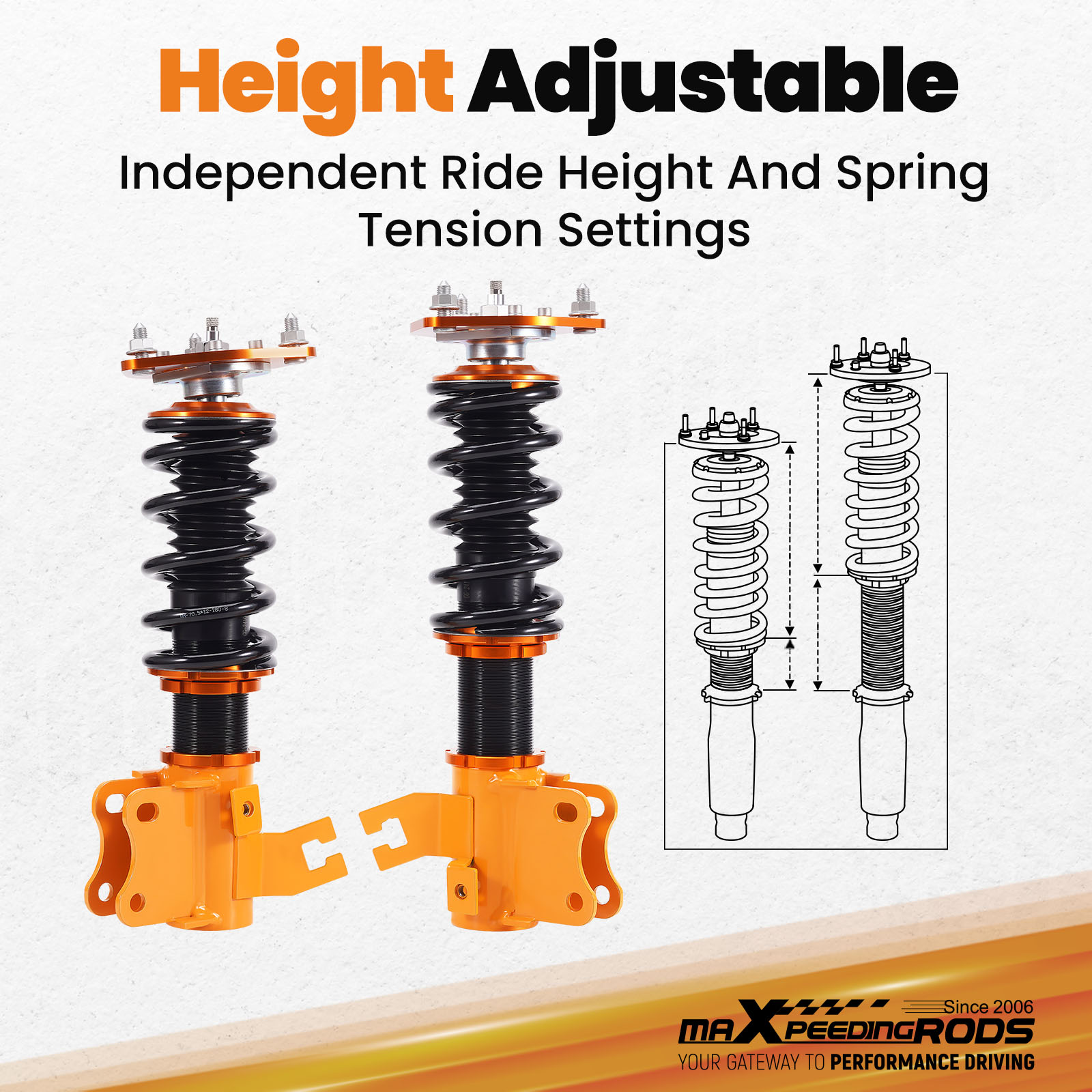

Height adjustable	Yes, lowering 25-75mm depending on the vehicle models

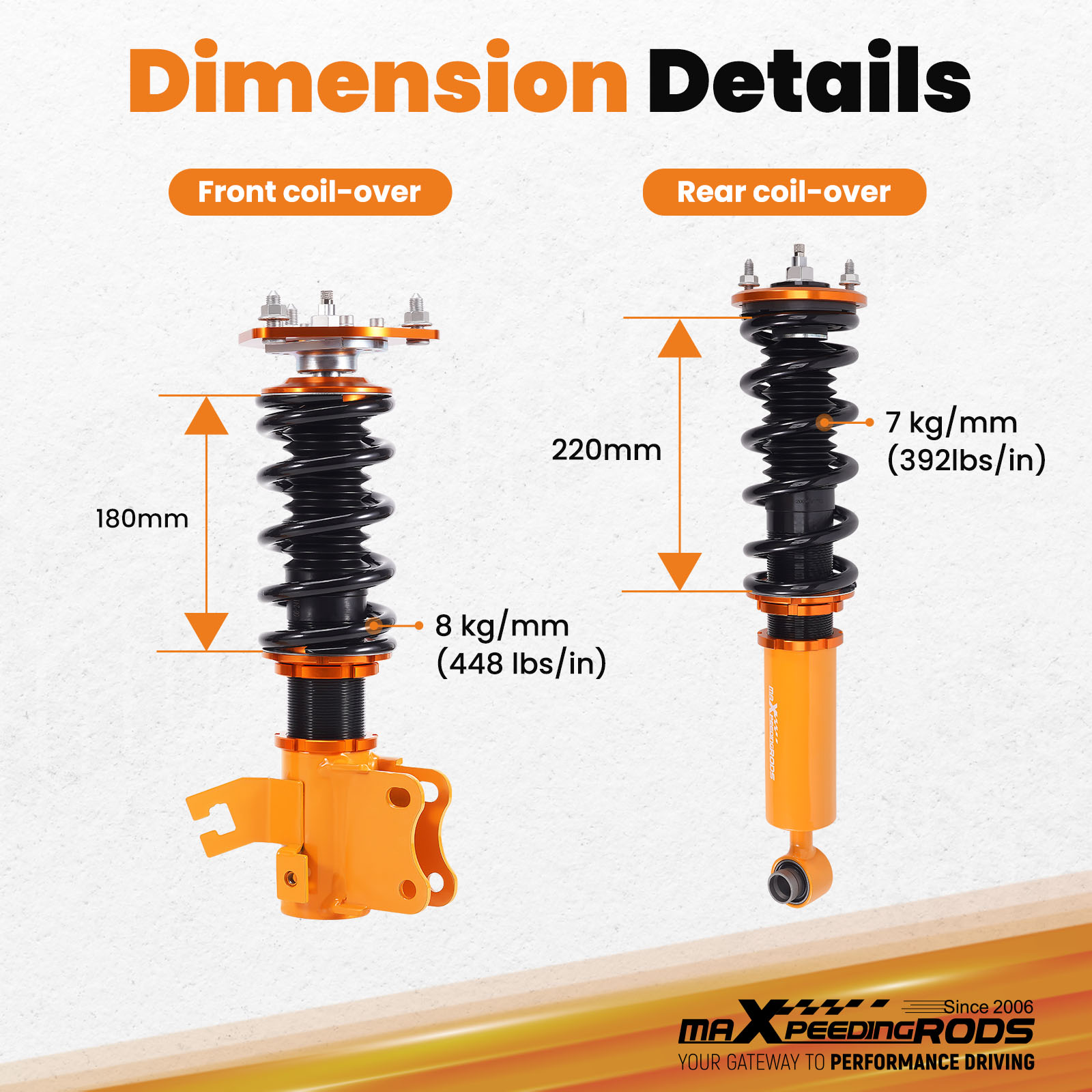

Spring rate Front	8 kg/mm(448lbs/in)
Spring rate Rear	7 kg/mm(392lbs/in)

Spring Preload advised	7-10 mm
Front spring inner diameter	70.5 mm
Rear spring inner diameter	70.5 mm
Spring length Front	180 mm
Spring length Rear	220 mm

Details

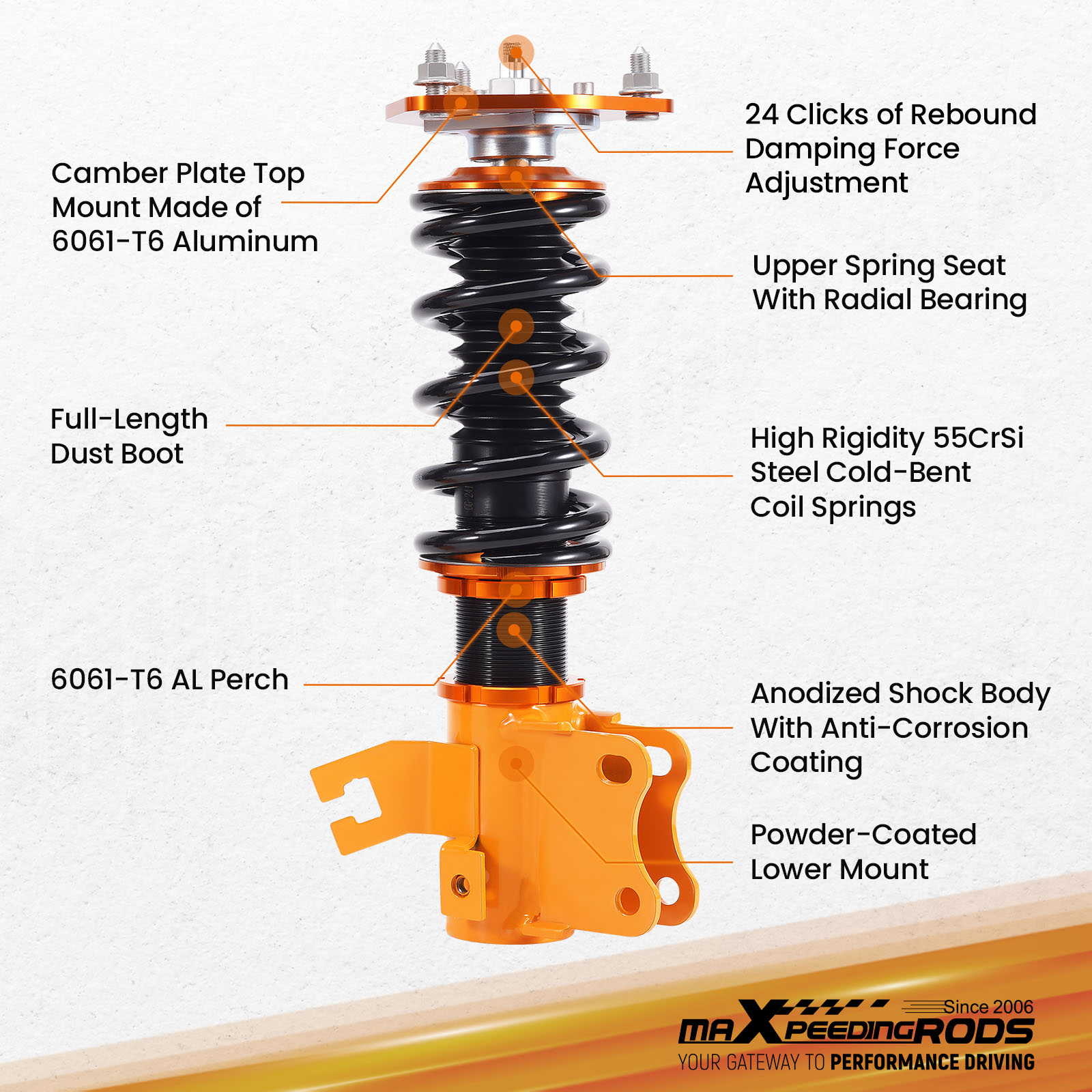

Feature

Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

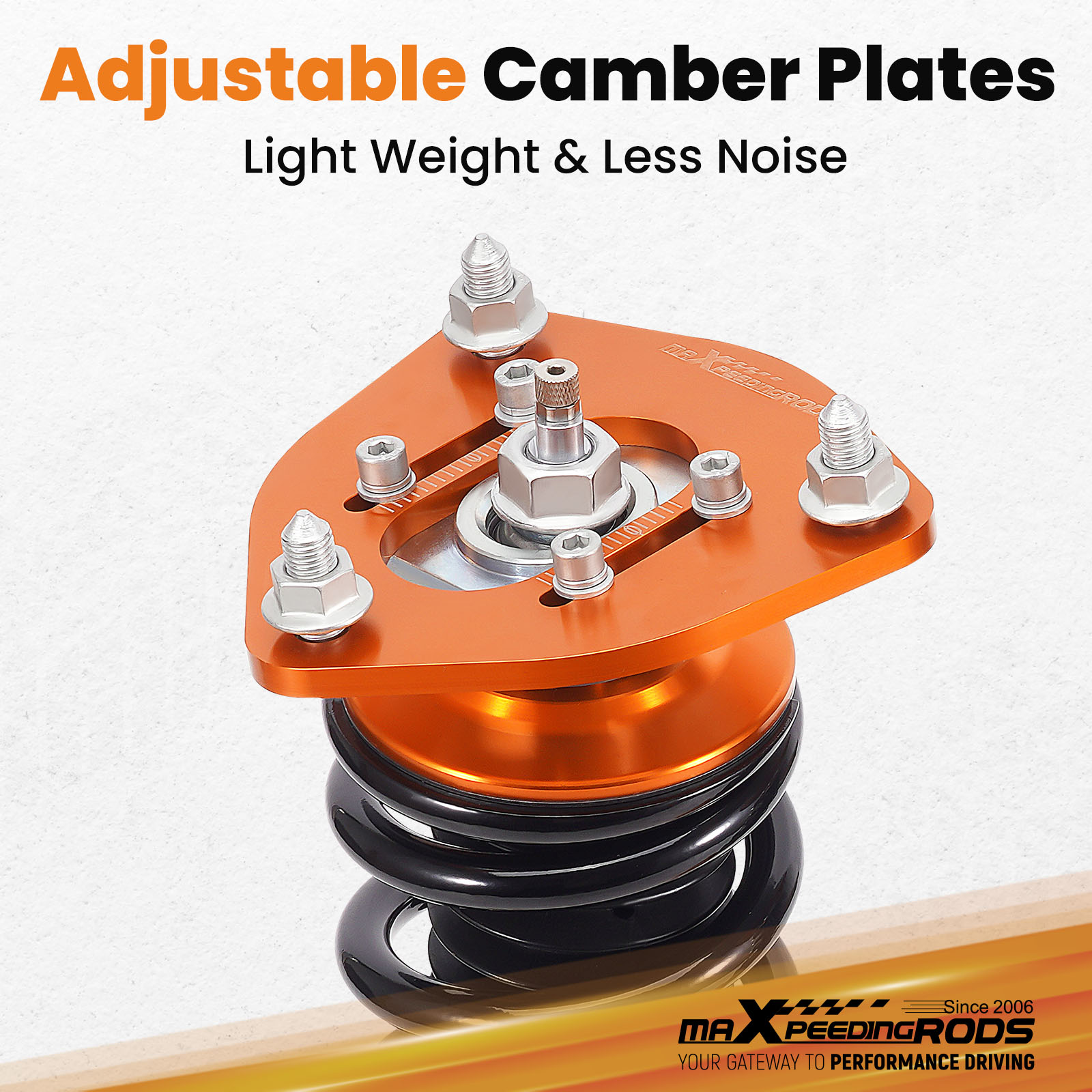

Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

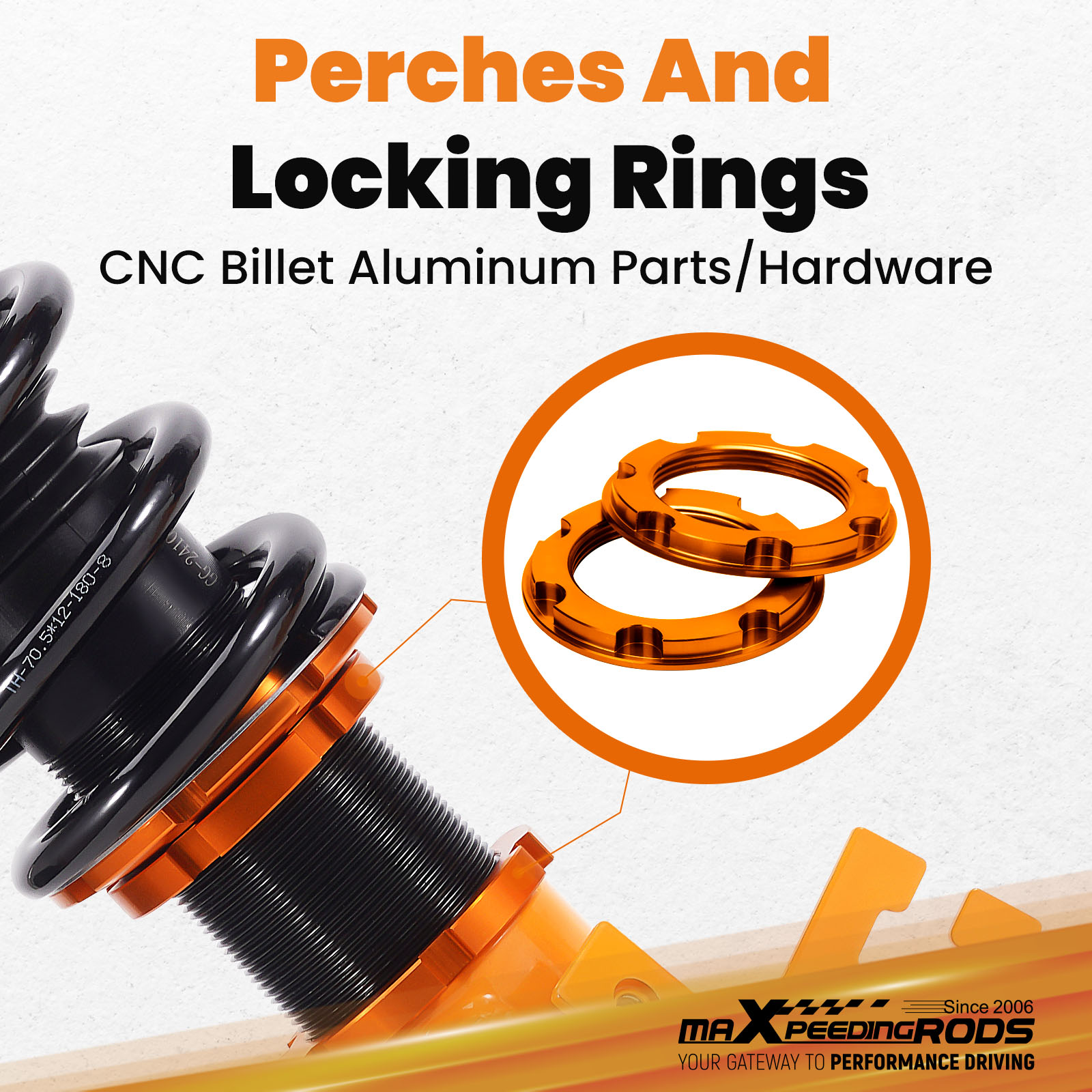

CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

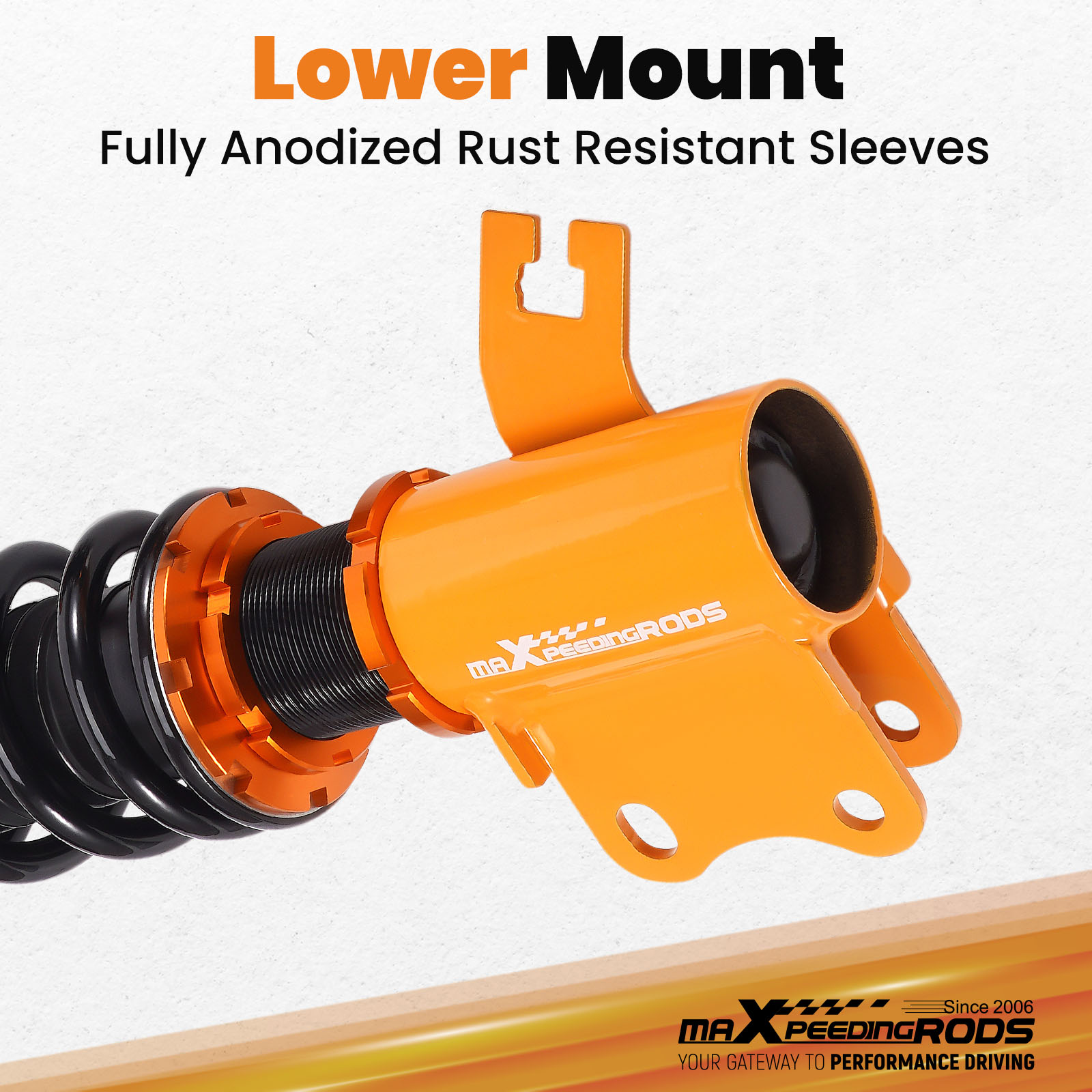

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

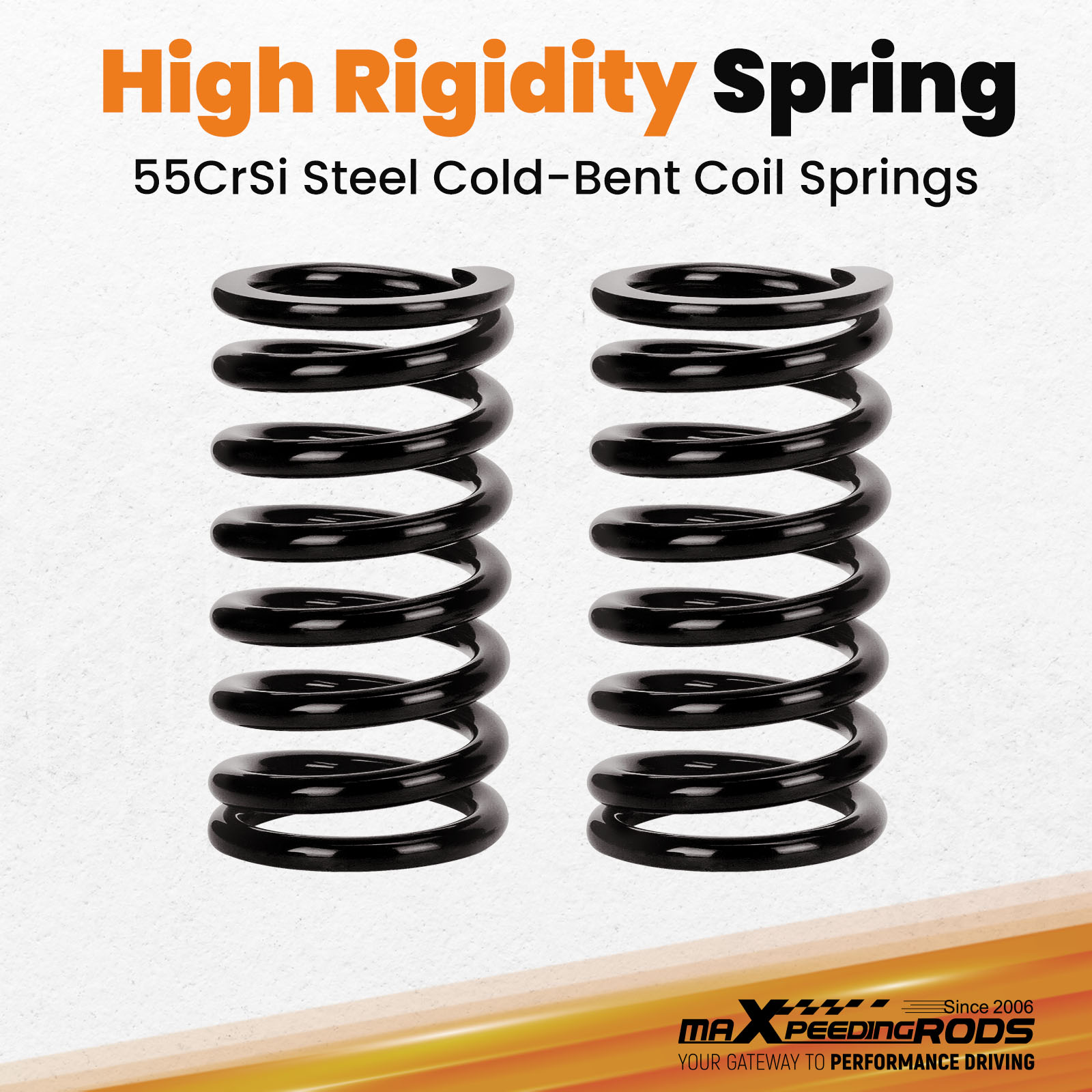

High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

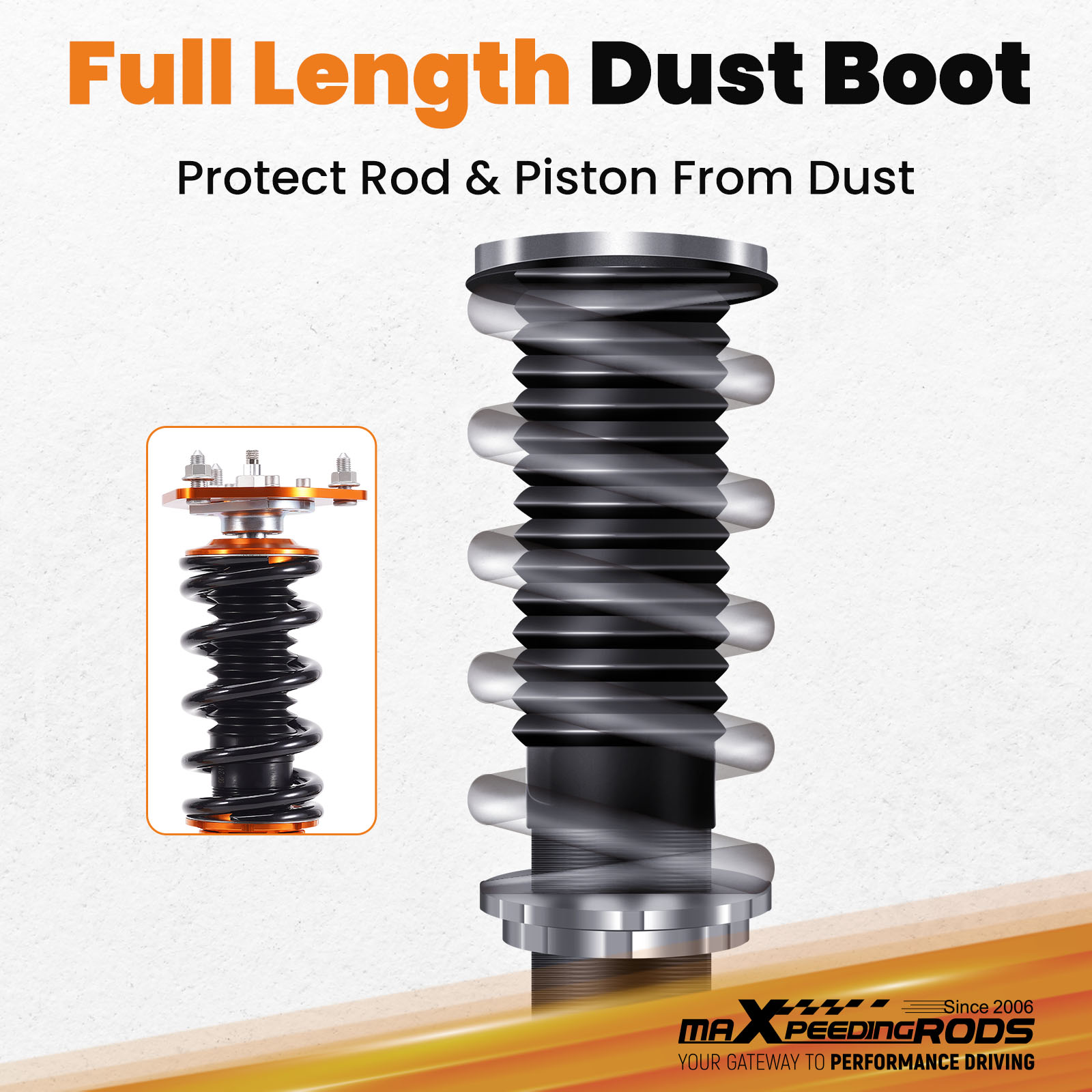

All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
