This Item Has A Current Calibration!
|
|
|
|

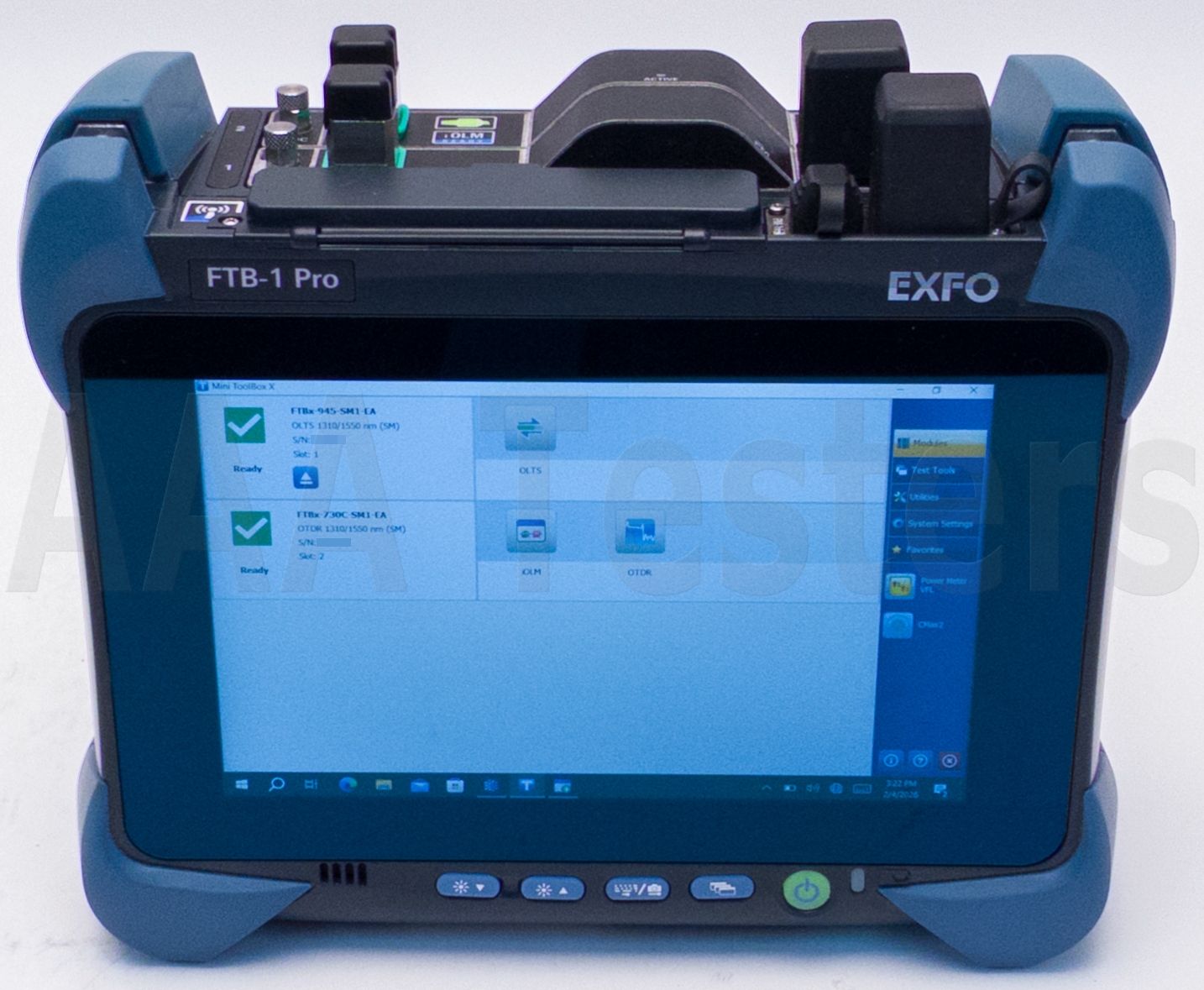

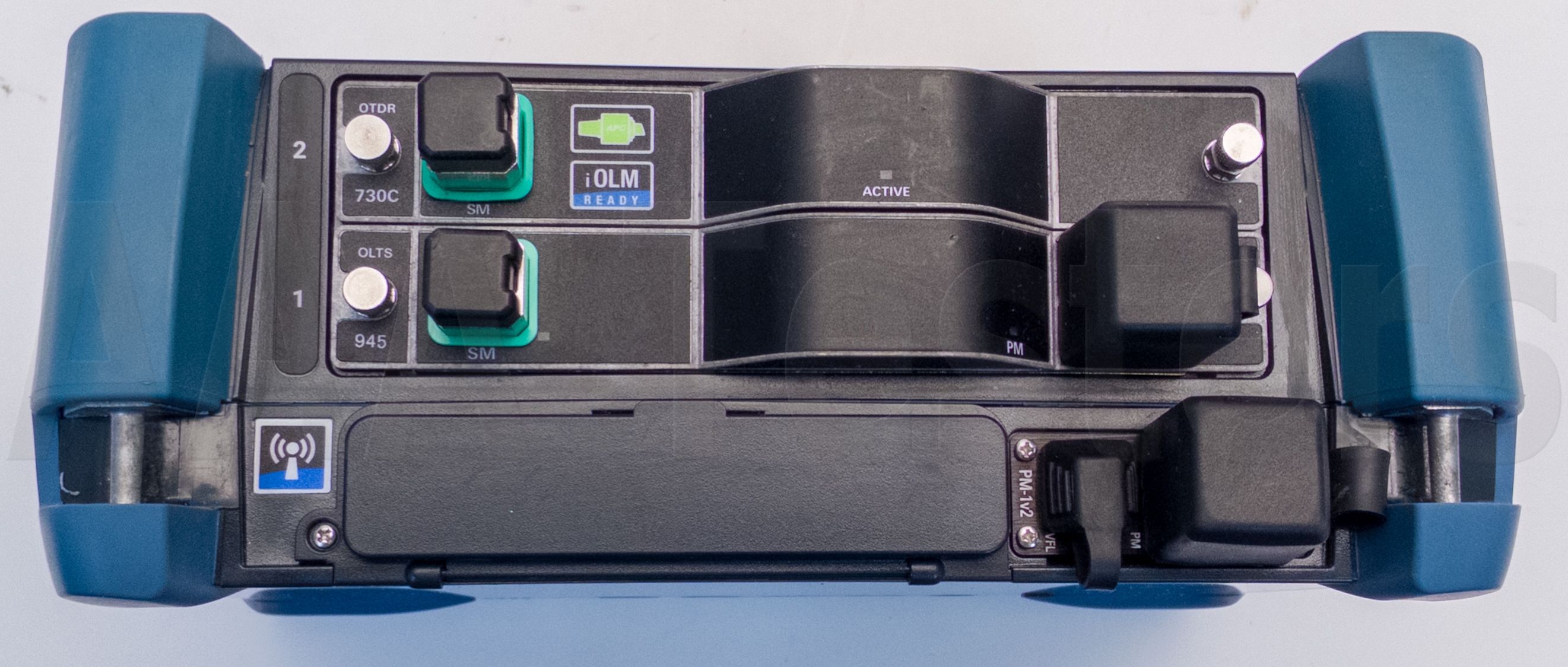

EXFO FTB-1V2-PRO-S2-128G MainFrame w/ EXFO FTB-730C-SM1-EA SM 1310 / 1550nm Fiber OTDR Module & EXFO MAX-945-SM1-EA Module

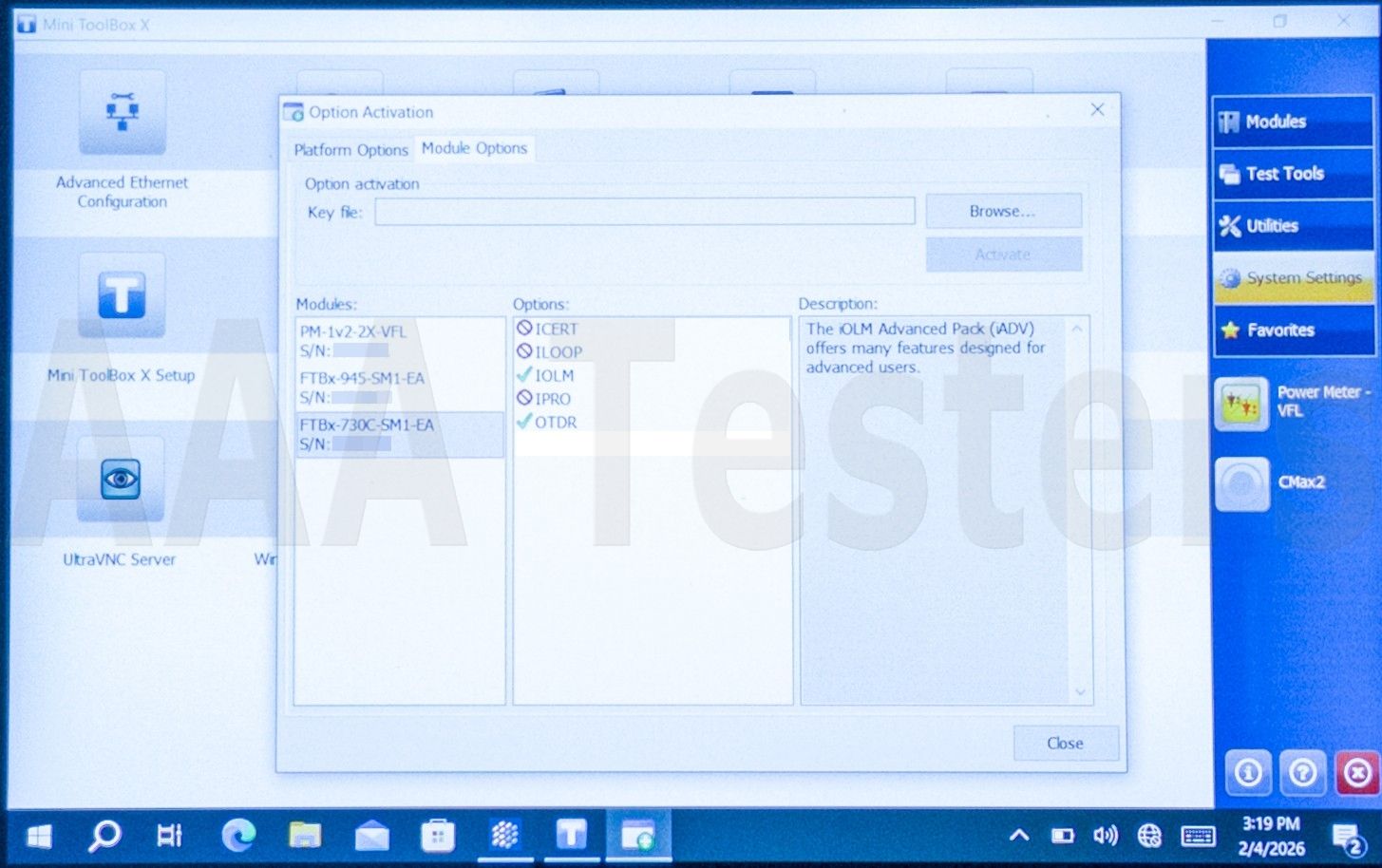

Module Options:

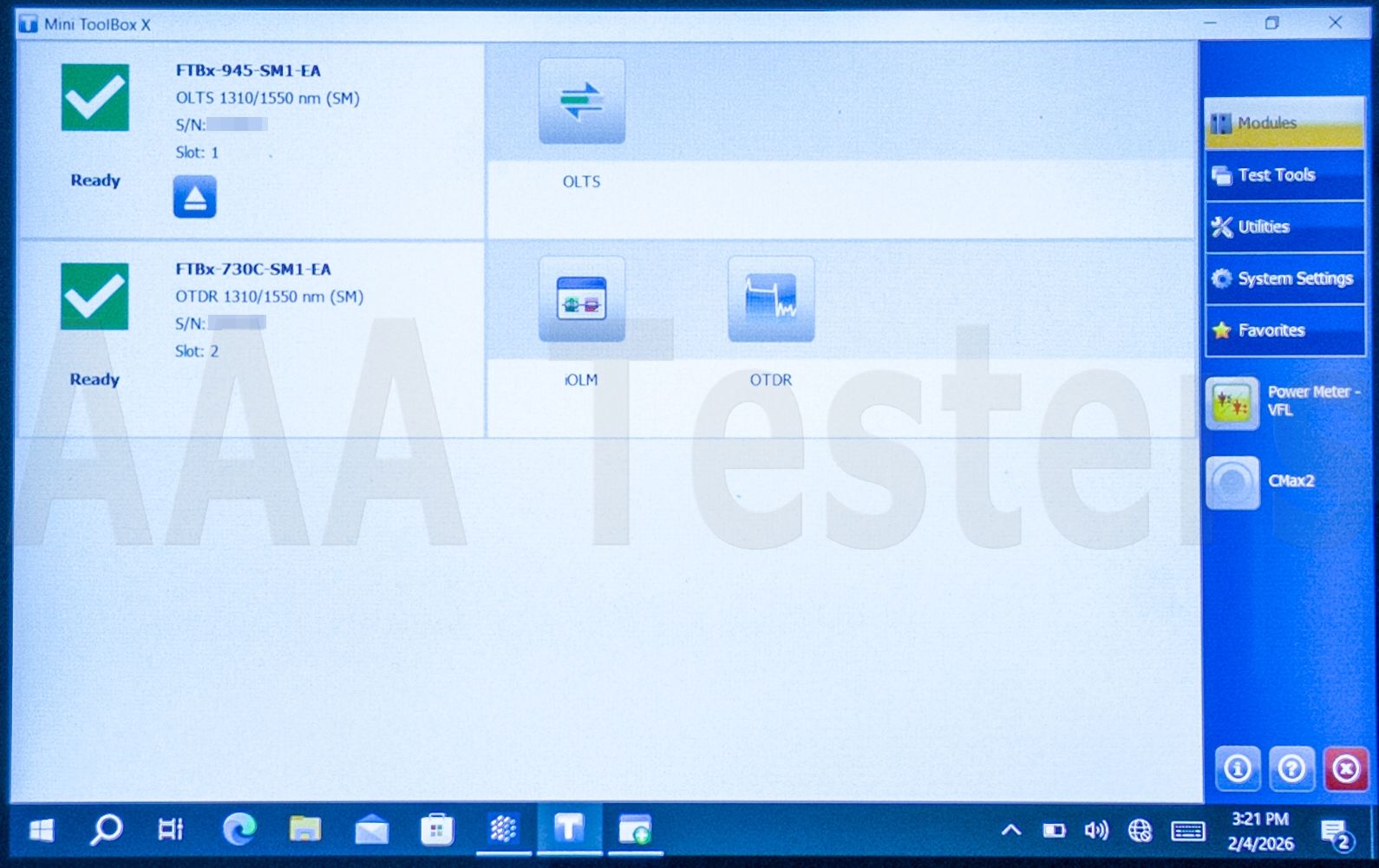

- OTDR
-IOLM
Dynamic Range:
1310 / 1550 nm : 39 / 38 dB
Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
EXFO FTB-1 V2 Pro Mainframe
ADAPTED FOR DEDICATED APPLICATIONS. DEDICATED TO HELPING YOU ADAPT.
Thanks to its small format, ultra-powerful processing and highly intuitive interface, the FTB-1 V2 is optimized to allow field technicians to carry out dedicated optical, Ethernet and multiservice test applications simply and efficiently.
OPTICAL PLUG-AND-PLAY OPTIONS
The platform features optical plug-and-play options that can be purchased whenever you need them: at the time of your order or later on. In either case, installation is a snap, and can be performed by the user without the need for any software update.
FIBER CONNECTOR INSPECTION AND CERTIFICATION–THE ESSENTIAL FIRST STEP BEFORE ANY OTDR TESTING
Taking the time to properly inspect a fiber-optic connector using an EXFO fiber inspection probe can prevent a host of issues from arising further down the line, thus saving you time, money and trouble.
The First Fully Automated Fiber Inspection Probe for the Field
Housing a unique automatic focus adjustment system, the FIP-430B USB and FIP-435B Wi-Fi Probes automate each operation in the connector endface inspection sequence, transforming this critical process into one quick and easy step, which can be performed by technicians of all skill levels.
CONNECTED ANYWHERE, ANYTIME
The value of connectivity resides in the ability to connect your platform anywhere, at any time. This is why we’ve equipped our platforms with technology offering unprecedented flexibility. Whether you need to transfer data to the cloud or interface with a smart device, you’ll have the capability needed.
EXFO CONNECT MAKES YOUR DATA MEAN BUSINESS
EXFO Connect completely redefines integrated testing with its cloud-hosted solution. Equipped with powerful database and application technologies, EXFO Connect provides an automated, secure environment that links together your EXFO test instruments and centralizes captured data across your organization. With its powerful correlation engine, EXFO Connect enables you to convert captured data into actionable information through customized test-data reporting and features that streamline test operations from build-out to maintenance.
Test Equipment Manager
EXFO Connect’s Test Equipment Manager is an automated application that centralizes the management of all EXFO test instruments. A repository for software loads, licenses and platform profiles, it helps managers handle constant demand for software updates.It also keeps track of equipment and ensures field technicians are equipped with up-to-date capabilities.
Test Data Manager
EXFO Connect’s Test Data Manager is an automated application that provides a secure and centralized environment in which test data is collected, archived and referenced for future use. With test results at their fingertips, managers can create birth certificates, generate reports and set benchmarks.
FTB Anywhere: Floating Test Licenses
FTB Anywhere™ is a shared test-license capability for the award-winning FTB Ecosystem. This unique approach to delivering advanced test applications enables network operators to purchase a specific number of cloud-hosted licenses that can be shared instantly with their technicians, wherever they happen to be.
Features:
- Connects anywhere:
- USB, mobile, Wi-Fi, virtual private network (VPN) and Bluetooth
- Loaded with utilities:
- equipped with all the tools needed to optimize field testing, plus any third-party applications
- Like a PC:
- available with a dual- or quad-core processor and Windows operating system
- EXFO Connect-ready:
- automated asset management; data goes through the cloud and into a dynamic database
Specifications:
| SPECIFICATIONS |
| Mainframe |
Dual-core processor/4 GB RAM/Windows Embedded 8 Standard |
| Display |
Multitouch, wide-screen, color, 1280 x 800 TFT 203 mm (8 in) |
| Interfaces |

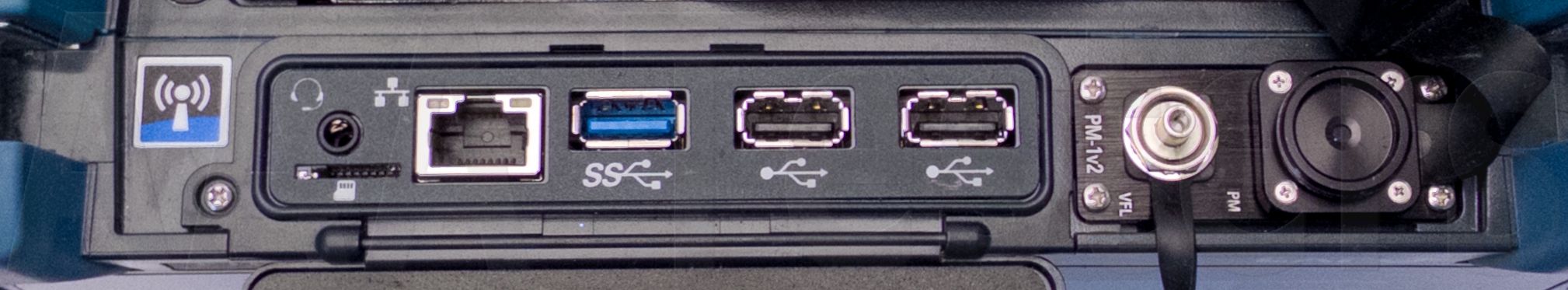

RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Micro SD card slot 3.5 mm headset/microphone port |
| Storage |
64 GB internal memory (flash) |
| Battery |
Rechargeable Li-ion smart battery |
| Power supply |

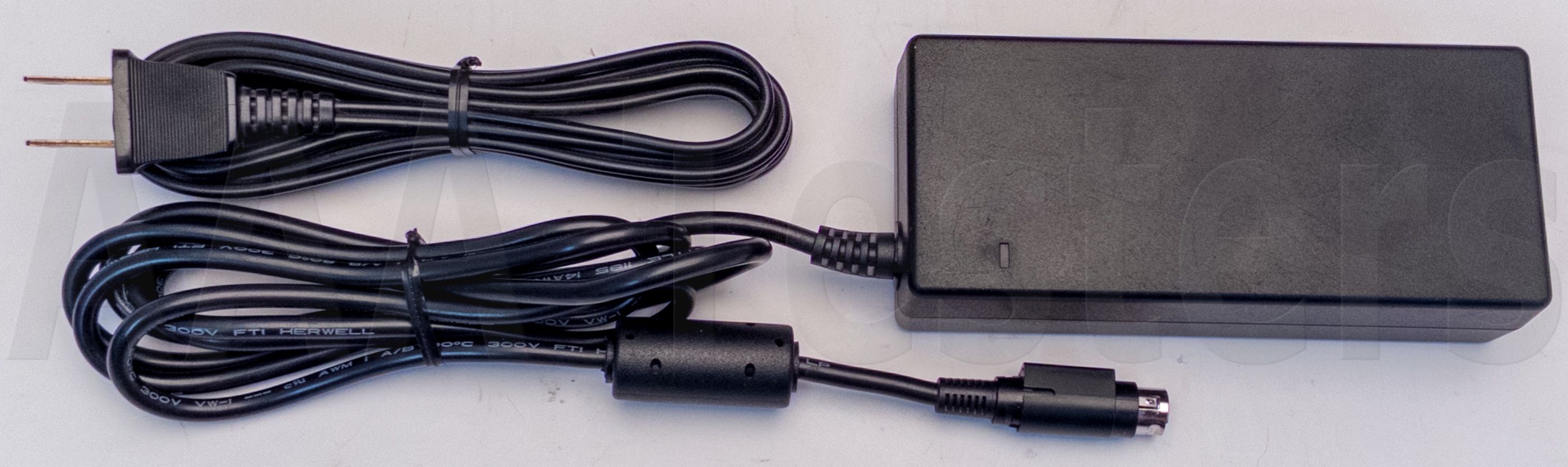

AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A |
| GENERAL SPECIFICATIONS |
| Size (H x W x D) |
With single-depth module 210 mm x 254 mm x 66 mm (8 ¼ in x 10 in x 2 5/8 in)
With double-depth module 210 mm x 254 mm x 96 mm (8 ¼ in x 10 in x 3 13/16 in) |
| Weight (with battery) |
1.5 kg (3.3 lb) |
| Temperature |
Operation 0 °C to 50 °C (32 °F to 122 °F)
Storage –40 °C to 70 °C (–40 °F to 158 °F)
|
| Relative humidity |
0 % to 95 % non-condensing |
EXFO FTB-730C Specifications
Specifications:
| Wavelength (nm) |
1310 ± 20/1550 ± 20 |
| Dynamic range (dB) |
39/38 |
| Event dead zone (m) |
0.5 |
| Attenuation dead zone (m) |
2.5 |
| PON dead zone (m) |
30 |
| Distance range (km) |
Singlemode: 0.1 to 400 |
| Pulse width (ns) |
Singlemode: 3 to 20 000 |
| Linearity (dB/dB) |
±0.03 |
| Loss threshold (dB) |
0.01 |
| Loss resolution (dB) |
0.001 |
| Sampling resolution (m) |
Singlemode: 0.04 to 10 |
| Sampling points |
Up to 256 000 |
| Distance uncertainty (m) |
±(0.75 + 0.0025 % x distance + sampling resolution) |
| Measurement time |
User-defined (maximum: 60 minutes) |
| Reflectance accuracy (dB) |
±2 |
| Typical real-time refresh (Hz) |
4
|
| GENERAL SPECIFICATIONS |
| Size (H x W x D) |
|
| Weight |
0.4 kg (0.9 lb) |
| Temperature |
Operating: Refer to platform’s specification sheet
Storage : –40 °C to 70 °C (–40 °F to 158 °F) |
| Relative humidity |
0% to 95% non-condensing |
Exfo MAX-945 Specifications
| POWER METER SPECIFICATIONS |
|
| Input connector |
Interchangeable adapter |
| Detector type |
InGaAs |
| Measurement range (dBm) |
5 to -75 |
| Uncertanity (pW) |
±(5 % + 32) |
| Wavelengths range (nm) |
800 to 1650 |
| FASTTEST™ LOSS/LENGTH SPECIFICATIONS |
|
| Testing Speed |
FasTesT™ Duplex: 2.6 seconds (two wavelengths, one direction, automated, IL + length)
FasTesT™ Simplex: 5.0 seconds (two wavelengths, bidirectional, automated, IL + ORL + length) |
| Input/Output connectors |
Interchangeable adapter
iCERT model: LC, SC or FC EUI
SM1, SM3 and SM4 models: All EUI |
| Wavelengths (nm) |
Singlemode (Laser)
1310 ± 20
1550 ± 20 |
| Launch condition |
EF compliancy guaranteed at multimode source port Within TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 Encircled Flux template limits at the end of an EXFO reference-grade 50/125 µm test cord |
| Loss range (dB) |
Multimode: 20 Singlemode: 45 |
| Length measurement range (km) |
Multimode: 20
Singlemode: 160 |
| Length measurement uncertainty |
±(0.5 m + 0.5 % x length |
| Output power (dBm) |
Multimode : –25 (850 nm and 1300 nm)
SM1 : 2.5 (1310 nm and 1550 nm)
SM3 : -1 (1310 nm and 1550 nm) / -7 (1625 nm)
SM4 : -1 (1310 nm and 1550 nm) / -7 (1490 nm) |
| Output power stability (dB) |
±0.05 over 8 hours |
| Spectral width (FWHM) (nm) |
850 nm: 30 to 60
1300 nm: 100 to 150 |
|
|
|
|
