Crydom PF480D25 Solid State Relay 25 A rms Surface Mount, Zero Crossing SCR


  • Brand Crydom
  • Mfr. Part No. PF480D25
Crydom


Solid State Relay 25 A rms PCB Mount, Zero Crossing SCR, 15 V
Image representative of range


Product Details

PF Series-25A at 12 to 660Vac in SIL with Integrated Heatsink

Ultra high steady state current rating
Low leakage (off-state)
SCR output
AC or DC controlled versions
Surge current peak: 250A
Input-Output capacitance: 8pF
Operating temperature range: -40 → +80°C
Zero-cross switching where stated otherwise random-fire
Dimensions H49.1mm x W22.8mm x D43.1mm

Approvals

UL, VDE



Crydom PCB Mounting

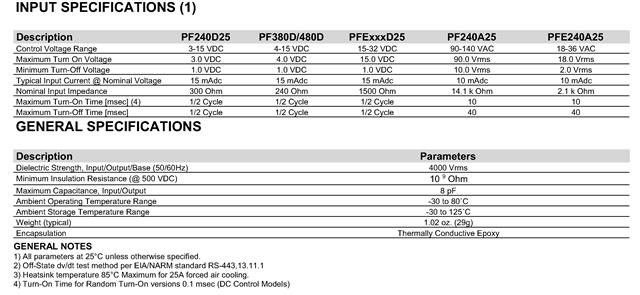

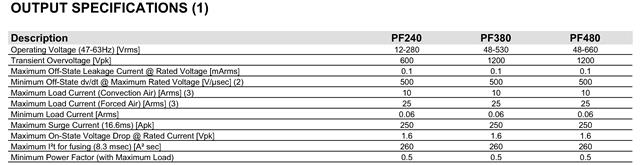

Specifications

Control Voltage Range 4 → 15 V dc
Depth 22.8mm
Dimensions 43.1 x 22.8 x 34.3mm
Height 34.3mm
Length 43.1mm
Load Voltage Range 48 → 660 V ac
Maximum Control Voltage 15 V
Maximum Load Current 25 A rms
Maximum Load Voltage 660 V rms
Minimum Load Current 0.06 A
Mounting Type PCB
Operating Temperature Range -30 → +80°C
Output Device SCR
Switching Type Zero Crossing



For a Specification PDF Please CLICK HERE
