Application:

for F150 2 Wheel Drive  2004-2014 Will Not for 2004 Heritage model

for Lincoln Mark Lt 2 Wheel Drive  2006-2013

NOTE: Not for 2004 Heritage or Lighting Models.

if your truck has a one piece drive shaft this kit will NOT work with out using a smaller diameter drive shaft and modifying transmission cross member.

Specification:

Product Type: Lowering spring kit

Compatible lower Height：F:3" R:5"

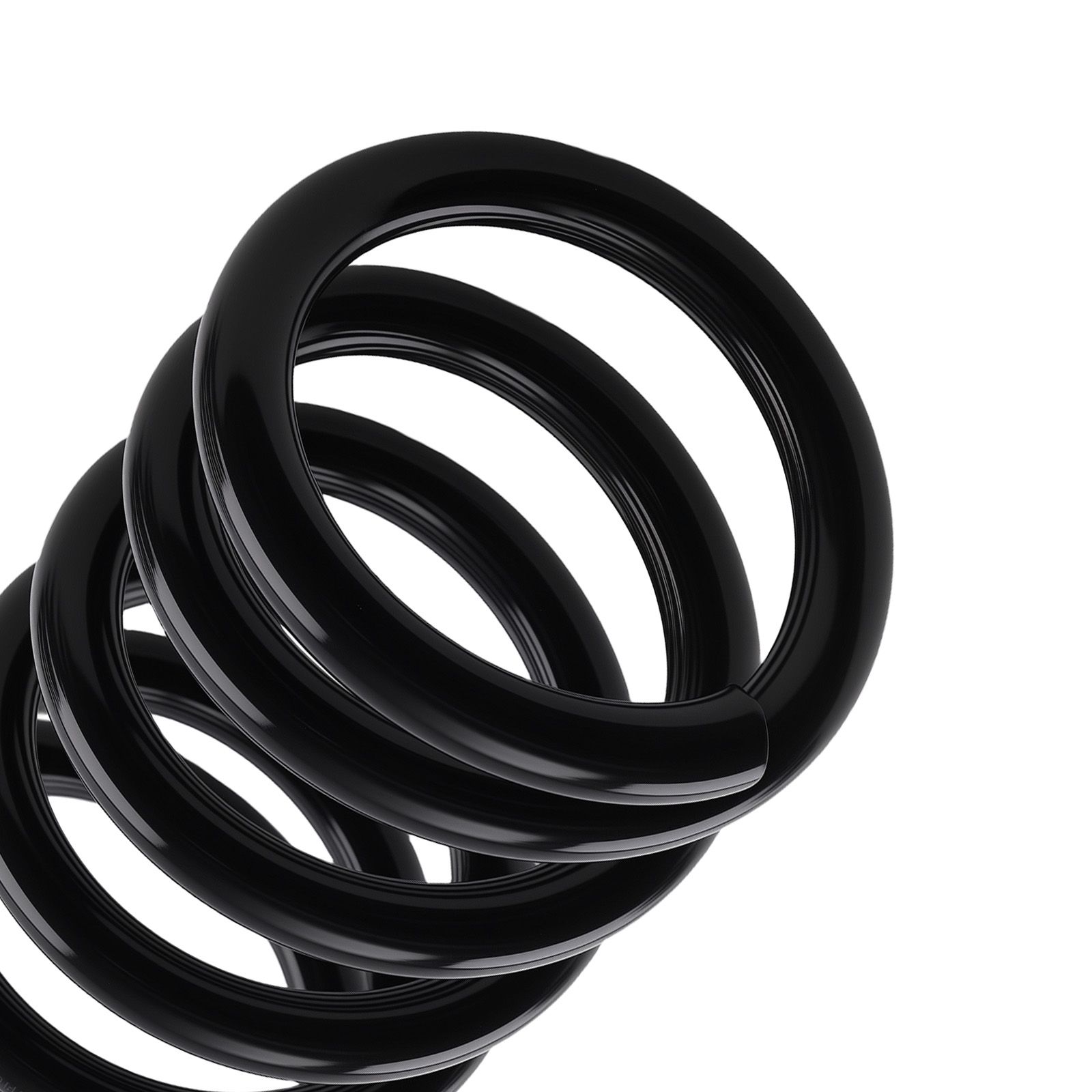

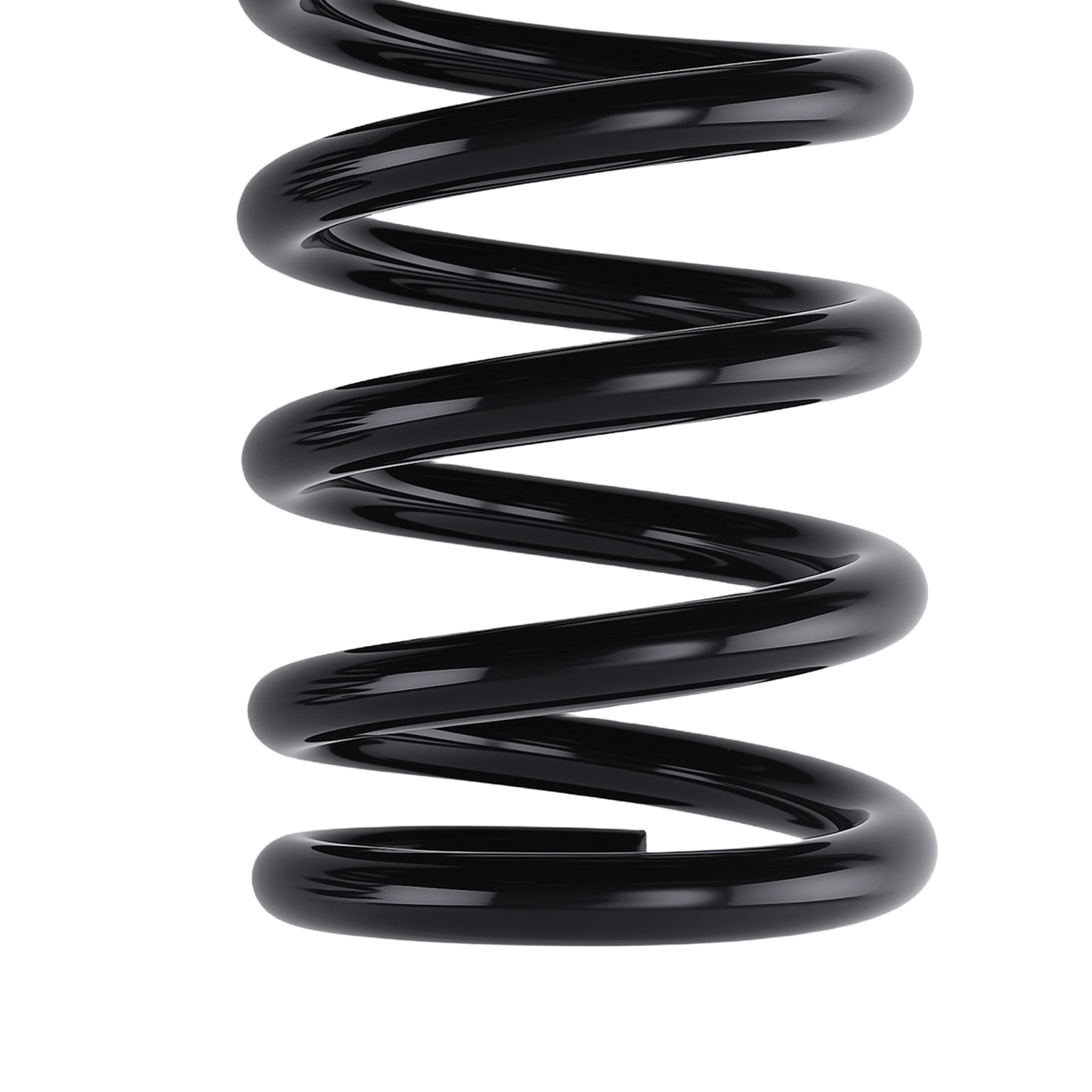

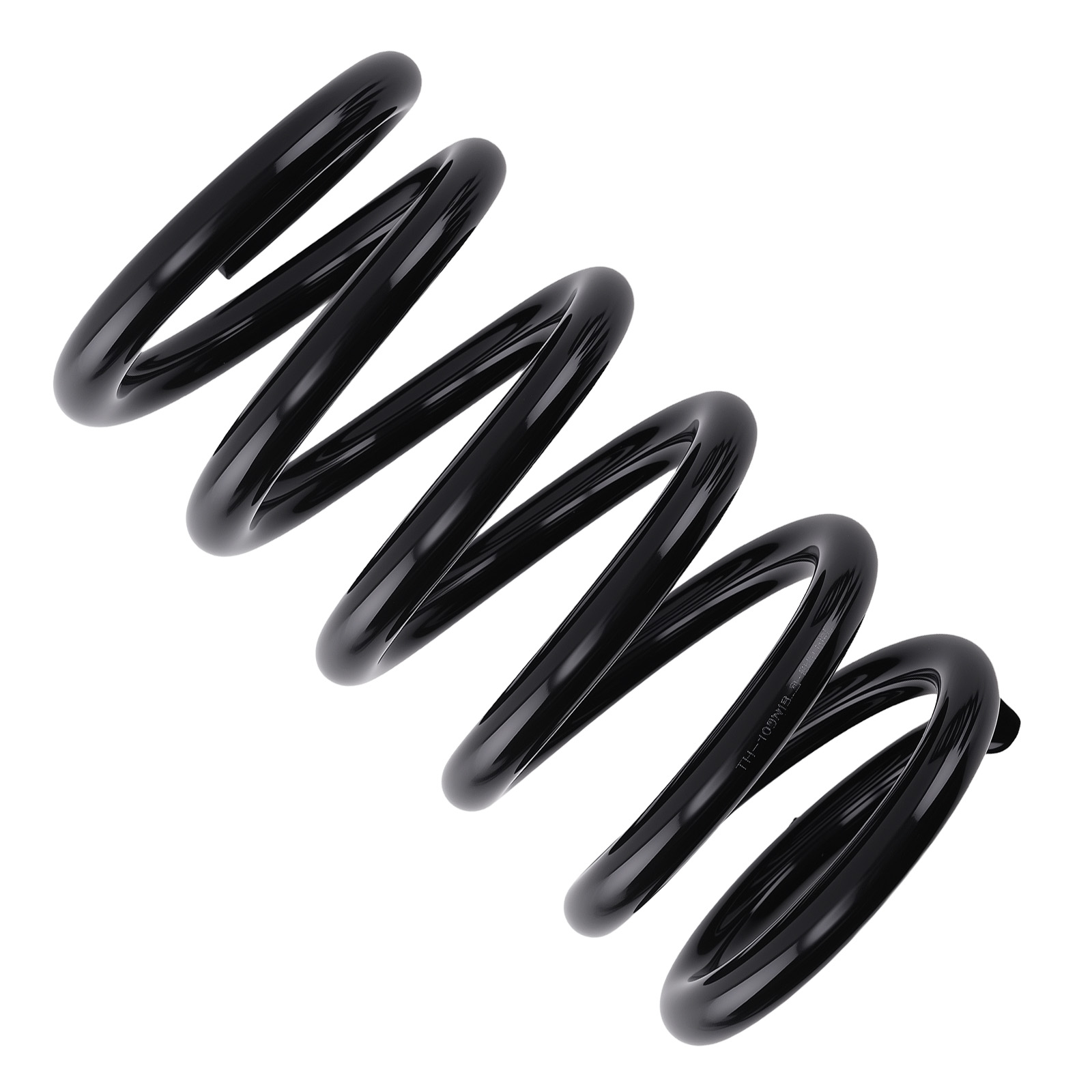

Coil spring material: 55CrSi steel

Finish: powder coated

Spring length: 290mm/11.41"

Spring rate: 12kg/mm=671.97lbs/in

Tensile strength：1500-1700MPA(It is recommended to write 1500-1600MPA)

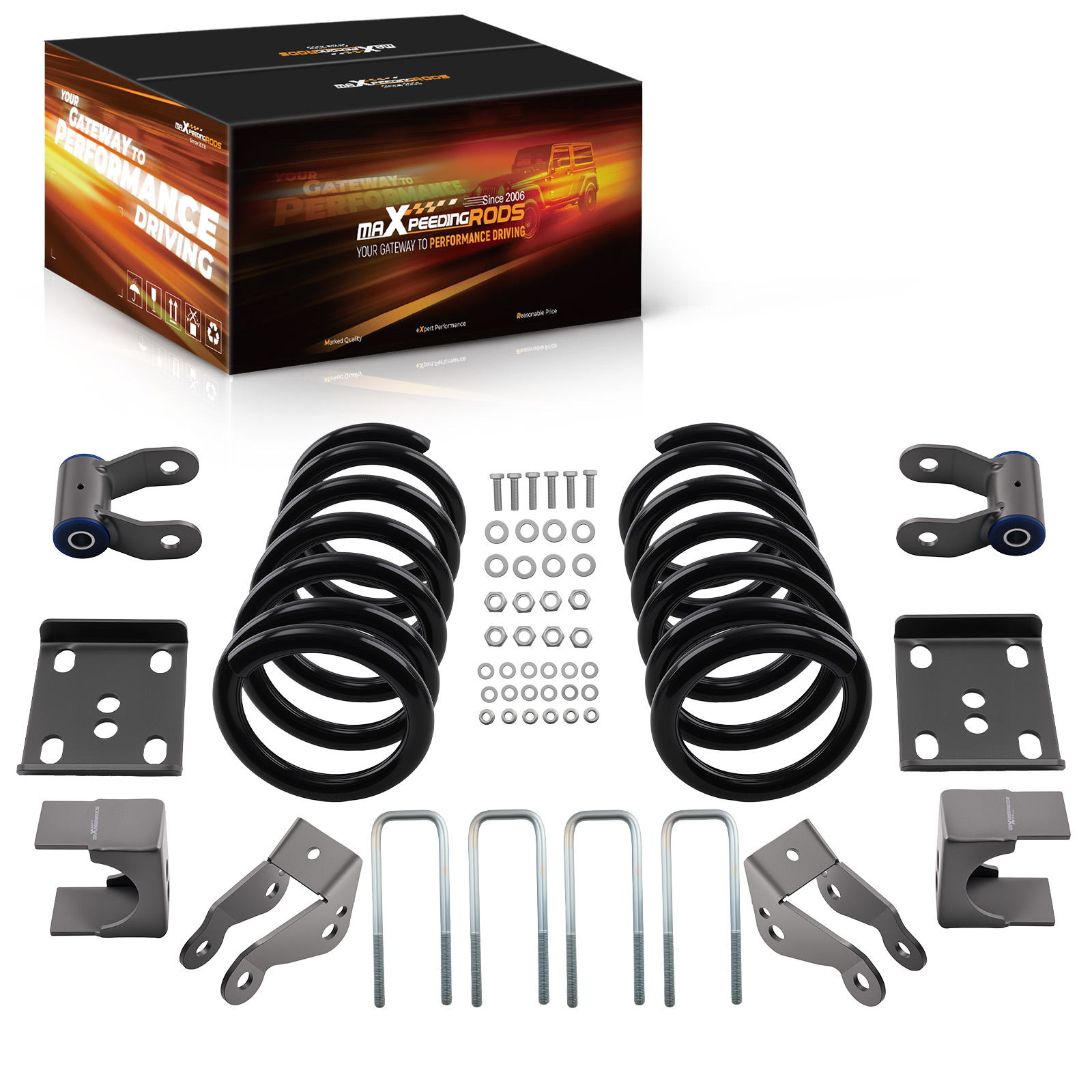

Package included:

2x Front drop coils

1x Rear axle filp lowering kit

Material:High Tensile Strength Carbon Steel

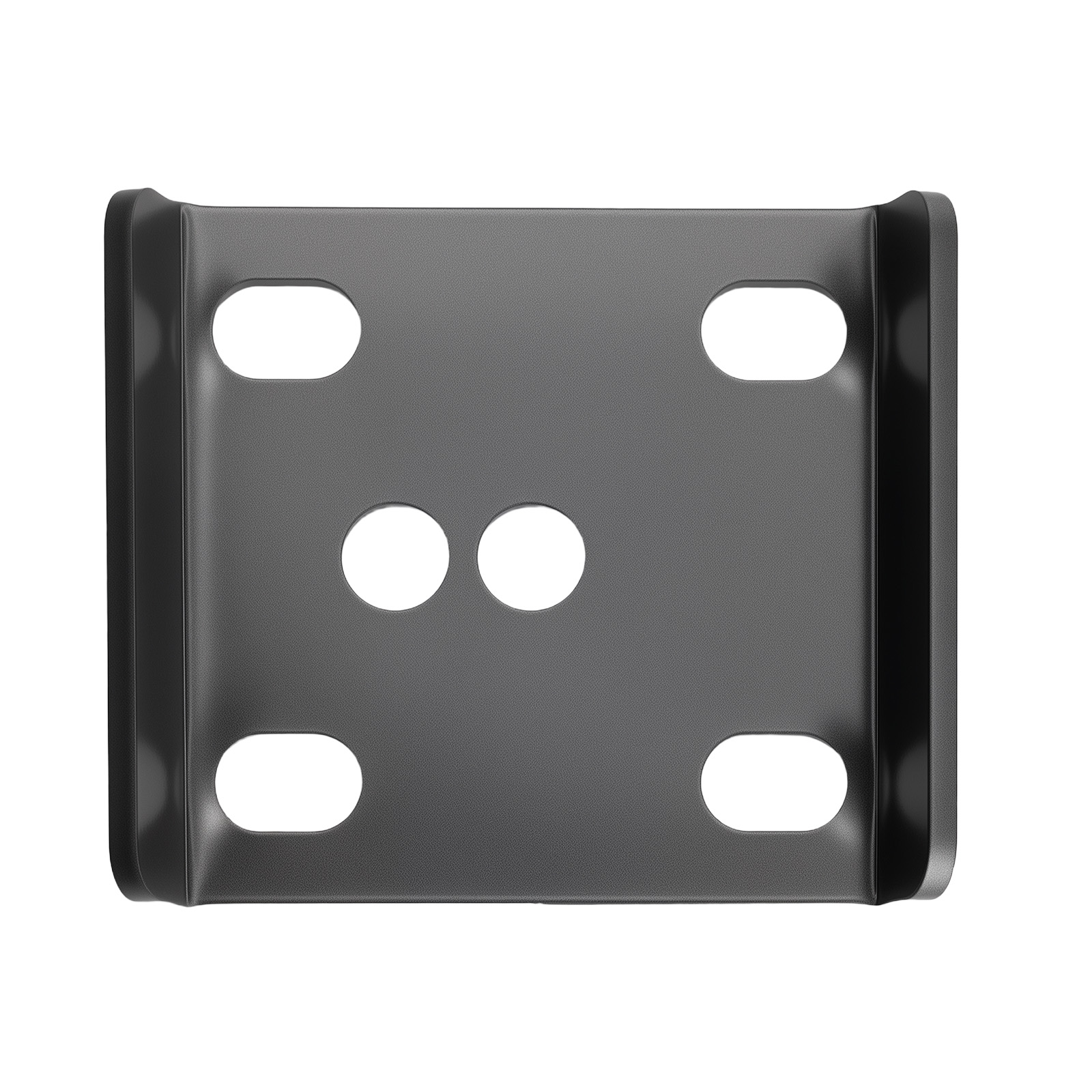

Material thickness:U-bolt plates 6mm/ 0.23"

Axle relocation saddles 5mm/0.19"

2x Lowering Shock Extender Extensions

Material:High Tensile Strength Carbon Steel

Thickness:5mm/0.19"

Feature:

Chromium-silicon cold-wound structure with high tensile strength and resilience

High tensile spring——600,000 times continuously test to assure its high tensile strength.

Powder coating for corrosion resistance

Lower the center of gravity, reduce cornering roll, and increase vehicle stability

Precision cutting and welding.

Allow to drop your truck 5" with a simple bolt-on installation.

A great, effective and inexpensive way to lower the front and rear of your truck
