Powerhobby Axial SCX30 FOC Brushless ESC / Motor Combo

Powerhobby Axial SCX30 Brushless ESC / Motor Combo

Description

Upgrade the Axial SCX30 from brushed power to smooth, efficient brushless performance with the Powerhobby FOC Brushless ESC and Motor Combo.

The included FAM32-25A ESC uses a simulated Field-Oriented Control algorithm to provide smooth low-speed operation, precise throttle modulation, and strong crawling torque. Its compact metal housing improves protection and heat dissipation while fitting into the SCX30’s limited chassis space.

The compact brushless motor is prewired with bullet connectors for an easy connection to the ESC. This system is designed for technical crawling where controlled starts, predictable throttle response, and low-speed precision are important.

Features

Designed specifically for the Axial SCX30
Complete brushless ESC and motor upgrade
Simulated FOC control algorithm
Smooth low-speed throttle response
Strong crawling torque
Precise throttle modulation
Compact metal ESC housing
Improved ESC heat dissipation
Low-voltage protection
Adjustable ESC parameters
Compact brushless motor
Prewired motor bullet connectors
Designed for 2S LiPo power
Includes wiring harness and connectors

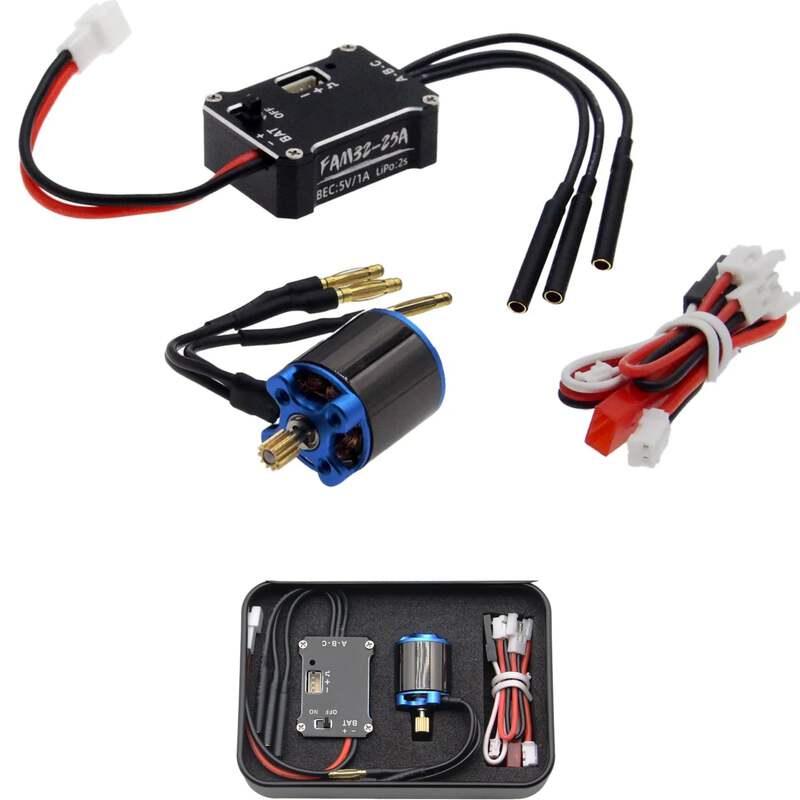

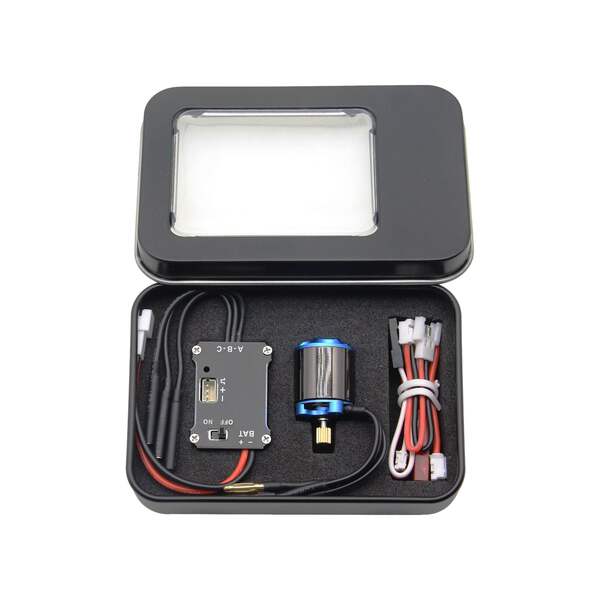

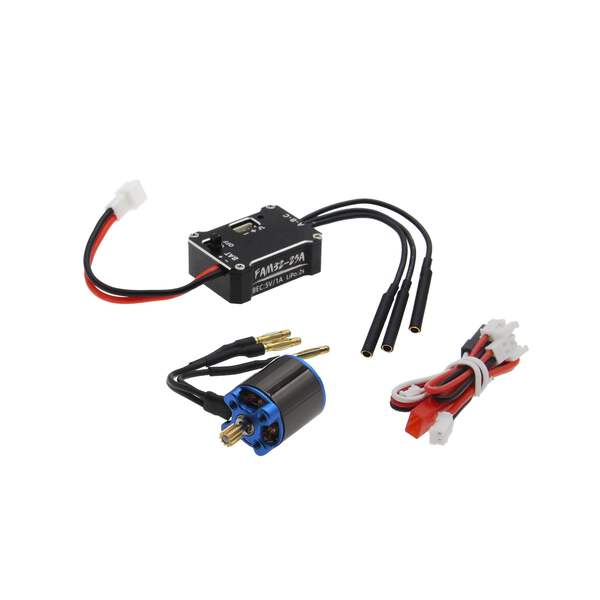

Includes

1 FAM32-25A Brushless ESC with Metal Case
1 Compact Brushless Motor
Wiring Harness
Connectors as Shown

Specifications

SKU: PHB7598
UPC: 800185012252
System Type: Brushless ESC and Motor Combo
Recommended Application: Micro RC Crawling
ESC Model: FAM32-25A
ESC Control Type: Simulated FOC
Battery Compatibility: 2S LiPo
Continuous Current: 25A
Peak Current: 60A
BEC Output: 5V/1A
ESC Housing: Metal
ESC Color: Black
Motor Type: Brushless
Motor Connection: Preinstalled Bullet Connectors
Programmable: Adjustable through a compatible program adjuster and software

Motor Note

The current product specifications do not list the motor’s KV rating, dimensions, shaft size, or pinion-tooth count. These details should not be added to the listing unless confirmed by the manufacturer.

Fits

Axial SCX30

Designed as a brushless power-system upgrade for the Axial SCX30. Verify chassis clearance, battery connector compatibility, receiver setup, and drivetrain condition before installation.

Installation Note

Use a compatible 2S LiPo battery only. Confirm correct battery polarity and securely connect all three motor wires before applying power.

Complete the ESC calibration and verify the motor’s rotation direction before driving. If the motor rotates backward, follow the ESC instructions for reversing motor direction. Make sure the drivetrain moves freely and monitor motor and ESC temperatures during the first run.
