Product description

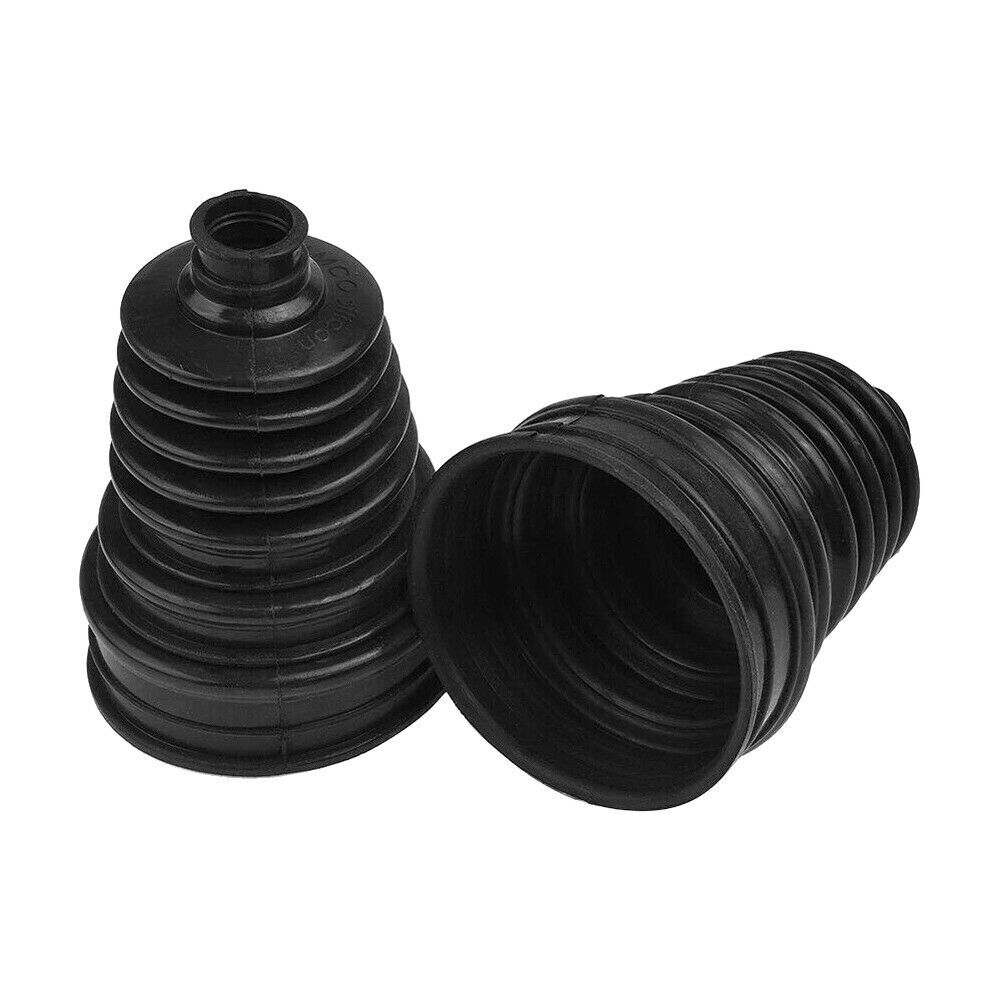

2 x axle boot bellows drive shaft universal joint set cuff new

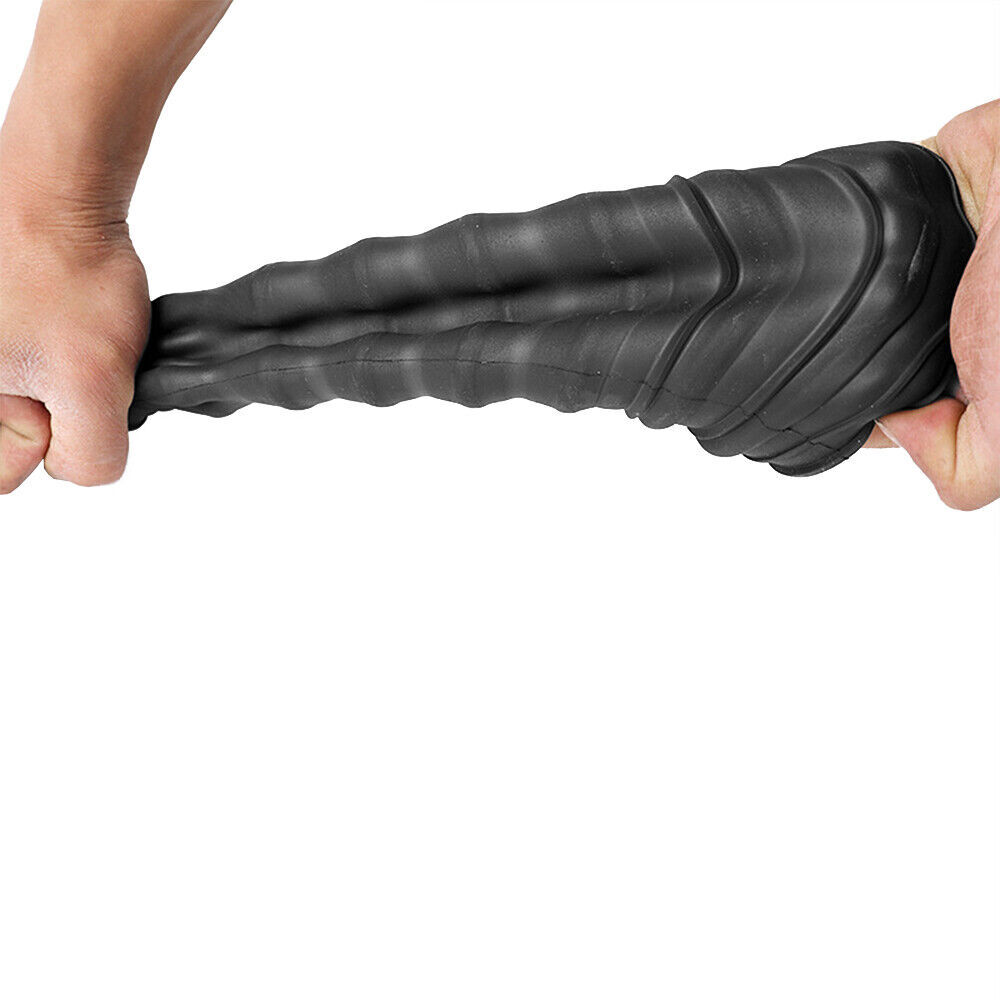

Expandable drive shaft boot set
Made from high quality neoprene which is grease, water, ozone, abrasion and temperature resistant
Fits most inner and outer CV joints (except metal bonded and trilobal)
No need to disassemble the joint. No cutting required
Suitable for shafts 19 - 28 mm and CV joints 56 - 110 mm

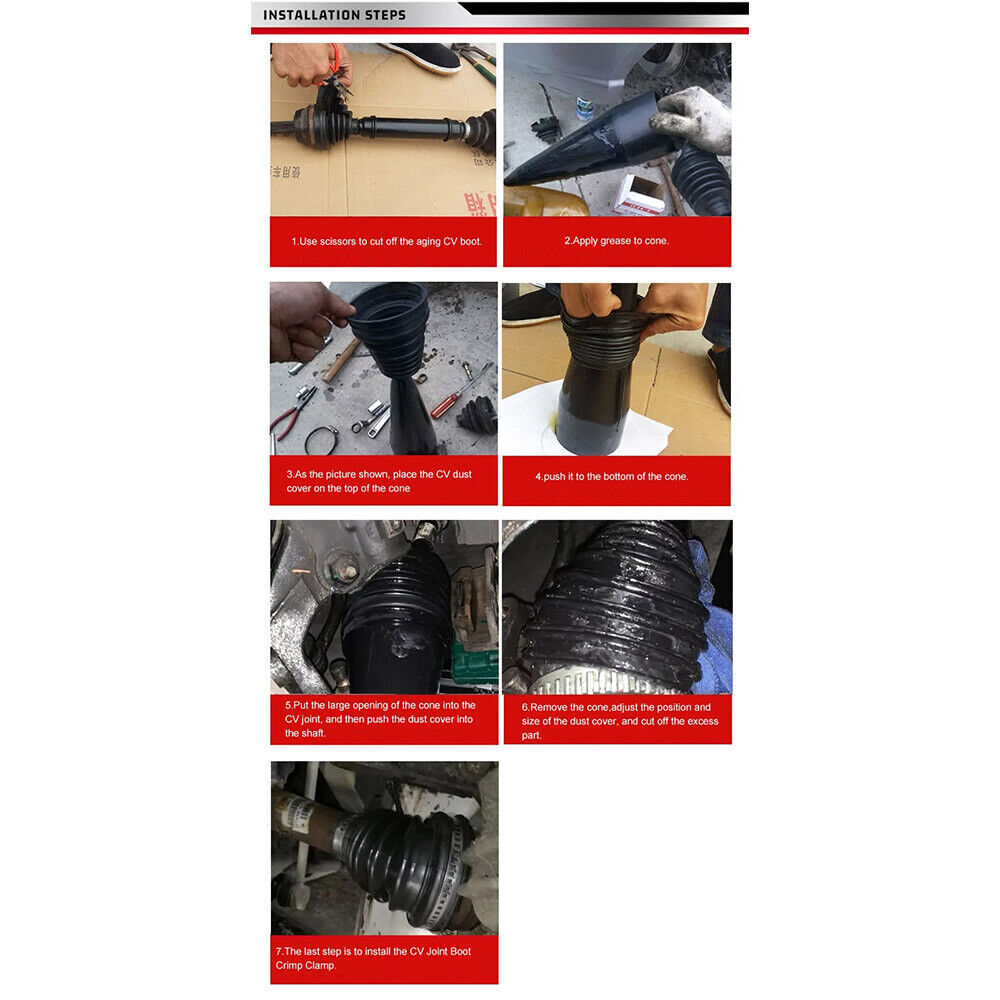

Installation:
Turn the CV boot from the inside out.
Apply grease to the cone.
Place the cone on the shaft and attach the CV boot to the top of the cone.
Slide the CV boot onto the end of the cone.
Slide the CV joint onto the shaft, remove the cone, lubricate the joint and return the CV boot to its original shape.

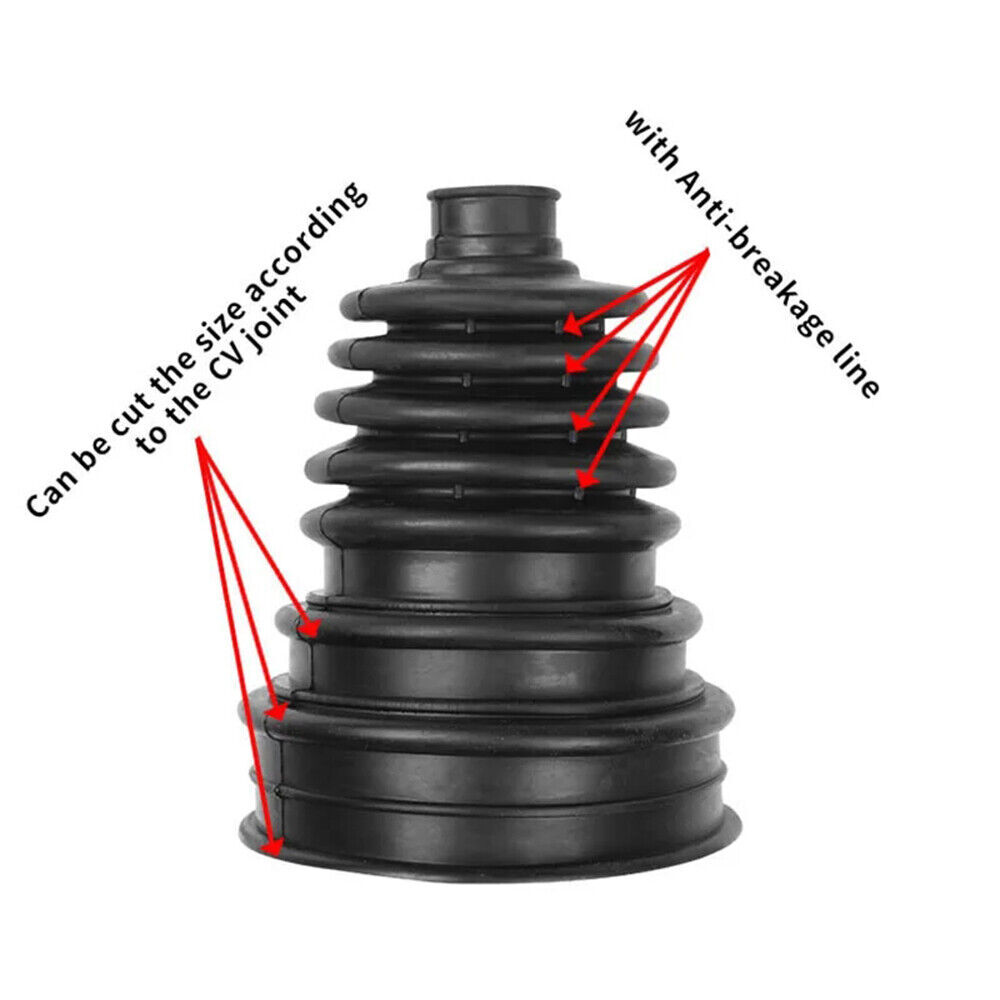

Install the stainless steel bracket and remove the excess CV boot at the bottom.

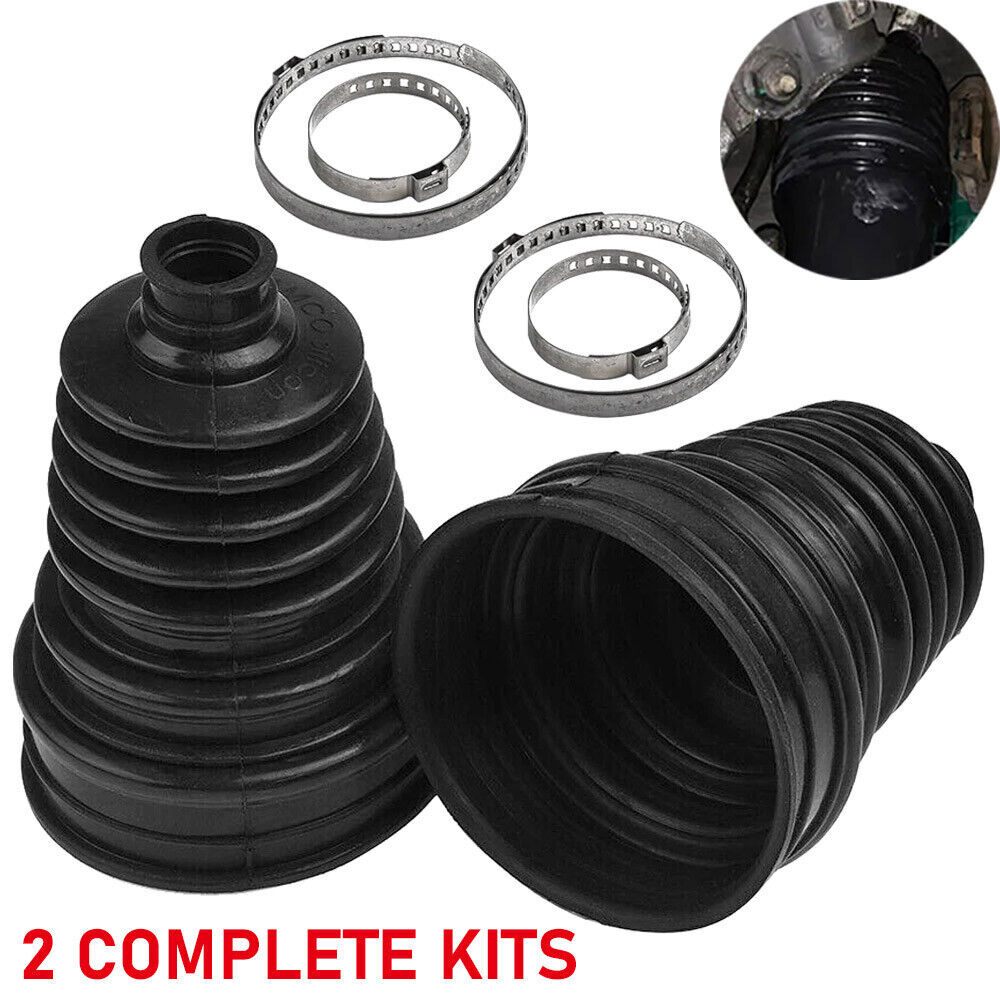

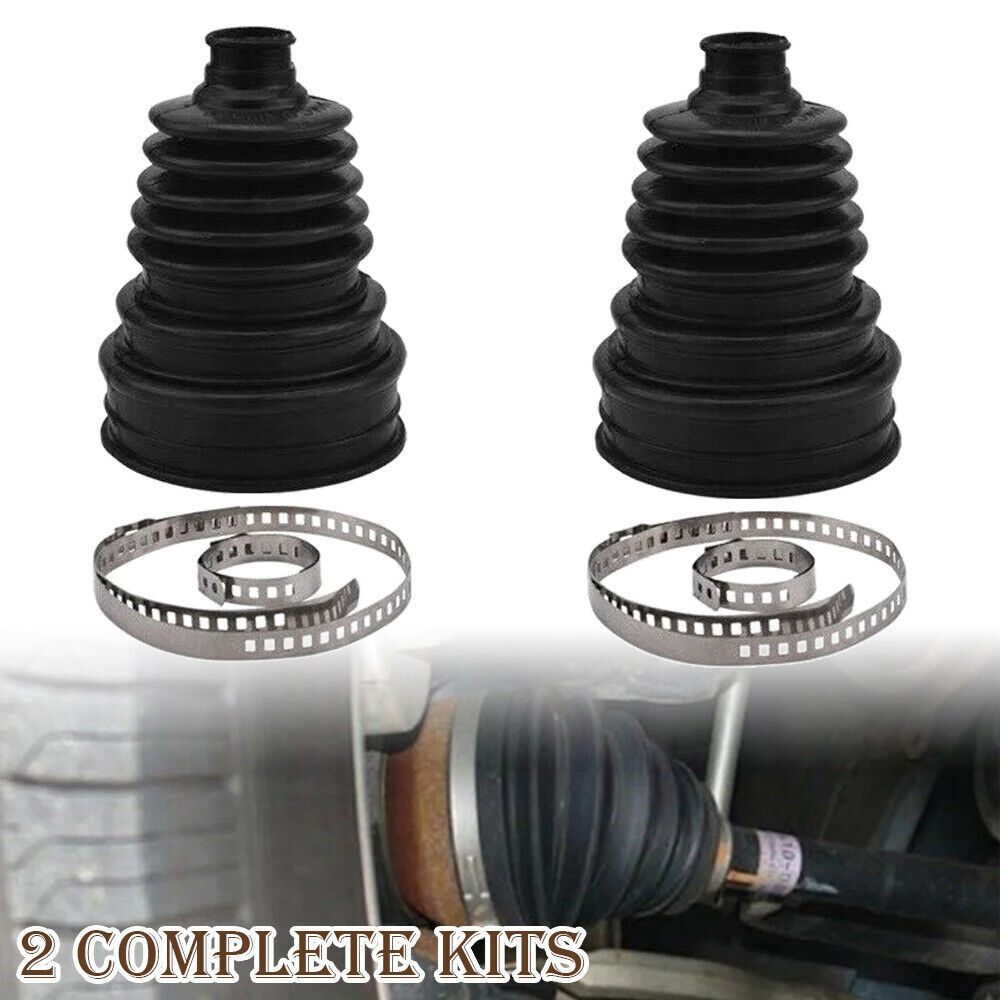

Package contents:
2 x Universal Cuff
4 x CV Brackets
