Compatible with
This connector is specially designed for connecting photovoltaic solar energy systems with high mechanical requirements and extreme weather conditions, compatible with photovoltaic cables with a diameter of 2.5mm²--4.0mm²
waterproof ring
self-locking system
The connector is equipped with a high-strength waterproof ring, providing IP67 waterproof and dustproof
High quality PC material
High-quality PC material with high heat resistance, abrasion resistance, pollution resistance and flame retardancy ensures long-term reliability and performance
The joint is connected by compression. The head of the male and female connectors has a built-in self-locking system, which makes it easy to open or close.
Specification
Insulation material: PC/PA, black
Contact Material: Copper Tinned
Temperature range: -40℃～+125℃
Rated current: 30A
Applicable cable: 2.5mm2, 4mm2 (AWG14, AWG12)
Pin size: 4.0 mm diameter
Plug resistance: 1mmΩ
Pollution degree: CAT III/2
-Insulation material: PPO+PA
-Connection system: Crimp connection
Package Included:

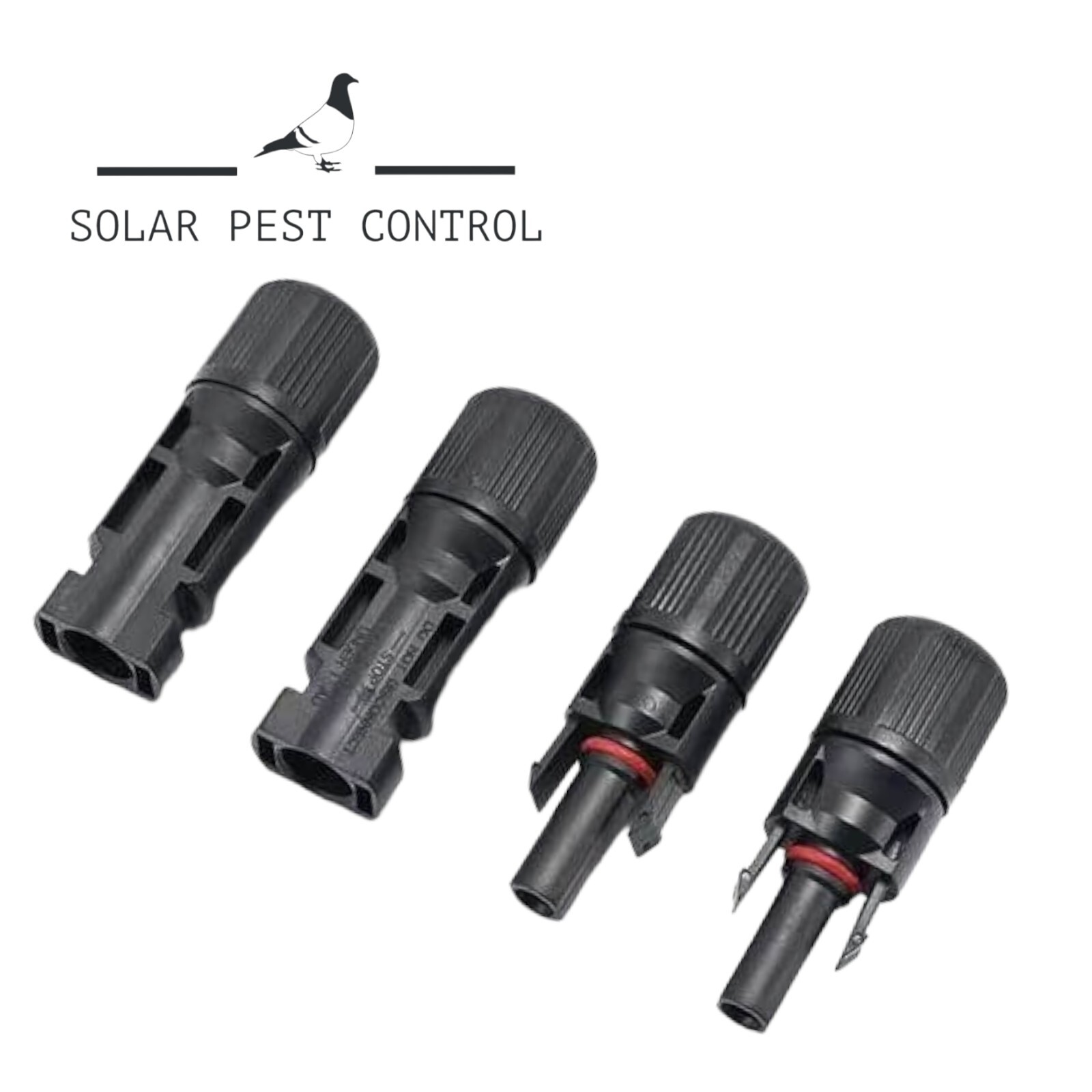

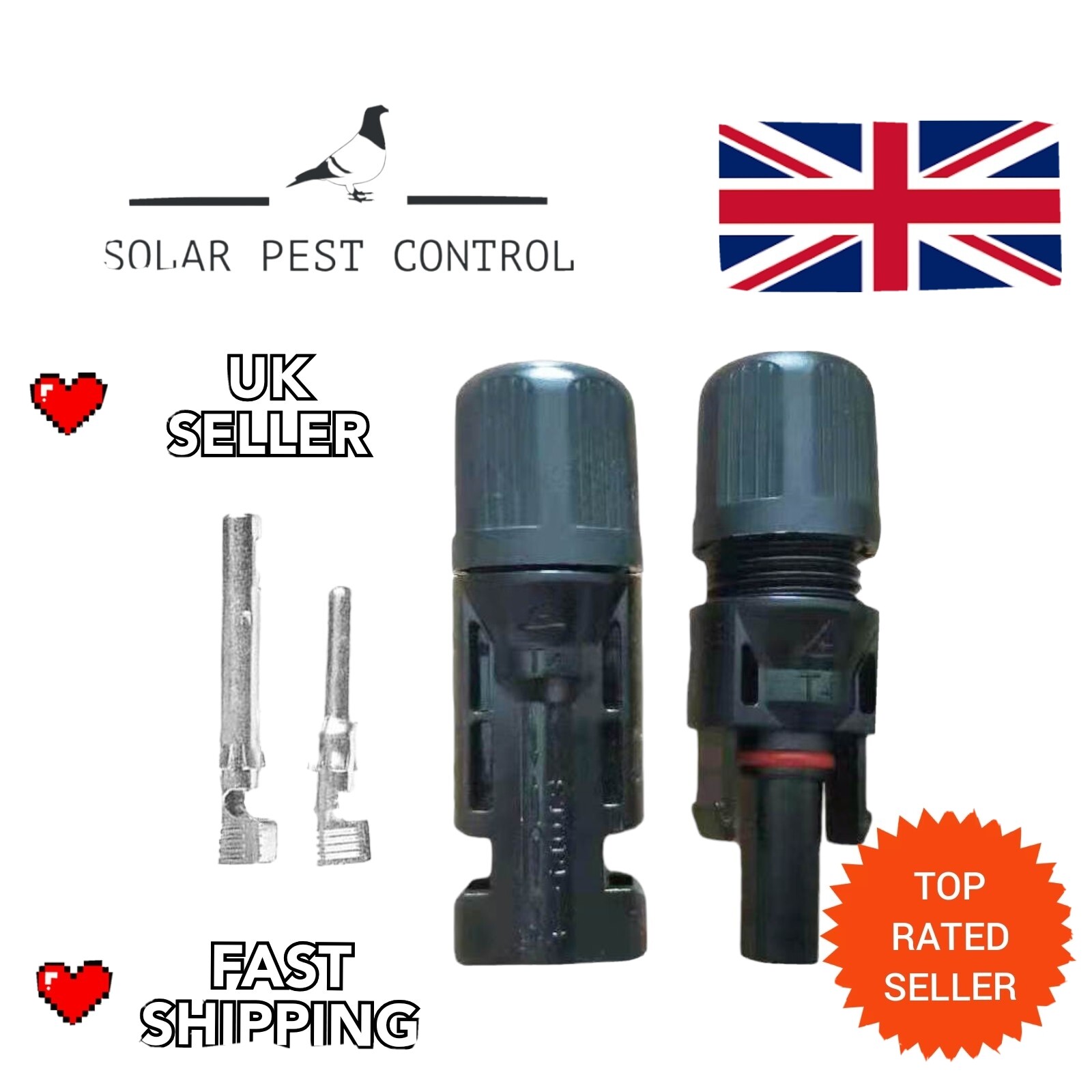

10/40/60/80/100x Male Solar Panel Cable Connectors
10/40/60/80/100x female solar panel cable connector
