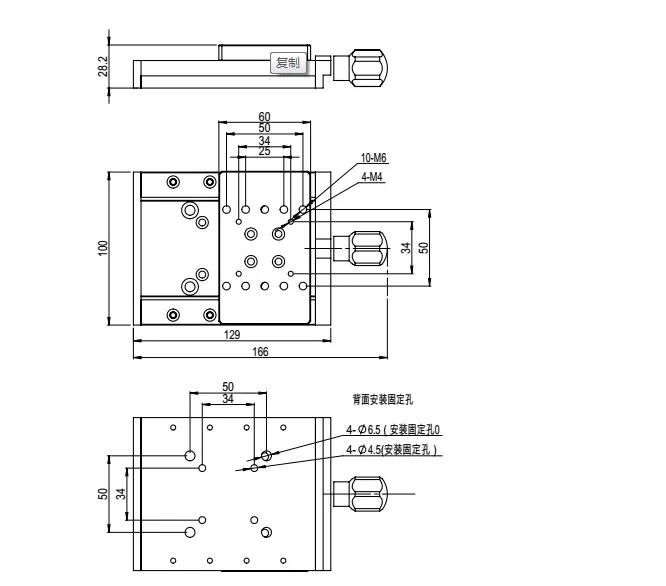

Manual translation stage: PT-SD102P

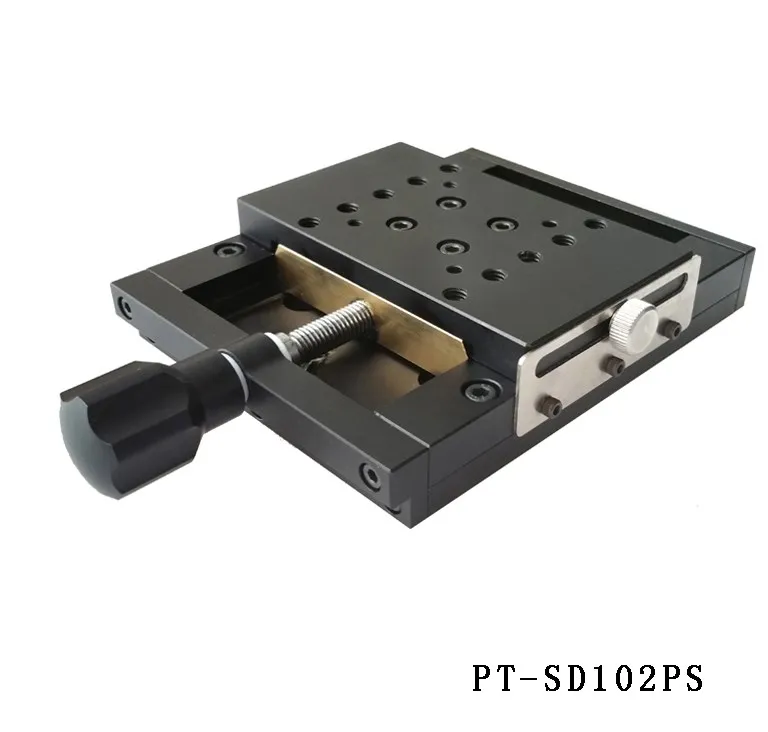

Manual translation stage: PT-SD102PS with lock function
Product Features:
※The guide rail is a dovetail pair with a large load capacity
※Displacement adjustment adopts finely ground lead screw, with large driving force
※The precision grinding screw is placed in the center of the translation table, which is easy to operate
※Installation holes with standard hole spacing are distributed on the table and base, which is convenient for installation and combination
※It can be composed of multi-dimensional adjustment rack or other series of products

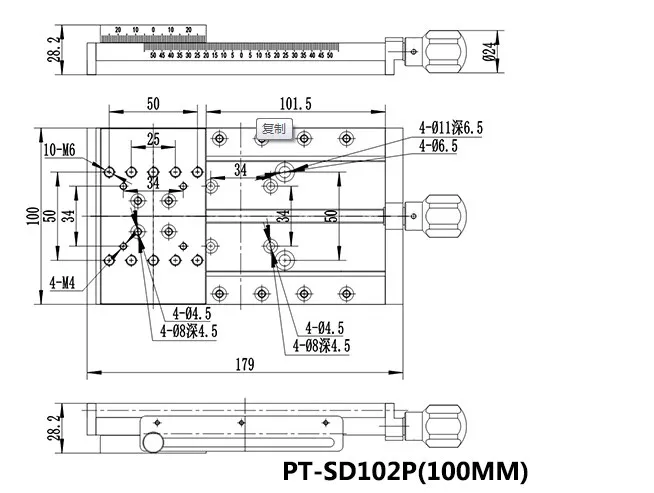

Model: PT-SD102P
Table size: 100mm×60mm
Drive mode: ground screw
Drive position: central drive
Stroke: 50mm
Z small scale: 0.1
Z small adjustment amount: 8μ
Guide rail form: refined dovetail pair
Carrying capacity: 12kg
Straightness: 30μ
Table parallelism: 50μ
Movement parallelism: 40μ
Material: Duralumin
Surface treatment: black anodized
Manual translation stage: PT-SD102PS with lock function
Product Features:
※The guide rail is a dovetail pair with a large load capacity
※Displacement adjustment adopts finely ground lead screw, with large driving force
※The precision grinding screw is placed in the center of the translation table, which is easy to operate
※Installation holes with standard hole spacing are distributed on the table and base, which is convenient for installation and combination
※It can be composed of multi-dimensional adjustment rack or other series of products
Model: PT-SD102P
Table size: 100mm×60mm
Drive mode: ground screw
Drive position: central drive
Stroke: 50mm
Z small scale: 0.1
Z small adjustment amount: 8μ
Guide rail form: refined dovetail pair
Carrying capacity: 12kg
Straightness: 30μ
Table parallelism: 50μ
Movement parallelism: 40μ
Material: Duralumin
Surface treatment: black anodized
