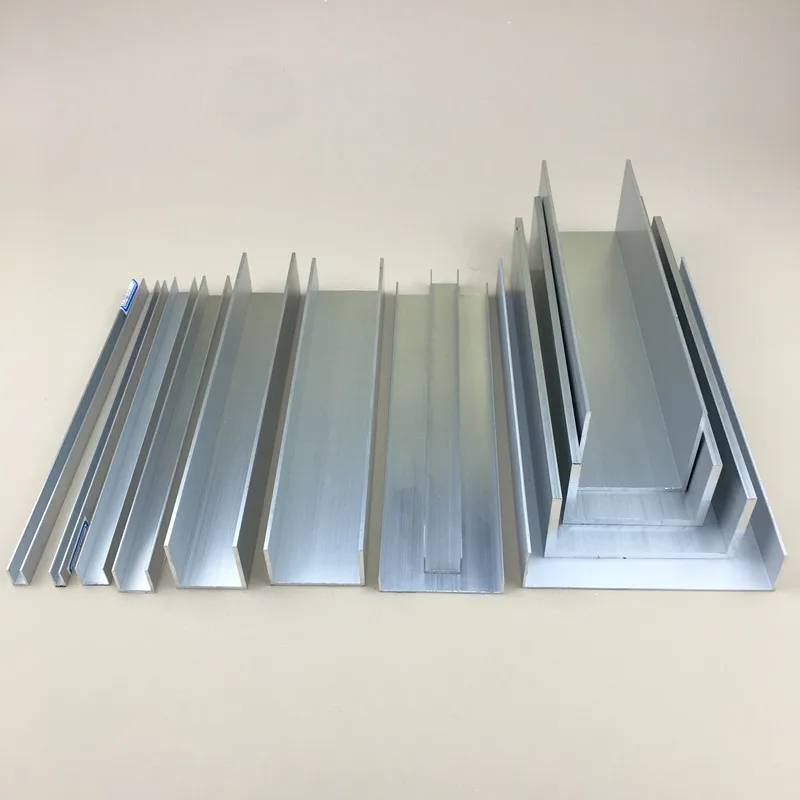

Aluminium Channel U Profile 10mm 12mm 15mm 20mm 22mm 25mm 30mm 35mm 40mm 42mm 50mm

Product Description

Material:  6063Aluminum Alloy
Size:10mmx10mm~50mmx25mm
Length:100mm-500mm
Specification:  According to your choice
Dimensions: 10mm x 10mm x 1mm means the bottom width is 10mm, the height on both sides is 10mm, and the thickness is 1mm.

Note:
1. Materials will have thickness/length/width, cutting/processing positive and negative tolerances. You can choose positive or negative tolerances according to your needs. To avoid unnecessary trouble, those with strict tolerance requirements should consult customer service first. Confirm if the requirements can be met before purchasing!
2. Raw materials may be scratched (with scratches) after cutting and handling. High surface requirements, please purchase with caution! Materials generally have thickness tolerances, which vary depending on the type of material.
3. Customized products without quality issues do not support returns or exchanges. Due to the special nature of the product (customized products, subject to the rendering), cutting and processing may affect secondary sales. If there are no quality issues, we do not support returns. Thank you for your cooperation.
4. As different computers display different colors, the actual product color may beslightly different from the image, the actual product shall prevail.
5. If you need other specifications, please contact with us.

Aluminum groove inner width:
10*10*1mm=inner width: 8mm
10*15*1mm=inner width: 8mm
12*12*1mm=inner width: 10mm
15*10*1mm=inner width: 13mm
15*15*1mm=inner width: 13mm
15*15*2mm=inner width: 11mm
20*10*1mm=inner width: 18mm
20*10*2mm=inner width: 16mm
20*20*2mm=inner width: 16mm
22*10*1mm=inner width: 20mm
22*30*2mm=inner width: 18mm
25*20*1mm=inner width: 23mm
25*25*1mm=inner width: 23mm
25*25*2mm=inner width: 21mm
30*30*2mm=inner width: 26mm
35*25*2mm=inner width: 31mm
40*25*2mm=inner width: 36mm
42*30*1mm=inner width: 40mm
50*25*2mm=inner width: 46mm
