Specification

• Item Type: Shockwave Therapy Machine
• Material: ABS
• Frequency: 16 Levels
• Energy gear: 25 Levels (10~250MJ)
• Number of Probes: 11
• Voltage: AC 100‑240V, 50/60Hz

Package List

• 1 x Host
• 1 x Handle
• 11 x Massage Heads
• 4 x Function Head Rubber Cover
• 14 x Rubber Ring
• 1 x English Manual
• 1 x Plug

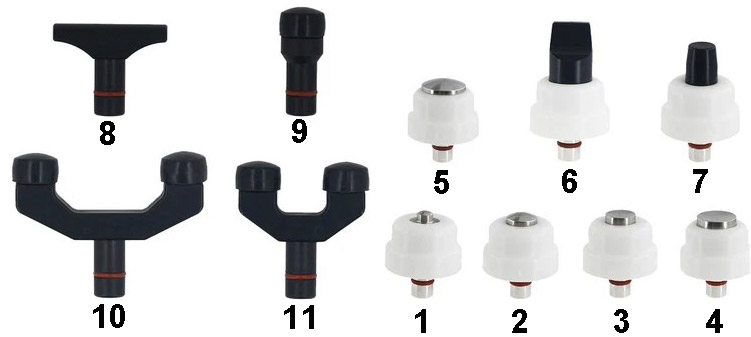

• The blue covers are suitable for work heads: 1#,2#,3#,4#,5#.
• 1#,2# use for treatment and curved part such as wrists,elbow and knees.
• 3#,4#,5# use for large treatment area on the body.
• If you want to use gel or other lubricants when you do the treatment,please put the blue cover on the work head.To prevent lubricants from entering the working head.
• 8# (T-head), 9# (Single Pressure head), 10# (Big U head), 11# (Small U head).
• It can be used for massage and chiropractic.

General Introduction：

• The shock wave physiotherapy instrument uses electromagnetic shock wave energy to focus on the human body to activate osteoblasts and tissue cells. Its cavitation effect, osteogenic effect, metabolic activation effect, and analgesic effect can improve the oxygen absorption function of local blood cells and accelerate micro Circulation, thereby loosening tissue adhesions, improving local blood circulation, and speeding up recovery.
• Shockwave is aimed at the affected areas that are the source of chronic pain. The influence of the shockwave causes to the dissolution of calcium deposits and leads to better vascularization. The after-effects are relief from the pain.

Shockwave has the following effects:

• Cellular: Increase in cell membrane transmittance by improving ionic channels activity, stimulation of cell division, stimulation of cellular cytokines production.
• Reproduction of vessels in the area of tendons and muscles: Improvement of blood circulation, increase in concentration of growth factor beta 1, chemotactic and mitogenic effect on osteoblasts.
• Effect on nitrogen oxide system: Bone healing and remodeling.
• Supports the production of collagen.
• Reduction in tissue tension.
• Analgesic effect.
• Improvement of macro-circulation and metabolism.

Basal Operation：

1. Put accessories well and connect them to the host.
(1) Insert the plug of shockwave work handle into output jack.
(2) Insert the plug of service break into output jack.
(3) Choose appropriate work head. hold the work handle in one hand and unscrew the work head from the work handle with the other hand (anticlockwise),screw the new work head tightly into the work head(clockwise).

2. Insert the plug of power supply line into socket turn on general power switch.

3. In interface.
(1) Click on "Basic setting" to select language set time
(2) Click on the corresponding picture where you want to treatment of the screen to enter function interface.
This system include 11 function operation parts.
This use's manual use elbow treatment for example.In interface, click on "Elbow" to enter interface.

4. In the "Elbow" interface :
(1) "Preselection 500 Times" stands for when the system works to 500 time every time, it will pause automatically. please click on any place of the screen according to the hint.
(2)"Current" stands for the working time of the current treatment course. Click on "RESET" to clear the number of current treatment.
(3)"Frequency 1HZ" stands for the system default work frequency is 1HZ, click on"< and ">" to regulate. The range is :1HZ-16HZ.
(4) "Energy 10mj" stands for the system default work energy is 10mj, click on" " and ">" to regulate. The range is :10-250mj.
(5) Click on "▶ " button, start working, click on "Il" stop working.

Note: please turn off the power switch of the instrument when changing the working head or unplugging each plug.
