Product Description

Bullet Points:
1/2-inch wall thickness, food-grade stainless steel: This 200L pressure tank is made of food-grade 304 stainless steel with a 1/2-inch wall thickness. It is environmentally friendly, waterproof, wear-resistant, pressure-resistant, odorless, and resistant to high and low temperatures, suitable for environments ranging from -60℃ to 60℃, and will not freeze or crack in winter. It can come into direct contact with water, providing safe drinking water that meets human drinking water standards.

High pressure resistance: The pressure tank can withstand working pressures up to 42psi, with a starting pressure of 0.12MPa and a tripping pressure of 0.24MPa. The pressure tank has a built-in cleaning port on the top for automatic drainage, preventing negative pressure buildup under vacuum.

Avoid bladder failure and easy maintenance: This 304 stainless steel well pressure tank is bladder-free, eliminating the risk of rubber aging, cracking, or leakage. Compared to bladder-type pressure tanks that require diaphragm or gasket replacements, pure 304 stainless steel pressure tanks offer lower maintenance costs. Unlike traditional tanks without drainage, the bottom drain valve allows for easy flushing. Regular drainage helps keep the water clean and extends the tank's lifespan.

1-inch ASME Standard Sealing Tapered Pipe Thread: Our water tanks are equipped with 1-inch ASME standard sealing tapered pipe threads. Teflon tape tightly wraps the threads, forming a tight, leak-proof seal, ensuring a secure connection.

Working Principle and Applications: The water tank holds approximately 50% to 70% of its total volume, with a discharge rate of approximately 50%. It automatically pumps water when the volume decreases and automatically stops when the tank is full. It meets daily water needs, including well water pumping, industrial cleaning, tap water pressurization, garden irrigation, and purified water bottling. It can also be used for school water supply, agricultural/industrial water supply, building water supply, cold/hot water sanitation systems, or is suitable for home water treatment plants.

Recommended Model Selection: 15-25 gallon for 1-2 people, 40 gallon for 3-4 people, and larger sizes for larger families.

Note: The pressure inside the tank is the pump's own pumping pressure. If the pump has high power and the customer has not connected the pump power cord to the pressure switch, the pressure switch will not control the pressure. If the customer connects the pump power cord to the pressure switch, the pressure switch will control the pump pressure. The factory-set pressure of the pressure switch is no more than 3 bar. Customers are not allowed to adjust the pressure themselves.

Specifications:
Material: 304 Stainless Steel
Model: 200L
Wall Thickness: 1/2 inch
Thread Inlet/Outlet Size: Outer Diameter 32.4mm
Capacity: 42psi
Pressure: Starting Pressure 0.12MPa, Trip Pressure 0.24MPa
Suitable Environment: -60℃ to 60℃
Applications: Schools, Factories, Homes, Irrigation

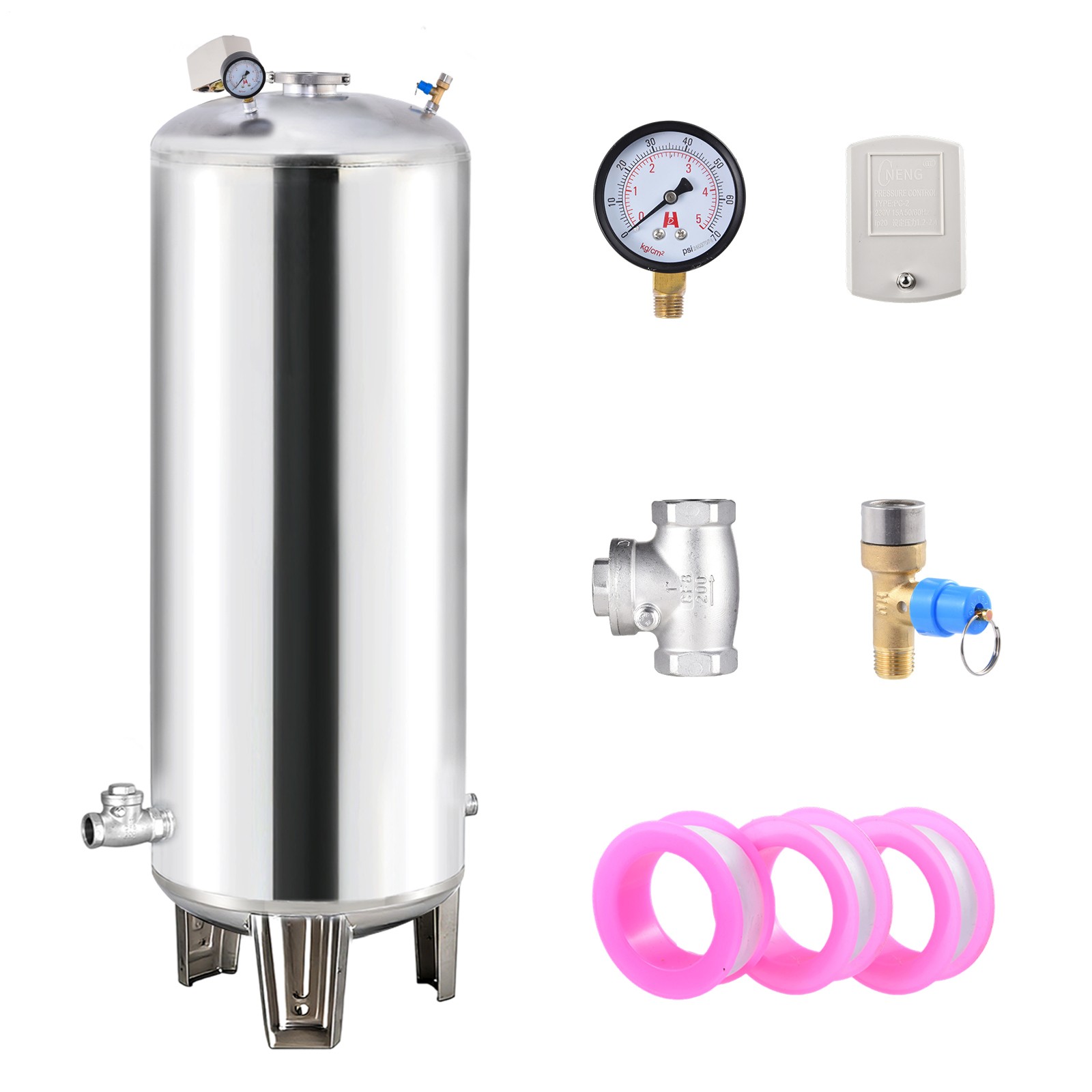

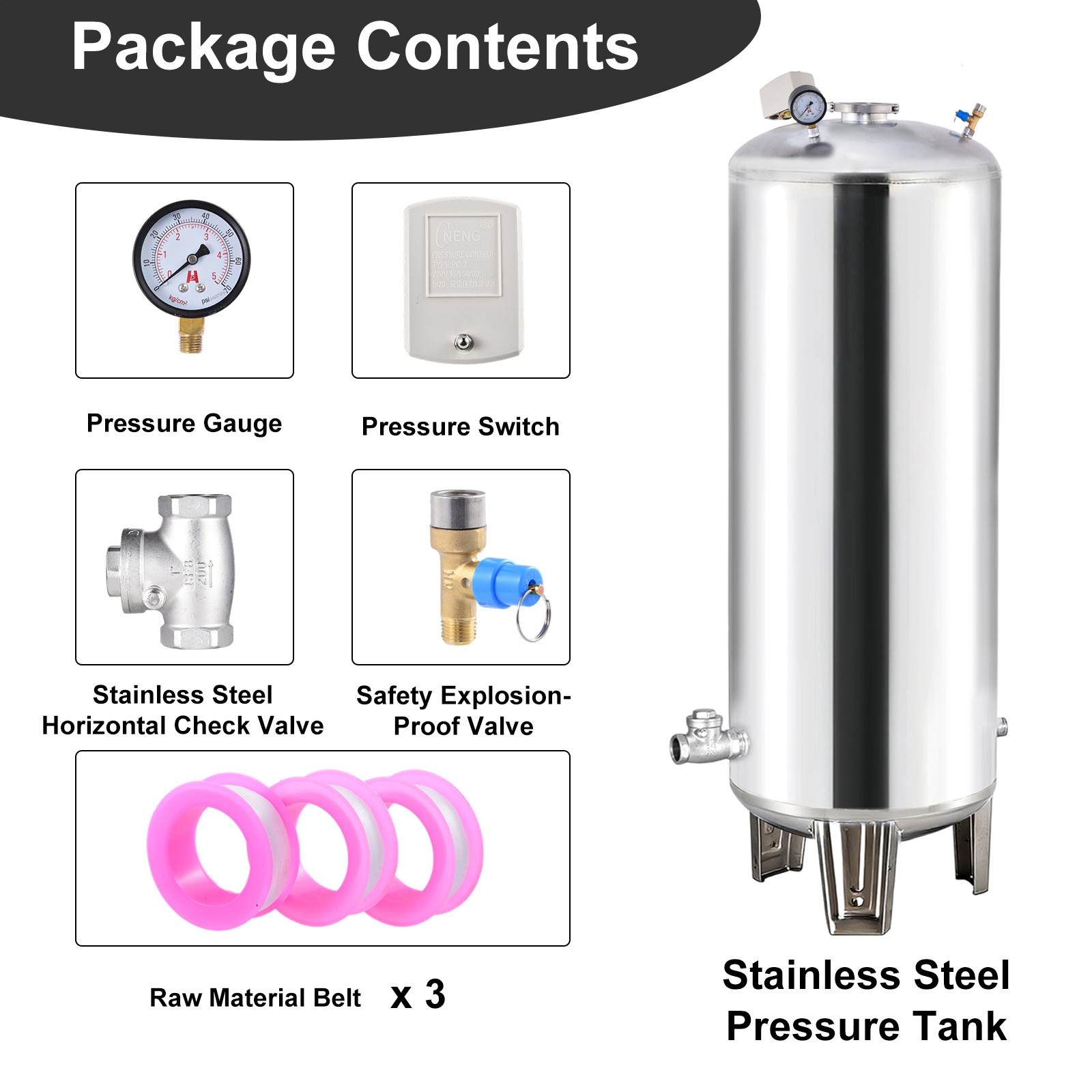

Packing List:
 Stainless Steel Pressure Tank *1
Safety Explosion-Proof Valve *1
Pressure Gauge *1
Pressure Switch *1
Stainless Steel Horizontal Check Valve *1
PTFE Tape *3
